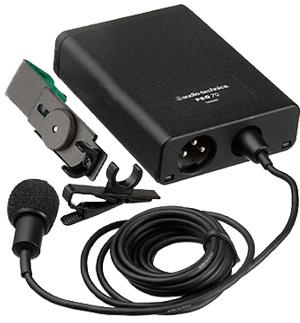

The Audio Technica PRO 70 is a Cardioid Condenser Lavalier/Instrument Microphone. Natural and articulate vocal reproduction when used as a clip-on lavalier.
This miniature condenser microphone achieves full-sounding pickup and is known for outstanding consistency and dependable performance. Supplied with both a clothing clip and guitar mount, it provides natural and articulate vocal reproduction when used as a clip-on lavalier and excels in pickup of acoustic guitar. The PRO 70 is designed to make music and speech clearly and comfortably audible, yet never draw attention to itself or its operation. The microphone is equipped with a low-frequency roll-off switch that allows for reduced pickup of room noise. The versatile PRO 70 may be powered by either battery or phantom power. Its cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.
Miniature condenser microphone is ideal for both vocal and acoustic guitar applicationsNatural and articulate vocal reproduction when used as a clip-on lavalier-clothing clip includedExcels in pickup of acoustic guitar with included instrument adapterCardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound sourceSwitchable low-frequency roll-offCorrosion-resistant contacts from gold-plated XLRM-type connectorOperates on battery or phantom power6' (1.8 m) cable permanently attached between microphone and power module
ELEMENT: Fixed-charge back plate, permanently polarized condenserPOLAR PATTERN: CardioidFREQUENCY RESPONSE: 100-14,000 HzLOW FREQUENCY ROLL-OFF: 80 Hz, 8 dB/octaveOPEN CIRCUIT SENSITIVITY: Phantom: -45 dB (5.6 mV) re 1V at 1 Pa, Battery: -45 dB (5.6 mV) re 1V at 1 PaIMPEDANCE: Phantom: 200 ohms - Battery: 200 ohmsMAXIMUM INPUT SOUND LEVEL: Phantom: 123 dB SPL, 1 kHz at 1% T.H.D. , Battery: 123 dB SPL, 1 kHz at 1% T.H.D.DYNAMIC RANGE (typical): Phantom: 96 dB, 1 kHz at Max SPL - Battery: 96 dB, 1 kHz at Max SPLSIGNAL-TO-NOISE RATIO: 67 dB, 1 kHz at 1 PaPHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typicalBATTERY TYPE: 1.5V AA/UM3BATTERY CURRENT / LIFE: 0.4 mA / 1200 hours typical (alkaline)SWITCH: Off, on-flat, on-roll-offWEIGHT (MICROPHONE): 0.3 oz (8 g)WEIGHT (POWER MODULE): 4.7 oz (134 g)DIMENSIONS (MICROPHONE): 0.98" (25.0 mm) long, 0.40" (10.2 mm) diameterDIMENSIONS (POWER MODULE): 3.27" (83.0 mm) H x 2.48" (63.0 mm) W x 0.87" (22.0 mm) DOUTPUT CONNECTOR: Integral 3-pin XLRM-typeCABLE: Integral 6' (1.8 m), permanently attached between microphone and power moduleACCESSORIES FURNISHED: AT8411 clothing clip; AT8444 instrument adapter; power module; windscreen; battery; soft protective pouchAUDIO-TECHNICA CASE STYLE: M1
GTIN (UPC/EAN) : 042005134342
Manufacturer Part Number : PRO 70
