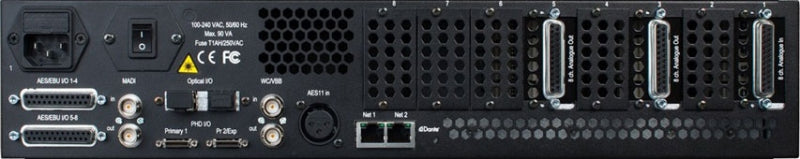

MTRX - Base unit w/ MADI and Pro|Mon

Design an interface for your specific needs

Inputs. Outputs. Analog. Digital. Remote-controllable mic pres and more. You can have it all thanks to eight card slots inviting you to mix and match whatever mic, line, MADI, Dante, AES3, SDI, and other I/O you desire. With up to three MADI ports on the chassis, plus eight dual MADI cards as options, you can also configure MTRX as a 19 x 19 MADI router. You get the versatility you need to connect with the widest array of gear and devices and into today's multifaceted studio environments.

Get the highest possible audio quality

Pro Tools | MTRX shines when used as a high-performance 64-channel audio interface for Pro Tools | HD. With DAD's sophisticated and transparent AD/DA conversion, you can preserve the sonic fidelity and musical nuances that other interfaces fail to capture-with sample rates up to 384 kHz/DSD. Hear music and audio exactly as the mic captured it, enabling you to deliver the truest sound productions with impeccable clarity.

Make connections right away

It's not all just about options. Pro Tools | MTRX also features an assortment of built-in I/O on the chassis as standard. Get a MADI interface that offers 64 I/O channels, an 8 line AES3 interface with 16 I/O channels, and a 2-port 64-channel DigiLink Mini I/O interface to connect your interface with Pro Tools | HDX and Pro Tools | HD Native systems.

Use one interface for multiple applications

Pro Tools | MTRX is a great fit for any Pro Tools music studio, providing everything you need to connect your system, mics (including talkback), instruments, control surfaces, speakers, and outboard gear. But it's also an ideal solution for location recording, Dolby Atmos post production, live sound production, multi Pro Tools post-production workflows, monitor control, and more, with its ability to integrate into any music or sound production environment.

Save time, space, and money

With its diverse connection abilities, Pro Tools | MTRX can effectively replace your army of single-format I/O and monitor interfaces taking up space in your racks. As an all-in-one device, it also expands yet streamlines your workflow possibilities, enabling you to do more while minimizing connection complexity and studio footprint requirements.

Keep things in sync

Pro Tools | MTRX provides high-precision internal clocking interfaces, enabling you to sync all of your audio devices and signals through Word Clock, AES11, video black burst (VBB), and all digital I/O. This ensures that you get the cleanest, most accurate performance-free of audio distortion and anomalies-across all of your connected devices.

Control, route, and monitor audio with ease

Take control with DADman

Pro Tools | MTRX comes with easy-to-use EUCON-enabled DADman software to configure and route signals, and control the Pro | Mon monitor section. Remotely control up to 48 mic preamps per interface from both DADman and Pro Tools | S6. You can also control multiple Pro Tools | MTRX interfaces from one workstation.

Get extensive monitor command

With Pro | Mon 2, you can configure your monitor section as you need it with multiple speaker sets. Build custom fold-down templates to instantly switch between monitor formats. Take control using DADman, your Pro Tools | S6 channel strips and Master Touch Module, or other EUCON-enabled control surface. In addition to its 1,500 x 1,500 matrix, Pro | Mon also provides a 256 x 32, 32-bit floating point summing mixer, enabling you to sum stems and sources to feed monitor outputs.

Communicate clearly

It's easy to open up a dialog between your control room and live room participants with built-in talkback capabilities. You can set any of the control room speaker or monitor outputs as your talkback source, as well as activate Cut and Dim options on any output.

Route audio your way

Pro Tools | MTRX features a powerful low-latency router that can manage up to 1,500 inputs and 1,500 outputs simultaneously. This gives you an incredible amount of audio signal flexibility across your entire studio. You can route any input channel to any output channel-and even to multiple output channels simultaneously-providing a flexible interface to Pro Tools | HD or to multiple DAWs simultaneously.

Work with multiple audio formats

Pro | Mon can be configured for a wide variety of multichannel audio formats to match your project at hand. From mono and stereo, to 5.1, 7.1, and 9.1 surround-and even up to 64 channels of audio output-you can create the most immersive high-resolution mixes to wow music fans and film/television audiences alike.

Keep an eye on signal status

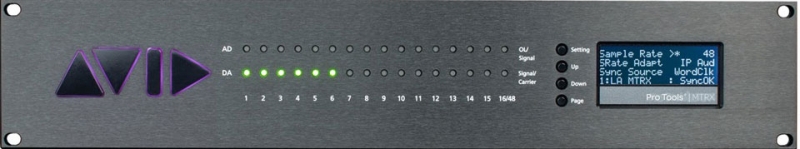

With an array of multicolor LED signal indicators, a status display, and control buttons on the face of Pro Tools | MTRX, you can get a quick glimpse into your session activity. View the signal strength of your analog inputs and outputs. And use the buttons to scroll or page through a variety of settings to view the current sample rate, sync source, sample rate controller, and more.

SYSTEM REQUIREMENTS

Pro Tools | HDX or Pro Tools | HD Native system running Pro Tools | HD 12 or higher software

SPECIFICATIONS

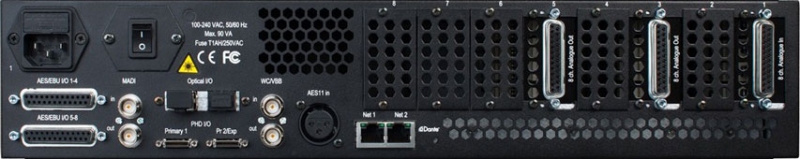

PRO TOOLS | MTRX BASE UNIT (BUILT INTO THE CHASSIS)

AES/EBU I/O: Eight AES pairs (16 mono) via two D25 connectors

MADI I/O: Coaxial interface with 64 I/O channels via BNC connectors

Option card slots: Eight available for I/O customization (see options below); up to six slots can be used to mix and match analog (AD/DA) cards, providing up to 48 analog channels per MTRX interface

System sync: Word Clock/video black burst (VBB) I/O via BNC connectors; AES11 input

Pro Tools interface: Two 32-channel DigiLink Mini connectors (64 channels total)

Sample rate: Supports 44.1 kHz-384 kHz, as well as DSD 64/DSD 128 with high precision internal clock and PLL

Power: Dual power supplies (internal)

Chassis: 2U 19-inch rack-mountable unit (482.6 mm)

OPTION CARDS

Analog I/O (up to six analog cards can be installed):

Pro Tools | MTRX 8 Line Pristine AD Card (8 analog inputs)

Pro Tools | MTRX 2 Mic/Line Pristine AD Card (2 analog inputs with mic pres)

Pro Tools | MTRX 8 Mic/Line Pristine AD Card (8 analog inputs with mic pres)

Pro Tools | MTRX 8 Pristine DA Card (8 analog outputs)

Digital I/O:

Pro Tools | MTRX 8 AES3 I/O Card (8 channels)

Pro Tools | MTRX Dual SDI/HD/3G Card

Pro Tools | MTRX 64-Channel IP Audio Dante Module

Pro Tools | MTRX Dual MADI I/O Card

Pro Tools | MTRX MADI Module for Base Unit

Pro Tools | MTRX 8 Line Pristine AD Option Card

ANALOG INPUTS 8 LINE-LEVEL

Input gain: Adjustable from -18 to +70 dB, in steps of 0.1 dB, ± 0.25 dB accuracy

Max input level: Adjustable from 9 dBu to 30 dBu in steps of 0.1 dB

Sampling, resolution: 5-bit sigma/delta @ 5.645 or 6.144 MHz, 24-bit PCM

DSD sample rates: 2.8224 and 5.6448 Mhz (64 and 128 fs)

THD+N (A): < -117 dB @ -3 dB FS / 0.00014%

Crosstalk: < -120 dB

Input Impedance: > 10 k Ohm

Pro Tools | MTRX 2 Mic/Line Pristine AD Option Card

ANALOG INPUTS 2 MIC/LINE

Mix preamps: 2

Input gain: Adjustable from -18 to +70 dB, in steps of 0.1 dB, ± 0.25 dB accuracy

Max input level: Adjustable from 9 dBu to 30 dBu in steps of 0.1 dB

Mic equivalent input noise (A): < -133 dB

Sampling, resolution: 5-bit sigma/delta @ 5.645 or 6.144 MHz, 24-bit PCM

DSD sample rates: 2.8224 and 5.6448 Mhz (64 and 128 fs)

THD+N (A): < -117 dB @ -3 dB FS / 0.00014%

Crosstalk: < -120 dB

Input Impedance: > 10 k Ohm

Pro Tools | MTRX 8 Mic/Line Pristine AD Option Card

ANALOG INPUTS 8 MIC/LINE

Mix preamps: 8

Input gain: Adjustable from -18 to +70 dB, in steps of 0.1 dB, ± 0.25 dB accuracy

Max input level: Adjustable from 9 dBu to 30 dBu in steps of 0.1 dB

Mic equivalent input noise (A): < -133 dB

Sampling, resolution: 5-bit sigma/delta @ 5.645 or 6.144 MHz, 24-bit PCM

DSD sample rates: 2.8224 and 5.6448 Mhz (64 and 128 fs)

THD+N (A): < -117 dB @ -3 dB FS / 0.00014%

Crosstalk: < -120 dB

Input Impedance: > 10 k Ohm

Pro Tools | MTRX 8 Pristine DA Option Card

ANALOG OUTPUTS 8 LINE-LEVEL

Modulator resolution, format: 32x oversampling, 1-bit DSD, 24-bit PCM

PCM (DXD) sample rates: 44.1, 48, 88.2, 96, 174.4, 192, 352.8, 384 kHz

DSD sample rates: 2.8224 and 5.6448 Mhz (64 and 128 fs)

Dynamic range (A): > 128 dB

THD+N (A): < -110 dB @ -3dB FS

Crosstalk: < -120 dB

Max output level: Adjustable from -60 dBu to 24 dBu in steps of 0.1 dB
