The BAE 1073 MP Stereo preamp yields a really fat sound. It seems to add subharmonics to the low end which makes the bottom end sound huge.
This is the mic pre-amp version of the 1073 equaliser having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.
A Carnhill transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones.
There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.
As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.
Caractéristiques

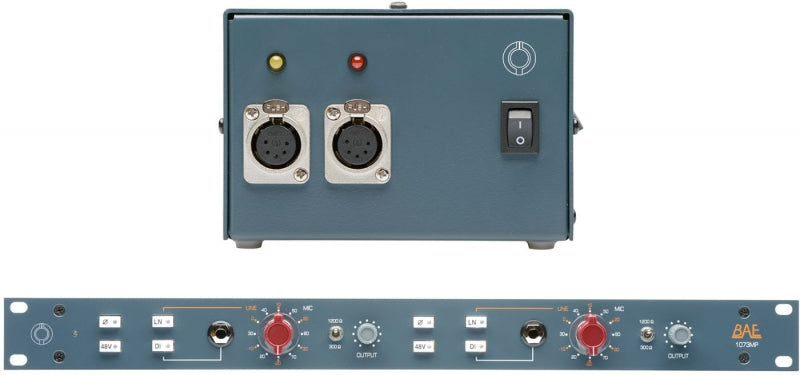

Two Class A preamps with direct inputs in a single rack space with a power supply
High Impedance direct input for guitar and synthesizer
Output level control serves as gain trim between the 5 dB steps on gain switch
Balanced mic input and balanced +4 dB output are on XLR connectors on the rear of the module.
Similar Class A preamp as Neve* 1073 equalizer/preamp modules
Pad is an integral part of the gain switch same as Neve* 1073 equalizer/preamp modules

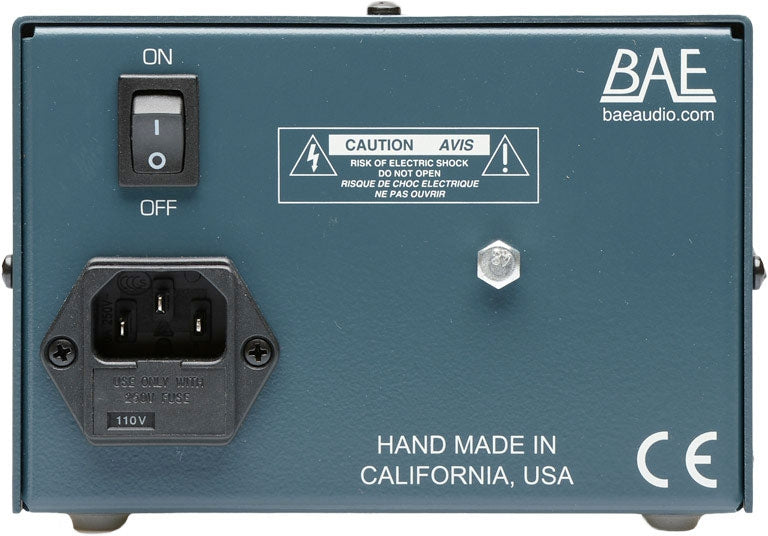

Oversize remote power supply can operate up to four channels of preamp
Phase reverse button
Impedance select between 1200 and 300 ohms
Direct input switch
Balanced line input
48v phantom power
Spécifications
Frequency Response
10Hz to -3dB at 55kHz Mic Input Impedance
1200/300 ohms Line Input Impedance
10k ohms DI Input Impedance
150k ohms Output Impedance
65 ohms Common Mode Rejection Ratio
100dB min @ 60Hz Maximum Output Level
+27.4 dBu @ 600 Power Requirements
115/230 VAC, 30W Gain dB
0 to 71 dB Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth Weight (Single/Dual)
8 LBS/3.63 KG
10 LBS/4.54 KG Dimensions (Inches)
19W x 1.75L x 9D
