MPN #312AMOD

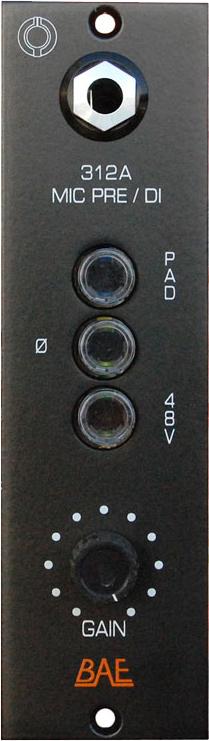

BAE 312A - Module


Financing available
Free shipping in Canada. Conditions

The BAE 312A module is a single channel mic preamp made using Avedis 1122 opamps for 500 series racks. Supplied with Jensen input and output transformers.

Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.

Made with the highest quality parts including Jensen input and output transformers and the Avedis 1122 opamp. The 312A also includes a high impedance DI for instruments.
  • Made using Avedis 1122 opamps
  • Supplied with Jensen input and output transformers.
  • Remote power supply with four-foot cable capable of four times the current needed by the preamps for optimum sound quality.
  • Switches have gold contacts for long life.
  • XLR connectors on the back for mic input and output and phone jack in front for direct input.
  • High impedance direct input for guitar and synthesizer.
  • Separate front panel switches for phantom power.
  • Frequency Response
    5Hz to 75kHz (-3dB)
    Mic Input Impedance
    1400 ohms
    Line Input Impedance
    10k ohms
    DI Input Impedance
    250k ohms
    Output Impedance
    75 ohms
    Common Mode Rejection Ratio
    110dB min @ 60Hz
    Maximum Output Level
    +27.1 dBu @ 600
    Power Requirements
    115/230 VAC, 27W (Rackmount)
    40mA per Rail (Module)
    Gain dB
    10 to 66 dB
    Equivalent Input Noise
    -120 dBu; Unweighted 300kHz Bandwidth
    Weight (Module/Rackmount)
    1 LBS / 0.45 KG (Module)
    7 LBS / 3.18 KG (Single Rackmount)
    8 LBS / 3.63 KG (Dual Rackmount)
    Dimensions in Inches (Rackmount/Module)
    19W x 1.75L x 9D (Rackmount)
    1.5W x 5.5L x 6D (Module)
