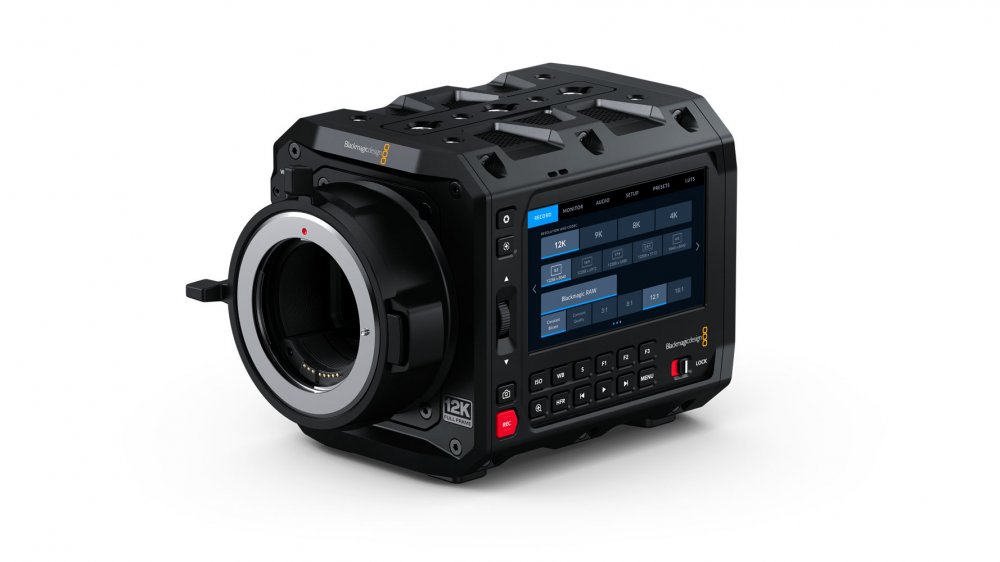

Blackmagic Design PYXIS 12K EF camera
MPN #CINECAMCPYXN12LFEF
Full frame 12K RGBW sensor, EF mount, Blackmagic RAW, dual CFexpress, 16 stops dynamic range, 4" HDR LCD, 12G-SDI, mobile data streaming
The Blackmagic PYXIS 12K EF mount model combines the power of a cutting-edge full frame 12K RGBW sensor with the widespread accessibility of EF lenses. Designed for filmmakers who already own a collection of DSLR or Blackmagic Pocket Cinema Camera lenses, this version allows for effortless integration into existing gear setups. With a massive 12288 x 8040 resolution sensor and 16 stops of dynamic range, the camera captures deeply cinematic images with stunning clarity and depth. Its support for open gate 3:2, full height 6:5 anamorphic, and uncropped Super 35 windows offers immense post-production flexibility, whether you're shooting in 12K for high-end cinematic workflows or opting for efficient 4K or 8K formats.

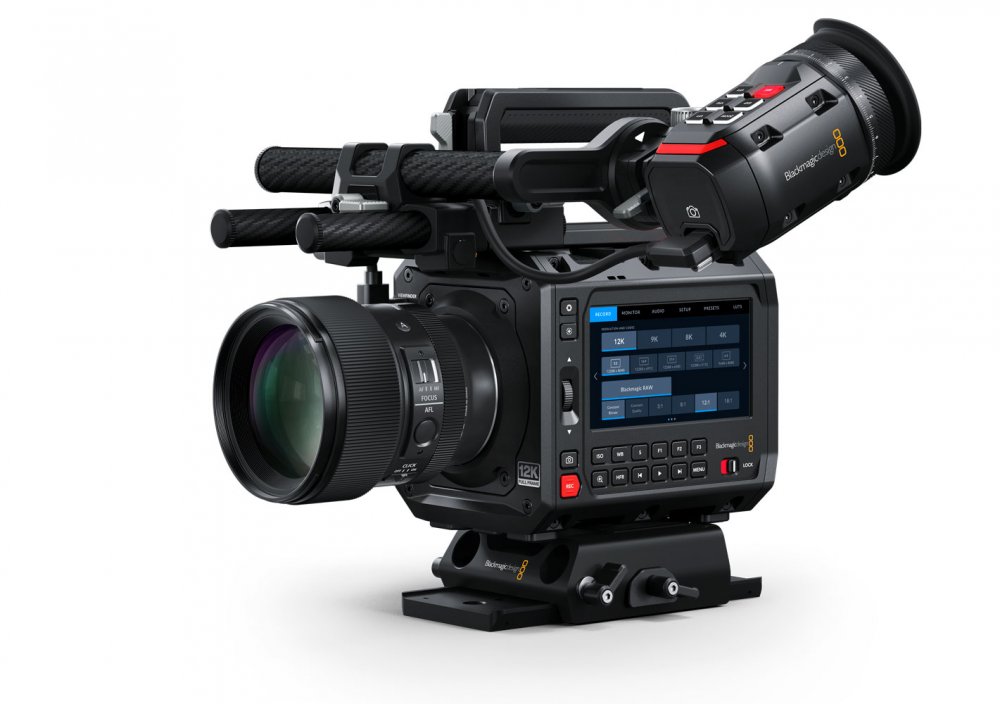

This model stands out not just for its lens compatibility, but for its versatility on set. Engineered from aerospace-grade aluminum, the PYXIS body is robust and lightweight-perfect for handheld, gimbal, or drone work. Dual CFexpress card recorders support sustained, high-resolution capture, and built-in USB-C allows for direct SSD recording or mobile data streaming. The 4" HDR LCD provides intuitive camera control and live monitoring, while optional accessories like the PYXIS Monitor and URSA Cine EVF enhance viewing and operation in any shooting condition. With its blend of professional-grade imaging, EF lens accessibility, and modular flexibility, the PYXIS 12K EF mount model is an ideal solution for creators seeking cinematic excellence with everyday gear.
Caractéristiques
Full Frame 12K RGBW Sensor: Captures incredibly detailed cinematic images with wide dynamic range using a 36 x 24mm sensor.Native EF Mount: Compatible with a wide range of EF photographic lenses, including those from DSLRs and previous Blackmagic cameras.Versatile, Durable Build: Precision-machined aluminum body with multiple mounting points for flexible rigging and accessories.Built-In 4" HDR LCD Screen: High-brightness touchscreen lets you monitor and control shots without extra gear on set.Blackmagic RAW and Proxy Recording: Records high-quality RAW files and real-time H.264 proxies for fast sharing and editing.Dual CFexpress Card Support: Enables fast recording with hot-swappable cards for uninterrupted shooting.Real-Time Cloud Collaboration: Automatically uploads proxies to Blackmagic Cloud, enabling editors to begin work instantly.USB-C and 10G Ethernet Connectivity: Offers flexible options for fast data transfer and mobile streaming with just a smartphone.Expandable with Optional Gear: Supports the Blackmagic PYXIS Monitor and URSA Cine EVF for added monitoring and control options.Built-In Live Streaming: Stream directly to major platforms like YouTube and Facebook with onboard RTMP/SRT.Multiple Resolution Options: Record in various formats including 12K, 8K, 6K, 4K, or HD using different sensor windows.Pro-Level Audio Input: Includes mini XLR with 48V phantom power for capturing high-quality sound on location.Global Media Sync: Share and sync media instantly with remote teams using DaVinci Resolve and Blackmagic Cloud.
Spécifications
General Specifications
36 x 24mm full-frame RGBW CMOS sensorNative resolution: 12288 x 8040 (12K)Sensor aspect ratios: 3:2 open gate, 6:5 full-height anamorphic, 9K Super 35 crop16 stops dynamic rangePrecision CNC-machined aerospace aluminum bodyMounting: Locking EF Mount (compatible with Canon EF lenses and legacy DSLR lenses)Supports lens communication for iris, focus, and metadata (where applicable)
Recording Formats
Blackmagic RAW (12-bit)Simultaneous real-time H.264 proxy recordingRecordable resolutions: HD, DCI 4K, 6K, 8K, 12KFrame rates: 12K (12288 x 8040) up to 40 fps (3:2 open gate), 12K (12288 x 5112) up to 60 fps (2.4:1), 4K (4096 x 2160) up to 112 fps, 6K (6048 x 4032) up to 36 fps
Display and Monitoring
Integrated 4? HDR LCD touchscreen display, 1500 nit brightness, Full HD resolutionOptional Blackmagic PYXIS Monitor (5? HDR touchscreen with full on-camera controls)Optional URSA Cine EVF (1920 x 1080 OLED, 4-element glass diopter, proximity sensor)12G-SDI output for HDR and UHD monitoringOn-screen overlays for camera status and settings
Media and Connectivity
Dual CFexpress Type B card slots with hot swap supportUSB-C port for direct SSD or mobile phone connection10G Ethernet for high-speed file transfers and cloud syncBlackmagic Cloud support for live proxy upload and global collaborationUSB-C mobile data connection (iOS/Android phones)
Streaming & Remote Workflow
Built-in hardware streaming via RTMP/SRTDirect to YouTube, Facebook, X and moreOn-screen streaming status and data rate indicators
Audio
1x mini XLR input with 48V phantom powerBuilt-in microphoneAdditional 3.5mm stereo input
Power
High capacity Sony BP-U series battery supportLocking DC input
Rigging and Expandability
Multiple 1/4? and 3/8? thread mounts (top, bottom, sides)Standard aircraft-grade aluminum side plate includedIncluded SSD plate for USB-C drive or smartphone mounting
Included Accessories
EF mount body capStandard rigging plateSSD expansion platePower supply
