Dual Channel Compressor, Fast control set, VU meters, Stereo linkable or Dual Mono, Switchable slow/fast Attack & Release, Switchable Low/High ratio, 1U
The Daking COMP II is a handmade compressor/limiter designed to be easy to use and sound like much more expensive comp/limiters. Built right here in the USA, it offers better sounding compression on all kinds of sources in the studio. Whether in the hands of a highly experienced engineer who needs fast workflow, or a novice who is not sure how to best set up a compressor, the COMP II gives professional results without a big learning curve.

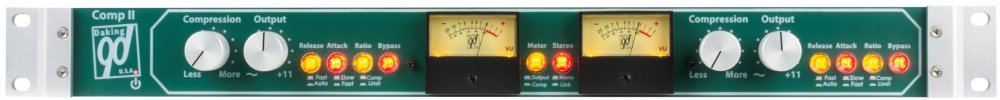

With big old-style analog meters and a simple setup, the COMP II is easy to understand and easy to use. Designed carefully by Geoff Daking and Dave Thibodeau to behave well on a variety of real in-studio applications, it may challenge your notions of how good a two-knob compressor can be.
The two channel, electronically balanced COMP II, can operate in dual mono or stereo linked mode for a beautiful stereo image. In dual mono it acts like two independent mono compressors for use on two different - perhaps unrelated - sources. There is no master channel in stereo mode. Each channel retains its independent control.

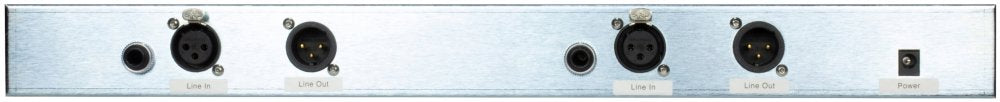

Input: XLR (x2)
Output XLR (x2), TRS (x2)
Differential input and output amps
Class "A" amplifier for make-up gain
All metal construction with stainless steel chassis for noise immunity
Custom aluminum knobs
Power supply included
Frequency response: 20
THD at +4dBu input and no compression at 1kHz: Typical 0.02%, Max 0.035% (22-22kHz, Un-
THD at +4dBu input and 2dB of compression at 1kHz: Typical 0.02%, Max 0.035% (22-22kHz,
Noise: less than -80dBu, 22-22kHz
1U 19" rack-mount
Unit weight: 5.35 lbs (2.45 kg)
Unit dimensions: L front: 19in (48.26cm) L rear: 17in (43.18cm) W: 8.375in (21.27cm)
H: 1.625in (4.13cm)
Box weight: 8.70 lbs (3.95 kg)
Box dimensions: L: 29in (73.66cm) W: 14 in (35.56cm) H: 6 in (15.24cm)
