MPN #6061-OC-U-B10
DPA 6061-OC-U-B10

$896.00

Financement disponible

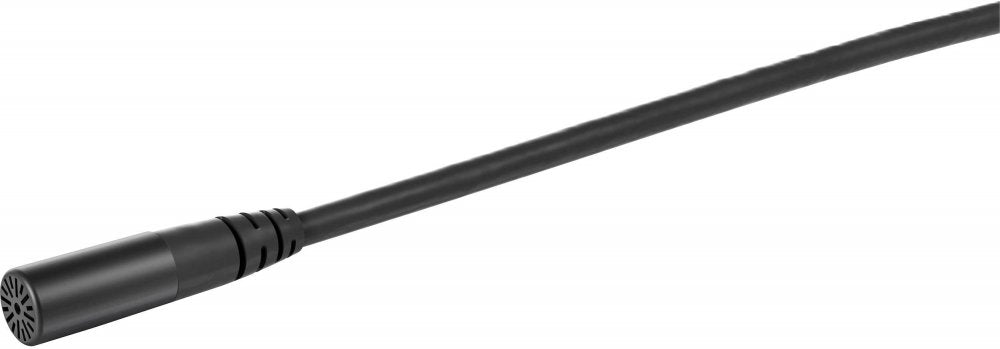

d:screet? CORE 6061 omni submini mic, loud SPL, black, TA4F Mini-XLR connector included



Our new Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability - three qualities that really matter.

The 6061 gives the impression of just being a slight bulge at the end of the 1.6mm cable. Indeed, the diameter of the new product is just 3.4mm with its stainless steel cap fitted. Unlike the 4000 series, only one size of cap will be available, equivalent to the soft boost from that product range. DPA tell us that the new physical dimensions mean that it would take a very long cap to produce more HF boost. I say, with low self-noise like this you are unlikely to need a high boost, instead EQ on the desk should work fine. The cap is removable for cleaning after the talent has sweated on it, oh joy! DPA did not provide Resolution with mounting accessories with this (very early) example of the new personal but we are told a rotatable clip will be available when the range goes on sale. For my tests I used Rycote Advanced Stickies and Undercovers to body mount it, which worked perfectly.

Test it I did because when a major manufacturer produces something like this, claims the sound is the same as before and calmly publishes self noise, and sensitivity figures identical to their previous product, a sceptic like me needs the evidence of their own ears. Recordings can be accessed via the Resolution website, in each case the equivalent (non-CORE) 4000 series is on Channel 2, and the 6000 on Channel 1. I am fairly confident that you will agree they are nearly identical. The photo online shows my next generation improved (after Resolution V17.2) near coincident mounting system using Robot Snot (sometimes called Clear Tac) to record the piano, the playing of which is courtesy of a composing student from NFTS who said "I guess you'll want to hear stuff from the whole range of the keyboard then".
  • Amazing 3 mm CORE capsule technology
  • Renowned DPA sound in a 60% smaller package
  • Stainless steel, PVD coated mic housing
  • Modular adapter system fits most professional wireless systems
  • Water and sweat resistant
  • Made for theater, film, and television production
  • Directional Pattern: Omnidirectional
    Principle of Operation: Pressure
    Cartridge Type: Pre-polarized condenser
    Frequency Range: 20 Hz - 20 kHz
    Equivalent noise level, A-weighted: Typ. 24 dB(A) re. 20 µPa (max. 26 dB(A))
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
    Total Harmonic Distortion (THD): < 1% up to 128 dB SPL peak
    Dynamic range: Typ. 102 dB
    Max. SPL, peak before clipping: 144 dB
    Output impedance: From MicroDot: 30 - 40 . From DAD6001-BC: 100
    Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
    Power supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
    Connector: TA4F Mini-XLR
    Color: Brown
    Weight: 8 g (0.29 oz) incl. Cable and MicroDot connector
    Microphone head size (h x w x d): 3.4 / 14.4 mm (0.13 / 0.57 in)
    Capsule diameter: 3.4 / 14.4 mm (0.13 / 0.57 in)
    Cable length: 1.8 m (5.9 ft)
    Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range: -40°C to 45°C (-40°F to 113°F)
    Relative humidity (RH): Up to 90%
