UPC/EAN #827517000572     MPN #PM40

$3499.00

Financing available
Free shipping in Canada. Conditions

PianoMicTM System, 48 volt Phantom Powered, Size Adjusting Telescoping Bar



The PianoMic System was designed to revolutionize piano miking and achieve an incredible improvement in piano sound for live and recording applications.

There is more gain before feedback, significantly less leakage from surrounding instruments and the same pristine sound quality with the piano lid either up or down. At the heart of the system are two Random Incidence, omnidirectional, 40 kHz High Definition Microphones?. With a frequency response of 9 Hz to 40 kHz, the mics deliver extraordinary impulse response and extremely short diaphragm settling times. In addition, the microphones exhibit no proximity effect, regardless of their distance from the piano strings or soundboard. The mics, when positioned close to the sound source, also provide incredible gain before feedback.
  • The original PianoMic? System and winner of the 2008 TEC Award for Microphone Technology/Recording
  • Cannot be seen from outside of the piano (needs no stands or mic booms)
  • Superb sound with the piano lid either up or down
  • Virtually no leakage from sounds outside the piano
  • Incredible gain before feedback
  • Recording studios can now record piano with other instruments in the same room
  • Handles sound pressure levels up to 148dB
  • Quick, Simple and Easy Setup
  • 40kHz Random Incidence Omnis
  • Hear the full range of the piano including the high and low strings with no hot spots

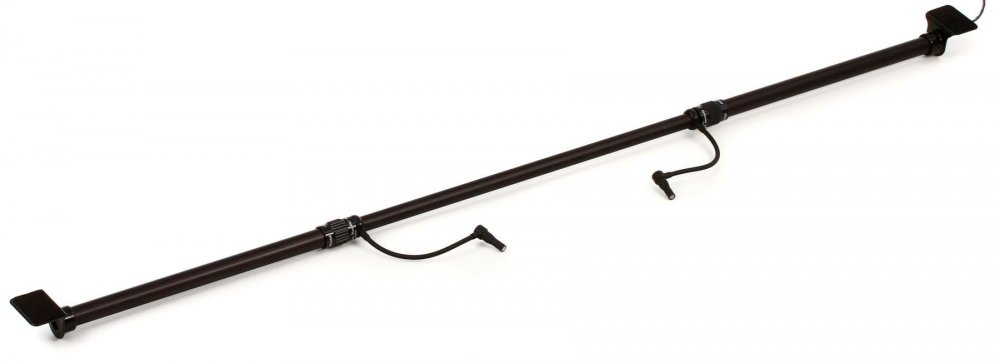

  • The telescoping bar allows the PianoMic? to be quickly and easily installed in nearly all grand pianos and to place the microphones close to or away from the dampers and get the exact sound desired
  • Frequency Response: 9Hz to 40kHz
  • Polar Pattern: Omnidirectional (random incidence)
  • Sensitivity: 15mV/Pa (-36dBV/Pa)
  • Power Requirements: 48V Phantom, 10mA
  • Max Acoustic Input: 148dB SPL
  • Output: XLR-3 (pin 2+)
  • Output Impedance: 65 balanced (between pins 2 & 3)
  • Min Output Load: 600 between pins 2 & 3
  • Noise: 22dB SPL equivalent (A weighted)
  • 24.5dB SPL equivalent (Unweighted)
  • Mic Gooseneck Length: 4.75 inches
  • Dimensions: 64 fully extended, 46 fully collapsed
  • Weight: Mic Assembly .75 lb. (350g)
  • With External Electronics Box 1.5 lb. (700g)
  • View more products from Earthworks
