UPC/EAN #827517101002     MPN #TC20

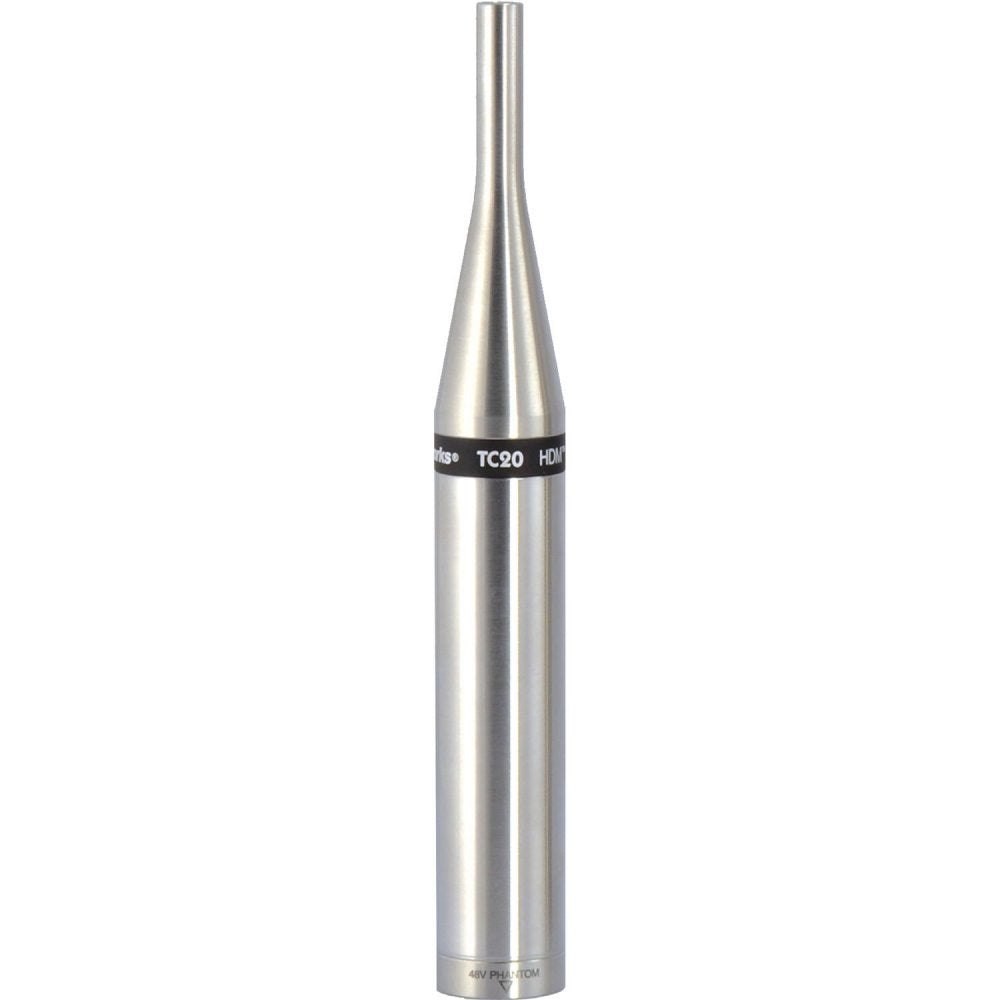

Earthworks TC20

$499.00

Free shipping in Canada. Conditions

Omnidirectional microphone for loud sources - 10Hz to 20kHz, mic clip included



The TC 20 Omni (Time Coherent) is designed for recording louder sources such as drums, percussion, amplified instruments and loud sound effects.

Microphones in this series allow recording of louder acoustic sources without overloading the preamplifier. Models in the TC Series are often the choice for recording drum overheads, close miked or amplified instruments and sound effects.
  • Our least expensive general-purpose omni with high frequency response to 20kHz
  • Ideal for a wide variety of instruments and vocals, including acoustic guitar, string instruments and piano
  • For live sound the TC20 can be used for close miking instrument amps, drums or brass
  • Omnidirectional polar pattern
  • Accurate and uncolored
  • Effortlessly handle high sound pressure levels up to 150dB SPL while simultaneously capturing subtle details
  • Fast impulse response and diaphragm settling time
  • Exceptional flat frequency response and are time coherent, so they sound natural and uncolored
  • Requires 48V Phantom Power
  • Frequency Response: 10Hz to 20kHz ±1/-3dB
  • Polar Pattern: Omnidirectional
  • Sensitivity: 8mV/Pa (-42dBV/Pa)
  • Power Requirements: 48V Phantom, 10mA
  • Max Acoustic Input: 150dB SPL
  • Output: XLR (pin 2+)
  • Output Impedance: 65 balanced (between pins 2 & 3)
  • Min Output Load: 600 between pins 2 & 3
  • Noise: 26dB SPL equivalent (A weighted)
  • Dimensions L x D: 165mm x 22mm (6.5 x .860 inches)
  • Weight: .35 lb. (160g)
