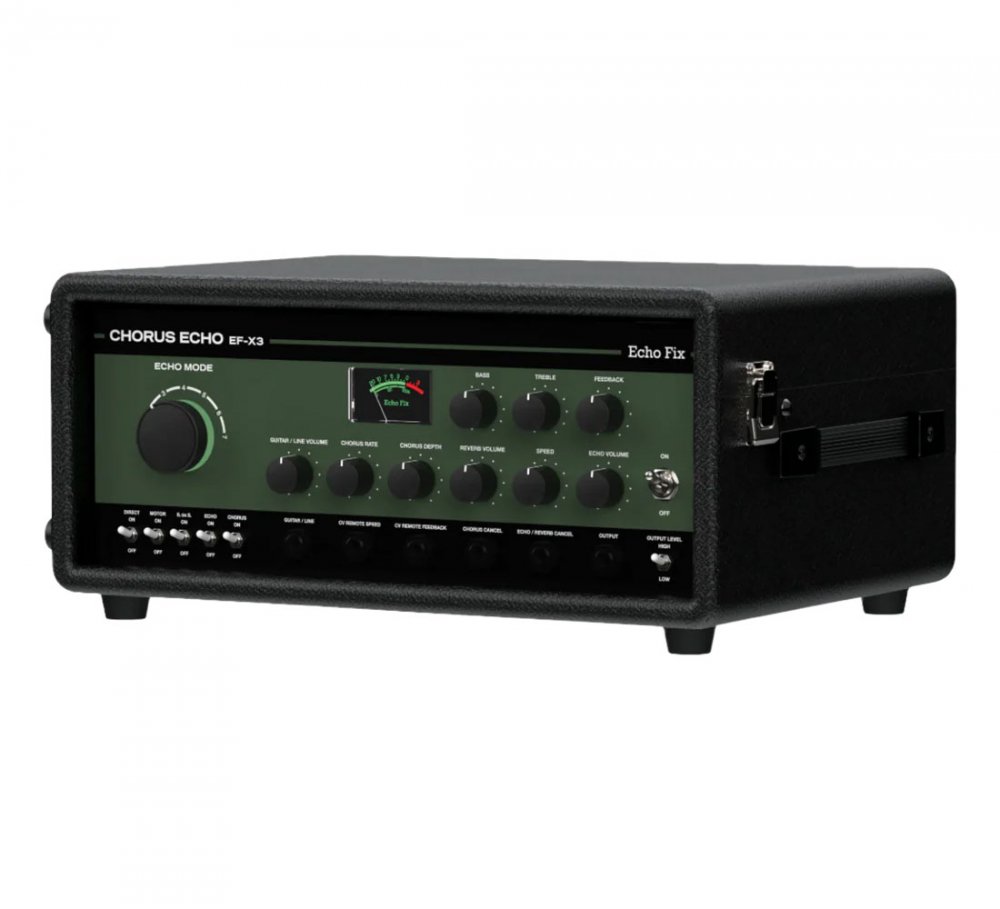

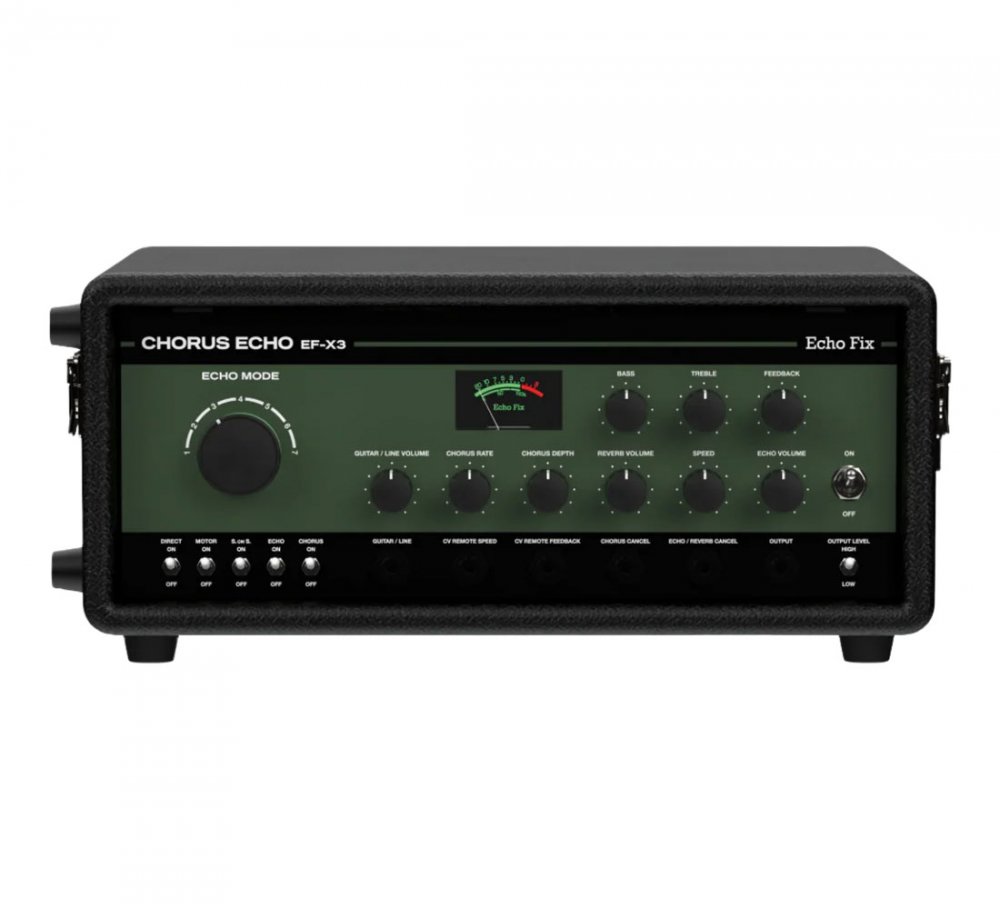

EF-X3 Tolex- Vintage Green

Silver scratch-resistant front panel with wood side panels for a classic studio finish.

100% analog signal path featuring BBD analog chorus and spring reverb.

Individual playback head outputs for external panning and true stereo ping-pong delays from mono sources.

Independent SOS (Sound On Sound) head with up to 1.2 seconds of delay time.

Auto tape stop conserves tape and motor life (switchable at rear).

Four playback heads + SOS head with 7 selectable head mode settings.

CV control (0"5V) for motor speed and feedback using compatible expression pedals.

Vintage guitar/line FET preamp with front-panel high/low output level switch.

Bass and treble EQ for precise tone shaping of the echo signal.

Motor ON/OFF switch for real-time tape slowdown effects.

Direct WET output for reverb and chorus on rear panel.

Remote footswitch capability for muting echo, chorus, and reverb.

Balanced inputs/outputs, removable metal lid, and worldwide-compatible 100"240V power supply.

Includes two tape loops, quick-start accessories, and backed by a 2-year warranty.

General Specifications

100% analog signal path

Analog BBD chorus with adjustable rate and depth

Analog spring reverb tank

Tolex enclosure with Vintage Green finish and wood side panels

Individual playback head outputs for stereo ping-pong delays from mono source

Independent Sound-On-Sound (SOS) head with 1.2-second max delay

Direct wet output for reverb/chorus effects

Auto tape stop circuit to preserve tape and motor lifespan (switchable)

Motor ON/OFF switch for real-time tape slowdown effects

High-quality scratch-resistant front panel

Removable tinted acrylic lid

Includes 2 tape loops

Designed and built in Australia

Playback Head Configuration

4 tape playback heads + 1 Sound-On-Sound head

7 selectable head mode combinations: Head 1, Head 2, Head 3, Head 1 + 2, Head 2 + 3, Head 1 + 3, Head 1 + 2 + 3

SOS head can be added to any mode or used on its own

Tape speed adjustable between 4 IPS and 15 IPS

Controls and Modulation

Bass and treble tone controls for echo signal

CV input for motor speed modulation (0"5V)

CV input for feedback level (0"5V)

Compatible with expression pedals and control voltages

Front panel preamp with Guitar/Line level selector

High/Low switchable output gain

Mute controls for echo, chorus, and reverb via remote footswitches

Inputs and Outputs

Balanced input and output on rear panel

Individual outputs for Heads 1, 2, and 3

Direct wet signal output on rear panel

Front-panel input via vintage-style FET preamp

Construction and Design

Tolex-covered wood chassis in Vintage Green

Durable wood sides

Tinted removable acrylic lid

Rugged and reliable hardware

Weight: 12 kg

Power and Compatibility

Universal 100"240V power supply included

No step-down transformer required

Works globally out of the box

Included Items

Echo Fix EF-X3 Tolex " Vintage Green

2 x tape loops

International power supply

User documentation

2-year manufacturer warranty
