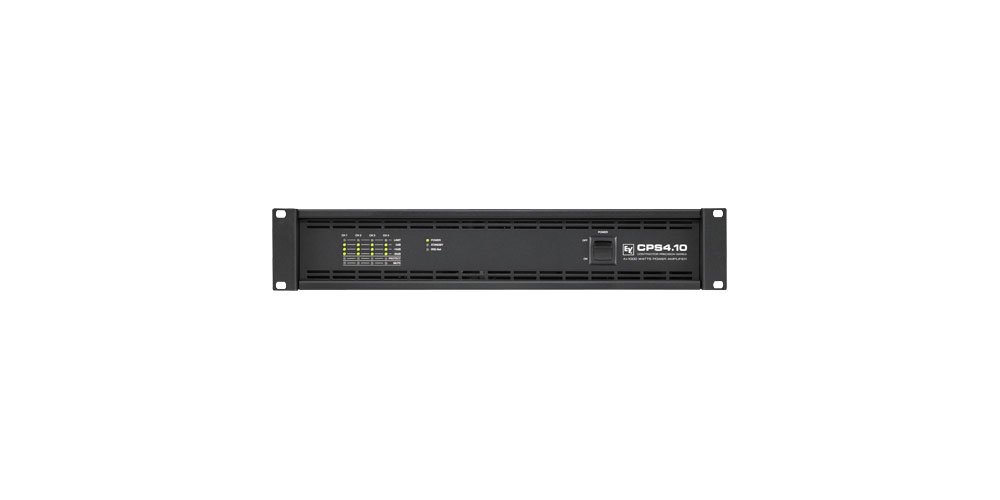

Electro Voice CPS4.10-120V
UPC/EAN #F.01U.101.295
MPN #CPS4.10-120V
$6099.00
Save 14.2%, MSRP $7105.00
4'channel, 1000 W/ch Class-D amplifier, 2"100V output, IRIS-Net ready, full protection, Hi-Z HPF, Phoenix I/O, fan cooled, compact 1U rack design.
The Dynacord CPS 4.10 is a high-efficiency, compact 4-channel amplifier, delivering 1000 watts per channel in a 1U rackmount design. Engineered for performance and reliability, it is ideal for professional audio installations and distributed systems requiring 70/100V operation. The Class-D topology ensures maximum energy efficiency and reduced heat output, while the amplifier supports flexible load configurations via IRIS-Net integration with an optional RCM-810 module.
Built with installation-friendly features, the CPS 4.10 includes Phoenix-type connections for streamlined cabling, remote power-on/off contacts, and programmable power-on delay. Comprehensive protection circuitry covers thermal, overload, short circuit, high-frequency, DC, back-EMF, and inrush current conditions, ensuring stable operation in demanding environments. Rear-mounted attenuators and a switchable 50 Hz high-pass filter in Hi-Z mode add further customization. Active front-to-rear cooling with variable-speed fans completes its robust build, making the CPS 4.10 a powerful and versatile solution for complex audio systems.
Features
Delivers 1000 watts per channel across four independent channelsSupports 70V/100V distributed audio systemsCompact, rack-efficient 1U designHighly efficient Class-D amplifier technologyOptional RCM-810 module slot for IRIS-Net control and monitoringAdjustable impedance settings via IRIS-Net (2"10 ohm)Rear-mounted attenuators and selectable 50 Hz high-pass filter in Hi-Z modeComprehensive protection against thermal issues, overload, shorts, HF, DC, and inrush currentPhoenix-type balanced input and output connectorsRemote power on/off capability and programmable startup delayQuiet operation with front-to-rear variable-speed fans
Specifications
General Specifications
4 channel Class D amplifier in 1U rackmount chassisOutput Power 1000 W per channel at 2 ohm 4 ohm 8 ohm 70V 100VDesigned for both low impedance and 70 100 V distributed systemsRear mounted input attenuatorsOptional RCM 810 IRIS Net module slotIRIS Net software controlled impedance selection from 2 to 10 ohm in 0.1 ohm stepsRemote power on off contactProgrammable power on delay
Power Output Ratings
1000 W per channel at 2 ohm 4 ohm 70V 100V at 1 kHz THD 1 percent500 W per channel at 8 ohm at 1 kHz THD 1 percent900 W per channel at 4 ohm 70V 100V from 20 Hz to 20 kHz THD less than 0.2 percent450 W per channel at 8 ohm from 20 Hz to 20 kHz THD less than 0.2 percent2000 W bridged at 4 ohm and 8 ohm
Audio Performance
Frequency Response 15 Hz to 30 kHz minus 3 dBSignal to Noise Ratio 103 dB A weightedTotal Harmonic Distortion 0.05 percentIntermodulation Distortion SMPTE 0.05 percentDIM 30 0.02 percentSlew Rate 28 V per microsecondAmplifier Gain 32 dB for Lo Z 33 dB for 70V 36 dB for 100V
Input and Output
Inputs 4 electronically balanced Phoenix typeInput Impedance 20 k ohm balancedInput Sensitivity 0 dBu for 2 ohm plus 3 dBu for 4 8 ohm plus 6 dBu for 70V 100VMaximum Input Voltage plus 22 dBu or 9.76 VrmsOutputs Phoenix type connectors
Control and Networking
Network Control Optional via RCM 810 IRIS Net moduleCAN Bus Interface Optional via RCM 810
Protection and Filtering
Switchable 50 Hz high pass filter in Hi Z modeComplete protection includes thermal overload short circuit HF DC back EMF inrush current
Power and Cooling
Mains Voltage 120 V or 220 to 240 V 50 to 60 HzCooling Front to rear airflow with variable speed fans
Mechanical Specifications
Height 3.47 inches or 88.1 mmWidth 19 inches or 482.6 mmDepth 16.59 inches or 421.5 mmWeight 24.47 pounds or 11.1 kg
