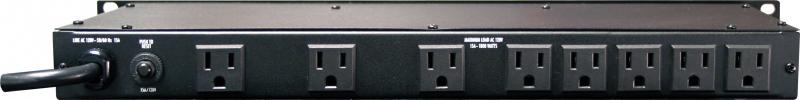

nstall an M-8Dx into the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load.

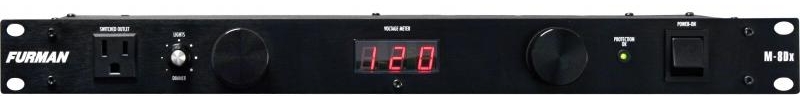

The M-8Dx features two slide out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level.The M-8Dx also features a bright red, three-digit LED voltmeter that displays incoming voltage.
AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI)
Spike & surge protection ensures equipment stays safe and your power stays clean
9 Total Outlets
8 rear panel outlets and 1 front panel convenience outlet
Digital voltmeter display incoming line voltage
15 Amp Rating
15 amp rating, with circuit breaker
"Protection OK" Indicator
Front panel indicator LED lets you know that your equipment is being protected
Wall Wart Spacing Indicator
Rear outlets have been spaced to accomodate even the bulkiest of wall warts and adapters
Front Panel Pull-out Lights
Two retractable incandescent light fixtures with dimmer control for convenient rack illumination
Maximum Output Current: 15 amps
Line Cord: 6 ft., captive, 14 AWG, with 3-conductor Edison plug
Lamps: Two 120V incandescent bulbs, 4 watts each
Operating Voltage: 120VAC 60Hz
Spike Protection Mode: Line to neutral
Energy Dissipation: 170 joules
Peak Impulse Current: 12,000 amps
Maximum Continuous Operating Voltage: 130 VAC RMS
Let Through Voltage (@ 125 amps, 8/20uS waveform) 400 volts
Noise Attenuation: Transverse mode: Greater than 26dB, 200Khz to 10 Mhz
Dimensions: 1.75" H x 19" W x 7.5" D
Weight: 5.8 lbs.
Safety Agency Listing: cTUVus
Warranty: Merit Series units are protected by a limited three year warranty covering defects in materials and workmanship.
