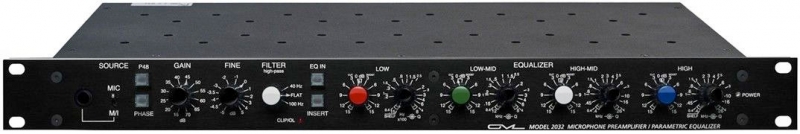

GML 2032

The Model 2032 Microphone Preamplifier / Parametric Equalizer is a single-channel, multi-input device for high-resolution studio and remote applications.

Incorporating the renowned 8300 preamplifier and reference-standard 8200 equalizer, the Model 2032 inherits over thirty years of GML engineering excellence.

This transparent class-A discrete design with internal supply delivers reliability, musicality, and precision.

GML 2032 Features:

  • All-discrete, Class-A design; no integrated circuits to compromise the
  • audio path
  • DC-servo and premium-grade film coupling; no interstage capacitors to
  • add distortion or degrade over time; no tantalum electrolytic, ceramic, or
  • aluminum electrolytic capacitors in the signal path*
  • Transformerless; precision electronically balanced inputs
  • Designed with GML 9202 (single) and GML 8501 (dual-differential) lownoise,
  • low-distortion, wide dynamic range, wide bandwidth precision
  • discrete opamps
  • DC-servo stabilized direct-coupled output
  • Multi-input format: MIC or MI (front panel musical instrument)
  • Wide gain range (10 dB to 75 dB) available on both inputs
  • Precision Gain switch: 65dB range in 5dB steps
  • Continuously variable preamplifier Fine gain control, +/-5dB
  • Four-band fully parametric equalizer
  • Low-frequency and High-frequency Shelf mode capability
  • Flexible routing: Single-Channel, Independent, Inline Insert configurations
  • High-pass Filter; selectable 40 Hz, flat, 100Hz
  • Front panel Phantom and Phase illuminated switches
  • Front panel EQ IN and Insert illuminated switches
  • Overload (OL) indication LED
  • Power status LED
  • Low-noise, highly regulated internal linear power supply
  • Modern surface-mount construction, yielding maximum precision,
  • manufacturability, and reliability
  • No internal signal interconnects; high-quality signal relay switching
  • Carbon-film and conductive-plastic custom precision potentiometers,
  • manufactured to GML exacting standards
  • Multi-colored knobs, GML standard
  • Stylish and durable black-anodized aluminum front panel
  • Rugged chassis; black powder-coat finish over aluminum
  • Reverse-anodized front panel legend, much more permanent than ink or
  • paint processes
  • Baked-on epoxy paint silkscreen rear panel legend
  • Quality PCB manufacturing, assembly, and chassis construction
  • Specifications
    FORM FACTOR
    One channel, multi-input, gain, filter, parametric equalizer with insert capability and internal power supply
  • Inputs: Mic (balanced, XLR), MI (Musical Instrument; unbalanced, 1/4" TS)
  • Gain control: +15dB to +70dB, 5dB steps
  • Fine control: -5dB to +5dB, continuously variable
  • Phase switch, Phantom power (P48) switch
  • Filter -- Second-order Butterworth active high-pass filter; 100Hz, flat, 40Hz
  • Insert control: split parametric equalizer from preamplifier
  • EQ section: four bands, fully parametric, continuously variable controls
  • EQ IN switch
  • Overload (OL) indicator: peak indication, preamplifier and equalizer

  • INPUT
  • Microphone: 1 kΩ balanced, >80dB CMRR, +17dBu max input before clipping
  • Insert In: 20 kΩ balanced bridging, >40dB CMRR, +21dBu max input before clipping
  • MI: 1 MΩ unbalanced, +8.5dBu maximum input before clipping

  • THROUGHPUT
    Bandwidth:
  • -0.1dB / +0.002dB, < 10Hz to >30kHz, worst-case
  • -3dB, >300kHz and << 10Hz, typical
  • < 0.003% Harmonic distortion, 20Hz to 20kHz, typical
  • < 0.006% SMPTE Intermodulation distortion, typical
  • 30V/usec discrete low-noise precision operational amplifiers, GML 9202

  • Noise:
  • -80dBu broadband, EQ engaged, typical
  • -112dBu EIN, MI input
  • -120dBu EIN, Microphone input (Rs = 150Ω, 30kHz BW), worst-case
  • -80dB crosstalk, 20Hz to 20kHz, worst case

  • OUTPUT
  • +27.0 dBu clipping
  • < 3 mV output offset, stabilized by DC servo correction, direct coupled
  • Wired pin 2 "hot", 3-wire unbalanced

  • OTHER
  • Internal linear power supply, 110V/220V switch, 50/60Hz; +/-28 VDC, +/-18 VDC, +48VDC
  • Approx. power consumption: 28W; 500mA/250V slo-blo fuse installed (110V operation)
  • Separate Ground and Chassis connections at rear
  • 19" W x 1.75" H x 10" D rack mount chassis, black anodized aluminum, silver legend
  • Weight: 11 lbs., approximate; shipping weight may vary
