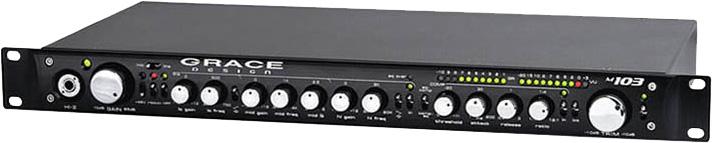

Channel strip with preamp, EQ, compressor



The m103 starts with the tried and true m101 microphone preamplifier circuity. For many engineers, the m101 is an introduction to what quality mic preamplification is all about, and the perfect starting point for a channel strip - musical, transparent and pure. Headroom, detail, clarity - its all there. Complete with our exclusive ribbon mic mode, a 75Hz HPF and 48V phantom.

The 3 band EQ section is built around single stage parallel tuning architecture, which minimizes circuitry and delivers natural tonal shaping from 20Hz to 20kHz. Controls include a fully parametric mid, with sweepable high and low bands which can be operated in shelving or peak modes. Because of its accuracy of this design, smaller increments of cut or boost can be heard, providing a greater level of control over tone shaping.

The compressor circuit is based on an optical attenuator - the purest, high fidelity gain control mechanism available. It provides gentle limiting to fairly heavy compression, while remaining neutral and transparent. The perfect way to zip it all up and send it downstream - clean, intact and alive.

10 segment gain reduction and output meters make monitoring compression and output levels simple. The front panel accessed HI-Z input makes this an amazingly high quality instrument preamp. Comprehensive I/O options allow the mic pre and EQ/COMP sections to be accessed independently of each other, and the order of the EQ/COMP is switchable.

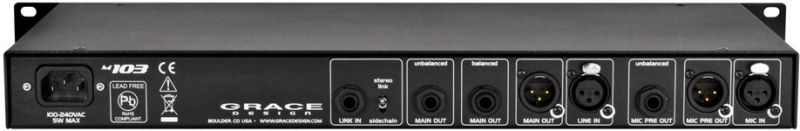

A dual function link/ sidechain input on rearpanel is provided for inserting external sidechain signals (for de-essing, ducking) or connecting two m103's together for stereo compression applications. Predictably, the m103 is built to last, and proudly backed by our 5 year transferable warranty. So there it is, we've done it.
  • Fast and musical transimpedance microphone preamplifier architecture
  • Updated audio path with 0.5% precision metal film resistors
  • New 12 position gold plated rotary gain switch
  • High performance output line driver amplifier and HPF amplifier
  • Ribbon mic mode (also great for dynamic mics)- Relay bypass of phantom power decoupling capacitors, increased input impedance, and 48V lockout
  • 3-band presicion EQ, fully parametric mid band, peak and shelf mode for hi and low bands
  • newly designed optical compressor
  • Mic amp direct output
  • EQ/COMP section line input
  • Bombproof laser-etched black anodized frontpanel
  • Sealed gold contact relay for Hi-Z input switching
  • Built in power supply
  • Led indicators for +48V, Ribbon mode, and HPF
  • powerful 10 segment meters for gain reduction and output level
  • GAIN RANGE (5dB steps)
    Mic input : 10-65dB
    Hi-Z input : -10-45dB

    THD+N 1kHz, 22Hz-22kHz BW
    @ 20dB Gain +20dBu out : <0.00085%
    @ 40dB Gain +20dBu out : <0.0010%
    @ 60dB Gain +20dBu out : <0.0050%

    INTERMODULATION DISTORTION
    @ 40dB Gain +20dBu out :
    SMPTE/DIN 4:1 7kHz/50Hz : <0.0020

    NOISE - REFERRED TO INPUT @60dB Gain 22Hz-22kHz BW
    50 source : <-130dB
    150 source : <-128dB
    600 source : <-124dB

    CMRR @60dB Gain, 3.5Vcm
    100Hz : >60dB
    1kHz : >75dB
    10kHz : >65dB

    FREQUENCY RESPONSE
    Mic input @ 40dBm Gain -3dB : 3.7Hz-140kHz
    Hi-Z input @ 20dB Gain -3dB : 1.2Hz-112kHz

    IMPEDANCE
    Mic input : 8.1k
    Mic input, Ribbon mode : 20k
    Hi-Z input (unbalanced) : 2.5M
    Hi-Z input (balanced) : 5M
    Balanced Output : 300
    Unbalanced Output : 150

    PEAK LED METER
    Green threshold : -10dBu
    Red threshold : +16dBu

    MAXIMUM OUTPUT LEVEL
    100k Ohm load, 0.1% THD : +28dBu

    EQ/COMP Section
    GAIN RANGE
    Output Trim : -10 - +10dB
    EQ: 3 Bands of 0-12dB Cut or Boost
    Low Frequency Range : 20Hz - 750Hz
    Mid Frequency Range : 500Hz - 4kHz
    Mid Frequency Q : 0.5 - 5
    High Frequency Range : 3kHz - 20kHz
    Low and High Frequency Peak/Shelf switches :
    Compressor - Inserts Pre or Post EQ
    Threshold Range : -15 - +15 dBu
    Attack Range : 3 - 200 ms
    Release Range : 0.03 - 3 s
    Ratio Range : 1:1 - 12:1
    Gain Reduction : 0 - 10dB

    THD+N 1kHz, 22Hz-22kHz BW
    @ 0dB Gain +20dBu out : <0.002%

    INTERMODULATION DISTORTION
    @ 0dB Gain +20dBu out
    SMPTE/DIN 4:1 7kHz/50Hz : <0.002%

    OUTPUT NOISE 22Hz-22kHz BW
    @0dB Gain : <-78dB

    CMRR @0dB Gain, 3.5Vcm
    100Hz : >75dB
    1kHz : >75dB
    10kHz : >75dB

    FREQUENCY RESPONSE
    @0dB Gain -3dB : 0.016Hz-150kHz

    IMPEDANCE
    Line In : 24k
    Main Out balanced : 350
    Main Out unbalanced : 150
    Link In - sidechain mode : 100k

    LEVEL METERS
    EQ Peak threshold : 6 dB below interstage clipping
    Output Level VU Meter : 0dB VU = +4dBu output
    Gain Reduction Meter : 0-10dB Gain Reduction

    MAXIMUM OUTPUT LEVEL
    100k Ohm load, 0.1% THD : +28dBu

    WEIGHT and DIMENSIONS
    4.5 lbs : H1.7" x W19" x D9.0"
    2.05 kg : H4.3cm x W48.3cm x D22.9cm

    POWER CONSUMPTION
    85-264VAC / 120-370VDC : 14 Watts Max
