USB2/AVB Ethernet audio interface with 24 channels of analog input and DSP
The 24Ai from MOTU is a single rack space USB 2.0 interface with industry-standard AVB networking for sub-millisecond network latency, and offers twenty-four channels of analog audio input combined with three banks of ADAT optical, for a total of seventy-two channels of I/O. The unit connects to a computer through USB 2.0, which provides more than enough bandwidth for the twenty-four analog channels, and when connected through AVB networking, supports hundreds of network channels.
All devices on an AVB network can stream audio to and from a computer, and everything can be controlled simultaneously from any computers, tablets, and smart phones connected to the network. The interface delivers excellent analog performance with digitally controlled analog trim on the analog inputs, and includes a forty-eight-channel software mixer modeled after large format mixing consoles, DSP effects with 32-bit floating point precision, flexible matrix-style routing and splitting, stand-alone operation, and Wi-Fi control.
Caractéristiques
24 Balanced Analog Inputs
48 Channels ADAT I/O
Wordclock I/O
Onboard DSP
Digital Mixer with Effects
Expansive Matrix Routing
USB 2.0 and AVB Compliant
Standalone Mixing with Wireless Control
Up to 24-bit/192 kHz Resolution
Includes AudioDesk DAW Software
Spécifications
Sample rates :
44.1, 48, 88.2, 96, 176.4, 192 kHz

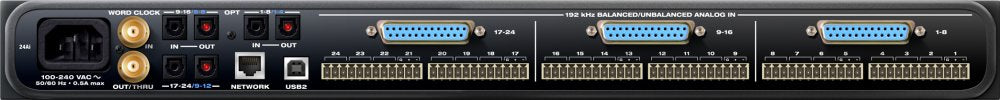

24Ai analog :
inputs 24 channels (balanced/unbalanced)
3x DB-25 D-sub and 6x 12-pin Phoenix
Max level: +24 dBu (digitally adjustable -96 to +22)
24Ao analog outputs :
24 channels (balanced, DC coupled)
3x DB-25 D-sub and 6x 12-pin Phoenix
Max level: +20 dBu (digitally adjustable -24 to 0 dB)
Digital I/O :
3 banks (24 ch) of ADAT optical at 1x sample rates
3 banks (12 ch) of SMUX optical at 2x sample rates
Stereo TOSLink (optical S/PDIF) on Bank A (optional)
Total I/O :
24 analog + 48 digital (72 total) at 1x rates
24 analog + 24 digital (48 total) at 2x rates
24 analog + 0 digital (24 total) at 4x rates
Computer I/O :
1 x USB 2.0 audio class compliant, USB 3.0 and iOS compatible
1 x AVB Ethernet (requires OS X Yosemite)
Computer I/O channels :
USB 2.0 (44.1 to 48 kHz): 64 in/out
USB 2.0 (88.2 to 96 kHz): 32 in/out
USB 2.0 (176.4 to 192 kHz): 24 in/out
AVB Ethernet: 16 to 128 in/out, depending on host computer speed
Sync I/O :
1 x word clock in
1 x word clock out

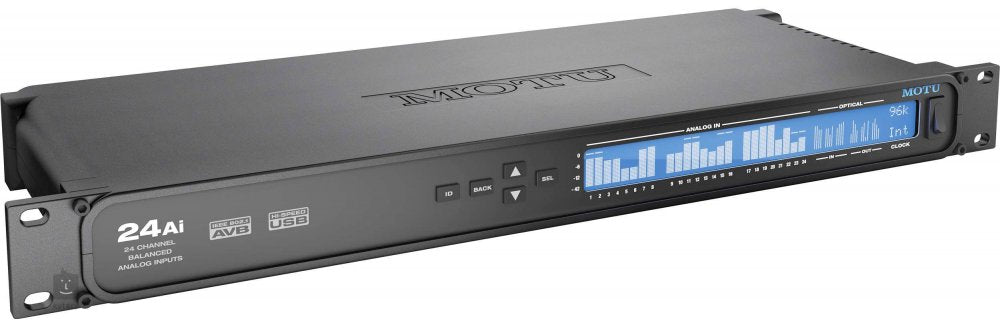

Front panel :
5 x switches
menu navigation
324 x 24 pixel LCD for level meters / menu nav
1 x AC power switch
Power :
International 100-240V autoswitching supply
50-60 Hz
0.5A max
Mac System Requirements
1 GHz Intel-based Mac or faster
2 GB RAM; 4 GB or more recommended
Mac OS X version 10.8 or later
Available high-speed USB 2.0 or AVB Ethernet port*
A large hard drive (at least 500 GB for recording)
*AVB Ethernet audio interface operation requires OS X Yosemite
Windows System Requirements
1 GHz Pentium-based PC compatible or faster
2 GB RAM; 4 GB or more recommended
Windows 7, 8 or 10
Available USB 2.0 or 3.0 port
Available Ethernet port for firmware updates
A large hard drive (at least 500 GB for recording)
