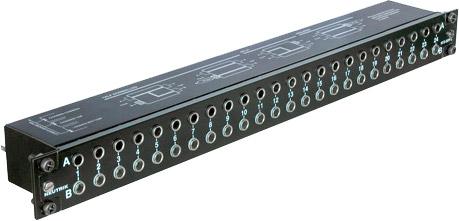

The Neutrik NYS-SPP-L1 is an extremely sleek 1/4" Patch Panel with grounding possibility offering 2 rows of balanced sockets, a total of 24 front pairs and 24 rear pairs fully PCB-wired (without nut fastening), 1U 19" rack-mount and identification strips for front and rear panel included.
Design Criteria
The NYS-SPP-L1 is a economical and remarkable sleek designed 1/4'' modular Patch Panel for 19'' rack mount (19'' x 1U) with a reinforced metal housing. Each of it's 48 PCB wired balanced channels (24 front pairs and corresponding 24 rear pairs) can either be grounded separately or in groups of inividually chooseable channel numbers (detailed information see below).
The PCBs are held securely in place by being clamped between the front and the rear panel, this grants an easy reconfiguration of the Patch Panel without the danger of loosing any small parts (e.g. nuts). The grey jack serves as an easy and distinguishable normalling identification.
Standard configuration, when delivered, is Half Normalled bottom row. The configuration can easily be changed by just flipping the individual PCB. Inserting a plug into the grey jack will always isolate the top against the bottom row. Alternative solution for send/return applications by use of NYS-SPCR1 module.
Neutrik NYS-SPP-L1's specifications
Product
Connector Type : Patch Panel
Electrical
Signal Type : AES/EBU Signals (digital)
Contact resistance : < 10 m Ohm
Dielectric strength : 1 kVdc
Frequencyrange : DC to > 50 MHz
Insulation resistance : > 1 G Ohm @ 500 V dc
Channel separation : > 100 dB @ 10 kHz, 600 terminated > 40 dB @ 6 MHz, 110 terminated
Handles Phantom Power : Yes
Mechanical
Insertion force : < 20 N
Withdrawal force : > 10 N
Lifetime : > 10000 mating cycles
Locking device : Retention spring
Material
Contacts : Bronze, tin plated (Jacks)
Contacts : Bronze, tin plated (Switch contacts)
Shell : Steel
Shell : ABS (Jacks)
Front panel : Steel
Environmental
Temperature range : -30 °C to +80 °C
Optical :
Mobile Cables
Dimensions : 482 x 44 mm (19" x 1U)
Depth : 64 mm (2.52")
Mating plug : A-Gauge 1/4" plug acc. EIA RS-453
