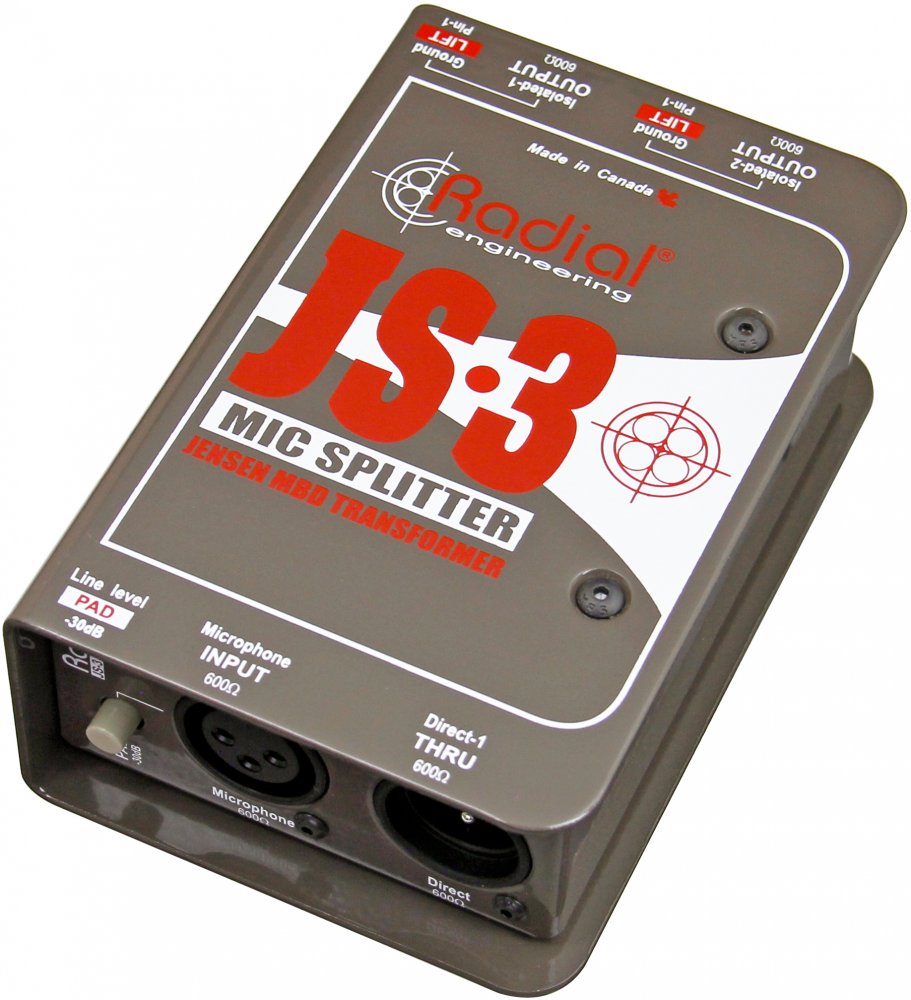

Radial Engineering JS3

The Radial JS3 are high performance passive microphone splitters that lets you feed mixing consoles without signal degradation or noise caused by ground loops.

The Radial JS2 and JS3 are Jensen Transformer-equipped mic splitters that allow a balanced source to drive multiple destinations via standard XLR connectors. These passive devices feature a premium nickel laminated core transformer for exceptionally low harmonic distortion without the usual phase shift caused by lesser steel core transformers.

The undisputed benefit of 100% transformer isolation provides better than -90dB common mode noise rejection (CMR), thus eliminating troublesome hum & buzz caused by stray voltage and ground loops. These problem-solvers offer a simple yet highly effective interface for microphones or direct boxes, and with the addition of the -30dB pad, consumer and line level devices may be employed without distortion or fear of overload due to saturation.

The Radial JS2 and JS3 mic splitters feature a rugged 14-gauge steel construction for maximum durability. A unique book-end design creates a protective zone for switches and connectors against the harsh environment of concert touring. An internal welded I-beam skeleton houses the PC board, creating a virtually indestructible monocoque design that makes it impossible to torque the circuitboard. This eliminates stress on the solder points which can cause cold solder joints to develop. This innovative design also has the unique advantage of allowing up to 8 units to be rack-mounted using the Radial J-Rak. The J-Rak is a heavy-duty rack shelf that allows the splitters to span across a vertical array using only two 19" rack spaces.

The Radial JS2 and JS3 mic splitters are easy to use, flexible and sound great!
Features
  • Jensen transformer-equipped for optimal signal transfer
  • Choice of 2-way or 3-way designs for extra flexibility
  • Compact design , up to 8 may be rack mounted in J-Rak
  • Ultra rugged 14-gauge steel construction for added durability
  • Specifications
  • Audio circuit type : Passive mic/line splitter, transformer based
  • Number of channels : Three-way splitter (one in/three out)
  • Frequency response : 20Hz ~ 20KHz (+0dB/ -2dB)
  • Dynamic range : 140dB
  • Maximum input : +25dBu @ 1kHz
  • Total harmonic distortion : 0.0005% @ 1kHz
  • Phase deviation : 0.7° @ 100Hz; 2.8° @ 20Hz
  • Input impedance : 2.4k Ohms, unbalanced
  • Output impedance : 150 Ohms, balanced

  • Features
  • JS2 transformer : JT-MB-CPC, 1:1 ratio
  • JS3 transformer : JT-MB-DPC, 1:1:1 ratio
  • Shield : Dual Faraday, MuMETAL® can

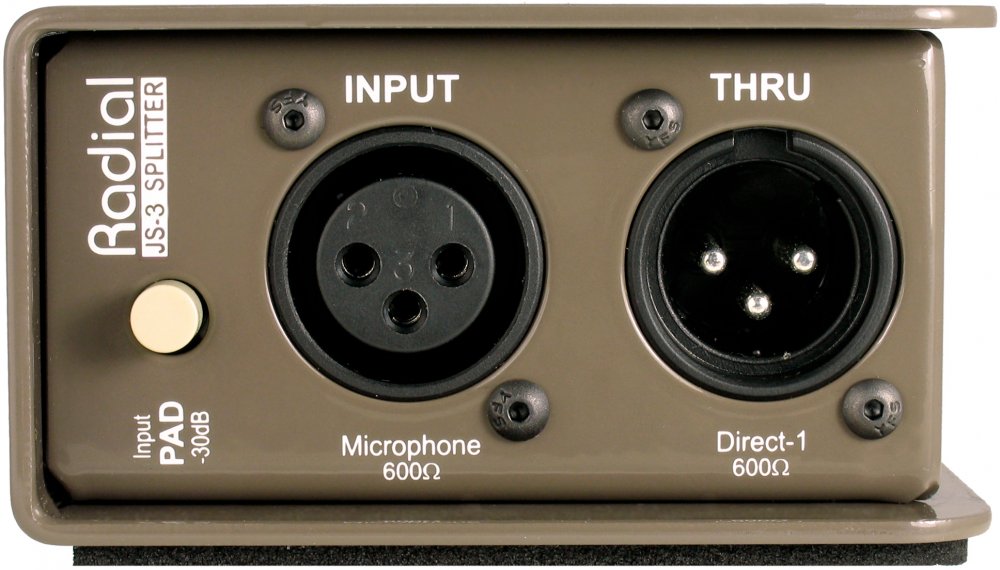

  • Input pad : -30dB (allows line-level sources)

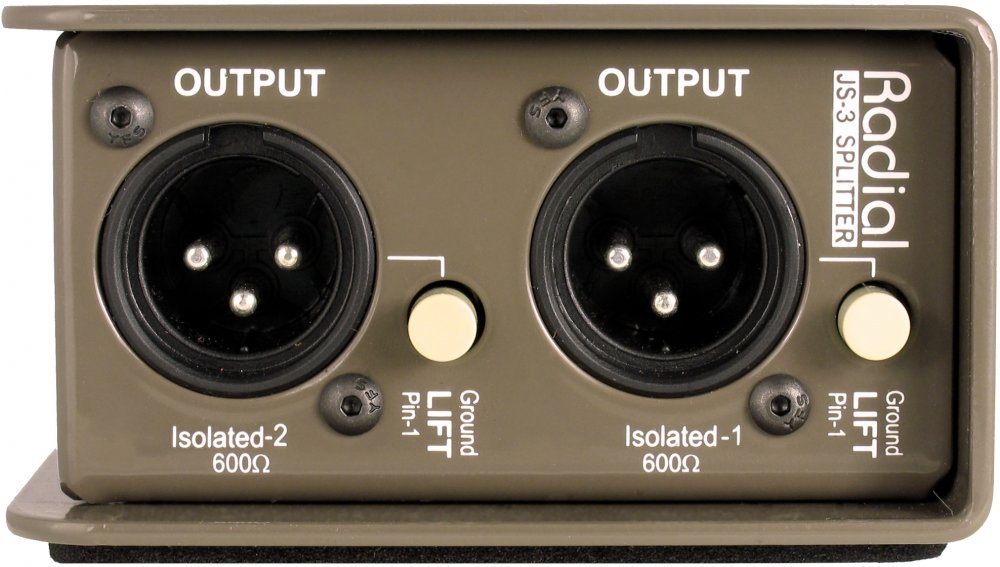

  • Ground lift : Disconnects XLR pin-1 at direct-2 and isolated output
  • XLR configuration : AES standard (pin-2 hot)
  • Connectors : XLR-F in, XLR-M direct; direct-2; isolated outputs

  • General
  • Construction : 14 gauge steel chassis & outer shell
  • Finish : Durable powder coat
  • Size : (W x H x D) 84 x 127 x 48mm (3.3" x 5.0" x 2")
  • Weight : 0.70 kg (1.55 lbs)
  • Shipping size : W x H x D : 102 x 76 x 165mm (4" x 3" x 6.5")
  • Shipping weight : .87 kg (1.92 lbs)
  • Power : Passive, no power required
  • Conditions : For use in dry locations only between 5°C and 40°C
  • Reviews
    Price *
    $325.00
    $279.00
    Free shipping in Canada. Conditions
    Rental

    Price/Day
    Total
    1 Day
    $10.00
    $10.00
    3 Days
    $6.00
    $18.00
    5 Days
    $4.50
    $22.50
    12 Days
    $3.00
    $36.00
    28 Days
    $2.00
    $56.00
    Additional information
    For more information about the JS3, please visit the website of Radial Engineering
