Sony ECM77B
$522.00
Save 22.5%, MSRP $673.68
Omnidirectional electret condenser, 40Hz"20kHz range, compact 5.6mm head, 120dB SPL max, XLR output, 9.8ft cable, phantom or AA battery powered.
The Sony ECM-66B is a professional miniature cardioid lavalier microphone crafted for superior audio pickup in live performance, presentation, and broadcast scenarios. Known for its compact design and high audio fidelity, the ECM-66B excels in environments where clarity and discretion are essential. Its cardioid pickup pattern ensures targeted audio capture while minimizing background noise, making it a reliable choice for use in noisy environments or on stage.
This model includes an integrated power supply barrel and comes terminated with an XLR connector, supporting both internal battery power and 48V phantom power for maximum flexibility. With its small capsule (only 10.6 mm in diameter and 24.2 mm long), the ECM-66B can be easily concealed in clothing, making it ideal for interviews and theatrical use. It boasts an extended frequency response from 70 Hz to 14 kHz, high SPL handling (up to 130 dB), and a robust dynamic range of 101 dB or more, allowing it to accurately capture both subtle and powerful sound sources.
The ECM-66B is designed with the end user in mind. It features a 3-meter cable and includes multiple accessories such as windscreen, vertical and horizontal tie clips, and a carrying case for on-the-go convenience. Its cardioid pattern also helps to reduce feedback, a common issue in live sound applications. Whether you're equipping a presenter, a performer, or a corporate speaker, this lavalier microphone delivers clear, consistent sound with minimal fuss.
Features
Miniature lapel microphone designed to be discreet and inconspicuous for on-camera useOmni-directional pickup pattern captures sound from all directions for natural voice reproductionHands-free operation allows presenters to focus on performance without holding a micDual powering options include a single AA battery or 48V phantom power for flexible useWide frequency response from 40 Hz to 20 kHz delivers clear and accurate audioPopular in television production, making it familiar to most sound professionalsSupplied with an XLR connector for professional wired applicationsLong 9.8-foot cable provides freedom of movement during recordingComes with metal-mesh windscreen, tie clips (vertical, horizontal, and double), a case, and instructions
Specifications
General Specifications

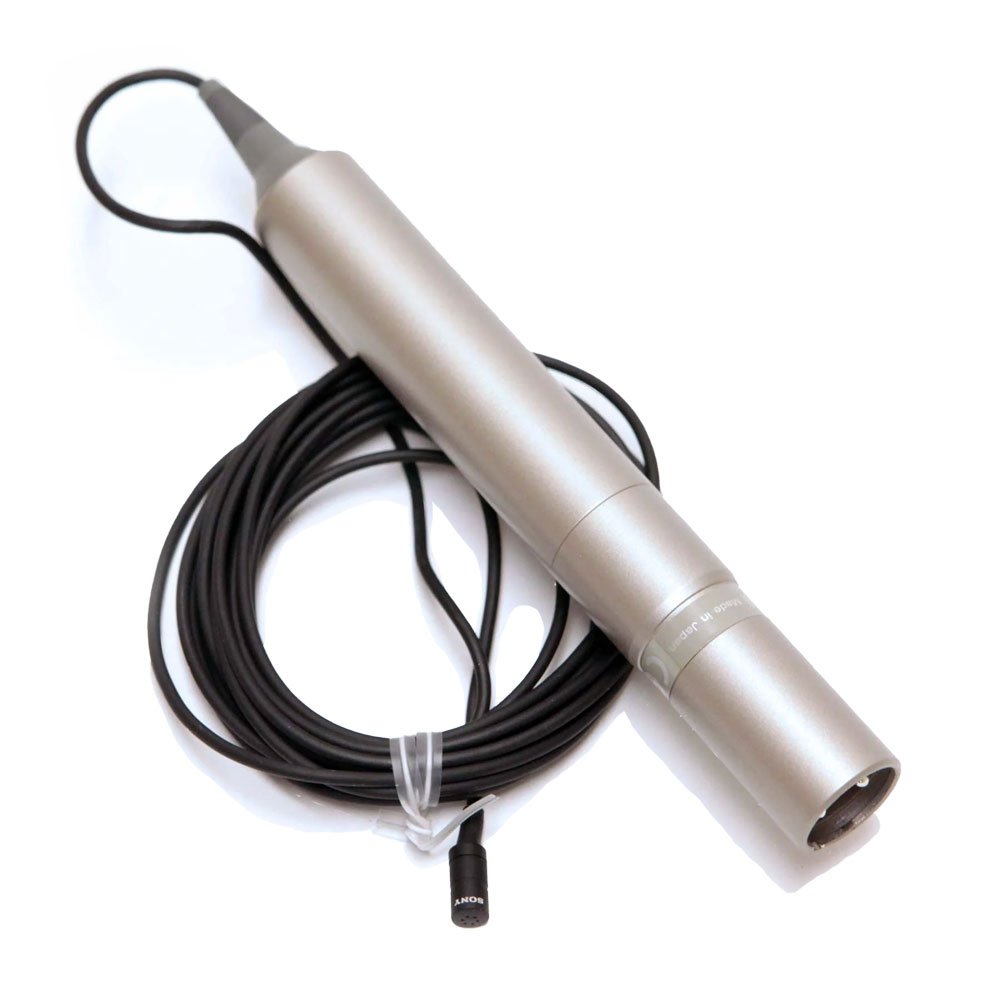

Model: Sony ECM-77BMicrophone Type: Electret condenserPolar Pattern: Omni-directionalApplication: Lavalier microphone for studio, ENG, and EFP useMounting: Tie clip (single vertical and horizontal types included, plus double clip)Dimensions Mic Head: 5.6 mm diameter x 12.5 mm lengthDimensions Power Unit: 20 mm diameter x 133 mm lengthWeight: 121.5 grams with power supply unit
Audio Specifications
Frequency Response: 40 Hz to 20 kHzSensitivity: -52.0 dB plus minus 2 dBOutput Impedance: 150 ohms plus minus 20 percent, balancedDynamic Range: 90 dB or moreSignal to Noise Ratio: 64 dB or more (A-weighted)Inherent Noise: 30 dB SPL or lessInduction Noise from Magnetic Field: 5 dB SPL or lessWind Noise (with windscreen): 40 dB SPL or lessMax Input SPL: 120 dB SPL
Connectivity
Connector Type: XLR-3-12C male (in power supply unit)Cable Length: 3 meters
Power Requirements
Voltage: DC 1.5 V from AA battery or +48 V phantom powerBattery Type: LR6 AA sizeBattery Operating Time: Approx 6000 hoursPower Consumption: 0.3 mA or less (internal), 2.0 mA or less (external)
Included Accessories

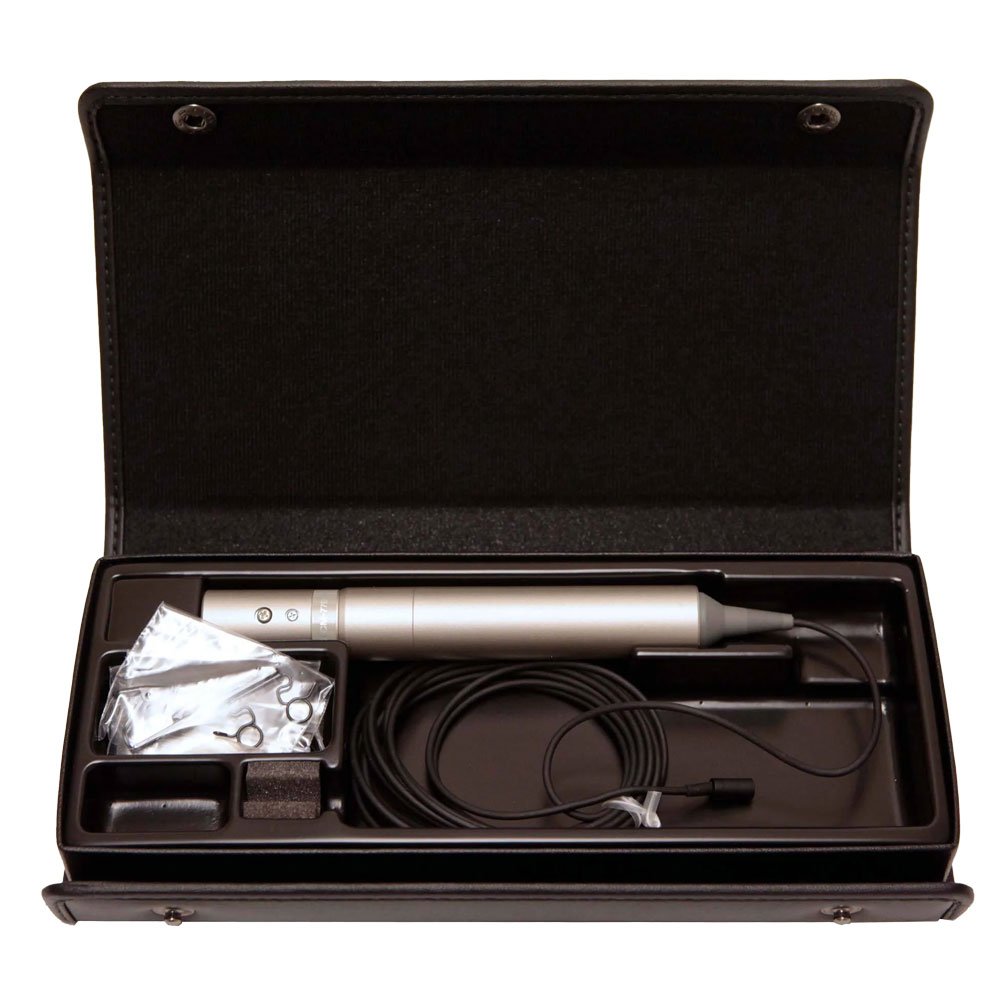

Metal mesh windscreenVertical tie clipHorizontal tie clipDouble horizontal tie clipOperating instructionsMicrophone case
Optional Accessories
Wind screen packVertical clip packSafety pin clip packDouble horizontal clip packSingle horizontal clip packECM-77 accessory kitColored windscreen kitBlack windscreen for ECM-77
