Telefunken U47

Every great singer deserves an amazing microphone, and for more than 60 years the U47 has been that microphone. The U47 is the go to standard for any serious recording studio.

Its authoritative mid-range and extended low-end response have made the TELEFUNKEN U47 the "go to" standard for any serious recording studio. The TELEFUNKEN Elektroakustik recreation of the U47 large diaphragm tube microphone is exact in every detail, down to the historically accurate BV8 output transformer and M7 capsule.

Sonic Characteristic
Whether you're recording a symphony, a "crooner," or any facet of modern music, you'll find a great tool in the U47. Its authoritative mid-range and extended low-end response dance from your ears . . . much as a vintage wine dances from the palate. Everything, from vocals to the loudest of guitar sounds, full on orchestral recording, beautiful backing vocal arrangements, or a chamber ensemble will benefit wildly from the rich and vibrant tone of this stunning microphone.

Circuit Design
Since its original development in 1946, the TELEFUNKEN U47 has been the microphone of choice for generations of recording professionals. The first condenser microphone to offer selectable polar patterns (cardioid and omnidirectional), the original U47 also featured the famous M7 capsule which had been developed in 1928 by Georg Neumann. To this capsule was added an amplifier built from military surplus VF14 tubes (they had been used in field and aircraft radios), and BV8 output transformers. The combination of these components created a sonic quality that was absolutely unheard of in the English speaking world of the mid-1940s when darker sounding, less detailed ribbon microphones were the standard. The introduction of the U47 brought a new level of fidelity to the audio world, and is still considered to be one of the finest microphones ever produced.

Construction

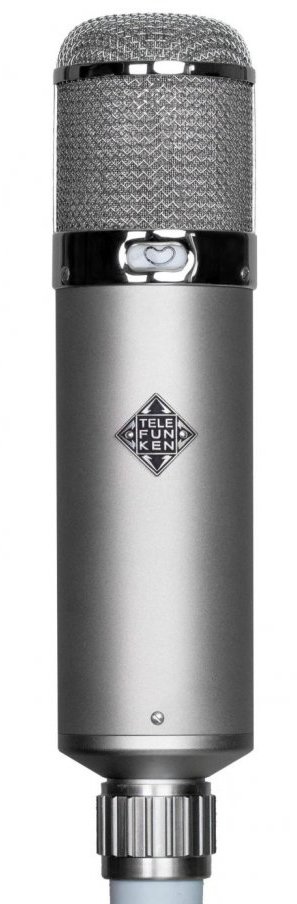

Upon first glance of the new U47 from TELEFUNKEN Elektroakustik, it's easy to see the "family resemblance." The large, chrome head grille houses a newly manufactured M7 capsule. Its matte nickel finished body houses a new BV8 output transformer and a newly developed VF14k vacuum tube; a "plug and play" replacement for the rare VF14M tubes found in the original. The classic "TELEFUNKEN" diamond logo proudly adorns the front of the body tube. All of these accoutrements show that this microphone means business.

Accessories

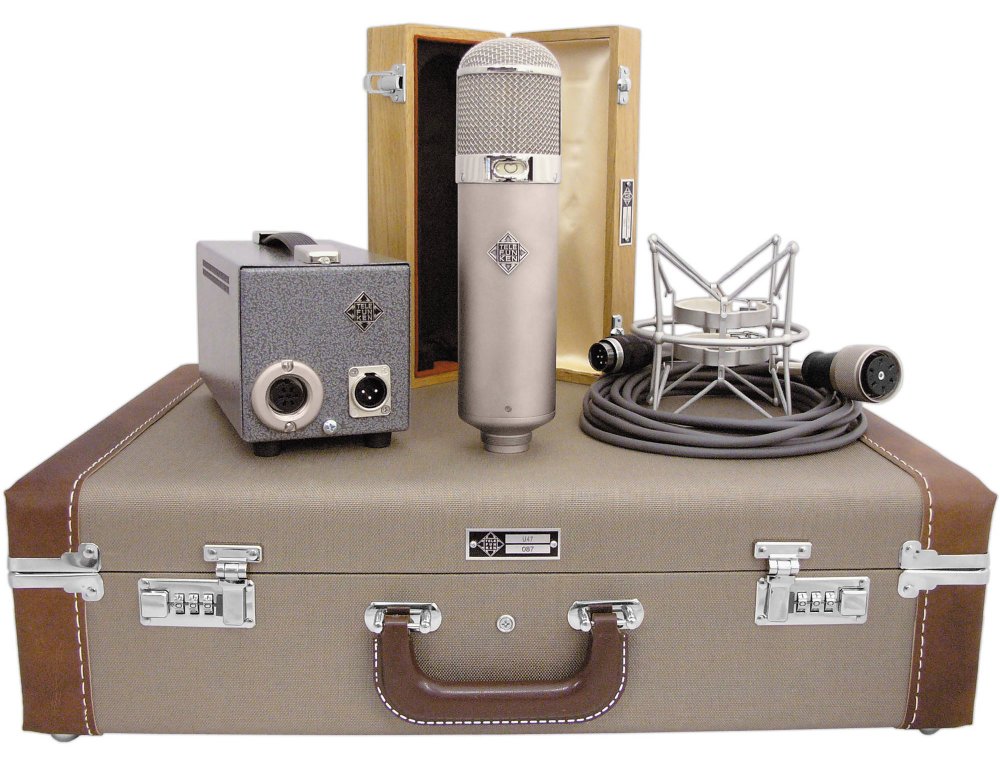

Each U47 microphone comes complete with M 940H power supply, M840TH 25' Sommer tube microphone cable, M740 shock mount, FC40 locking flight case and WB40 wooden microphone box.
Specifications
  • Type: Pressure Gradient Condenser
  • Capsule: M7 - 25.4 mm Center Terminated Diaphragm
  • Tube Type: TELEFUNKEN Elektroakustik VF14K
  • Transformer: Custom Wound TELEFUNKEN BV8
  • Polar Pattern: Cardioid, Omnidirectional
  • Frequency Range: 20 Hz - 20 kHz, ± 3 dB
  • Sensitivity: 24.5 mV/Pa ±1 dB
  • THD at 1kHZ at 1Pa (Amplifier): <0.3%
  • Output Impedance: 400
  • Maximum SPL (for 1% THD): 127 dB
  • S/N Ratio: 85 dBA
  • Self Noise (Amplifier): 9dBA
  • Dimensions: 240 mm L x 60 mm Dia
  • Weight: 620 g
  • Current Draw from Mains: 85 mA
  • Power Supply: M 940H - Vintage Compatible 6 Pin Female Tuchel Input, 3 Pin Male XLR Output
  • Cable: M 840H - 25 ft Sommer SC-Square 4-Core Cable, Vintage Compatible 6 Pin Male & Female Tuchel
  • Wooden Box: WB40
  • Flight Case: FC40 - Vintage Style Locking Combination Flight Case, FC40S for Stereo Set
  • Reviews
    5.0
    The Furet
    Montreal
    April 12, 2015
    Instant Classic
    As everyone already knows, this microphone is fantastic. I ain't no gear freak, but I know for sure that if the take does not sound good, it's my fault!
    Price
    $12557.00
    $10919.00
    This special bundle includes
    Free shipping in Canada. Conditions
    * With purchase of new equipment only
    Rental

    Price/Day
    Total
    1 Day
    $180.00
    $180.00
    3 Days
    $120.00
    $360.00
    5 Days
    $90.00
    $450.00
    12 Days
    $60.00
    $720.00
    28 Days
    $38.50
    $1078.00
    Additional information
    For more information about the U47, please visit the website of Telefunken
