Waves DSPro StageGrid 4000
MPN #DSPSGRD
32 mic/line ins, 16 analog outs, 4 AES/EBU ins/outs, 2 headphone outs, word clock I/O, 44.1"96kHz, SoundGrid, redundant PSU, 4U rack, ultra-low latency

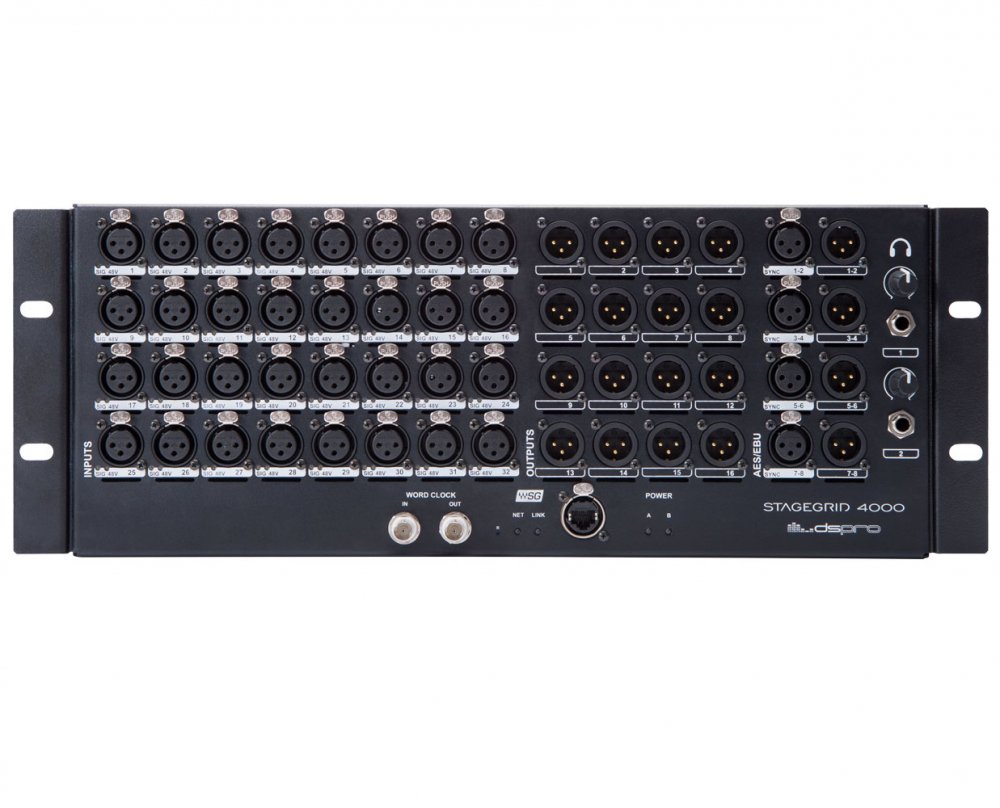

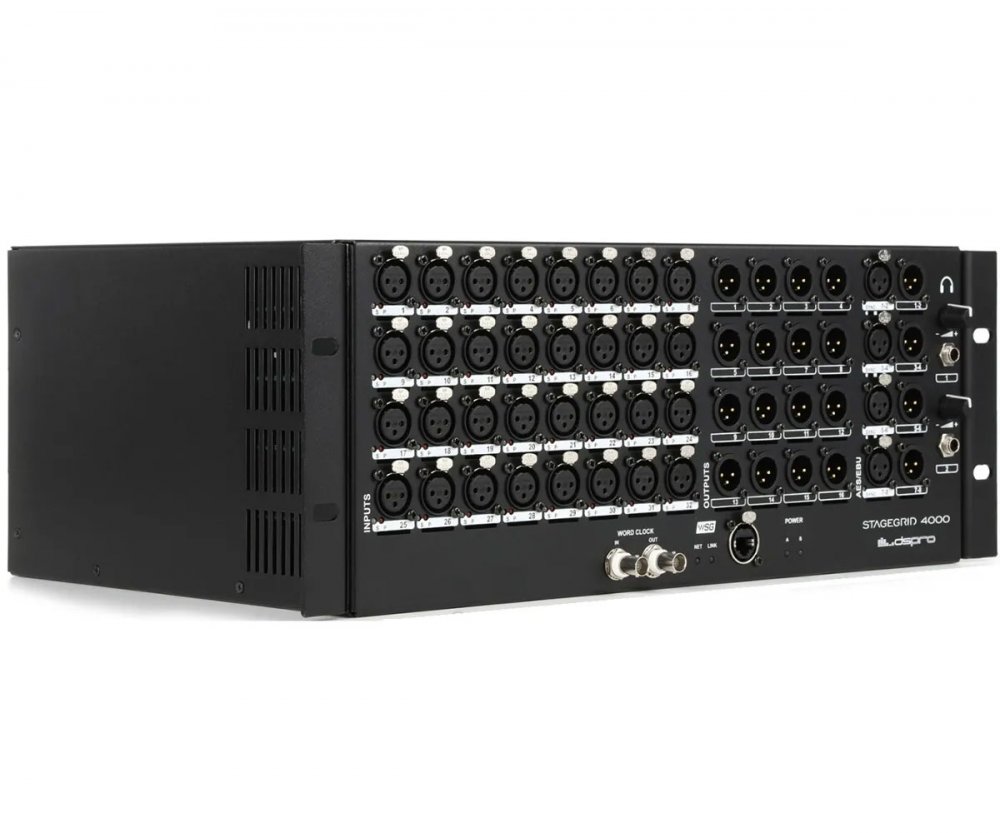

The DSPro StageGrid 4000 is a high-capacity SoundGrid stagebox designed to seamlessly integrate with the eMotion LV1 mixer and other components in the Waves ecosystem. Housed in a durable 4U rack-mountable chassis, it features 32 analog mic/line inputs, 16 analog outputs, and 4 stereo AES/EBU digital inputs and outputs, all with digitally controlled precision. Whether you're at front-of-house, on stage, or managing complex audio routing in broadcast or live settings, this unit offers robust and scalable connectivity backed by the speed and flexibility of SoundGrid technology.
Key to its professional-grade performance are the high-quality preamps that ensure dynamic, clear audio capture, two independent headphone outputs, and redundant AC power supplies for fail-safe operation during critical live shows. The Word Clock input/output (BNC) helps sync your entire system, while the Neutrik EtherCON port guarantees a solid Gigabit Ethernet link for SoundGrid network operations. With support for sample rates from 44.1 kHz to 96 kHz, the StageGrid 4000 brings both clarity and power to your live production toolkit.
Features
4U rack-mountable SoundGrid I/O unit32 digitally controlled mic or line inputs (XLR)16 balanced analog line outputs (XLR)4 stereo AES or EBU digital inputs and 4 stereo AES or EBU digital outputs (XLR)2 stereo headphone outputs with independent volume controlsNeutrik EtherCON port for SoundGrid compatibilityWord Clock input and output with BNC connectorsRedundant AC power supply for extra reliabilitySupports sample rates of 44.1 kilohertz, 48 kilohertz, 88.2 kilohertz, and 96 kilohertzRugged and road-ready for live sound applicationsOptimized for integration with Waves eMotion LV1 mixer
Specifications
General
32 analog mic or line inputs16 analog line outputs4 stereo AES or EBU digital inputs4 stereo AES or EBU digital outputs2 headphone outputs1 SoundGrid Ethernet port (Gigabit)Word Clock input and output (BNC)Dual redundant power supply
Analog Inputs
Type: Balanced XLR mic or lineImpedance: 2860 ohmsGain range: minus 4 decibels to plus 60 decibelsMax input level: 28 decibel units (at minus 4 decibel gain)Dynamic range: 115 decibels (A-weighted, 20 decibel gain, 1 kilohertz)Total harmonic distortion: 0.002 percent (at minus 1 decibel full scale, 20 decibel gain, 1 kilohertz)Equivalent input noise: minus 128 decibel units (A-weighted, 60 decibel gain, 150 ohm source)Frequency response: within plus minus 0.1 decibel from 20 hertz to 40 kilohertz at 96 kilohertzPhase shift: less than 10 degrees at 20 kilohertz
Analog Outputs
Type: Balanced XLROutput impedance: 50 ohmsMax output level: 24 decibel units (0 decibel full scale)Dynamic range: 115 decibels (A-weighted, 1 kilohertz)Total harmonic distortion: 0.002 percent (at minus 1 decibel full scale, A-weighted)Frequency response: within plus minus 0.1 decibel from 20 to 40 kilohertz at 96 kilohertzPhase shift: less than 5 degrees at 20 kilohertz
Digital I/O (AES/EBU)
Format: AES3 (2009)Connectors: XLR-3 for input and outputImpedance: 110 ohmsSupported sample rates: 44.1, 48, 88.2, and 96 kilohertz
Headphone Outputs
Output power: 150 milliwatts per channel at 16 ohmsDynamic range: 100 decibels
Network Interface
Interface: Gigabit EthernetConnector: Neutrik EtherCON
Word Clock
Connector: BNCImpedance: 75 ohmsVoltage level: 5 volts TTL
Power Supply

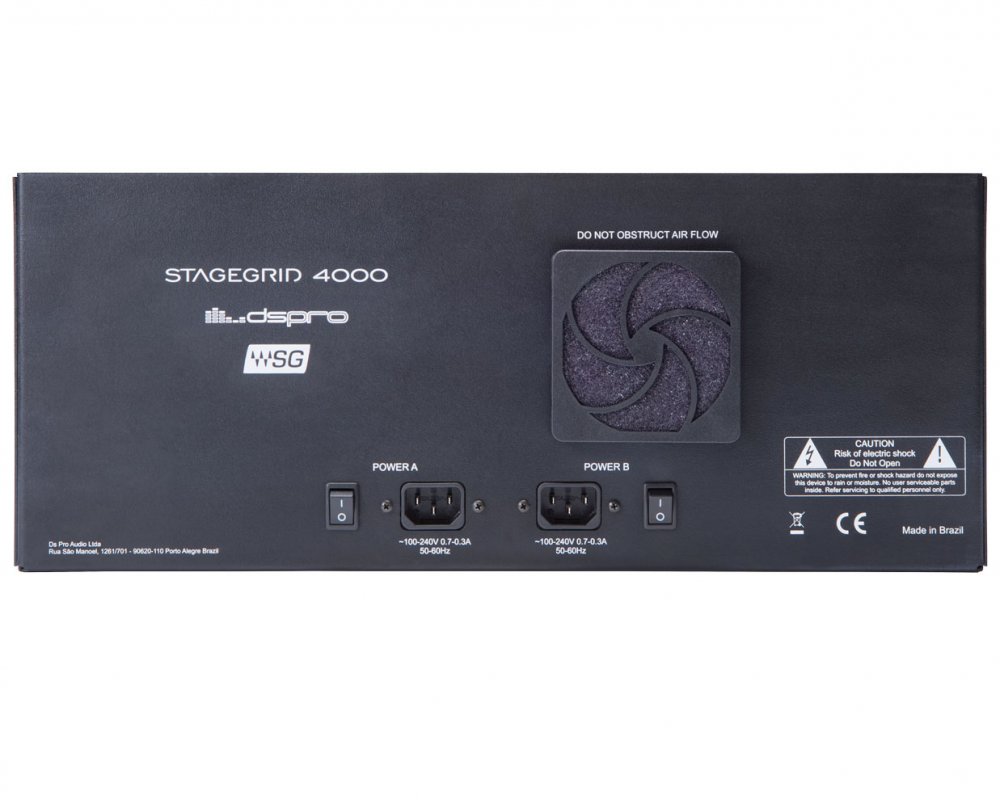

Voltage: 110 to 240 volts AC (auto-switching)Frequency: 50 to 60 hertzPower consumption: 60 wattsDual redundant internal power supply
Environmental and Physical
Operating temperature: 0 to 40 degrees CelsiusRelative humidity: Up to 90 percent, non-condensingDimensions (width x height x depth): 430 mm x 176 mm x 300 mmWeight: 7.89 kilograms
