SHURE

SCM810

4 to 16 Channels Boards

Automatic microphone mixer, 8-channel mic/line inputs, IntelliMix technology, 48V phantom power, peak output limiter, adjustable EQ, rackmount design

$2,449.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

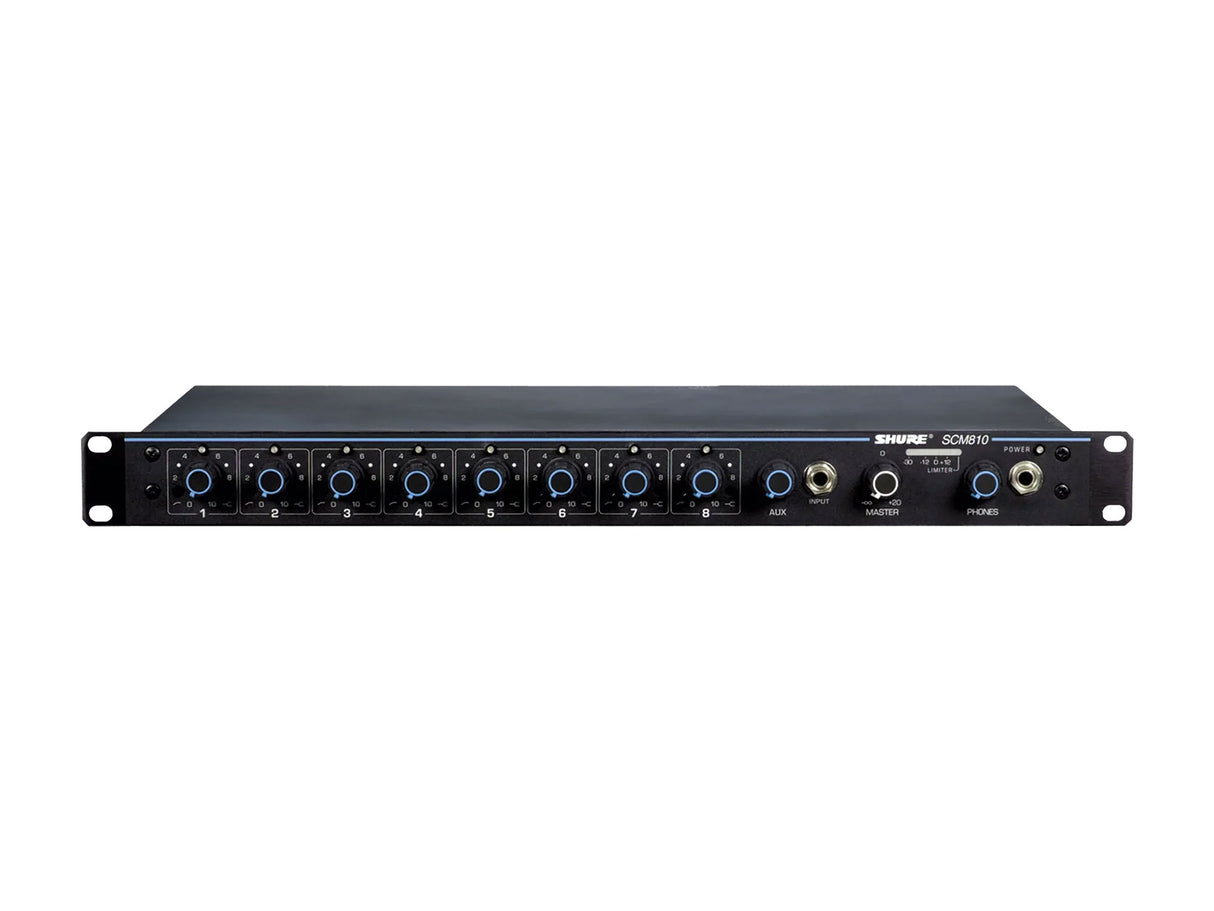

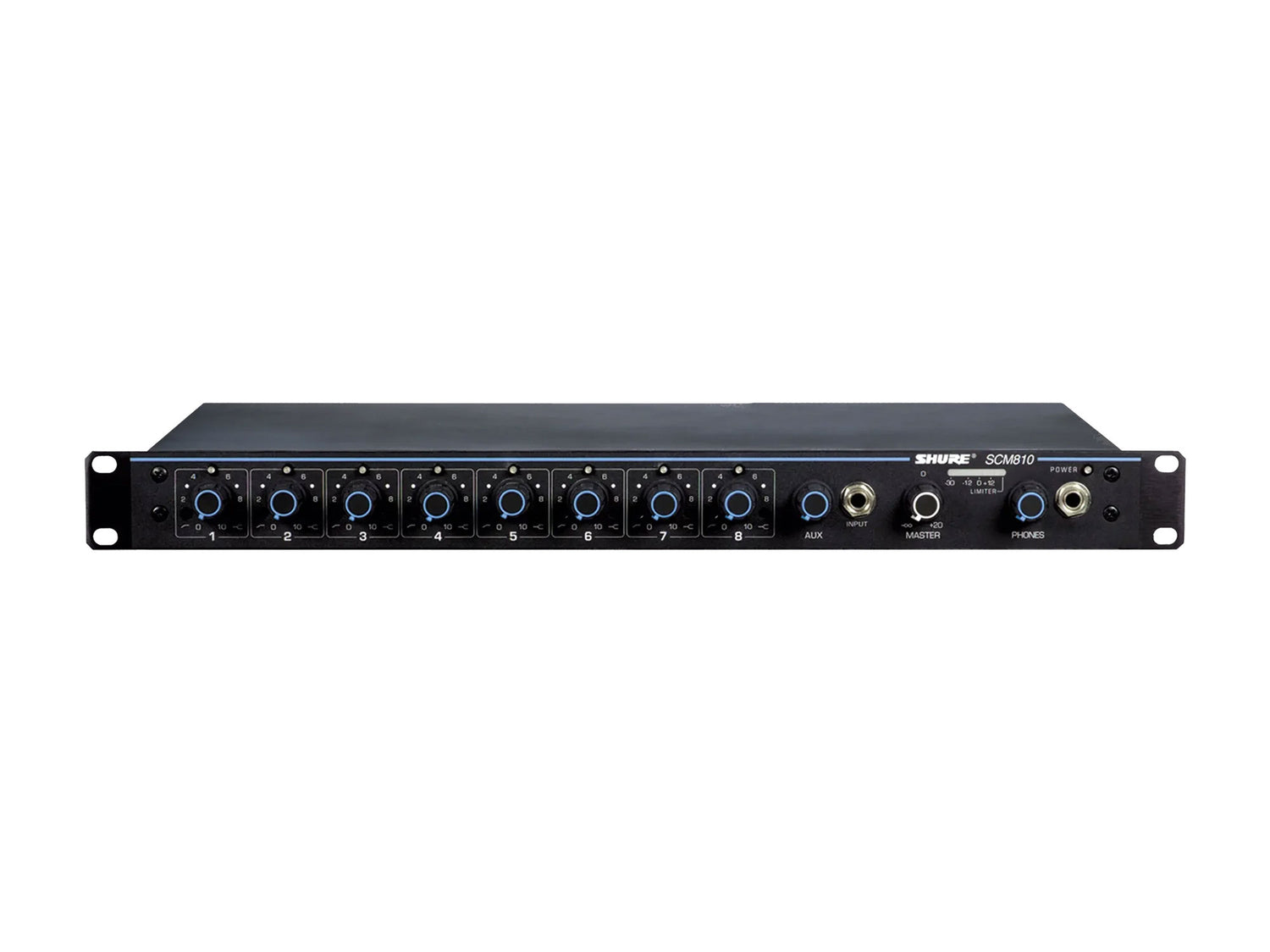

The Shure SCM810 is an eight channel automatic mixer designed to improve clarity and control in installations that require multiple microphones. Using Shure’s IntelliMix technology, the mixer automatically activates only the microphones that are in use. This helps reduce background noise, feedback, and the common problems that occur when several microphones remain open at the same time, resulting in clearer and more consistent audio.

Built for installed sound environments, the SCM810 is well suited for conference rooms, houses of worship, meeting spaces, and broadcast applications. Each channel includes adjustable equalization and low frequency roll off, allowing the system to be tailored to different voices and microphones. The mixer also includes selectable phantom power for condenser microphones and a peak responding output limiter to help maintain stable audio levels during discussions or presentations.

With eight balanced mic or line inputs, direct outputs for each channel, and a balanced master output, the SCM810 provides flexible integration into professional audio systems. Its rack mount design, durable construction, and ability to link multiple units for large microphone setups make it a reliable solution for installations where consistent speech intelligibility and automatic microphone management are essential.

Features

Automatic Microphone Management
Automatically activates only the microphones being used, helping reduce background noise and improve overall audio clarity.

Eight Channel Mixing
Supports multiple microphones at once, making it ideal for conferences, meetings, and installed sound environments.

Clear and Controlled Sound
Built-in controls help balance and shape audio so speech remains clear and easy to understand.

Adjustable Channel Sound
Each channel includes simple sound shaping options, allowing you to fine-tune microphones for different voices or environments.

Built-In Output Protection
An integrated limiter helps control sudden peaks, keeping the overall audio level smooth and consistent.

Flexible Connectivity
Multiple input and output options allow the mixer to integrate easily into professional sound systems.

Expandable System Design
Multiple units can be linked together, allowing the system to grow as more microphones are needed.

Reliable Installed-Sound Build
Designed specifically for permanent installations, offering dependable performance in meeting rooms, conference spaces, and public venues.

Specifications

General Specifications
Device Type: Automatic Microphone Mixer
Channels: 8 Channels
Mixer Technology: IntelliMix Automatic Mixing
Rack Format: Full Rack Width
Rack Height: 1U
Control Type: Automatic Microphone Activation

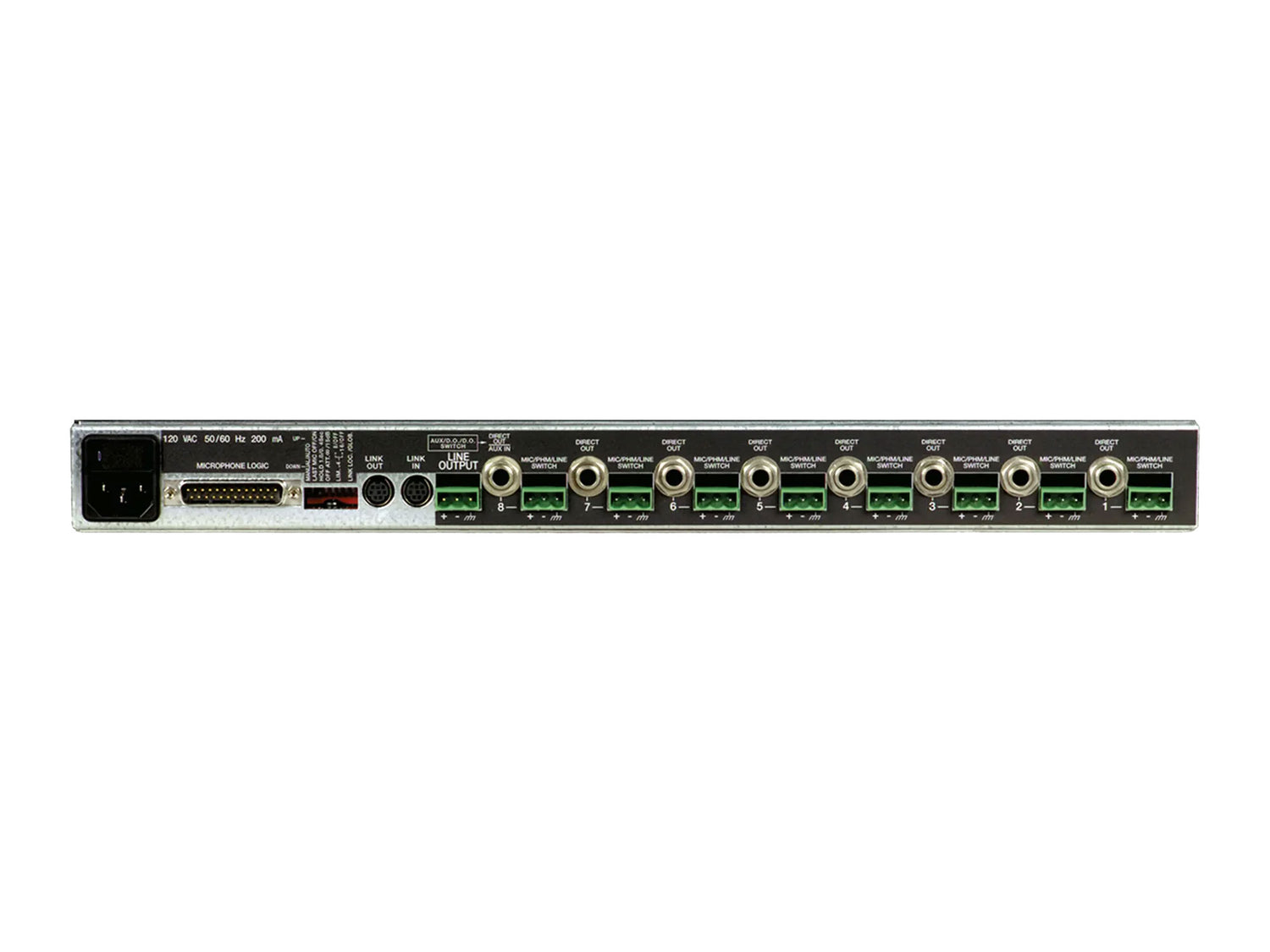

Inputs
Microphone/Line Inputs: 8 Balanced Inputs (Phoenix Block Connectors)
Auxiliary Input: 1 Unbalanced 1/4 in Aux Level Input

Outputs
Direct Outputs: 8 Unbalanced 1/4 in Direct Line Level Outputs
Master Output: 1 Balanced Line Level Output (Phoenix Block Connector)

Channel Processing
Equalization: Adjustable EQ per Channel
Low Frequency Filter: Adjustable Low-Frequency Roll-Off per Channel
Phantom Power: Selectable 46 V per Channel

Dynamic Processing
Limiter Type: Peak-Responding Output Limiter
Limiter Control: Selectable Output Limiter

System Integration
Logic Control: Microphone Activation Logic Control
Linking Capability: Up to 400 Microphones

Power Requirements
Power Input: 120 / 230 V AC
Power Supply Type: Internal Power Supply

Included Components
Connectors: 9 Block Connectors
