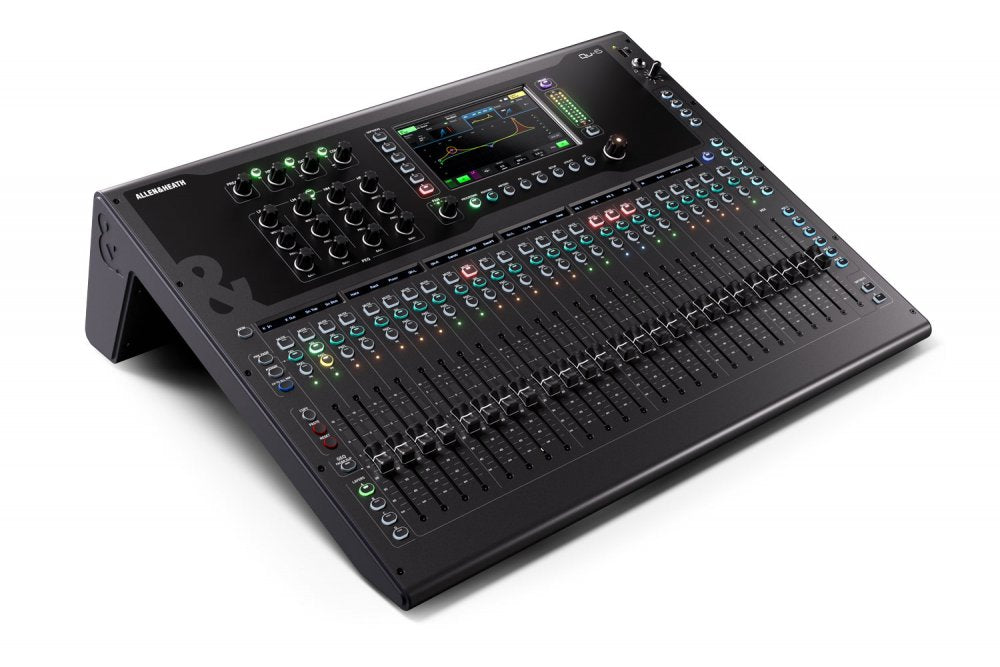

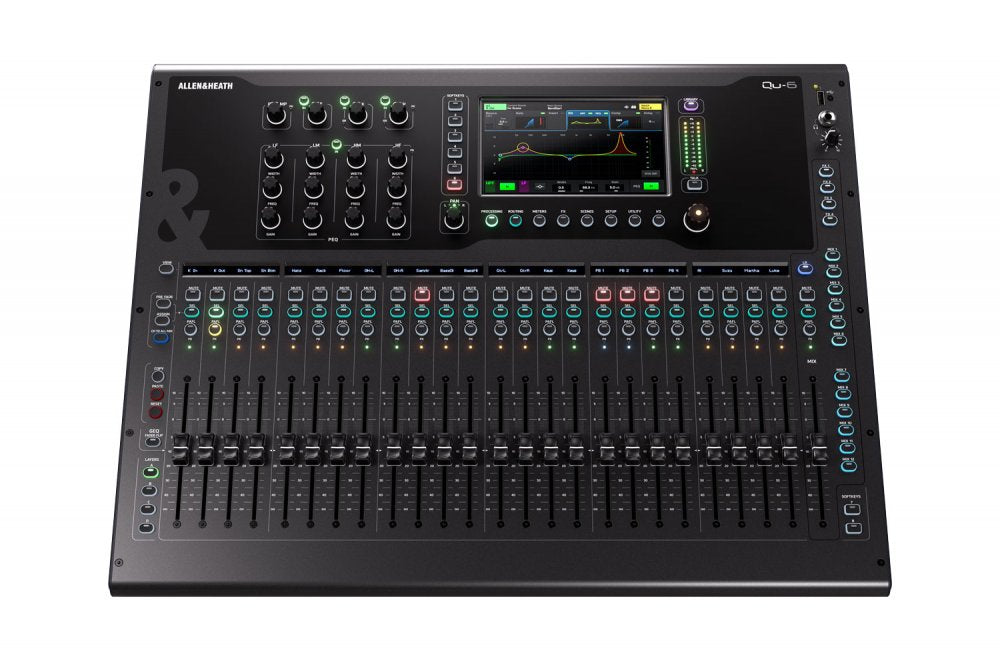

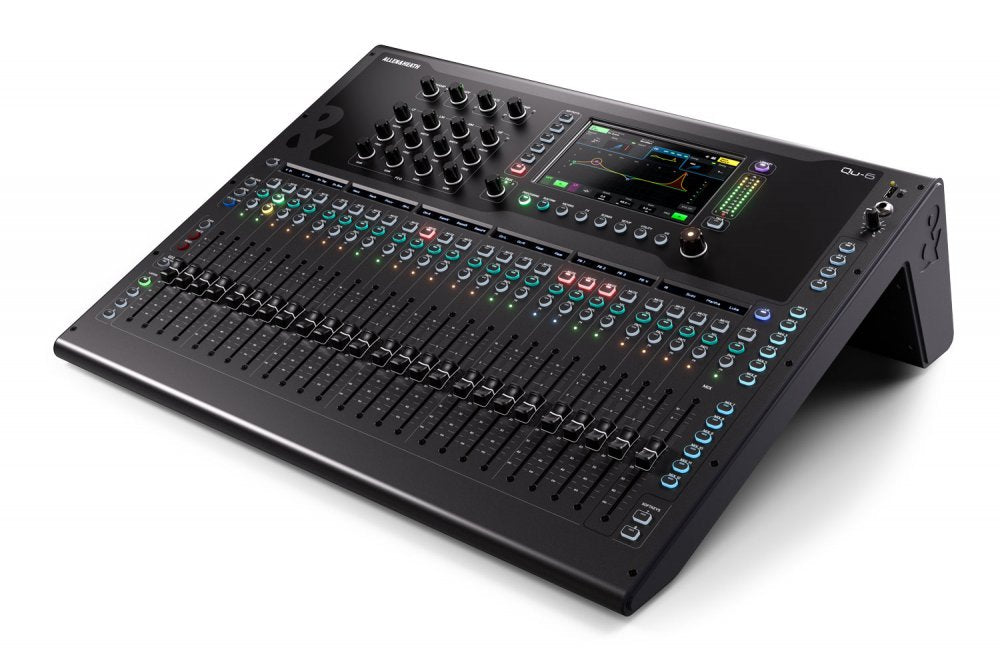

QU-6

Expanded Channel Control: Features 25 motorised faders and 4 customisable layers for managing complex mixes with ease.

High-Quality 96kHz Audio: Built on the powerful XCVI core with upgraded mic preamps and converters for clean, detailed sound.

24 Mic/Line Inputs & 16 XLR Outputs: Plenty of local I/O to support bands, events, and installations without external stageboxes.

7" Touchscreen Interface: Fully redesigned user interface for fast access to routing, processing, and setup tools.

Built-In Multitrack Recording: Capture 32 tracks via USB-C, use the SD card slot for flexible recording/playback, or stereo record to USB-A.

Advanced Onboard FX & Processing: Includes 6 stereo FX engines, DEEP Processing compatibility, and tools for shaping your sound in detail.

Assistive Audio Tools: Gain Assistant automatically sets optimal input levels, while Feedback Assistant removes trouble frequencies.

Integrated Automatic Mic Mixer (AMM): Ideal for panel discussions, corporate events, or spoken-word setups requiring multiple open mics.

Flexible Mix Architecture: 38 total input paths, 12 mix buses, 4 matrix outs, and stereo main output allow precise control of your audio system.

App Control & Expansion Ready: Supports remote mixing via mobile apps and features an SLink port for system growth with remote I/O.

General Specifications

model: Qu 6

digital mixer with 96kHz XCVI FPGA core

DEEP processing ready

total input channels to mix: 38

32 mono (linkable)

3 stereo

total output buses: 24

redesigned 7 inch capacitive touchscreen

25 motorised 100mm faders

4 fully customisable channel strip layers

8 assignable SoftKeys

dual footswitch input (single or dual mode)

chromatic LED metering on each fader strip

Audio Performance

improved mic preamp design

high resolution 96kHz AD/DA converters

ultra-low latency signal path

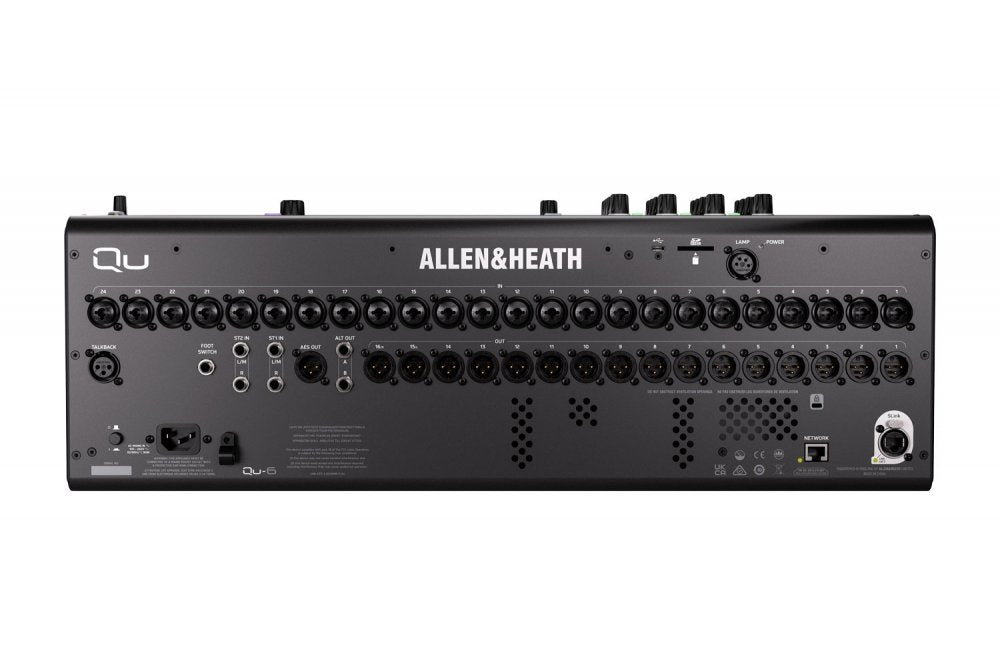

Input and Output I/O

24 XLR/TRS combi mic/line input sockets

2 stereo line inputs (each 2x TRS jacks)

16 XLR output sockets

2 TRS output sockets

1 XLR AES3 stereo digital output

1 XLR talkback mic input

stereo headphone output

12V lamp socket

Mix Architecture

12 mix outputs

6 mono or linkable aux/group

6 stereo aux/group

4 mono or linkable matrix outputs

stereo main LR output

6 multi FX engines with dedicated stereo returns

Digital Expansion and Connectivity

128x128 SLink intelligent port for remote I/O and stagebox expansion

fully flexible input and output patching

Recording and Playback

32x32 USB-C audio interface for multitrack recording and playback

USB-A port for stereo record/playback and file transfer

SD card slot

16x16 channels at 96kHz

32x32 channels at 48kHz

Assistive Tools and DSP Features

Gain Assistant for automatic gain setup and monitoring

Feedback Assistant with up to 16 dynamic filters per output

integrated 32 channel Automatic Mic Mixer (AMM)

Remote Control and Software

remote control apps supported for Windows, macOS, iOS, Android

full access to mix, routing, patching, FX and processing

Chassis and Mounting

compact mixer with optional 19 inch rackmount kit

updated layout for ergonomic and intuitive operation

robust build for live, install, or studio use
