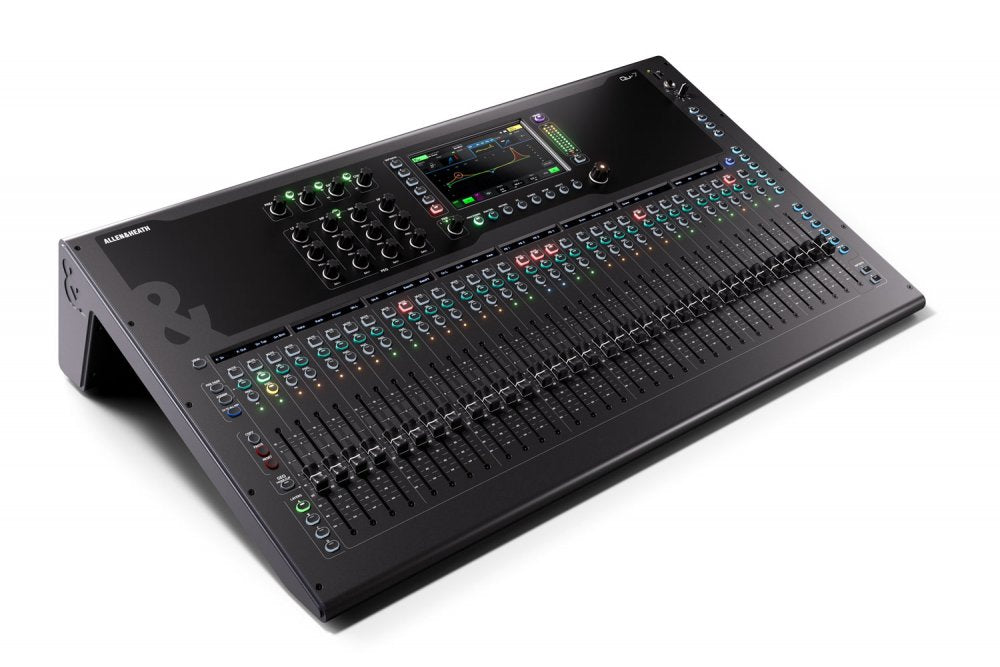

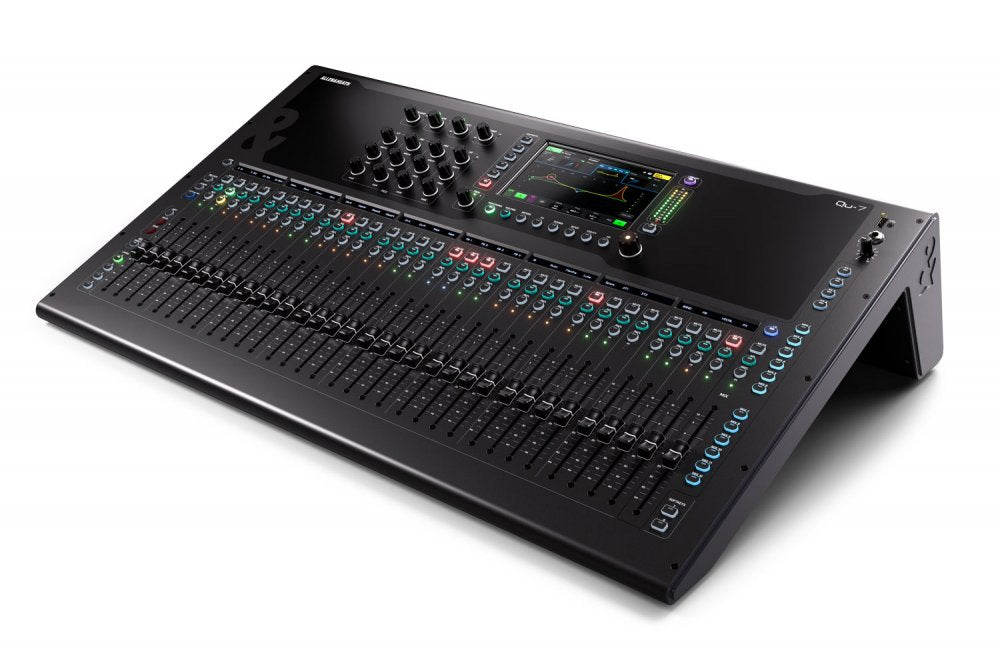

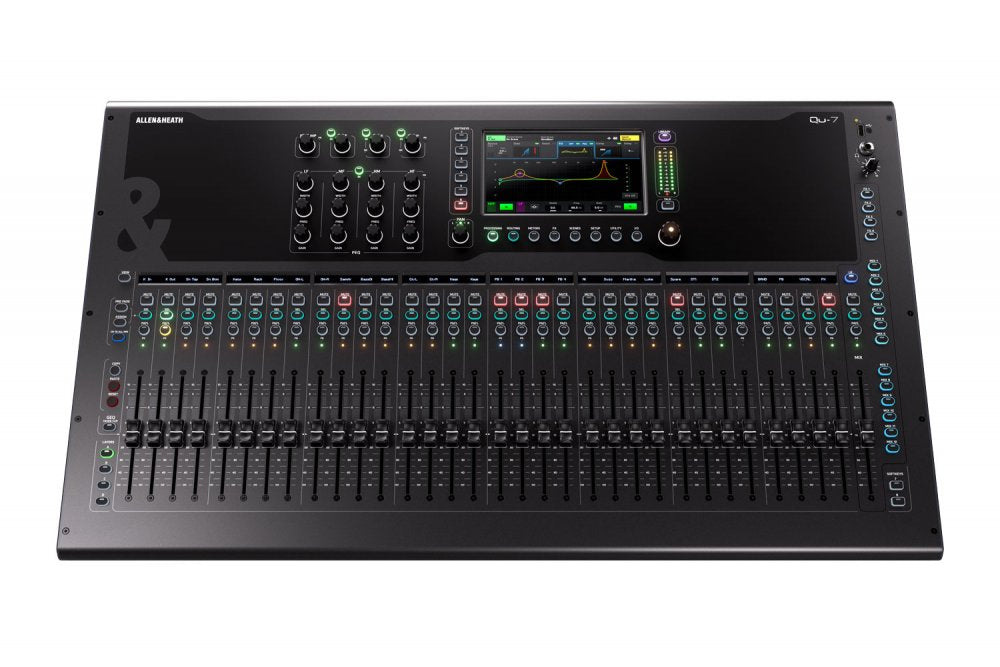

QU-7

33 Motorised Faders: Hands-on mixing with smooth, motorised faders across 4 user-configurable layers.

Extensive Local Connectivity: Includes 32 mic/line inputs and 20 XLR outputs for flexible routing in live or install setups.

Studio-Grade Sound: Updated mic preamps and high-resolution 96kHz converters ensure crystal-clear audio quality.

Intuitive Touch Interface: New 7" touchscreen with fast navigation, modern UI, and real-time metering on every channel.

Multitrack Recording Made Easy: USB-C interface for 32-32 recording/playback, SD card multitrack support, and USB-A stereo recording.

Built-in DEEP Processing & FX: Six powerful FX engines with dedicated returns, plus support for DEEP processing add-ons.

Quick Setup Tools: Includes Gain Assistant and Feedback Assistant to save time and reduce setup stress.

Automatic Mic Mixing: Integrated 32-channel AMM perfect for speech and conference events.

Versatile Mixing Architecture: Offers 12 mix outputs, 4 matrix sends, and stereo LR main out for custom signal routing.

Expandable I/O: SLink port enables system growth through additional remote I/O boxes.

App-Based Remote Control: Full remote mixing via apps on iOS, Android, Mac, or PC.

General Specifications

model: Qu 7

96kHz XCVI FPGA core digital mixer

DEEP processing ready

total input channels to mix: 38

32 mono (linkable)

3 stereo

total output buses: 24

redesigned 7 inch capacitive touchscreen interface

33 motorised 100mm faders

4 fully configurable fader layers

8 assignable SoftKeys

dual footswitch input (supports single or dual switch)

channel-level OLED display and chromatic LED metering

Audio Quality

upgraded mic preamp design for improved transparency

96kHz high-performance AD/DA conversion

low-latency signal processing

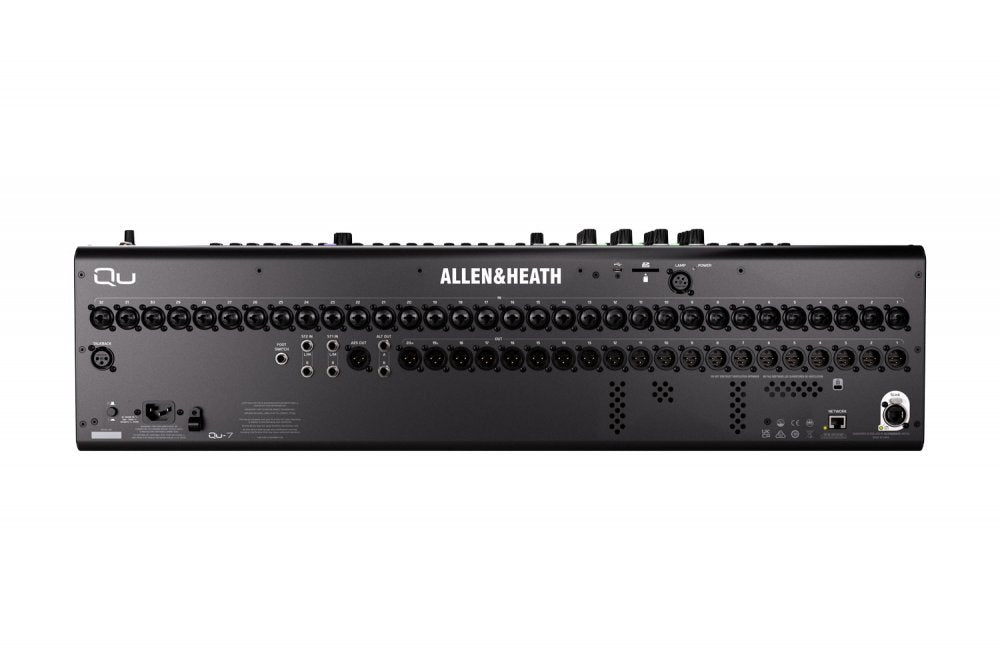

Input and Output I/O

32 XLR/TRS combi mic/line input sockets

2 stereo line inputs (each with 2x TRS jacks)

20 XLR output sockets

2 TRS output sockets

1 AES3 stereo digital output via XLR

1 XLR talkback mic input

stereo headphone output

12V lamp socket

Mix Architecture

12 mix outputs

6 mono or linkable aux/group

6 stereo aux/group

4 mono or linkable matrix outputs

dedicated stereo main LR output

6 built-in multi FX engines with individual stereo returns

Digital Connectivity and Expansion

128x128 SLink port for remote I/O and stagebox expansion

flexible routing and patching for all inputs and outputs

Recording and Playback

32x32 USB-C audio interface for multitrack playback and recording

USB-A port for stereo recording/playback and data transfer

SD card slot for multitrack operation

16x16 channels at 96kHz

32x32 channels at 48kHz

Onboard Tools and DSP Assistants

Gain Assistant for rapid preamp level setting and monitoring

Feedback Assistant with up to 16 real-time filters per output

integrated 32 channel Automatic Mic Mixer (AMM) with zero added latency

Remote Control and Software

compatible with remote apps for Windows, macOS, iOS, and Android

full control over mix, FX, routing, and processing via app

Construction and Format

durable desktop design

optional rackmount kit available for 19 inch integration

streamlined layout for live, studio, and install environments
