AMS NEVE  |  SKU: 1755

1073 DPA

AMS Neve 1073 DPA, Two Legendary Mic Preamps in One Single Rackspace. This stereo unit is the perfect solution for studios looking to bring the legendary Neve 1073 sound.


$3,759.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

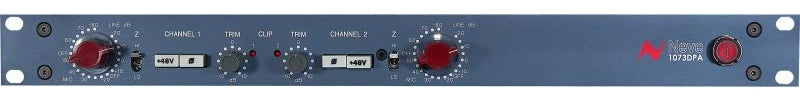

A superb addition to the Neve outboard range, providing two of our world-famous Class A Neve 1073 microphone preamplifiers in a single rackspace. The 1073 is the mic preamp of choice for numerous leading producers and artists, delivering the unique Neve sound featured on some of the most famous recordings of the past 40 years. The big, punchy sound of the 1073 compliments any musical genre, from rock to pop, hip-hop to rap, thrash to classical. Its lush sound with classic Neve signature makes it the consummate mic pre for recording vocals, guitars, and acoustic instruments of all descriptions. With the 1073DPA, the highly sought-after 1073 mic amp sound is now available in a cost-effective 1U stereo rackmount solution, without the additional EQ found on the classic 1073 unit. The 1073DPA provides the legendary sound of Neve in a remarkably simple format. Two rear-panel Mic inputs and Line inputs feed dual Class A gain stages, with adjustable Gain control and selectable 48V available on the Mic inputs. Class A analogue outputs in XLR format are also found on the rear panel, controlled via adjustable front-panel ±10dB Trim controls. This stereo unit is the perfect solution for studios looking to bring in the very essence of the legendary Neve 1073 sound.

Features

Dual Mic Preamps " Features two Class A Neve 1073 mic pre-amplifiers for high-quality sound.

Versatile Inputs " Accepts microphone, line, and instrument signals with switchable impedance.

Classic Neve Sound " Delivers the signature warmth and depth of the legendary 1073 design.

Phantom Power " +48V phantom power available for condenser microphones.

Trim Control " ±10dB trim for fine-tuning input levels.

High Headroom " Handles high signal levels with low distortion.

Transformer-Balanced Outputs " Ensures high-quality, low-noise analog output.

Rack-Mountable " Compact 1U 19" rack design for professional studio setups.

Universal Power Supply " Operates on 100-240V AC without the need for voltage selection.

Specifications

General

Dual-channel Class A microphone pre-amplifier

Based on classic Neve 1073 design

1U 19" rack-mountable unit

Power Requirements

Rated Voltage: 100-240V AC

Rated Frequency: 47-63 Hz

Rated Current: 0.5A Max

Primary Protection Fuse: T5AH anti-surge (20mm x 5mm ceramic)

IEC mains connector

Red LED power indicator (+5V healthy when illuminated)

Input Specifications

Mic Input: Transformer coupled

Mic Input Impedance: Switchable 300Ω / 1200Ω (Hi-Z)

Mic Input Maximum Level: +6dBu

Mic Input Phantom Power: +48V switchable

Line Input Impedance: 20kΩ

Line Input: Electronically balanced

Line Input Maximum Level: +26dBu

Output Specifications

Line Output: Transformer balanced

Line Output Phase: Phase reversal available

Line Output Minimum Peak Level: +26dBu

Performance

Frequency Response (Mic, 60dB Gain, 600Ω Load): 20Hz to 20kHz ±0.5dB

Frequency Response (Mic, 60dB Gain, 600Ω Load): 20Hz to 40kHz -3dB

Equivalent Input Noise (Mic, 60dB Gain): <-125dB

Total Harmonic Distortion + Noise (+20dBu into 600Ω, 50Hz to 10kHz): <0.07%

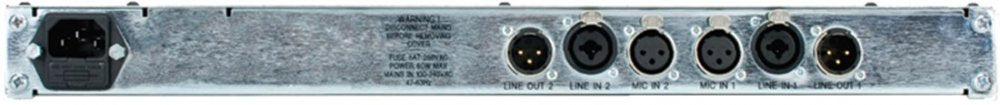

Rear Panel Connectors

Line Output: Male XLR

Line Input: Female XLR and 1/4 inch jack combo

Mic Input: Female XLR

Mic Input Maximum Level: +6dBu

Mic Input Impedance: 300Ω or 1200Ω

Dimensions & Weight

Depth: 254mm (10")

Height: 45mm (1.75")

Approximate Weight: 5kg (11lbs)
