ATC LOUDSPEAKERS  |  SKU: 18547

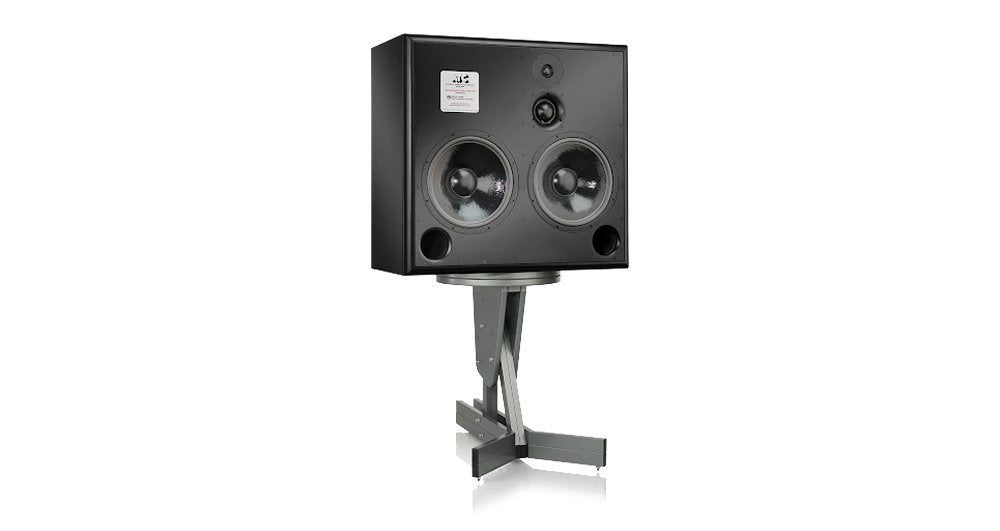

SCM300ASL Pro (single)

Active Monitors

Three-way high SPL for far-field monitor for music/film

$0.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Based on the same mid and HF drivers, and the same amplifier block as the ATC SCM200A Pro, the ATC SCM300A employs larger 375mm bass drivers and a larger 300 litre enclosure to deliver even higher maximum volume (121dB/1m), with extended bass and increased transient headroom.

The new ATC SCM300 AT is a superb speaker producing prodigious bass output down to 25Hz. with legendary ATC dynamics and power.

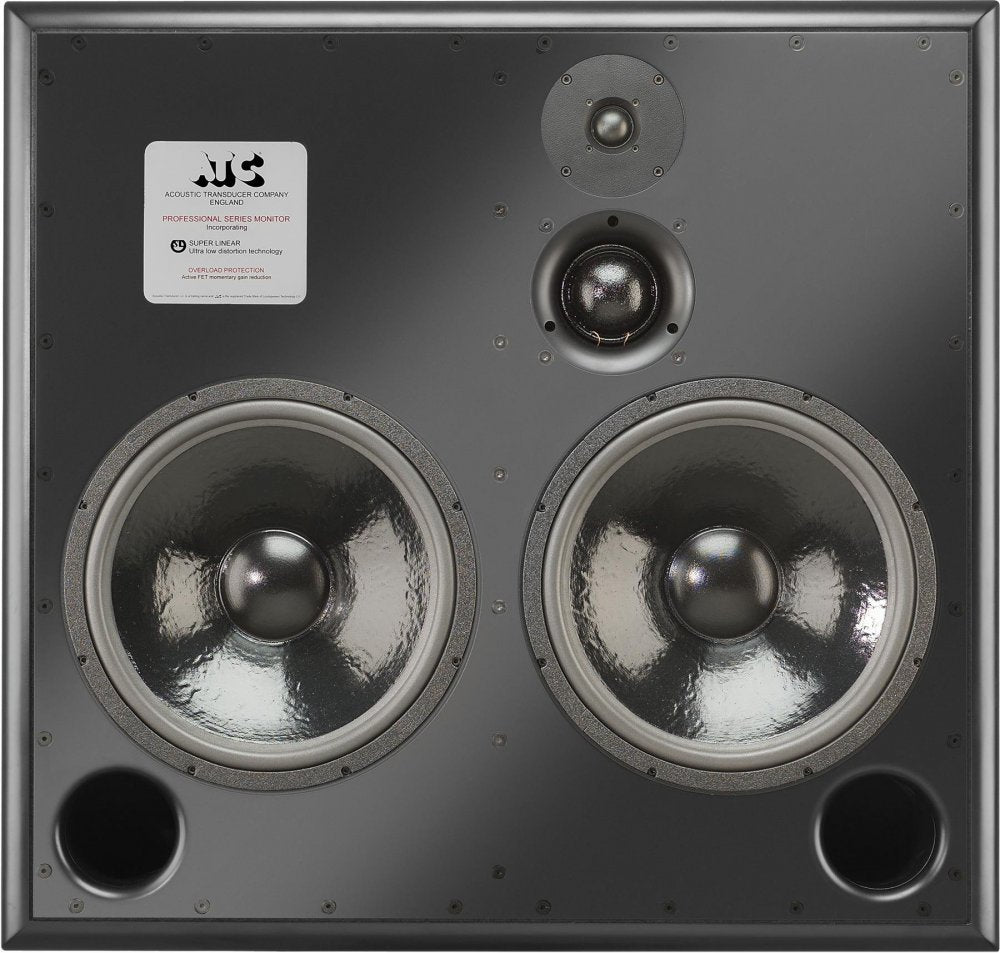

Featuring a pair of ATC 375mm bass drivers, the legendary ‘Super Dome' midrange driver and a 34mm soft dome tweeter.

Features

Large format main monitor.

34mm soft dome tweeter.

Twin full spec "SL" 15˝/375mm bass drivers.

ATC 75mm "Super Dome" mid driver.

P4 rack-mount grounded source 850W class A/B amplifier.

Specifications

Loudspeakers


Drivers: HF 1.25″/34mm, Mid 3″/75mm, LF 2 x 15″/375mm
Amplitude Linearity (±2dB): 50Hz-12kHz
Cut-off Frequencies (-6dB): 25Hz, 20kHz (free standing) 20Hz, 20kHz (soffit mounted)
Horizontal Dispersion: ±80, Coherent
Vertical Dispersion: ±10, Coherent
Max. Continuous SPL (1 metre): 121dB
Crossover Frequencies: 380Hz, 3.5kHz
Dimensions (HxWxD): 884 x 925 x 460mm (34.8˝ x 36.4˝ x 18.7˝)
Weight: 87kg / 191.4lbs

P4 Amplifier (standalone 5U/19″ unit)


Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 2V
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 275+275W, Mid 200W, High 100W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
