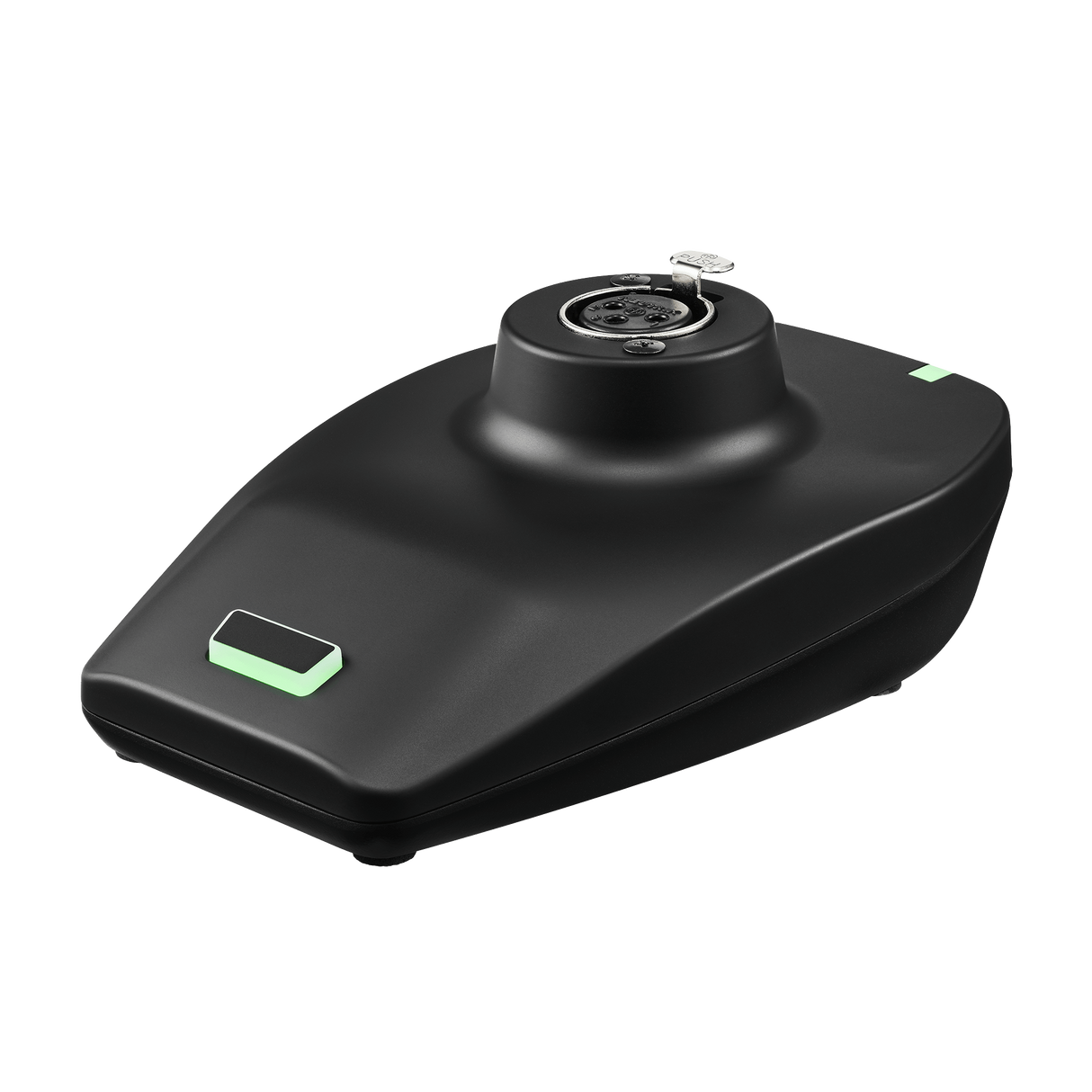

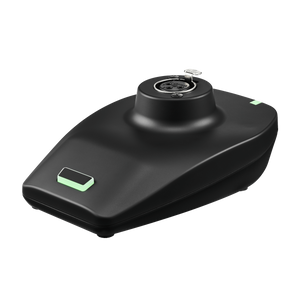

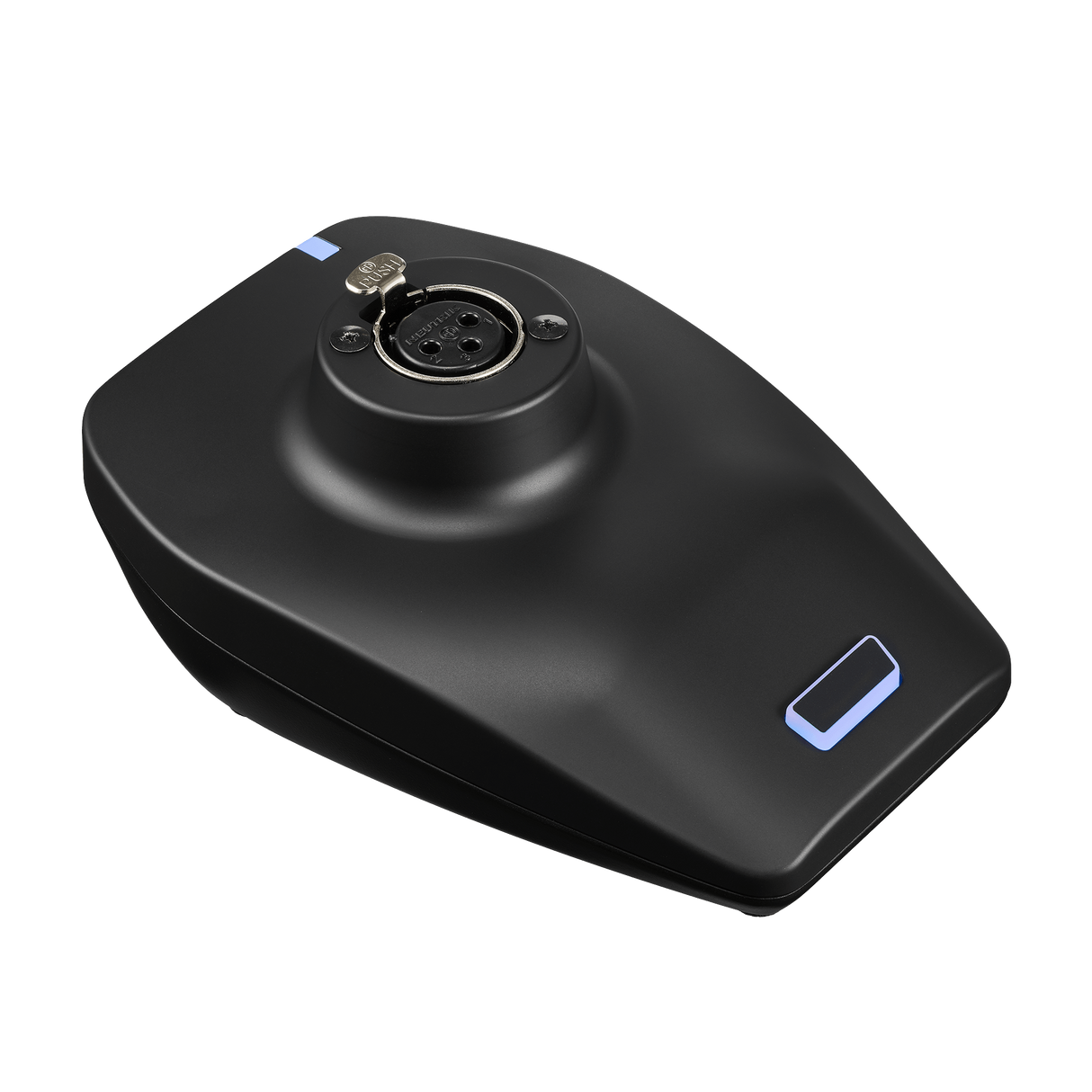

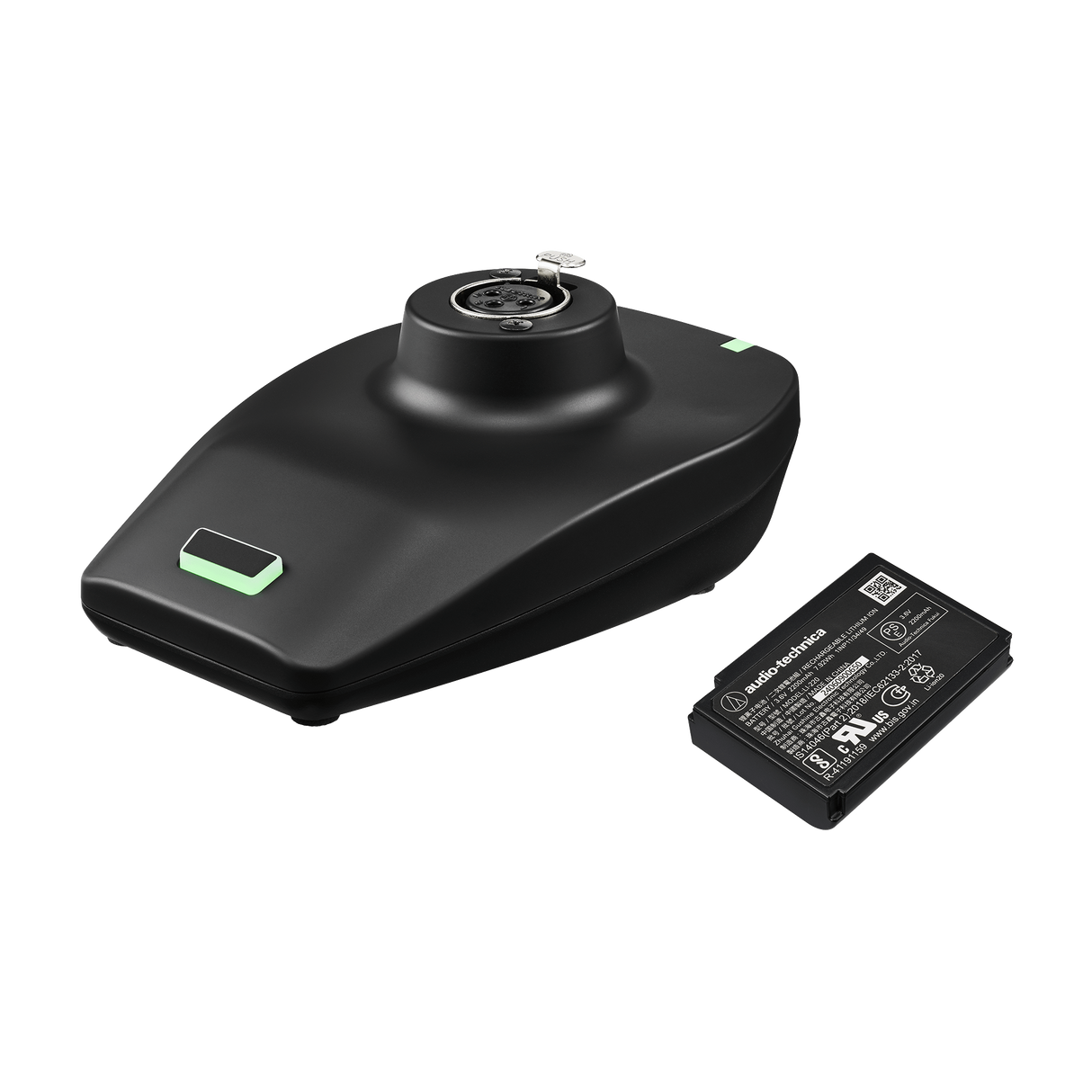

ATW-DT3207DF2

Digital Wireless Integration
Designed for dependable use with the D50 digital UHF wireless system.

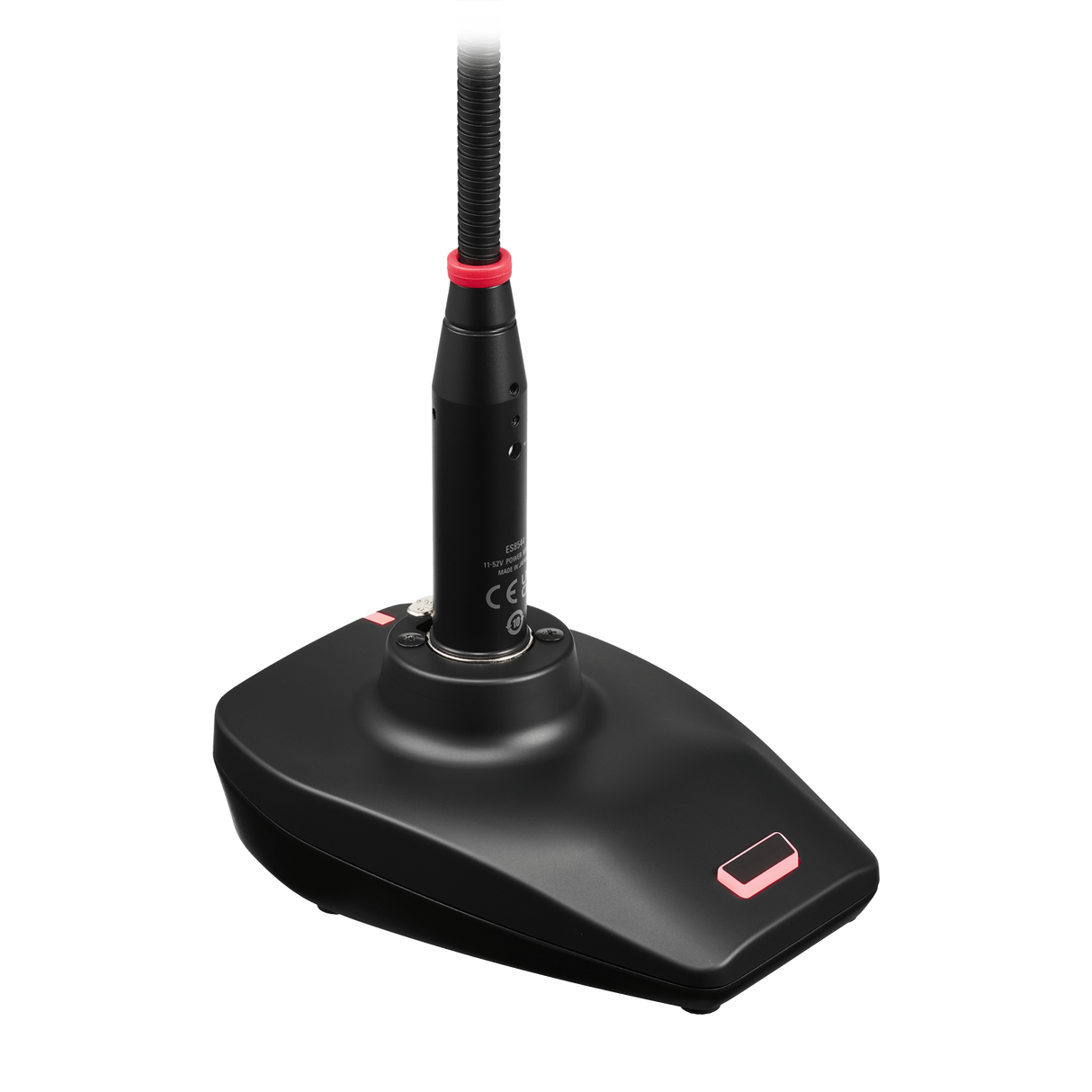

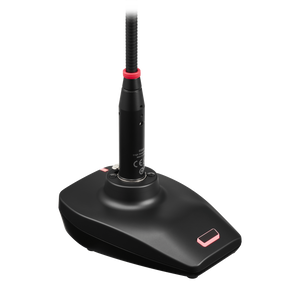

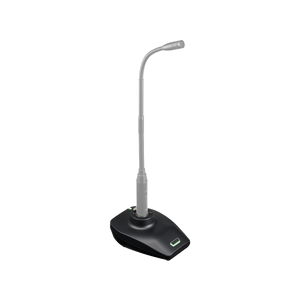

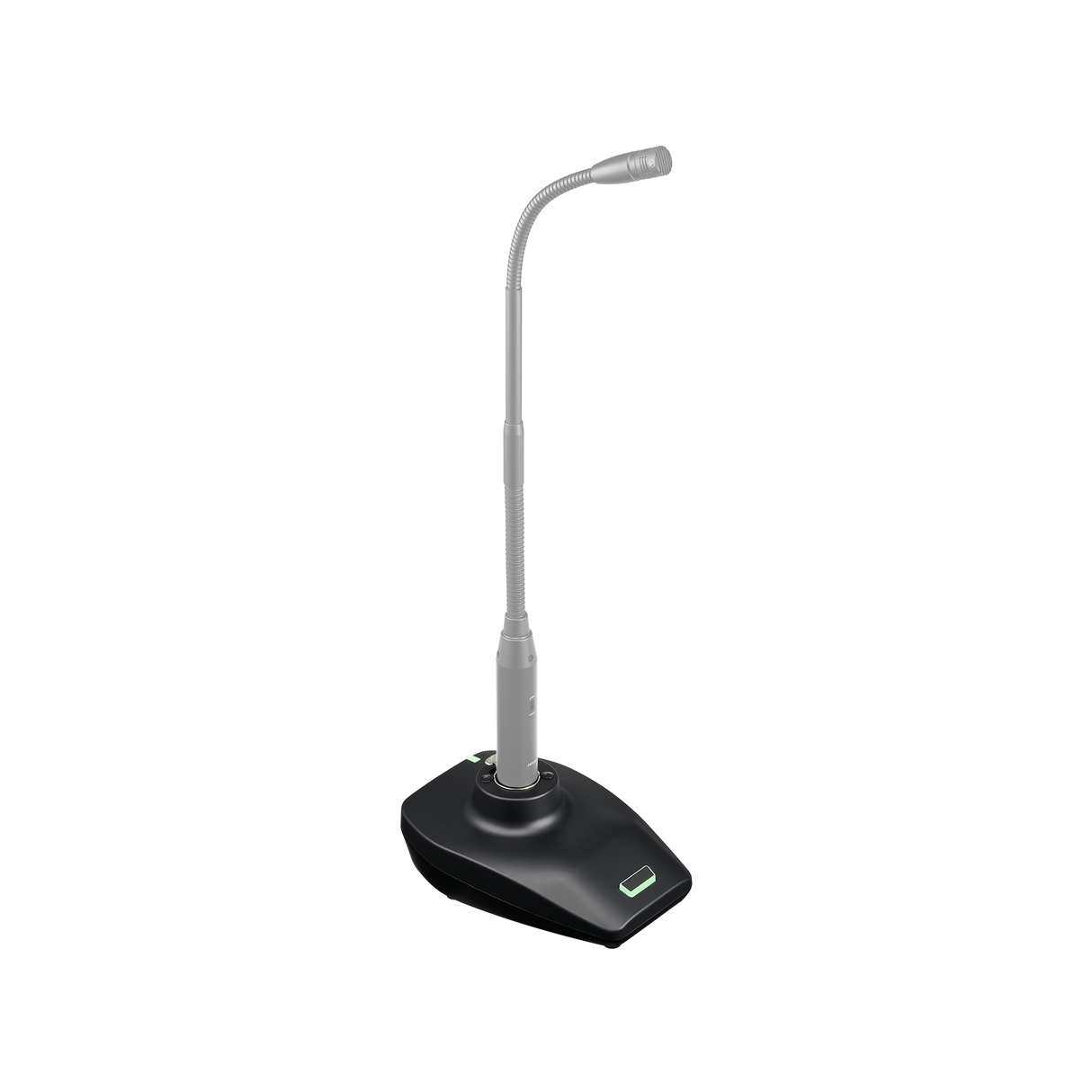

Gooseneck Microphone Support

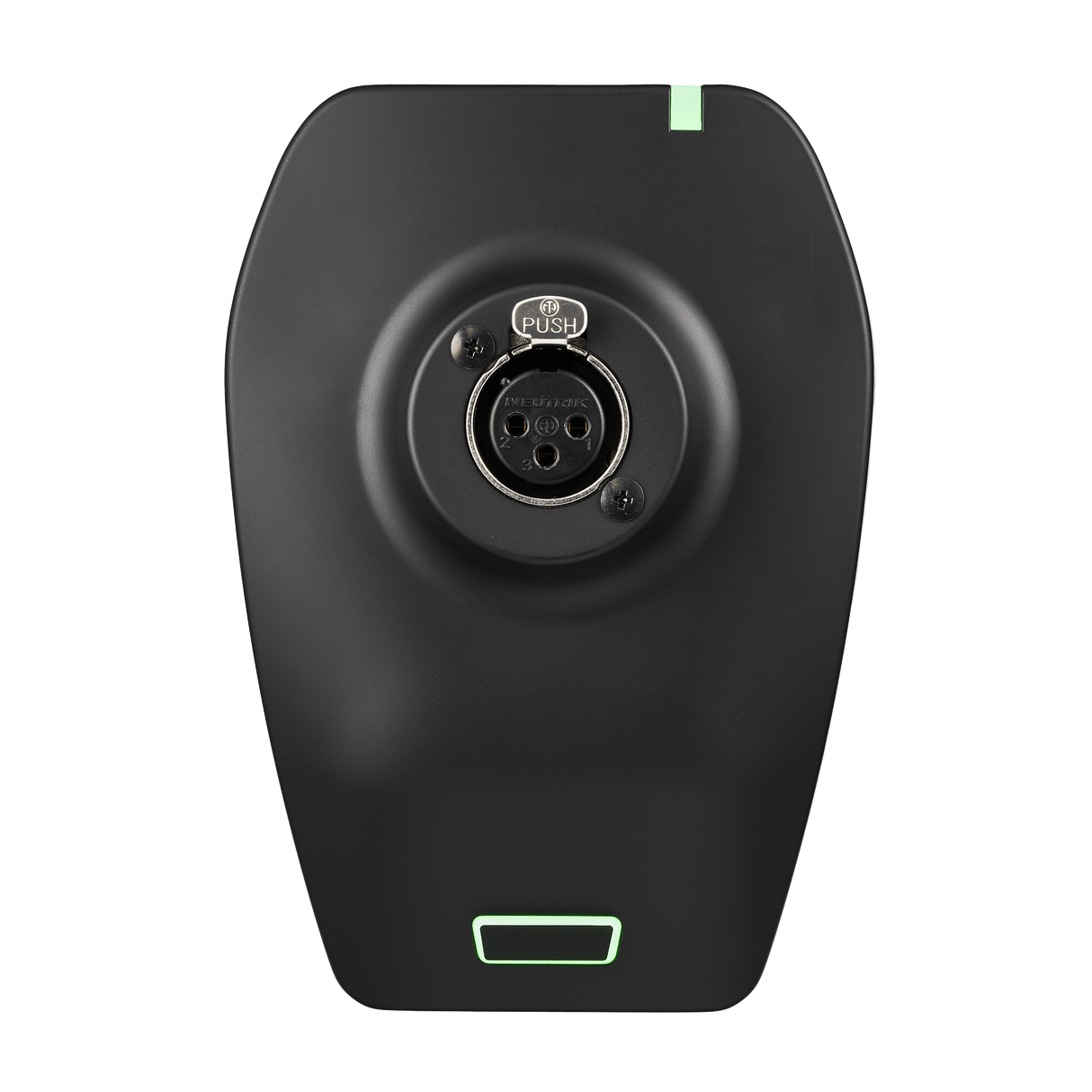

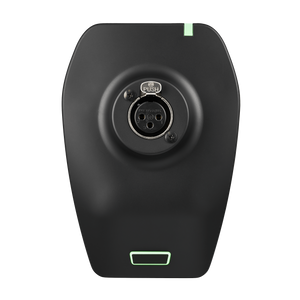

Accepts compatible quick-mount gooseneck microphones through an XLR connection.

Phantom-Powered Connection
Supplies power to compatible microphones without a separate power source.

Configurable Talk Control
Supports toggle mute, press-to-mute, and press-to-talk operation.

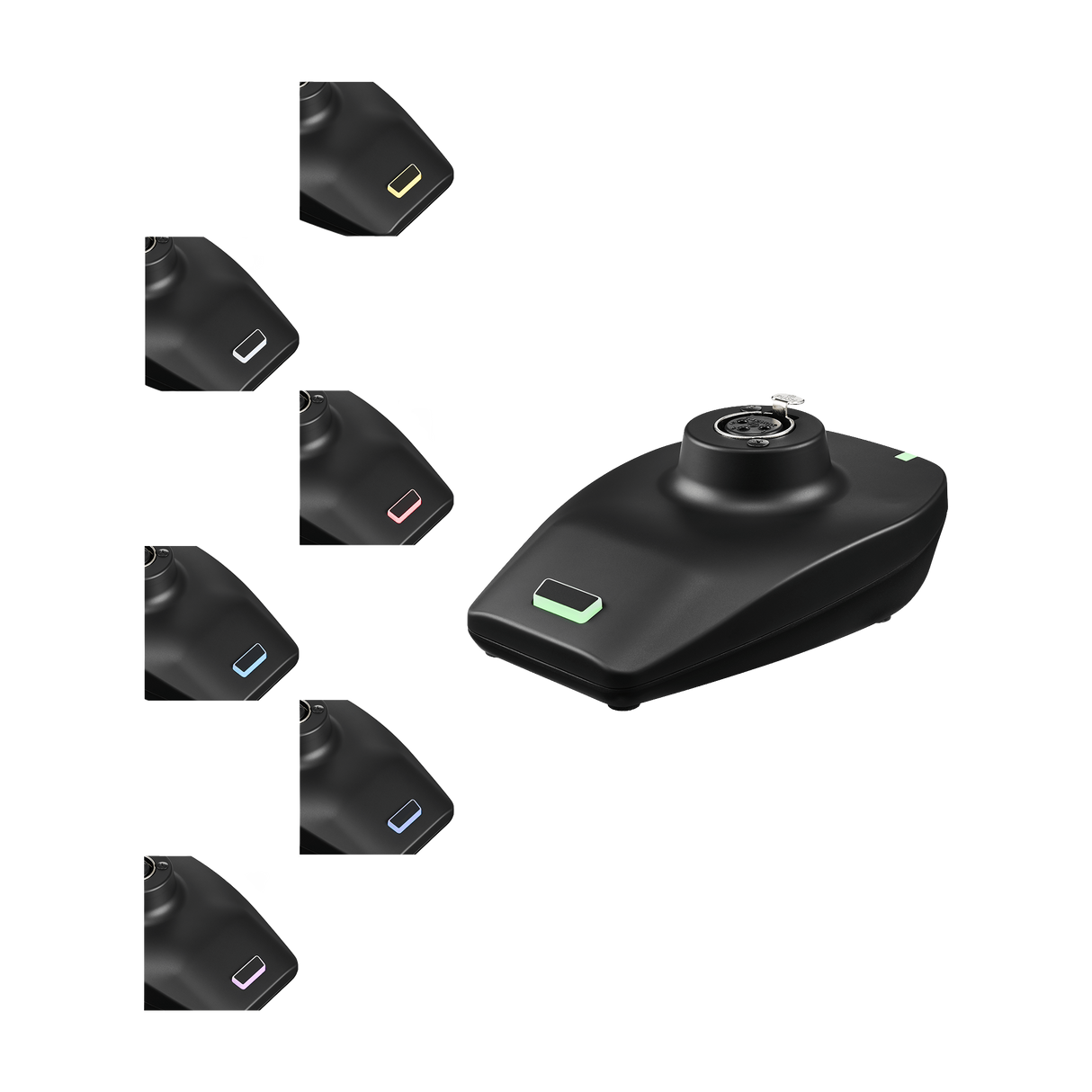

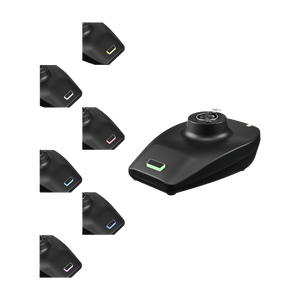

Customisable Status Indicators
Selectable colours and patterns provide clear visual status during use.

Conference Operation Modes
Dedicated indicator patterns support organised discussion and meeting workflows.

Channel Colour Coding
Interchangeable colour rings make individual channels easier to identify.

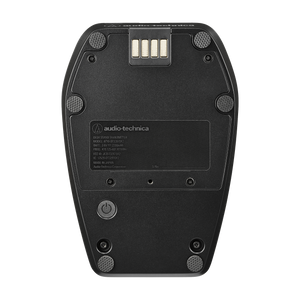

Rechargeable Battery
A replaceable lithium-ion battery supports extended wireless operation.

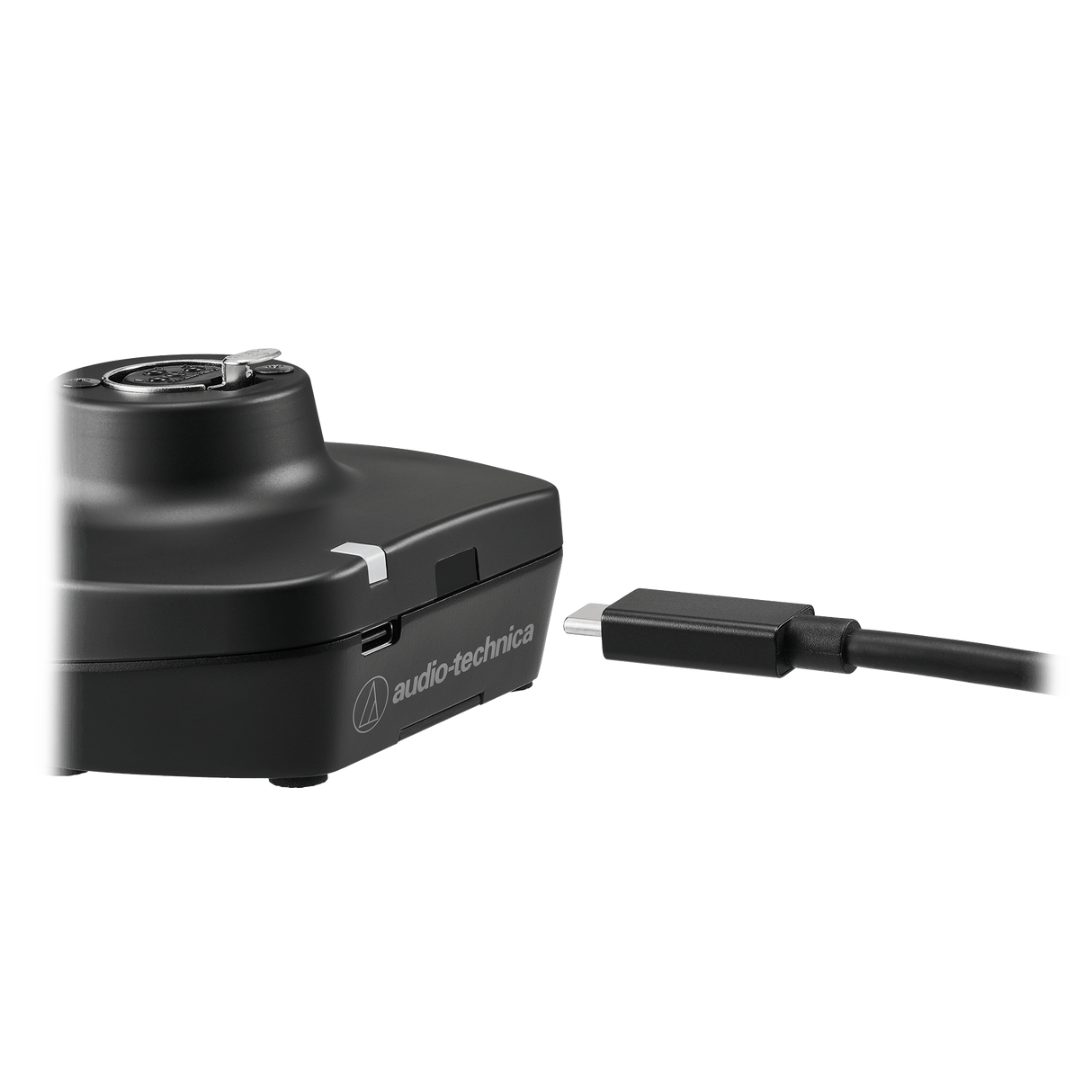

Flexible Charging

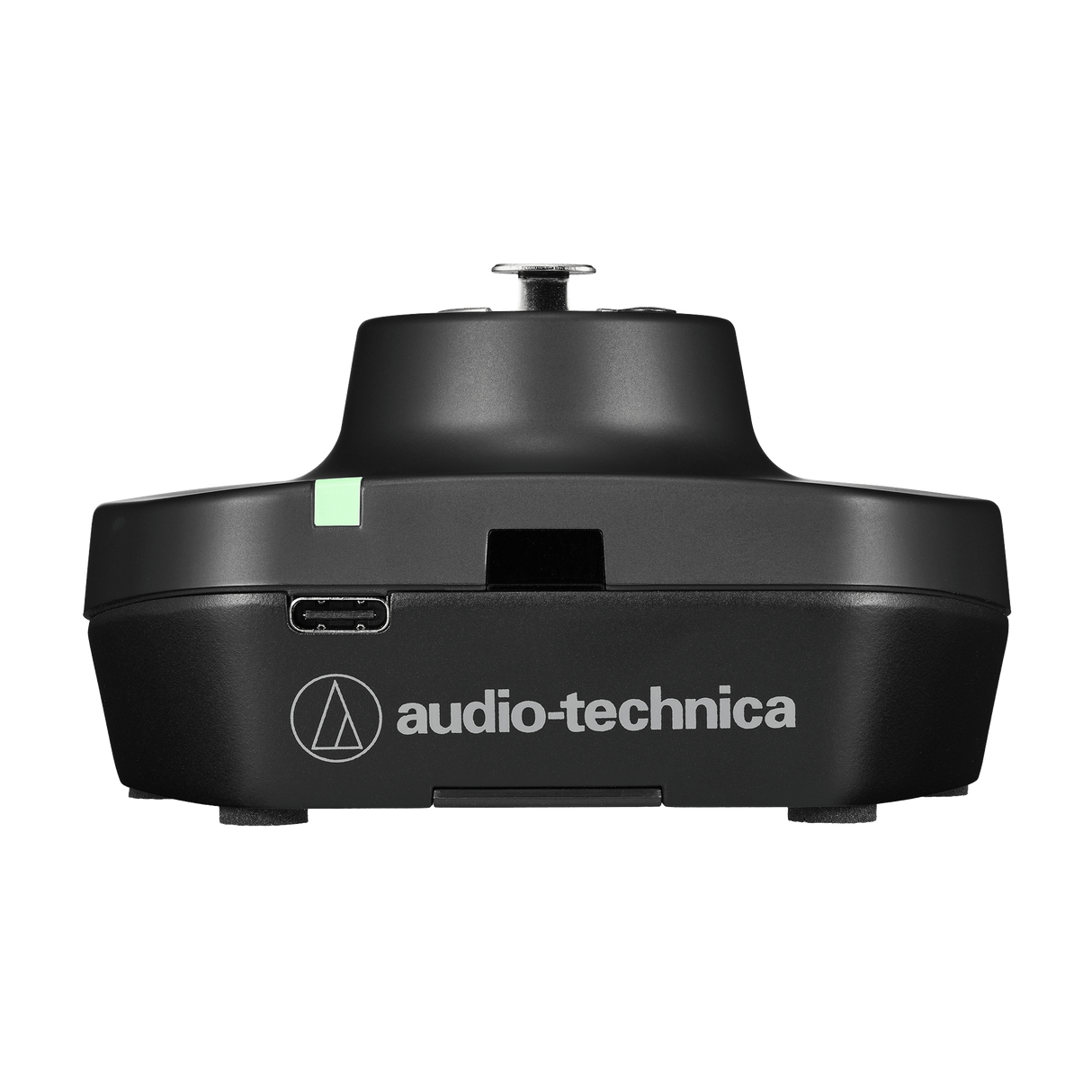

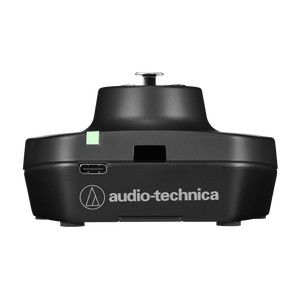

Charges through USB-C or a compatible multi-bay charging station.

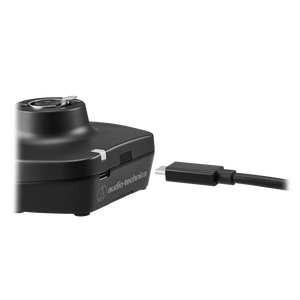

Use While Charging
Continues operating when connected to USB-C power.

General Specifications
Device Type: Desk stand wireless transmitter
Wireless System: D50 digital UHF
Frequency Band: DF2
Operating Frequencies: 470.125 to 607.875 MHz
Operating Range: 100 m (328 ft), open environment without interfering signals
Encryption: AES-256

Wireless Performance
RF Output Power, Standard Mode: 20 mW, 10 mW, 1 mW
RF Output Power, HD Mode: 1 mW
Modulation, Standard Mode: 8-PSK
Modulation, HD Mode: 16QAM
Occupied Bandwidth, Standard Mode: 192 kHz
Occupied Bandwidth, HD Mode: 96 kHz
Delay, Standard Mode: 2.1 ms typical
Delay, HD Mode: 3.3 ms typical
Audio Sampling Rate: 48 kHz
Dynamic Range: 120 dB, A-weighted, typical
Total Harmonic Distortion: 0.1% or less at 1 kHz, -20 dBFS
Maximum Simultaneous Use, Standard Mode: 17 channels per 6 MHz, 22 channels per 8 MHz
Maximum Simultaneous Use, HD Mode: 47 channels per 6 MHz, 63 channels per 8 MHz

Audio Specifications
Microphone Support: Gooseneck microphone
Input Connector: 3-pin XLR-F
Phantom Power: 24 V
Frequency Response: 20 Hz to 20,000 Hz, dependent on microphone element
High-Pass Filter: 120 Hz, 12 dB/octave

Controls and Indicators
Talk Button Modes: Toggle mute on/off, press to mute, press to talk
LED Indicators: 2
LED Colours: 7
LED Patterns: Standard mode, conference mode 1, conference mode 2
Microphone Colour Rings: 7

Power and Charging
Battery Type: Replaceable rechargeable lithium-ion
Battery: LI-220
Battery Capacity: 2,200 mAh
Battery Voltage: 3.6 V DC
Battery Life, Microphone Without LED: Approximately 9.5 hours at 10 mW
Battery Life, Microphone With LED: Approximately 7.5 hours at 10 mW
USB Charging Connector: USB Type-C, USB 2.0
Charging Options: USB-C connection, compatible four-bay charging station
Operation During USB Charging: Supported

Environmental Specifications
Operating Temperature: -5°C to 45°C (23°F to 113°F)
Storage Temperature: -20°C to 55°C (-4°F to 131°F)

Physical Specifications
Dimensions: 90.5 × 129.4 × 52.1 mm (3.56 × 5.1 × 2.1 in), W × D × H
Weight: 495 g (17 oz), including battery

Included Items
Desk Stand Transmitter: 1

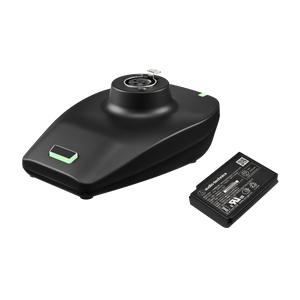

Rechargeable Lithium-Ion Battery: 1
Colour Ring Indicator Kit: 1
