BLACKMAGIC DESIGN

ATEM Monitoring Rack Panel 40 Video Converter, 1U

Switchers

Rackmount video converter and switcher control panel, dual 10G SMPTE-2110 IP connections, 12G-SDI and HDMI outputs, built-in LCD monitoring display, talkback support, 2RU design

$2,379.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

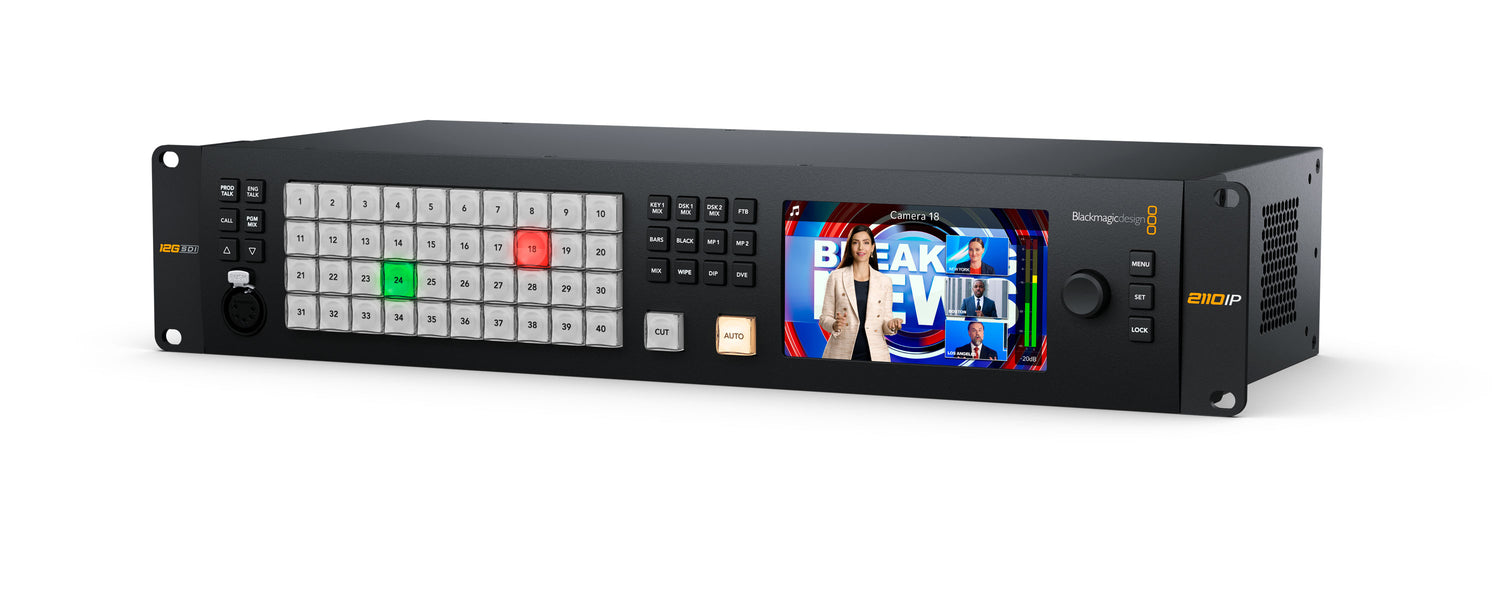

The Blackmagic Design ATEM Monitoring Rack Panel 40 combines professional switcher control and SMPTE-2110 IP video monitoring into a larger 2RU rackmount design built for high-end broadcast environments. Designed to work seamlessly with ATEM Constellation IP switchers, it provides a practical front-panel solution for live production workflows where fast access to monitoring and switching controls is essential. The unit features a large 5-inch integrated LCD display for local video monitoring, along with dedicated source, transition, and talkback controls that make it ideal for flypacks, mobile production systems, and control room installations.

Built for modern IP-based facilities, the ATEM Monitoring Rack Panel 40 includes dual redundant 10G Ethernet SMPTE-2110 connections with SMPTE-2022-7 support for dependable signal redundancy during critical productions. It converts incoming IP video to dual 12G-SDI outputs and HDMI monitoring output while also supporting embedded audio across all outputs. The expanded control surface includes 42 LED buttons, source selection controls, transition buttons, talkback controls, and a front-panel lock function for secure operation during live events.

The panel supports a wide range of HD and Ultra HD formats up to 2160p60, along with SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 standards for professional broadcast compatibility. Dual internal power supplies, USB-C setup connectivity, and integration with ATEM Software Control on macOS and Windows make it a flexible addition to advanced live production systems. Its larger control layout and built-in monitoring capabilities provide operators with efficient access to switching and monitoring functions in a compact rack-mounted form factor.

Features

ATEM Monitoring Rack Panel 40
Professional 2RU rack-mounted monitoring and emergency control panel designed for ATEM Constellation IP live production systems.

Integrated Video Converter & Control Panel
Combines a professional SMPTE-2110 monitoring converter with ATEM switcher controls in a single rackmount unit.

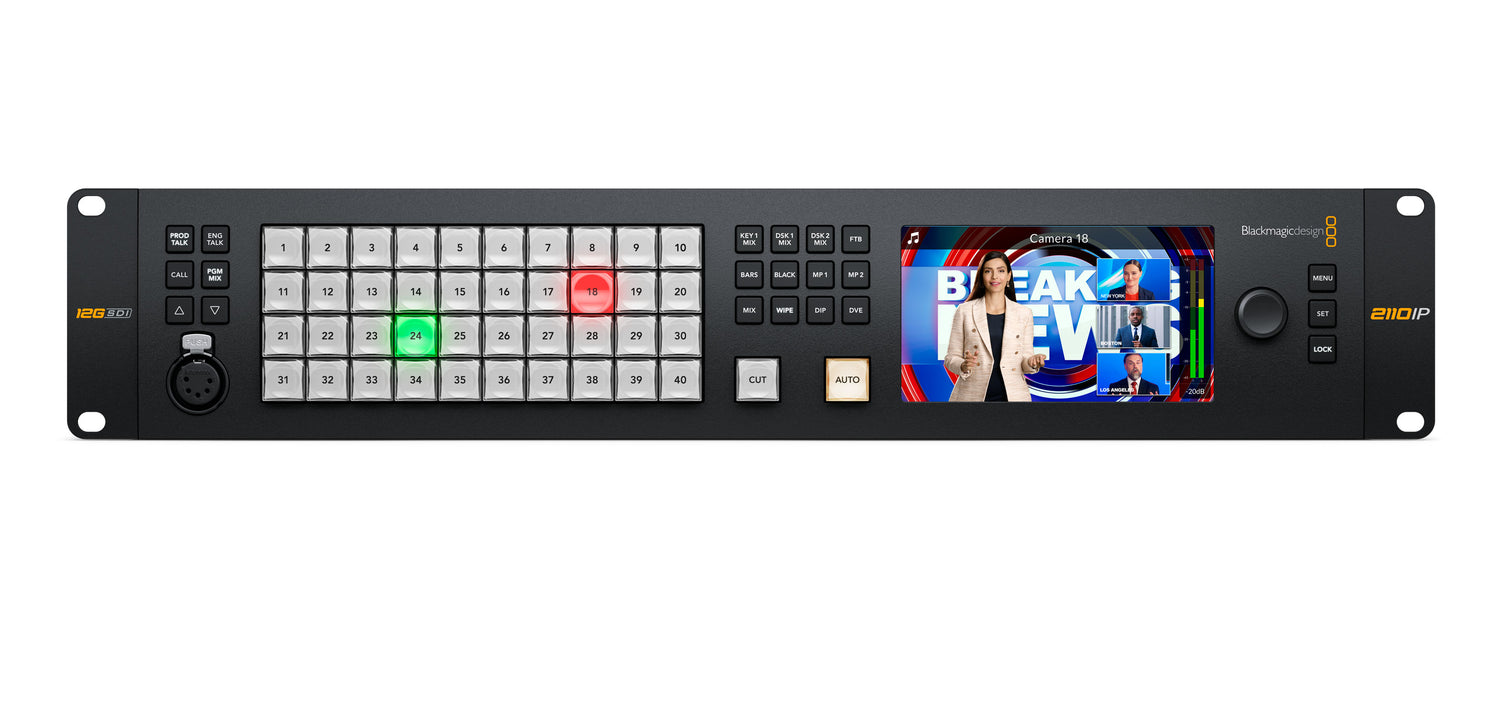

Large 40-Button Control Surface
Features 40 front-panel buttons for fast source selection, switching, and live production control.

Built-In 5-Inch LCD Monitor
Integrated HD display provides convenient local video monitoring and system status visibility directly from the rack.

Designed for ATEM Constellation IP
Built specifically to complement ATEM Constellation IP switchers in professional broadcast environments.

Redundant SMPTE-2110 Connectivity
Dual 10G Ethernet connections support SMPTE-2022-7 redundancy for reliable IP video workflows.

Integrated 12G-SDI & HDMI Outputs
Converts SMPTE-2110 IP video to local 12G-SDI and HDMI outputs for flexible monitoring setups.

Professional Talkback Support
Includes front-panel 5-pin XLR talkback connection for communication during live productions.

Emergency Switching Controls
Provides direct front-panel switching access for fast operation and backup control during live broadcasts.

Broadcast-Grade IP Video Support
Compatible with SMPTE-2110 video, audio, timing, and ancillary data standards.

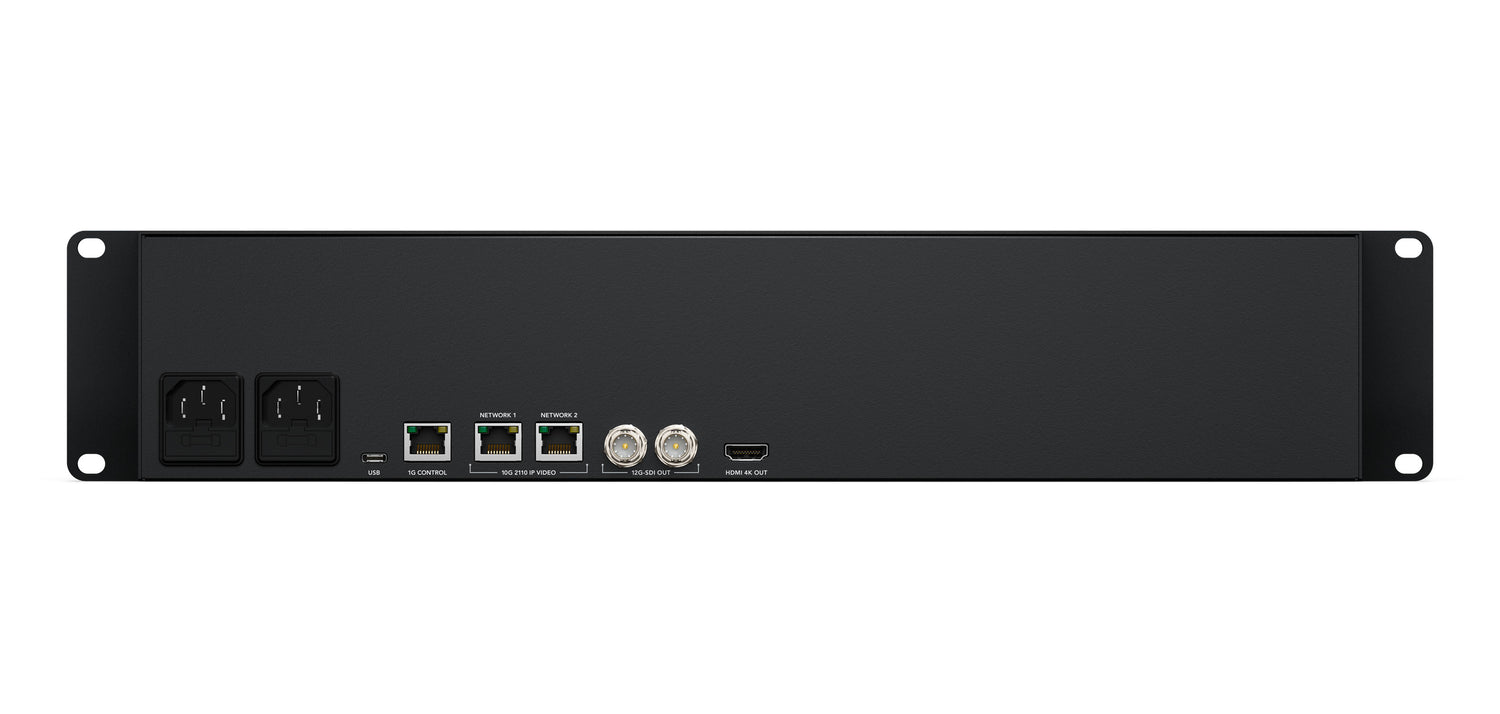

Dual Redundant Power Supplies
Dual IEC power inputs help ensure dependable operation in mission-critical production environments.

Compact 2RU Rackmount Design
Fits easily into mobile flypacks, broadcast racks, OB trucks, and studio control rooms.

Flexible Software Integration
Works seamlessly with ATEM Software Control and optional ATEM hardware panels for expanded workflows.

Specifications

General Specifications
Product Type: Rackmount video converter and ATEM control panel
Rack Height: 1U
Application: Local monitoring and control for ATEM Constellation IP systems
Video Conversion: 10G Ethernet SMPTE-2110 to 12G-SDI and HDMI

Video Features
IP Video Support: SMPTE-2110
Redundancy Support: SMPTE-2022-7
SDI Output: 12G-SDI
HDMI Output: Yes
Local Monitoring: Yes

Control Features
Control Panel Type: Hardware ATEM control panel
Button Count: 40
Ethernet Control Port: Dedicated Ethernet control
Switcher Control: Yes

Audio and Talkback
Talkback Interface: 5-pin front panel
Program Monitoring: Yes

Compatibility
Compatible Switchers: ATEM 4 M/E Constellation IP
Compatible Switchers: ATEM 4 M/E Constellation IP Plus
System Compatibility: ATEM Constellation IP workflow

Physical Specifications
Mounting: Rackmount
Rack Units: 1U
Front Panel Controls: Premium hardware buttons
Video Monitoring Outputs: SDI and HDMI
