LECTROSONICS

DSSM (B1C1: 537 - 662 MHz)

Bodypack Transmitters Accessories

Micro digital transmitter (537–662 MHz), IP57 rated, 10/25/50mW (D2) or 4mW (HDM), AES 256-bit encryption, LEMO 3-pin input, SMA antenna, 6-hour runtime, compact aluminum housing, LB-50 battery included

$3,600.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

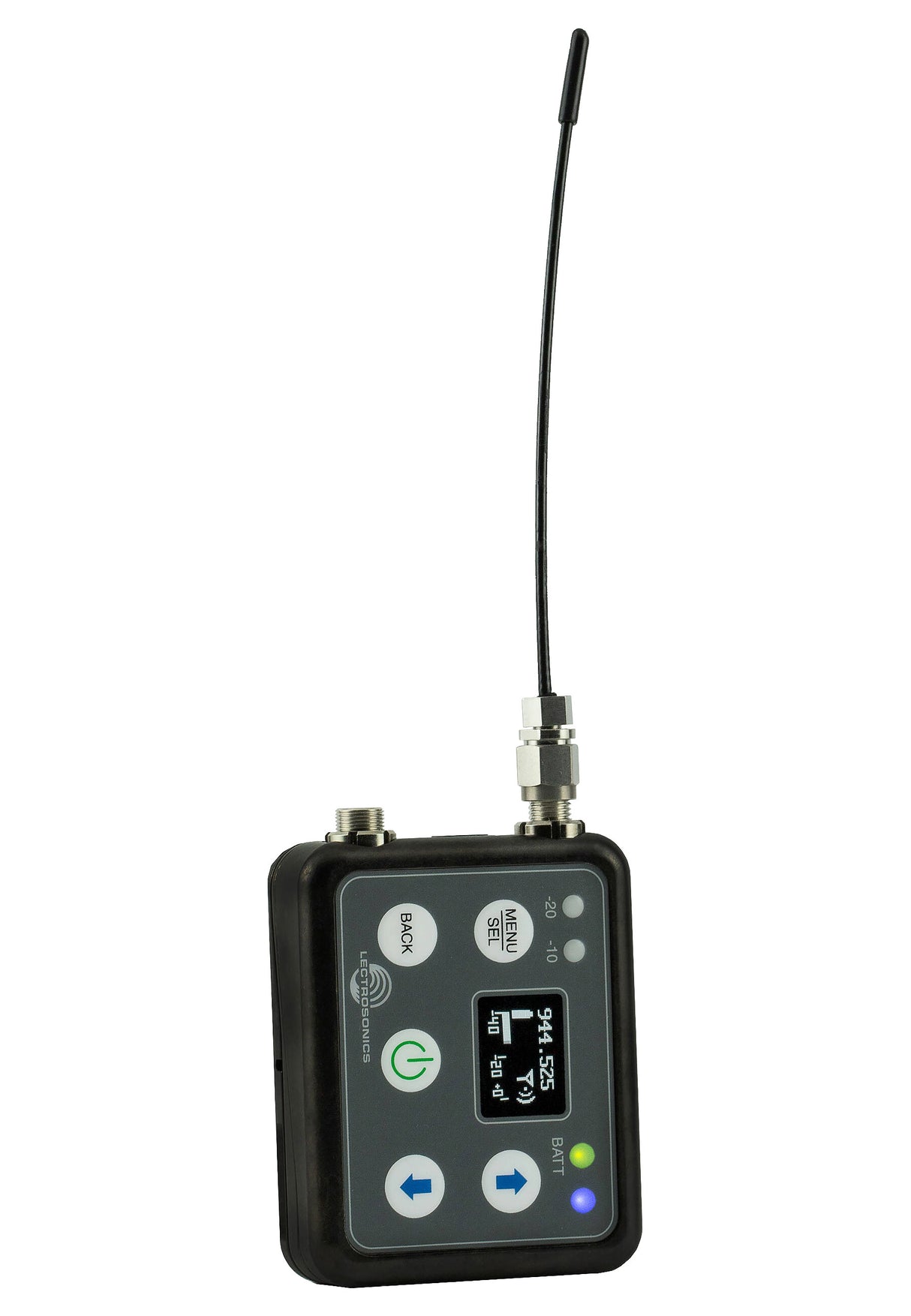

The Lectrosonics DSSM Water-Resistant Micro Digital Wireless Transmitter (537 to 662 MHz) is a compact and durable wireless bodypack built for professionals who demand reliability, discretion, and security in challenging environments. Whether you're outfitting talent for theater, television, film, sports, or live broadcast, this transmitter combines an ultra-small form factor with rugged, IP57-rated water and dust resistance, allowing it to withstand immersion in water up to 3.3 feet for 30 minutes. Its machined aluminum alloy housing and removable SMA-mounted antenna further enhance its resilience and flexibility in the field.

Designed for compatibility with Lectrosonics’ digital ecosystem, the DSSM works seamlessly with receivers like the DSQD, DCHR, M2Ra, DSR, DSR4, and DCR822. It features a LEMO 3-pin mic input with servo bias circuitry that accommodates electret lavaliers, dynamic microphones, and line-level inputs, offering versatility across use cases. The transmitter provides RF power options of 10, 25, and 50 mW (D2 mode) and a 4 mW option for high-density mode, helping to balance range, battery life, and system density. Its 6-hour runtime is powered by the removable LB-50 rechargeable battery, which can be quickly swapped or dock-charged with the optional CHSDSSM charging station (sold separately).

User-friendly design elements like an OLED display, membrane switch panel, and menu system shared with the DBSM family make on-body configuration straightforward. A DSP-controlled analog limiter with over 30 dB of range ensures clean audio even during loud transients, and selectable low-frequency roll-off settings help tailor audio response. With AES 256-bit CTR encryption offering four key policies, the DSSM ensures secure transmission for even the most sensitive productions. Support for firmware updates via USB and remote control using the LectroRM mobile app adds extra convenience, rounding out this transmitter as a high-performance tool for modern wireless audio workflows.

Features

Compact Digital Wireless Transmitter (537–662 MHz)
Ideal for theater, film, broadcast, and live production where size, durability, and wireless performance are critical.

Water & Dust Resistant (IP57)
Rated to withstand full dust protection and submersion in water up to 3.3 feet for over 30 minutes.

Compatible with Lectrosonics Digital Ecosystem
Works seamlessly with DSQD, DCHR, M2Ra, DSR, DSR4, and DCR822 receivers.

LEMO 3-Pin Audio Input
Supports electret lavaliers, dynamic mics, and line-level signals via servo bias circuitry.

Selectable RF Output Power
Transmit at 10, 25, or 50mW (D2 mode), or at 4mW for High Density Mode (HDM) applications.

Robust All-Metal Housing
Built with machined aluminum and finished with rugged electroless nickel (ebENi) coating.

LB-50 Rechargeable Battery
Up to 6 hours of runtime per charge; battery is field-replaceable and dock-charge compatible.

Advanced DSP and Audio Limiter
Features precise gain control, selectable low-cut filter (35–150 Hz), and a dual-stage limiter to prevent distortion.

Secure AES 256-Bit Encryption
Supports Universal, Shared, Standard, and Volatile key modes for professional, corporate, or secure environments.

Remote Control via LectroRM App
Make wireless adjustments via encoded audio tones from iOS/Android devices.

Flexible Setup and Firmware Updates
Onboard OLED display and membrane controls for easy operation; firmware updates via internal USB port.

Specifications

General Specifications
Device Type: Water-Resistant Micro Digital Wireless Transmitter
Frequency Range: 537.6 to 662.95 MHz
Wireless Technology: Digital UHF
Compatibility: DSQD, DCHR, M2Ra, DSR, DSR4, DCR822
Encryption: AES 256-bit CTR (Universal, Shared, Standard, Volatile)
Construction: Machined aluminum alloy, ebENi finish
Water Resistance: IP57 (dust protected, immersion up to 3.3 ft for 30 min)
Display: OLED
Control Interface: Membrane switches, LectroRM App (iOS/Android), IR Sync
Firmware Updates: USB Micro port (internal, via Wireless Designer software)

Audio Specifications
Input Connector: LEMO 3-pin
Input Types: Microphone, Instrument, Line-level
Bias Power: 4 V Plug-in Power
Frequency Response: 35 Hz to 20 kHz
Limiter: DSP-controlled analog limiter with >30 dB range, dual-release envelope
Low Frequency Roll-Off: Selectable at 35, 50, 70, 100, 120, 150 Hz
Gain Adjustment: 1 dB steps
Muting/Auto Gain: Not supported

RF Specifications
RF Output Power (D2 Mode): 10 / 25 / 50 mW
RF Output Power (HDM Mode): 4 mW
Antenna: Removable flexible whip, SMA mount

Power Specifications
Battery Type: LB-50 Li-ion rechargeable, 1000 mAh (included, replaceable)
Battery Life: Up to 6 hours (on full charge)

Physical Specifications
Dimensions: 2.6 x 1.9 x 0.7 in / 66 x 49 x 17 mm
Weight: 3.5 oz / 100 g (with battery)
