DPA  |  SKU: 24728

4088-DP-A-B10-LH

Lavaliers & Headsets

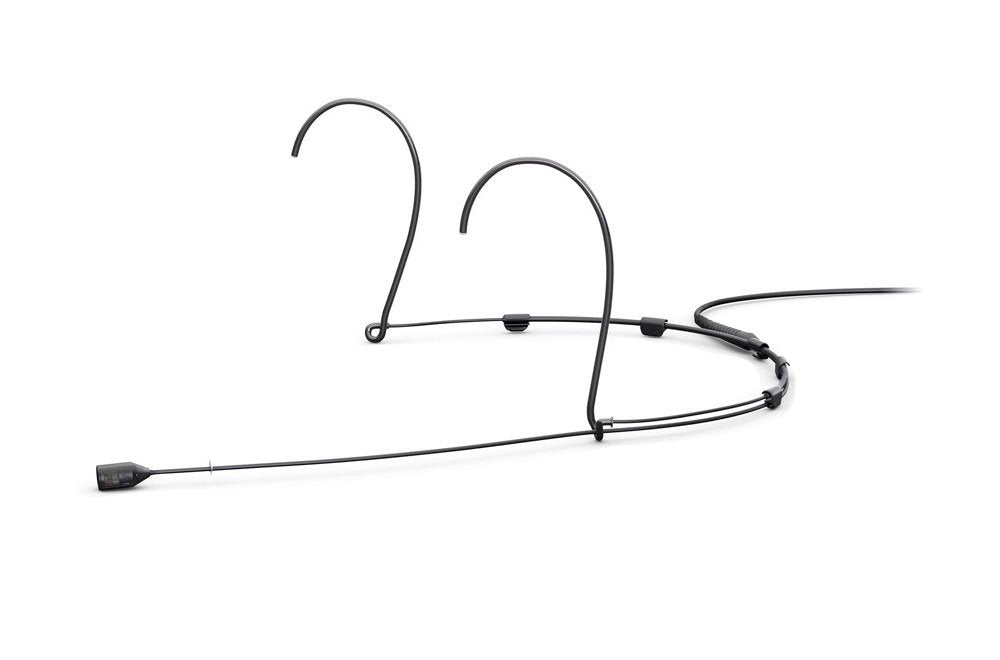

d:fine CORE+ 4088 directional headset mic, black, TA4F Mini-XLR connector included

$1,264.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The 4088-DP-A-B10-LH is a black 4088 CORE+ directional headset microphone equipped with a TA4F Mini-XLR connector, making it a professional-grade solution for wireless systems that require focused vocal pickup and superior sound isolation. This cardioid headset is ideal for environments where background noise control is crucial, such as live theater, corporate presentations, and broadcast productions.

Featuring DPA's CORE+ technology, the mic offers exceptional clarity, a wide dynamic range, and minimal distortion-even at high SPLs. Its directional design ensures precise voice capture while effectively rejecting surrounding ambient noise, making it perfect for high-energy or acoustically reflective spaces. The dual-ear headset provides a secure, ergonomic fit for long periods of use, and the boom arm can be positioned on either side. Durable, discreet, and moisture-resistant, the 4088-DP-A-B10-LH delivers reliable, high-quality audio in the most demanding settings.

Features

Supercardioid Directional Pickup: Captures voice with precision while rejecting ambient noise-ideal for noisy or live environments.

CORE+ Audio Technology: Delivers clean, distortion-free sound with a wide dynamic range for professional applications.

TA4F Mini-XLR Connector: Provides a secure, reliable connection to wireless systems using TA4F input.

Sweat and Moisture Protection: Built with water-resistant materials and a rugged design for dependable use in active settings.

Adjustable Boom Arm: Reversible mic boom allows left or right-side placement for flexible and comfortable wear.

Discreet Black Finish: Low-profile design ideal for stage, broadcast, and presentation use.

Specifications

Model

4088 DP A B10 LH

Microphone Type

Directional headset microphone

Cardioid polar pattern

Pressure gradient operation principle

Pre polarized condenser capsule

Frequency Response

100Hz to 20kHz

2 to 4dB soft boost at 10 to 12kHz

Sensitivity and Noise

Sensitivity 6mV per Pa minus 44dB re 1V per Pa

Equivalent noise level A weighted typically 26dB A max 28dB A

Equivalent noise level ITU R BS.468 4 typically 38dB max 40dB

Distortion and SPL Handling

THD less than 1 percent up to 138dB SPL peak

Max SPL at 10 percent THD 144dB SPL peak

Dynamic range typically 111dB

Impedance and Connectivity

Rated output impedance 30 to 40 ohms

Cable drive capability up to 300 meters with DAD6001 BC XLR adapter

Connector type TA4F Mini XLR

Power Requirements

Wireless systems 5V to 10V through DPA adapter

With DAD6001 BC P48 phantom power or will work from 12V

Current consumption typically 1.5mA microphone 3.5mA with DAD6001 BC

Physical Specifications

Weight 14 grams including cable and connector

Microphone diameter: 5.4mm

Cable length: 1.2 meters

Cable diameter: 1.6mm

Color: black

Environmental

Temperature range minus 40 to 45 degrees Celsius

Relative humidity up to 90 percent

Design Features

Detachable mic boom for left or right side configuration

Double vent protection system with drop stopper

Water resistant internal construction

CORE plus technology for reduced distortion and enhanced clarity

Microphone polarity positive pressure gives positive voltage on TA4F pin
