1 2
DPA

6060-OC-U-C90

Lavaliers & Headsets

Lavalier microphone, omnidirectional pickup, pre-polarized condenser capsule, 20Hz–20kHz response, low noise 24dBA, 134dB SPL max, MicroLock connector, IP58 protection.

$859.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

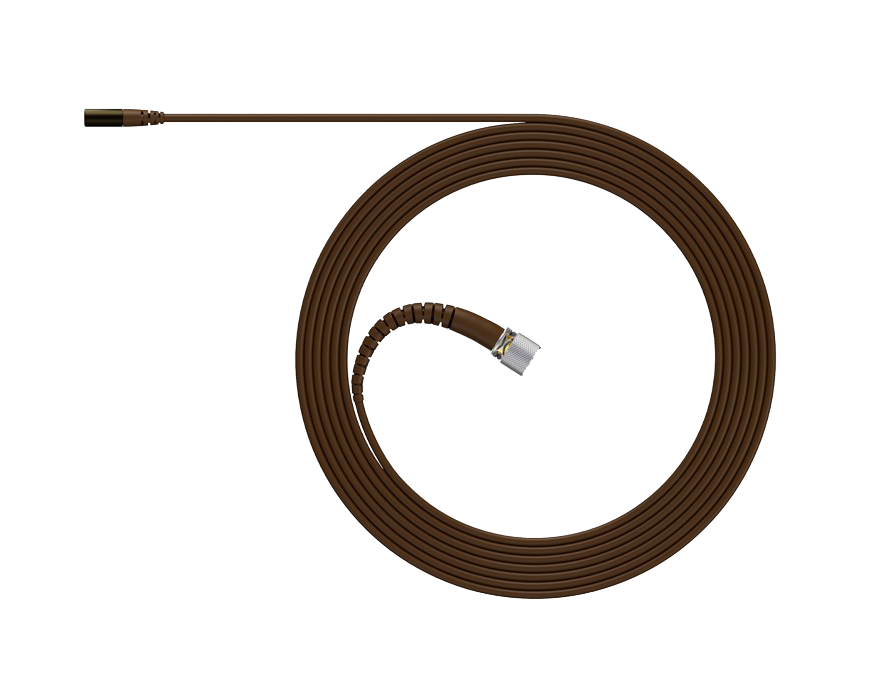

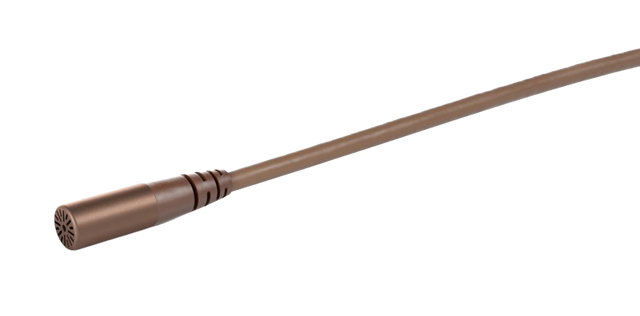

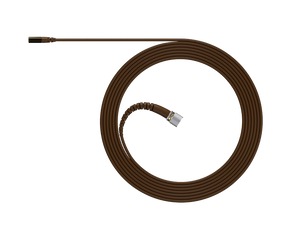

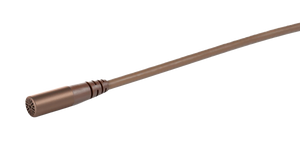

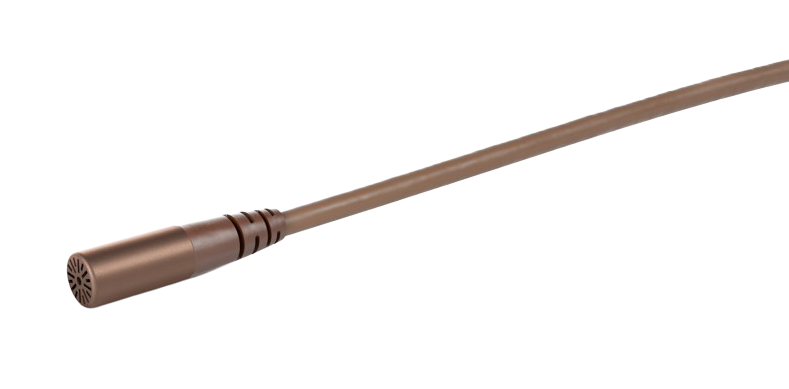

The DPA 6060-OC-U-C90 Omnidirectional Subminiature Microphone is a compact lavalier microphone designed for clear and natural voice capture in situations where discretion and reliability matter. Its extremely small profile allows it to remain almost invisible when worn on clothing or costumes, making it well suited for broadcast, theater, presentations, and film production. The omnidirectional pickup pattern captures sound evenly from all directions, helping maintain consistent audio even when the speaker turns their head or moves during a performance.

Despite its small size, the microphone delivers a wide and balanced frequency response that supports detailed speech reproduction and natural tonal character. The durable stainless steel body with a protective coating helps it withstand demanding environments, while its IP58 rating offers protection against dust and moisture. A lightweight cable and MicroLock connector provide a secure connection to compatible wireless systems, making the microphone easy to integrate into professional audio setups while remaining comfortable for extended wear.

Features

Omnidirectional Sound Pickup
Captures sound evenly from all directions, allowing natural and consistent audio regardless of the speaker’s position.

Clear and Natural Audio
Designed to reproduce speech and sound with clarity and balanced tone for professional recording and broadcast use.

Ultra-Compact Design
The very small microphone head makes it easy to hide on clothing or costumes while remaining comfortable to wear.

Discreet Appearance
Finished in a subtle brown color so it blends naturally with clothing, skin tones, or stage environments.

Durable Stainless Steel Construction
Built with a strong metal body and protective coating for long-term reliability in demanding environments.

Dust and Water Resistant
Sealed construction protects the microphone from moisture, sweat, and dust during performances or outdoor use.

Flexible Connectivity
Uses a MicroLock® connector system designed for secure connection with compatible wireless transmitters and adapters.

Wireless System Compatibility
Optimized for use with professional wireless audio systems used in live performance, film, theater, and broadcast.

Low Noise Performance
Engineered to capture clean audio while minimizing background noise and distortion.

Reliable in Challenging Conditions
Designed to continue operating in environments with significant temperature changes and high humidity.

Specifications

General Specifications
Device Type: Subminiature Lavalier Microphone
Transducer Principle: Pressure
Cartridge Type: Pre-Polarized Condenser
Directional Pattern: Omnidirectional
Connector Type: MicroLock®
Color: Brown
Construction Material: Stainless Steel Body and Detachable Cap with PVD Coating
Ingress Protection Rating: IP58

Audio Performance
Frequency Response: 20 Hz – 20 kHz
Effective Frequency Range: 40 Hz – 20 kHz (±2 dB) with 4 dB Soft Boost at 8 – 20 kHz
Sensitivity: 20 mV/Pa (-34 dB re. 1 V/Pa) ±2.4 dB at 1 kHz
Equivalent Noise Level: 24 dB(A) re. 20 μPa (Max 26 dB(A))
Distortion: <1% THD at 123 dB SPL RMS, 126 dB SPL Peak
Dynamic Range: 102 dB (Typical)
Maximum SPL: 134 dB SPL Peak (10% THD)
Polarity: Positive-going voltage on connector pin with increasing sound pressure

Electrical
Rated Output Impedance: 30 – 40 Ω
Power Supply (Wireless Systems): 5 – 10 V through adapter
Power Supply (With XLR Adapter): P48 Phantom Power, Operates from 12 V
Current Consumption (Microphone): 1.5 mA Typical
Current Consumption (With XLR Adapter): 3.5 mA
Cable Drive Capability: Up to 300 m (984 ft) with compatible XLR adapter

Physical Specifications
Microphone Head Dimensions: 3.4 mm × 14.4 mm
Capsule Diameter: 3 mm
Cable Length: 1.8 m
Cable Diameter: 1.6 mm
Weight: 8 g (Including Cable and Connector)

Environmental
Operating Temperature Range: −40 °C to 45 °C (−40 °F to 113 °F)
Relative Humidity: Up to 90% RH
