DPA

N-HH1-SL1-B-4018V

Wireless Transmitters

Wireless handheld microphone transmitter, supercardioid condenser capsule, digital wideband 470–870 MHz system, high dynamic range audio, interchangeable capsule design

$2,250.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

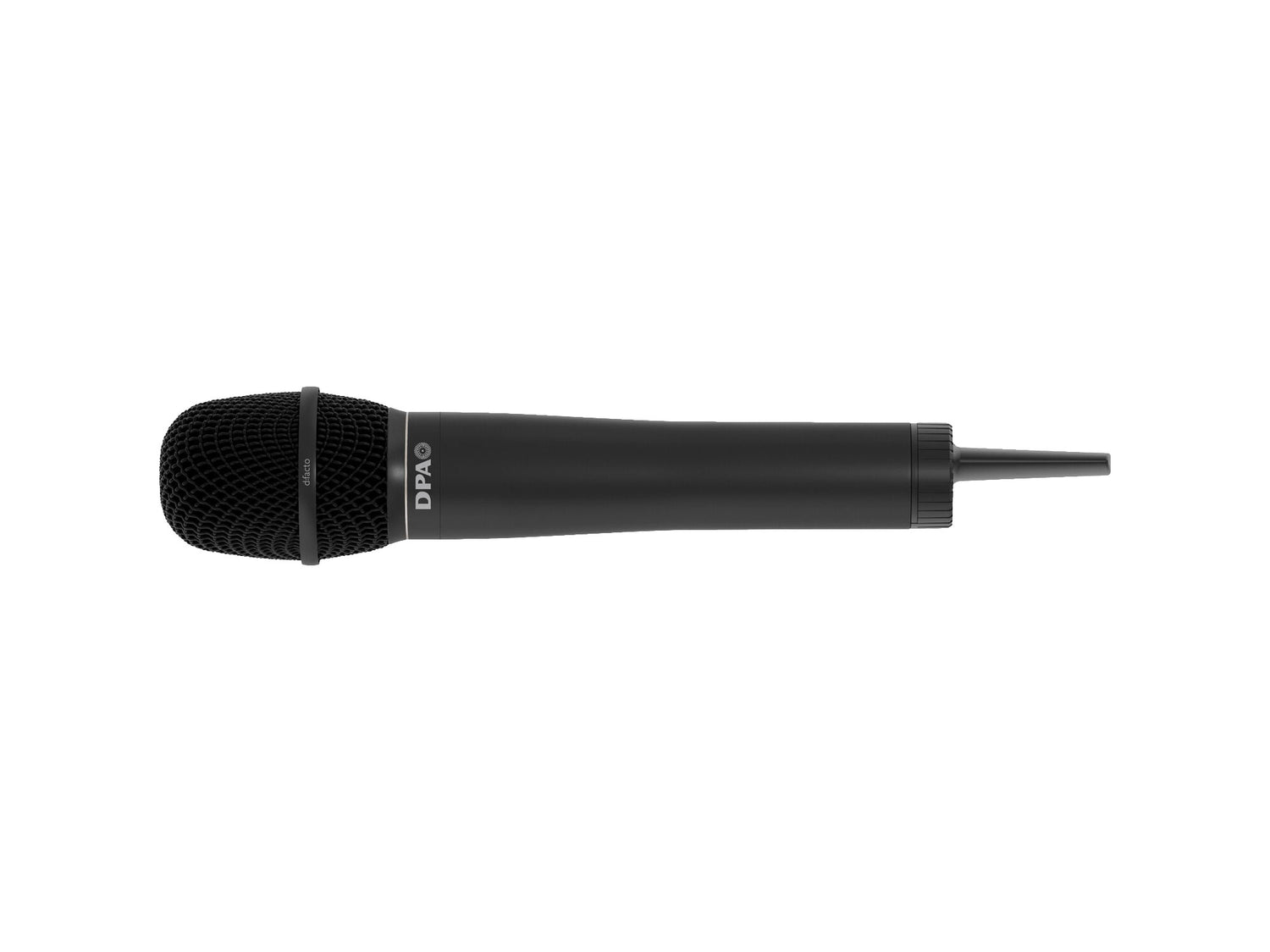

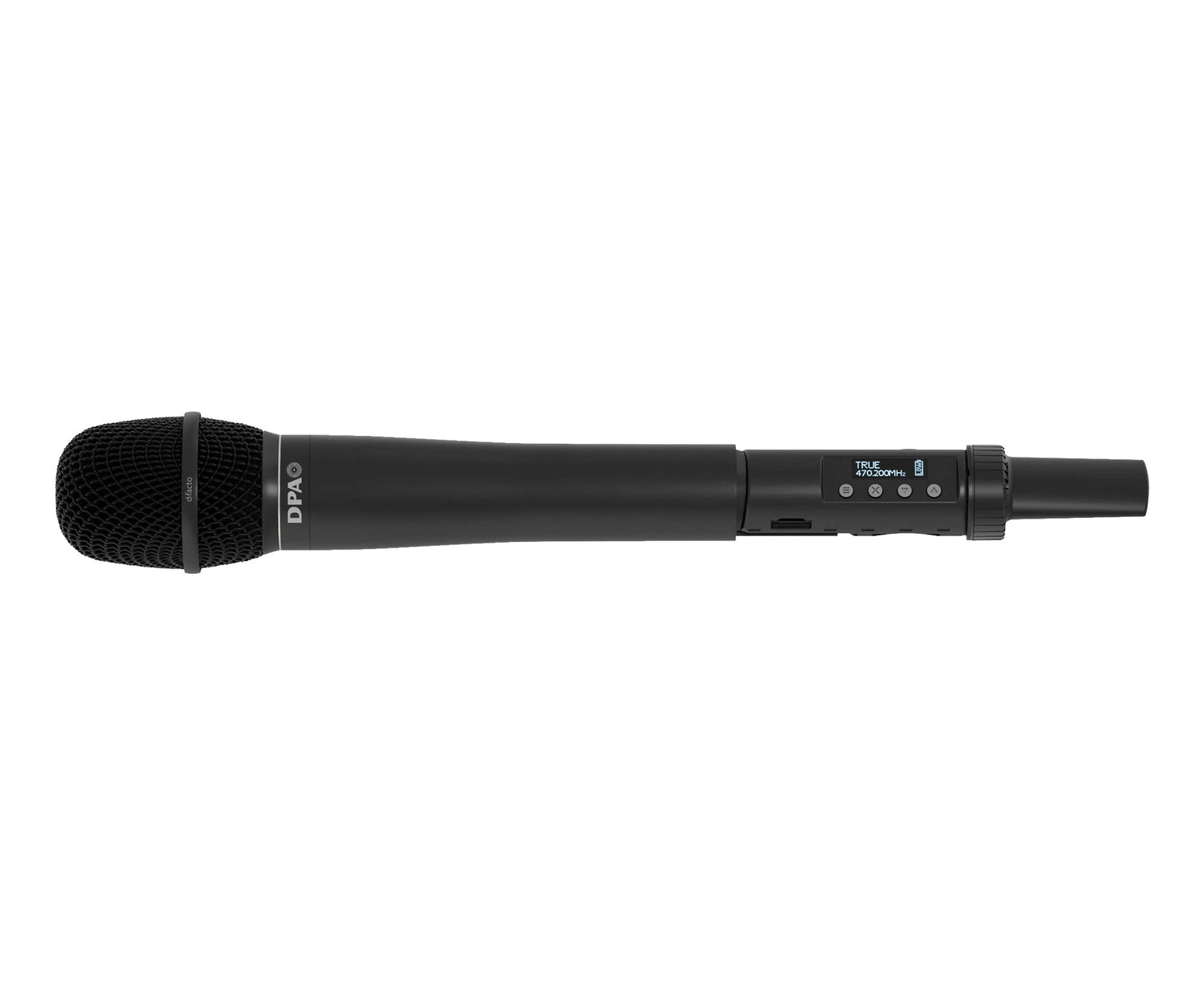

The DPA N-HH1-SL1-B-4018V is a handheld wireless microphone transmitter designed for the DPA N-Series digital wireless system, paired with the d:facto 4018V Softboost vocal capsule. Built for demanding live sound, theater, and broadcast environments, it combines DPA’s renowned microphone clarity with a modern digital wireless platform, delivering detailed and natural vocal reproduction with consistent performance on stage.

The included 4018V Softboost supercardioid capsule captures vocals with openness and precision while maintaining strong rejection of surrounding sound. Its focused pickup pattern helps reduce bleed and feedback in live environments, allowing the vocalist’s voice to remain clear and prominent in the mix. The capsule’s softboost voicing adds subtle presence and warmth, making it well suited for lead vocals and spoken word applications.

As part of the N-Series wireless system, the transmitter supports wideband operation within the 470–870 MHz range, offering flexibility when coordinating frequencies in crowded RF environments. The system’s high dynamic range design preserves the full detail of the source signal without requiring manual gain adjustments on the transmitter. With a slim, balanced metal housing and reliable AA battery operation providing over seven hours of runtime, the N-HH1-SL1-B-4018V delivers dependable wireless performance with the clarity and accuracy expected from DPA microphones.

Features

Professional Digital Wireless Handheld Microphone
A high-end handheld wireless microphone designed for demanding live sound, broadcast, and theater applications.

d:facto™ 4018V Softboost Capsule
The included supercardioid vocal capsule delivers detailed, open sound with a gentle presence boost for vocals.

Focused Supercardioid Pickup
The tight pickup pattern helps reduce stage bleed and feedback while keeping the vocal clear and present.

High Dynamic Range Performance
Captures both subtle and powerful vocal performances with clarity and natural dynamics.

Automatic Signal Handling
The system manages signal levels automatically, eliminating the need to adjust gain on the transmitter.

Wideband Wireless Operation
Broad frequency coverage allows flexible operation in complex RF environments.

Interchangeable Capsule Compatibility
The SL1 thread system supports multiple DPA vocal capsules, allowing performers to choose their preferred sound.

Comfortable Stage Design
Slim, balanced handheld construction provides durability while remaining comfortable for long performances.

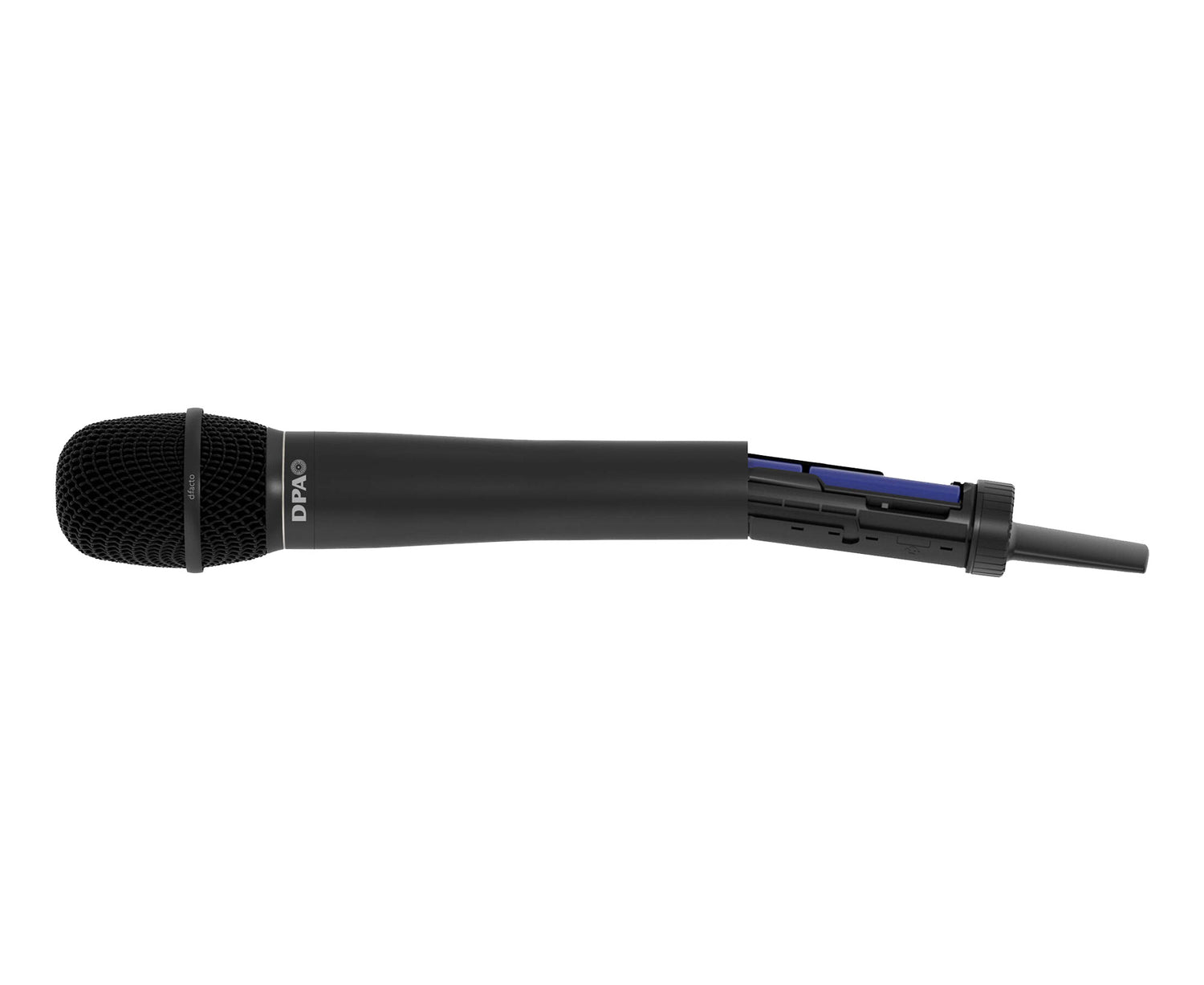

Reliable Battery Operation
Runs on standard AA batteries for dependable operation during concerts, broadcasts, and live productions.

Specifications

General Specifications
Device Type: Handheld Wireless Microphone Transmitter with Interchangeable Capsule
Wireless Technology: Digital UHF
RF Frequency Range: 470 MHz – 870 MHz
RF Tuning Step Size: 25 kHz
Operating Range: 100 m / 330 ft
Audio Dynamic Range: 126 dB
System Latency: < 2.9 ms
Occupied Bandwidth: < 200 kHz

Transmitter Specifications
Transmitter Type: Handheld Transmitter
RF Output Power: 1 mW
RF Output Power: 5 mW
RF Output Power: 10 mW
RF Output Power: 20 mW
RF Output Power: 50 mW
RF Sensitivity: –96 dBm
Audio Input Interface: SL1 Thread
Audio Input Impedance: 10 kΩ

Microphone Specifications
Capsule Type: Pre-Polarized Condenser Capsule
Capsule Model: d:facto 4018V Softboost Vocal Capsule
Operating Principle: Pressure Gradient
Polar Pattern: Supercardioid
Frequency Response: 20 Hz – 20 kHz
Effective Frequency Range (±2 dB): 100 Hz – 16 kHz
Low-Cut Filter: 40 Hz First-Order Permanent Filter
Low-Cut Filter: 80 Hz Second-Order Selectable Filter
Sensitivity: 5 mV/Pa (–46 dB re 1 V/Pa)
Equivalent Noise Level: 22 dB(A) Typical
Maximum SPL (THD <1%): 144 dB SPL RMS
Maximum SPL (Peak): 147 dB SPL
Maximum SPL (THD 10%): 149 dB SPL Peak
Dynamic Range: 125 dB

Audio Performance
System Frequency Response: 20 Hz – 20 kHz (±1 dB)
Digital Trim Adjustment: –20 dB to +40 dB (1 dB Steps, Receiver Side)
Audio Polarity: Positive Sound Pressure Produces Positive Output Voltage

Power Requirements
Battery Type: 2 × LR6 AA Batteries
Battery Runtime: > 7 Hours at 10 mW

Environmental Specifications
Operating Temperature: –10 °C to 50 °C
Storage Temperature: –20 °C to 50 °C

Physical Specifications
Housing Material: Zinc Alloy
Finish: Matte Black
Microphone Length: 266 mm
Microphone Diameter: 48 mm
Capsule Diameter: 19 mm
Weight: 373 g
