HERITAGE AUDIO  |  SKU: 22759

LANG-312L

Mono Mic-Preamps

500-series preamp offering up to 90 dB of gain, ultra-low noise, built-in +25 dB lifter, features transformer-balanced inputs and fast transient response for vibrant sound

$549.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

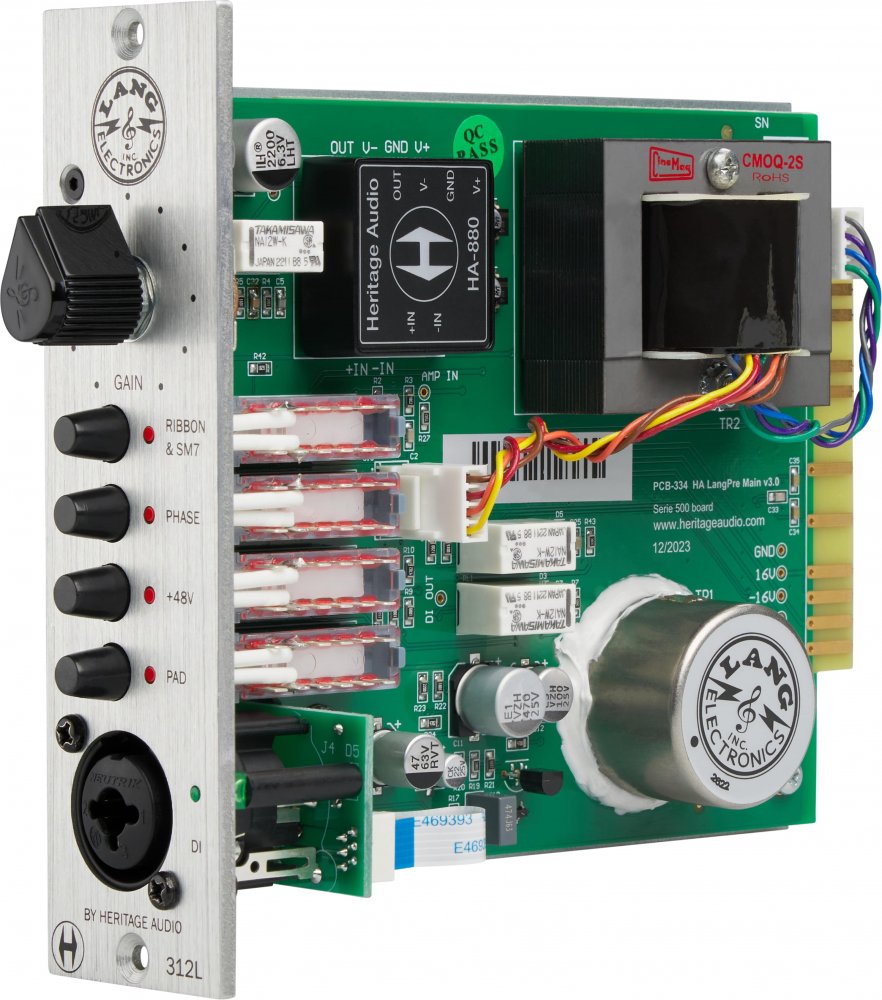

The LANG 312L is a high-performance 500-series preamp designed to capture the powerful, dynamic energy associated with classic New York-style audio processing. Ideal for studio enthusiasts and professionals alike, this preamp delivers exceptional sound quality and versatility, all at a fraction of the cost of similar units. With up to 90 dB of gain, it's more than capable of driving even the most gain-hungry microphones, like ribbons and vintage mics, without the need for external boosters. This allows users to unlock the full potential of their microphones, delivering sound quality that's clear, responsive, and free from unwanted noise.

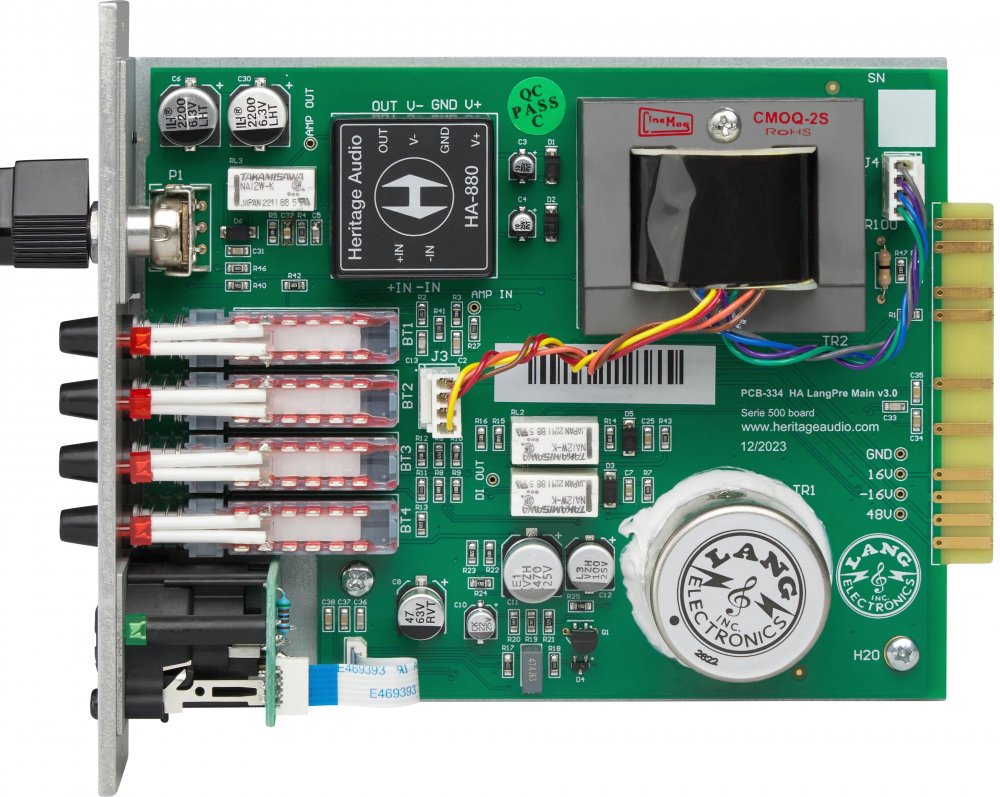

Equipped with custom-made HA-880 op-amps, CineMag transformers, and switchable features like 48V phantom power, a -20 dB pad, and phase reversal, the LANG 312L is tailored for a variety of recording needs, from vocals to instruments. Its front-panel XLR/TS combo jack provides easy access for different input types, while the built-in +25 dB lifter ensures pristine audio performance even in challenging setups. All of this comes in a compact, single-space 500-series module that is ready to bring professional sound to your recordings with legendary NYC flavor.

Features

Delivers powerful New York-style preamp sound at an affordable price.

Offers up to 90 dB of gain, ideal for any microphone, including ribbon and vintage mics.

Built-in +25 dB lifter removes the need for external gain boosters.

Low internal noise ensures clear and dynamic audio performance.

Custom HA-880 op-amp and CineMag output transformer for professional-grade sound.

Features switchable 48V phantom power, -20 dB pad, and phase controls.

Includes a front-panel XLR/TS combo jack with DI for instruments and mic inputs.

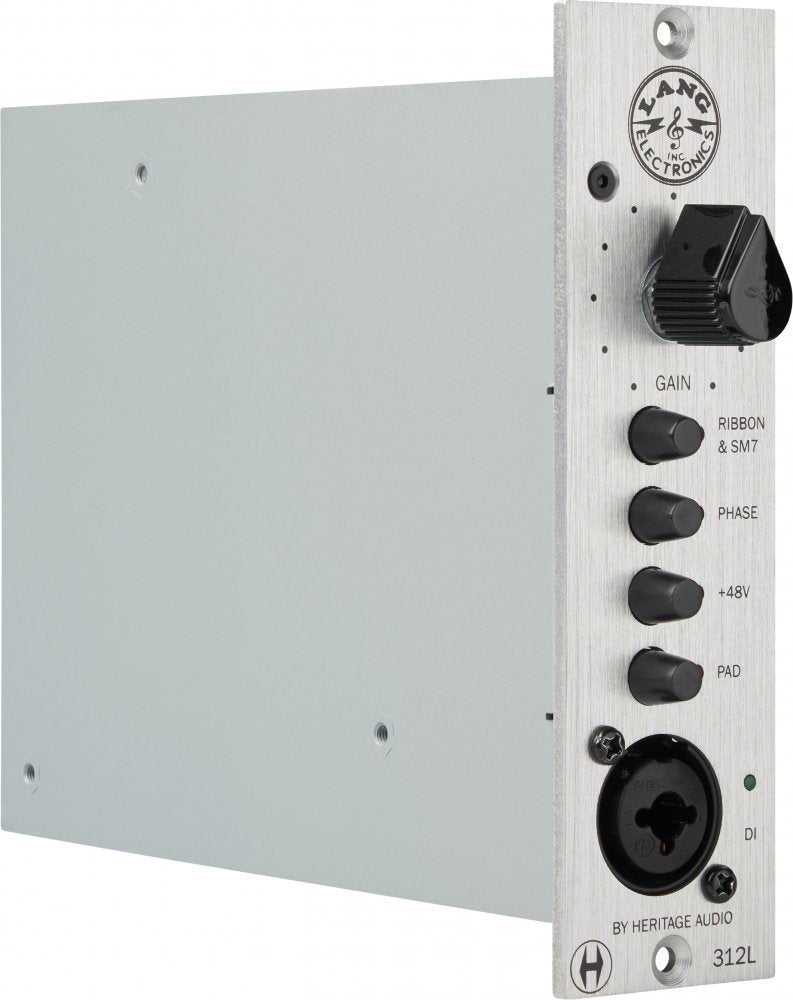

Fits in a single-space 500-series module, compatible with 500-series racks.

Specifications

General Specifications

500-series NY style preamp

Built-in +25 dB lifter for gain-boosting microphones

Single-space 500-series module; requires compatible 500-series rack

Gain range: +15 dB to +90 dB

Custom HA-880 footprint compatible op-amp

CineMag output transformer (custom-made in the US)

Exclusive LANG 2622 input transformer (designed by Heritage Audio)

Ultra-low noise floor: EIN -130 dBu

48V phantom power

-20 dB pad and phase switch

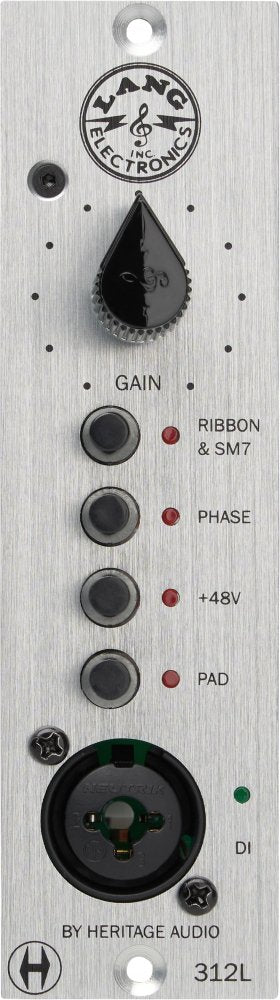

Front-panel XLR/TS combo jack (TS hi-Z instrument DI and XLR mic inputs)

Inputs/Outputs

Microphone input impedance: High = 1200 Ω, Low = 300 Ω (transformer balanced and floating)

Line input impedance: 10 kΩ (transformer balanced and floating)

D.I. input impedance: Greater than 2 MΩ (unbalanced)

Output impedance: Less than 75 Ω (transformer balanced and floating)

Performance

Maximum output: Greater than +26 dBu into 600 Ω

Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB)

Total harmonic distortion (THD): Less than 0.025% at 1 kHz, Less than 0.05% at 100 Hz

Equivalent input noise (EIN): Less than -130 dBu

Optimized for ribbon, vintage, and condenser microphones

Additional Features

No external gain boosters needed for high-gain mics

Ideal for broadcasting and recording with thick, solid signal output

1970s NY-inspired design at a competitive price

Dimensions (W x H x L): 38 mm x 135 mm x 150 mm

Power consumption: Less than 86 mA per rail @ ±16 V DC
