IGS AUDIO | SKU: 19784

ZEN

Name: ZEN
Brand: IGS AUDIO
SKU: 19784
Price: 4595.00 CAD
Availability: InStock

Mastering Compressors

Zener Diodes Mastering Compressor

$4,595.00 CAD

Shipping calculated at checkout.

Talk to our experts

Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

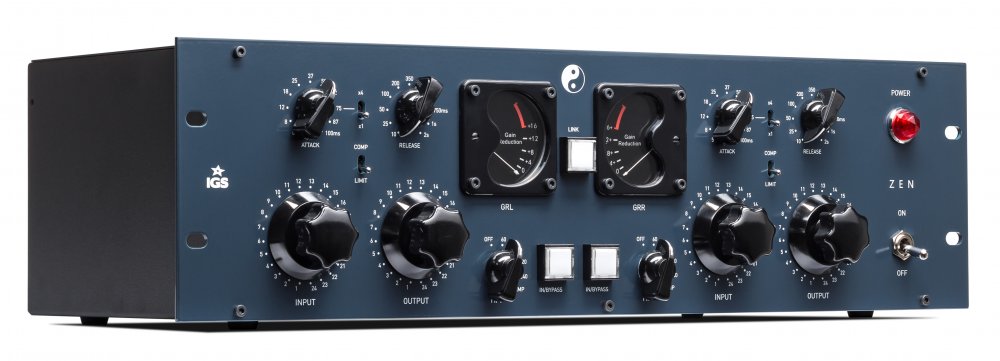

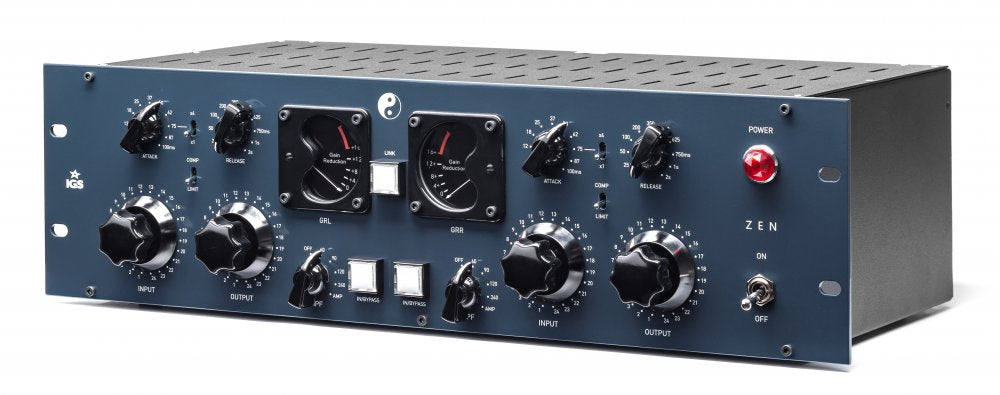

The ZEN is unique. The construction is based on the legendary compressors used in Abbey Road Studios. It's the musical canon of art used by The Beatles. The ZEN Compressor audio circuit is based on 14 bi-polar transistors in each channel. The compression is achieved by 8 hand-matched Zener diodes biased by a perfect feedback circuit.

Specifications

BASIC FEATURES
All stepped manipulators: Yes
HPF: Yes, 60, 90, 120, 240Hz
Stereo Link: Yes
Hard wire bypass: Yes
Compression type: Zener diodes

INPUT & OUTPUT

Input Impedance (balanced): 10k Ohm
Output Impedance (balanced): 75 Ohm
Audio transformers: Yes, IGS Custom, on inputs and outputs

LEVELS

Operating Level: +4 dBu
Dynamic Range: >100dB
Noise Level: -99dBu
Max. gain: 36dB
Max Gain Reduction: -35dB

TIME CONSTANTS

Ratio: Variable, depends on the input settings, plus Limiter
Attack: 8 - 100 ms, x4 switchable
Release: 10 - 2000 ms, x4 switchable

BANDWIDTH

Frequency response: 20 Hz - 20 kHz, +/- 0.1dB

DISTORTION (@ 20 HZ - 20 KHZ)

Signal to Noise Ratio: >90dB
THD+N: >86dB
IMD (SMPTE): >90dB
Crosstalk : 80dB @ 1kHz

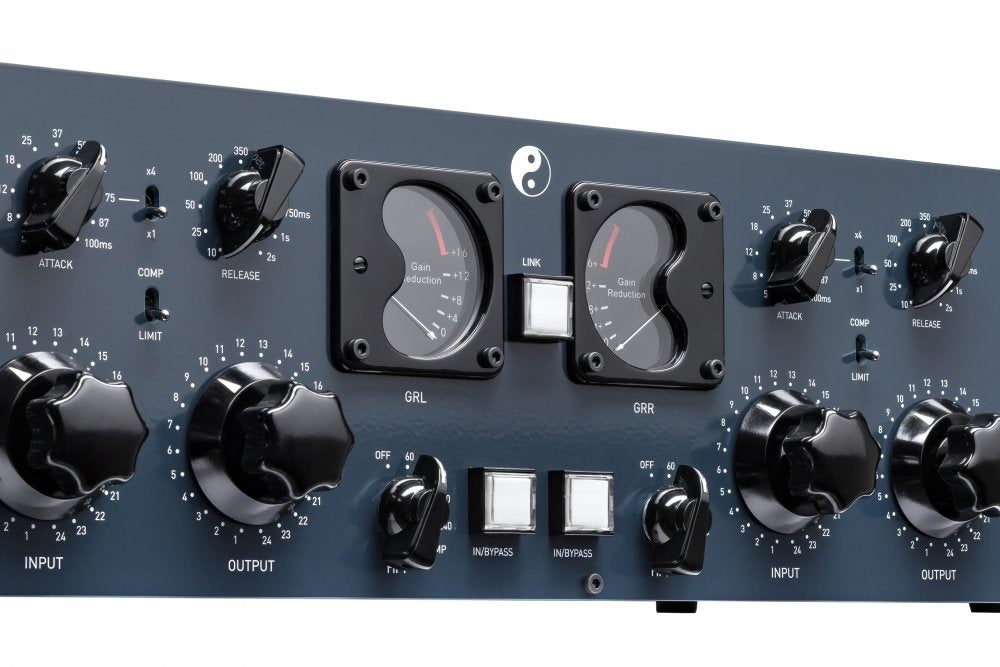

FRONT PANEL

VU Meters: Yes, GR in dB's, left & right

POWER

Voltage: Selectable 115/230 VAC
Power consumption: <30 VAC
Power supply: Linear, internal

PACKING BOX

Dimensions: 19" unit
Shipping weight: 9 kg / 5 lbs

OTHERS

Used for Mastering, tracking
