IK MULTIMEDIA  |  SKU: 21923

ARC Studio

Monitoring Controls

ARC Studio advanced room correction system combines a standalone correction processor, new ARC 4 measurement software and a room analysis microphone

$419.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

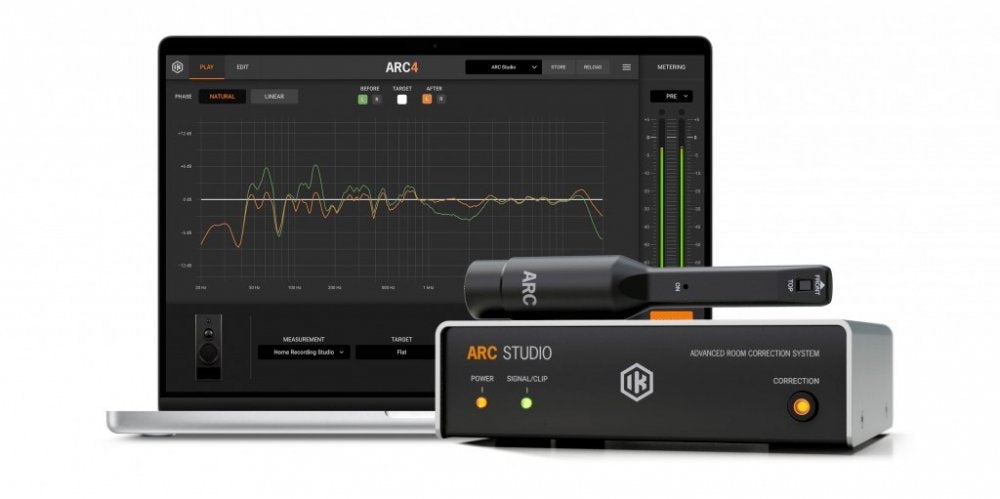

Upgrade any studio monitors instantly with the first out-of-the-box acoustic room correction system that anyone can afford. ARC Studio combines a standalone correction processor, new ARC 4 measurement software and a room analysis microphone.

There's a reason all today's top-tier studio monitors are adding active room correction " it supercharges their performance and ensures mixes translate flawlessly. ARC Studio offers this same massive boost in performance and accuracy to any monitor in every studio.

For the first time in the recording industry, an affordable hardware processor can be used as a correction and calibration system for any type of studio " be it home, project or professional " without the limitations of a software-only system.

Specifications

Audio


AD and DA converters: AKM Velvet Sound
Audio conversion and internal processing sampling rate: 96 kHz
Audio conversion resolution: 24-bit
Internal processing resolution: 32-bit float
Frequency Response: 2 Hz - 45.0 kHz (- 2.0 dB)
Dynamic Range: 120 dB (A-weighted)
THD (20-20 kHz): 0.00035%
THD+N (1 kHz@-1dBFS): -107 dB
Channel Crosstalk (1 kHz): -122.5 dB
Max Phase Deviation: +7 20Hz, +16 22kHz
Input Impedance (balanced): 20 kOhm
Output Impedance (balanced): 50 Ohm
Maximum output level: +17 dBu

Latency


Natural Phase mode: 1.4 ms
Linear Phase mode: 42 ms

Power


Powered by included Power Supply Unit

Dimensions


Size: 14.4cm / 5.6" x 12cm / 4.72" x 4.5cm / 1.77"
Weight: 465g / 1,03lb

Package includes

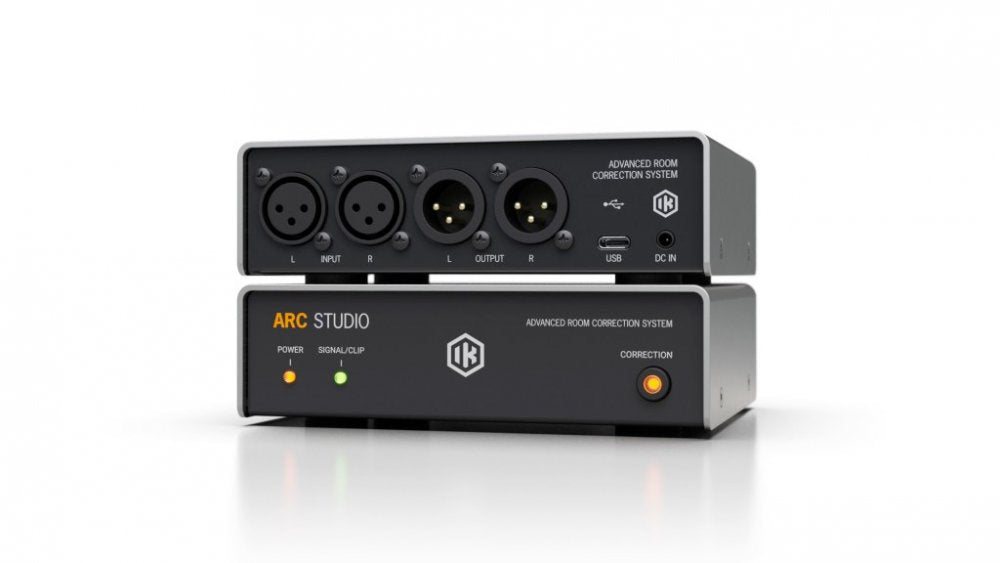

ARC Studio room-correction processor

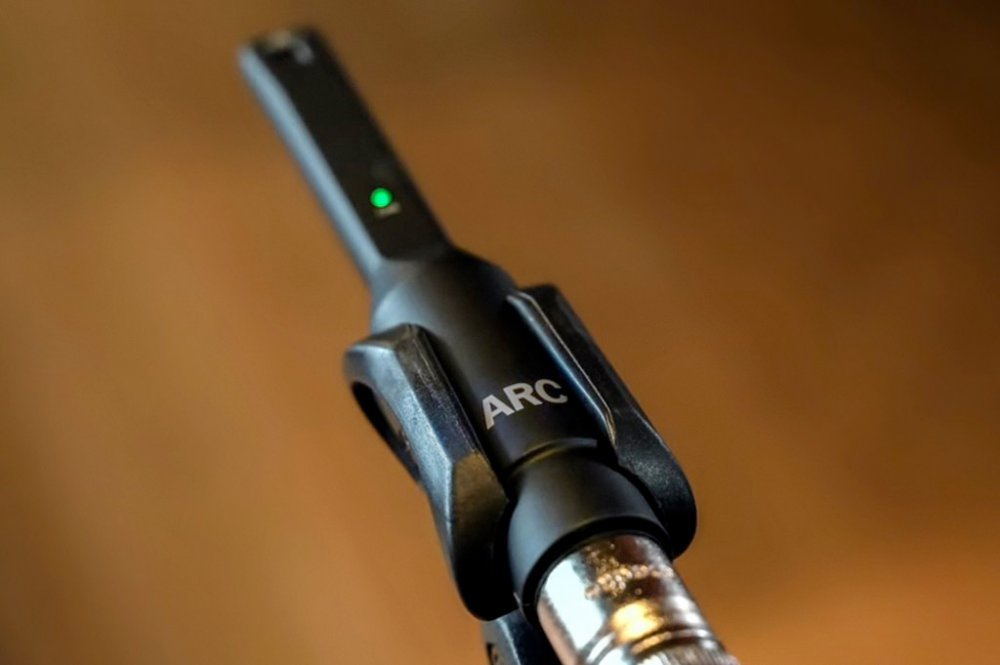

ARC Measurement Microphone (depending on the version)
ARC Measurement Microphone Clamp (depending on the version)
USB C-Type to USB A-Type cable (1.5 m / 4.92')
Power Supply Unit
Registration card

Free included app/software


ARC Studio comes with the following free bonus content

System Requirements

Mac (64-bits)

Minimal: Apple M1 or Intel Core i5 Processor, 4 GB of RAM, macOS 10.15 or newer (macOS 11 or newer required for Apple Silicon Processors).

Supported Plug-in formats: Audio Units, VST 2, VST 3, AAX.

Works with any audio interface with a phantom powered XLR microphone input and a pair of outputs for monitoring.

44.1 kHz or 48 kHz sampling rate is required for the measurement process.

One free USB port required.
