JBL  |  SKU: 22264

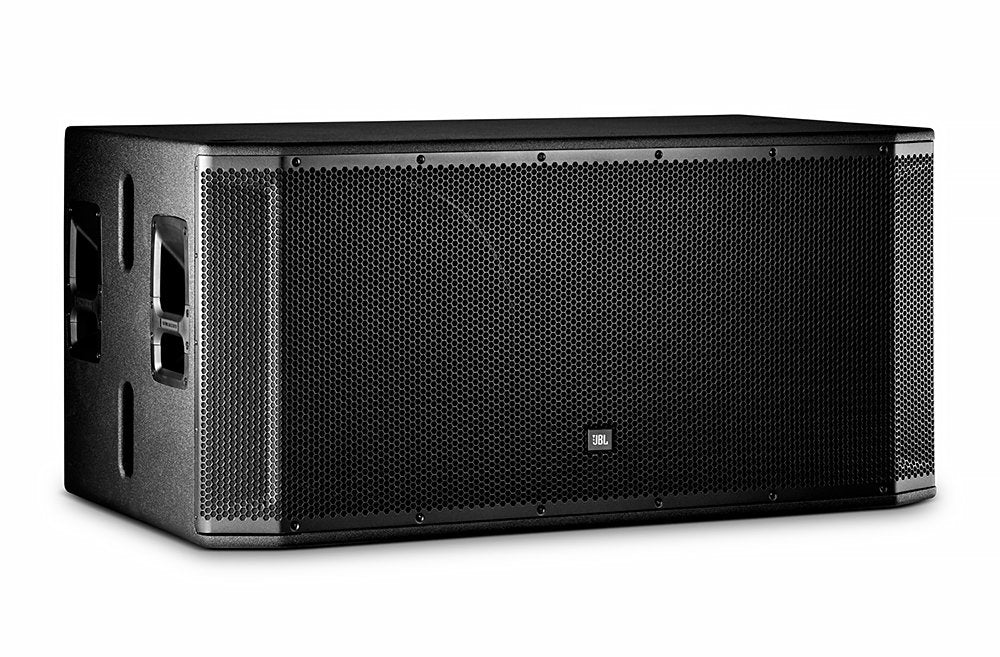

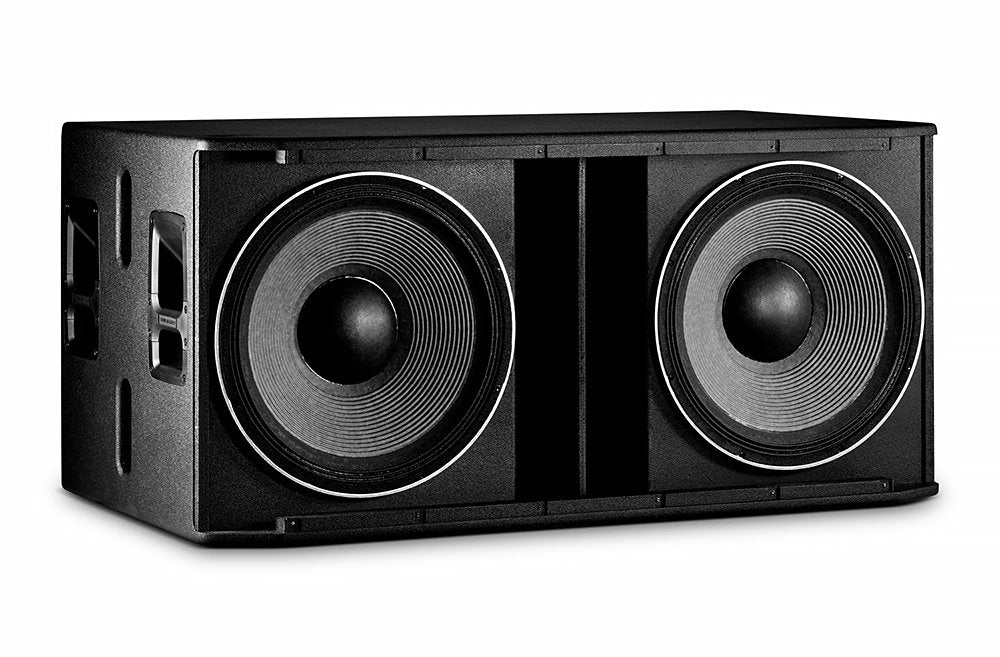

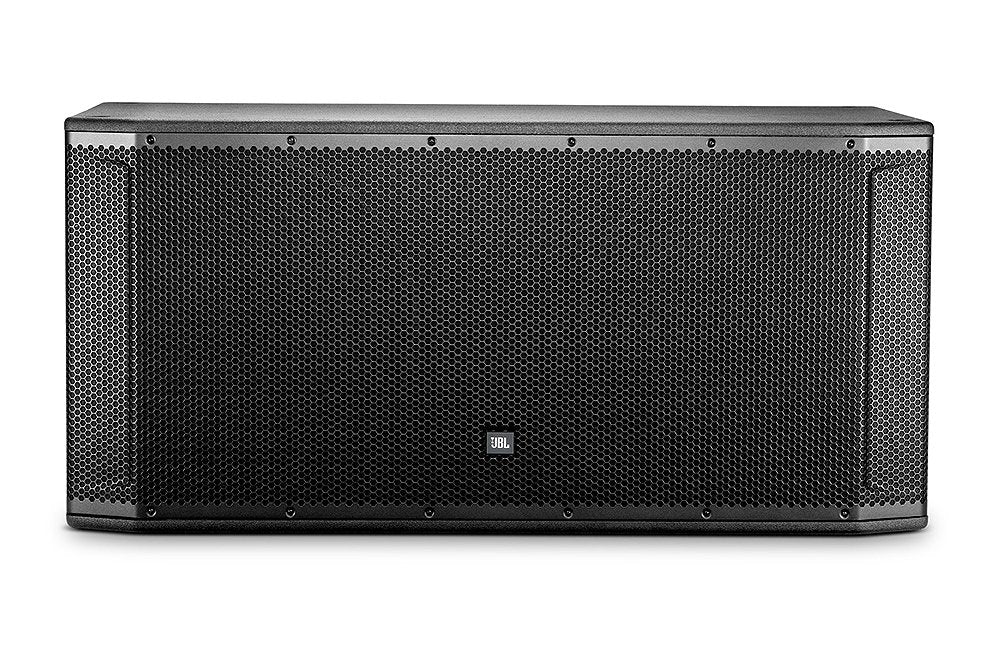

SRX828S

Passive Monitors

Dual 18-inch subwoofer for concert, touring, or installed use

$3,499.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

SRX828S is a dual 18" subwoofer for concert, touring, or installed use. Featuring a wide stance for splaying top boxes, indexing feet for stacking in both the standard and cardioid position, and a 141dB max SPL, the SRX828S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Applications Live performance systems Mobile and fixed DJ systems Sound system rental and tour Permanent installations

Features

Premium JBL Transducers

Rugged, versatile enclosures

Tunings available for Crown amps and dbx signal processors

Fully supported in Audio Architect

Power Handling: 4800W Peak, 2400W Program, 1200W Continuous

Frequency Range: 30Hz-150Hz

Frequency Response: 47Hz-150Hz

Max SPL: 135dB (Peak)

Amplification options: Passive

2x 2279 LF 8 Ohm 18" Woofe

Specifications

System Type: Passive dual 18", subwoofer system
Maximum SPL Output: 129dB (Continuous), 135dB (Peak)
Frequency Range (-10dB): 30hz - 150hz
Frequency Response (-3 dB): 47Hz - 120Hz
Sensitivity: 98dB
System Power Rating: 4800W Peak, 2400W Program, 1200W Continuous
Nominal Impedance: 4 Ohm

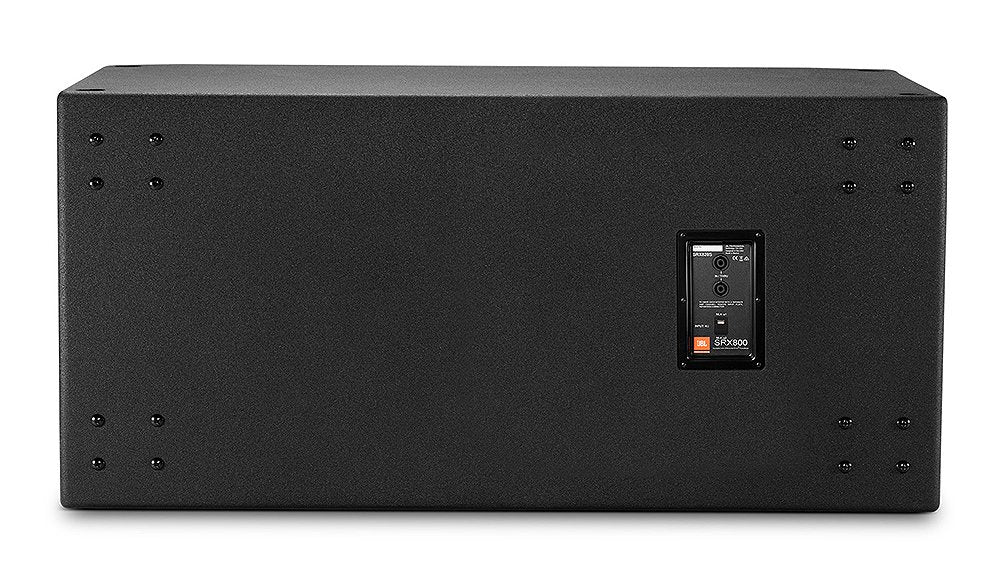

Inputs: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes: Passive
LF Driver: (2x) 2279H
Crossover Frequency: 80hz
Enclosure 18mm Duraflex coated plywood
Casters: Accepts JBL WK-4S Kit

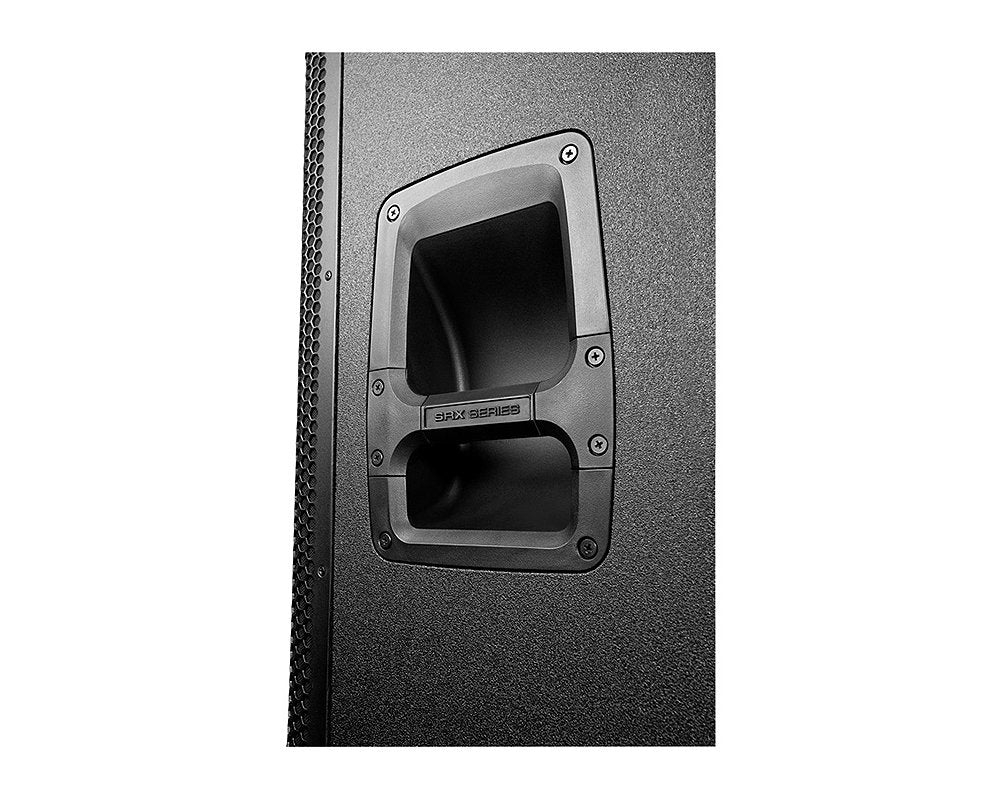

Handles: 8
Finish: Obsidian Duraflex™ finish
Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D): 681mm x 1205mm x 574mm (26.79in x 47.42in x 22.57in)
