DPA

4188-DP-F-B90-MH

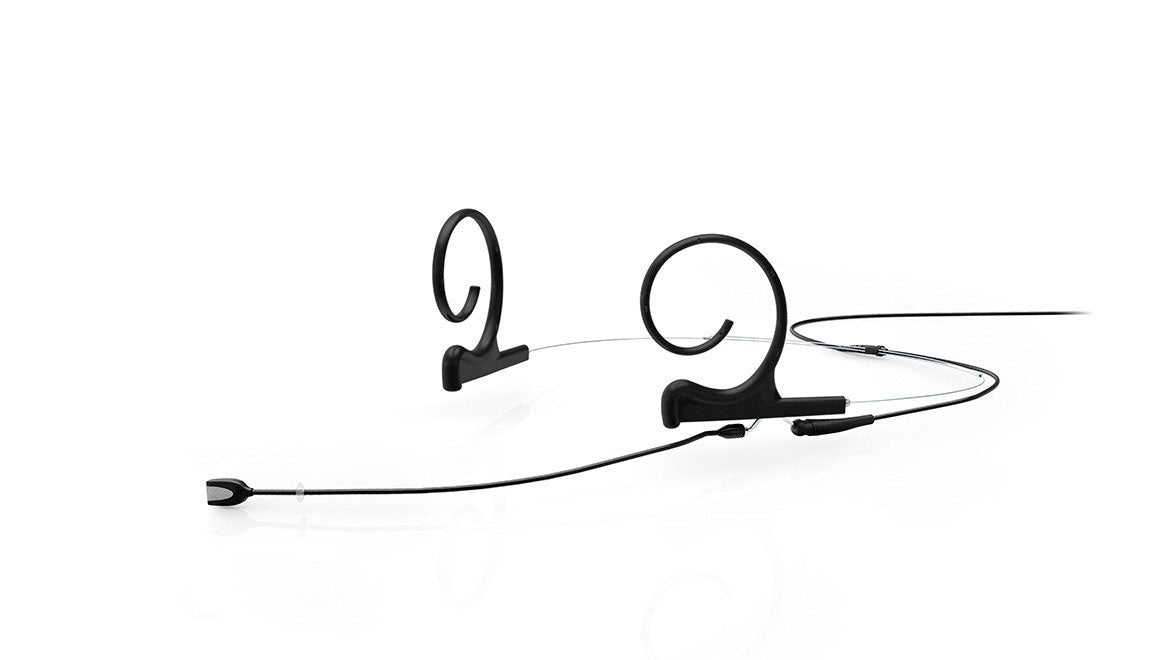

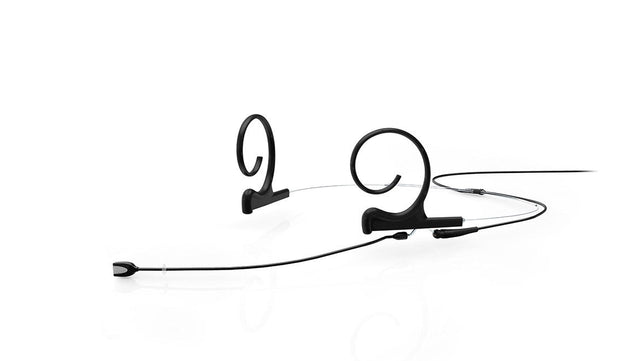

DPA 4188 CORE+ directional headset mic with 100 mm boom and MicroLock connector. Lightweight, discreet, high-SPL ready mic with excellent vocal clarity and feedback rejection.


$1,296.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The DPA 4188 CORE+ Directional Flex Headset Microphone (Black, 100 mm Boom, MicroLock) – model 4188-DP-F-B90-MH – is a discreet, professional-grade headset mic designed for speech and vocal performance in environments where background noise, feedback, and visual distraction must be minimized. Featuring the acclaimed 4088 directional capsule and DPA’s advanced CORE+ technology, this headset delivers precise, natural vocal reproduction with ultra-low distortion and an impressive dynamic range, even at sound pressure levels up to 146 dB peak.

The cardioid polar pattern offers excellent off-axis rejection, making it an ideal choice for stages, conference halls, houses of worship, and broadcast studios. Its 100 mm boom length positions the mic at the corner of the mouth for optimal clarity while avoiding plosives and breath noise. The slim, ergonomic frame adjusts easily to fit either ear and stays comfortably in place throughout long performances or presentations. Finished in black for low visibility on stage or on camera, this version includes the MicroLock connector, allowing secure and modular integration with a variety of wireless systems via DPA’s adapter ecosystem. With its IP58-certified moisture resistance, flexible fit, and focused vocal pickup, the 4188 CORE+ headset is built for demanding environments where reliability and sound quality can’t be compromised.

Features

Focused, Natural Vocal Pickup
Delivers clear, detailed speech and vocals with excellent background noise rejection.

Directional Cardioid Capsule
Captures sound from the front while rejecting unwanted noise from the sides and rear.

CORE+ for Clean, High-Definition Audio
Minimizes distortion across the full dynamic range for smoother, more accurate sound.

Compact 100 mm Boom Arm
Shorter boom is ideal for closer mic placement and a more discreet look.

Lightweight and Comfortable Fit
Flexible headset adjusts easily to any head shape for a secure, barely noticeable fit.

Low-Profile Black Finish
Designed for professional environments where subtle appearance matters.

MicroLock Connector for Secure Fit
Ensures a reliable connection with support for interchangeable adapters.

Resists Moisture and Humidity
Engineered to perform in demanding live and broadcast conditions without dropouts.

Easy Left or Right Ear Placement
Boom and earhook rotate for fast setup on either side.

Compatible with Wireless Systems
Works with a variety of professional transmitters using optional MicroLock adapters.

Specifications

General Specifications
Device Type: Miniature Electret-Condenser Headset Microphone
Color: Black
Form Factor: Dual-Ear Headset
Capsule Diameter: 5.4 mm
Diaphragm Orientation: Vertical
Boom Length: 3.9 in / 100 mm
Construction: Ergonomic Dual-Ear Frame with Flexible Boom Arm
Environmental Resistance: IP58 (Dust and Moisture Resistant)
Temperature Range: -40°C to 45°C / -40°F to 113°F
Relative Humidity: Up to 90%
Cable Length: 4.3 ft / 1.3 m
Cable Diameter: 0.06 in / 1.6 mm
Connector Type: MicroLock
Weight (Boom): 0.03 oz / 0.8 g
Weight (Earhook): 0.04 oz / 1.1 g
Weight (Cable): 0.23 oz / 6.6 g
Weight (Total): 0.30 oz / 8.5 g

Compatibility
Compatible Transmitters: Requires DPA MicroLock adapter for wireless systems
Connector Type: MicroLock

Performance
Frequency Response: 20 Hz to 20 kHz
Effective Frequency Range (±2 dB at 2–3 cm): Tailored for vocal placement
Sensitivity: 6 mV/Pa ±3 dB at 1 kHz (–44 dB re. 1 V/Pa)
Dynamic Range: 116 dB (Typical)
Equivalent Noise Level (A-Weighted): 26 dB (Typical), 28 dB (Maximum)
Equivalent Noise Level (ITU-R BS.468-4): 38 dB (Typical), 40 dB (Maximum)
Maximum SPL (0.5% THD): 137 dB SPL RMS, 140 dB SPL Peak
Maximum SPL (1% THD): 139 dB SPL RMS, 142 dB SPL Peak
Maximum SPL (10% THD): 146 dB SPL Peak
Rated Output Impedance (MicroLock): 30 to 40 Ω
Cable Drive Capability: Up to 984 ft / 300 m with DAD9001 Adapter
Output Balance Principle: Signal Balanced with DAD9001 XLR Adapter
Common Mode Rejection Ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9001 Adapter
Polarity: Positive Sound Pressure Produces Positive Voltage on MicroLock Pin

Polar Pattern
Pattern Type: Cardioid
Operating Principle: Pressure Gradient

Power Requirements
Power Source (Wireless Use): 5 to 10 V via DPA Adapter
Power Source (Wired Use with Adapter): 12 V to 48 V Phantom Power
Current Consumption (Microphone): 1.5 mA
Current Consumption (with DAD9001 Adapter): 3.5 mA
