MAMMOTH CABLES

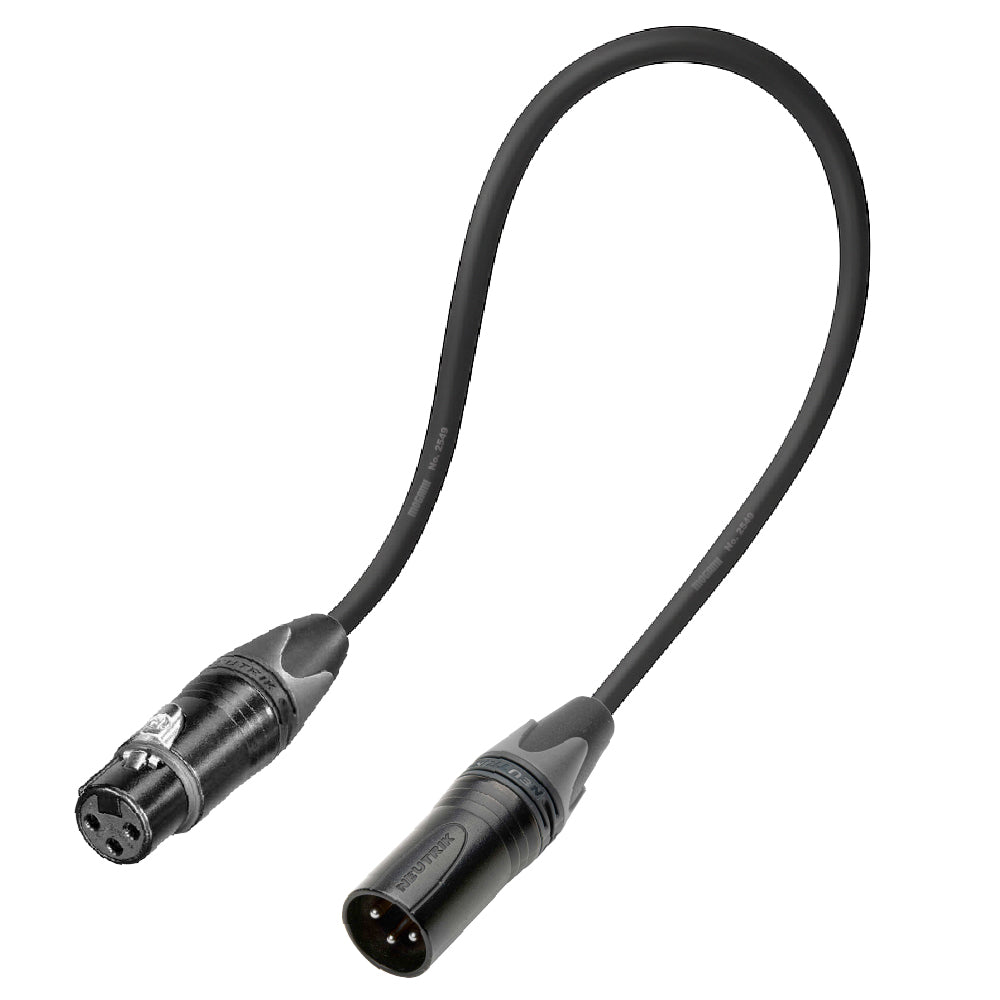

MM2549-XLR-XLR-50

XLR & Microphones Cables

Made with Mogami High Quality Balanced Microphone Cable W2549 and Neutrik XLR (NC3MXX-BAG, NC3FXX-BAG) Connectors. Length: 50 feet

$145.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Mogami W2549 Mic Cable

W2549 has been designed using our famous Neglex OFC to provide the highest quality audio reproduction in any recording application. It features #22AWG conductors and extremely low capacitance. The 100% coverage served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when extended high frequencies are important or where long cable runs may be needed.

NC3MXX-BAG

3 pole male cable connector with black metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

NC3FXX-BAG

3 pole female cable connector with black metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features

Flexible and compact design makes it easy to handle and route.

Durable outer jacket resists wear, bending, and abrasion.

Delivers clean, low-noise signal for professional audio use.

Ideal for both studio environments and field applications.

Heat-resistant insulation ensures solid, long-lasting solder points.

TRS plug allows balanced connection to mixers, interfaces, or gear.

XLR female connector provides a secure fit for microphones and equipment.

Built for reliable performance in both fixed and mobile setups.

Suitable for audio, video, and industrial applications.

Specifications

Product Name: W2549

Cable Type: High Quality Balanced Microphone Cable

Conductor Material: Neglex OFC (Oxygen-Free Copper)

Conductor Size: 0.339 mm² (#22 AWG)

Outer Diameter: 6.0 mm (0.236")

Shield Type: 100% Coverage Served Shield

Shield Construction: Twisted Pair with Served Shield

Color Options: Black, Red, Yellow, Green, Blue

Flex Life: 14,500 Cycles

Tensile Strength: 657 N

Electrical Characteristics

Capacitance: Extremely Low (Exact value not specified)

Noise Rejection: High (due to twisted pair and full shield coverage)

Environmental Characteristics

Recommended Applications: Long Cable Runs, High-Frequency Audio Transmission

Microphonic Noise: Very Low

Operating Temperature: Down to –20°C (–4°F)

Flexibility at Low Temperature: Maintains Flexibility

Mechanical Characteristics

Stranding: 105 Strands of 44 AWG Annealed Bare Copper

Durability: Designed for Rugged, Continuous Handling

Use Case: Remote, Stage, TV, Radio, Broadcast, and Sound Reinforcement

Product Name: NC3MXX-BAG

Connector Type: XLR

Gender: Male

Electrical Specifications

Capacitance Between Contacts: ≤ 4 pF

Contact Resistance: ≤ 3 mΩ

Dielectric Strength: 1.5 kV DC

Insulation Resistance: > 10 GΩ (Initial)

Rated Current per Contact: 16 A

Rated Voltage: < 50 V



Product Name: NC3FXX-BAG

Connector Type: XLR

Gender: Female

Electrical Specifications

Capacitance Between Contacts: ≤ 4 pF

Contact Resistance: ≤ 3 mΩ

Dielectric Strength: 1.5 kV DC

Insulation Resistance: > 10 GΩ (Initial)

Rated Current per Contact: 16 A

Rated Voltage: < 50 V

Assembly Specifications:

Termination Method: Hand-soldered

Heat Shrink Tubing: Used for insulation stability and strain relief

Compatibility: Analog audio equipment, mixers, preamps, interfaces, and patch bays

Shield Connection: Shield typically connected to XLR pin one and TRS sleeve
