32Classic 24Ch console, pre-wired for Dante

Signature Harrison Analog Sound
Equipped with transformer-balanced mic preamps and the iconic 32C four-band EQ with musical high-pass and low-pass filters for detailed analog tone.

24 Analog Input Channels
Balanced mid-sized configuration offering expanded flexibility for tracking and mixing, while maintaining a studio-friendly footprint.

Dante-Ready Architecture
Pre-wired internally for Dante with premium AD/DA converters, offering 64 channels of audio-over-IP routing between the console and DAW or network devices.

Flexible Signal Flow
Supports both in-line and split-path recording workflows, with separate signal paths for input, playback, cue, and monitoring via Dante integration.

Advanced Bus and Aux System
Features 8 multitrack buses, 4 mono aux sends, 1 stereo cue send, insert points, and transformer-balanced main mix outputs.

Immersive Audio Monitoring
12-wide monitor section supports immersive formats including Dolby Atmos 7.1.4, with master control for surround monitoring levels.

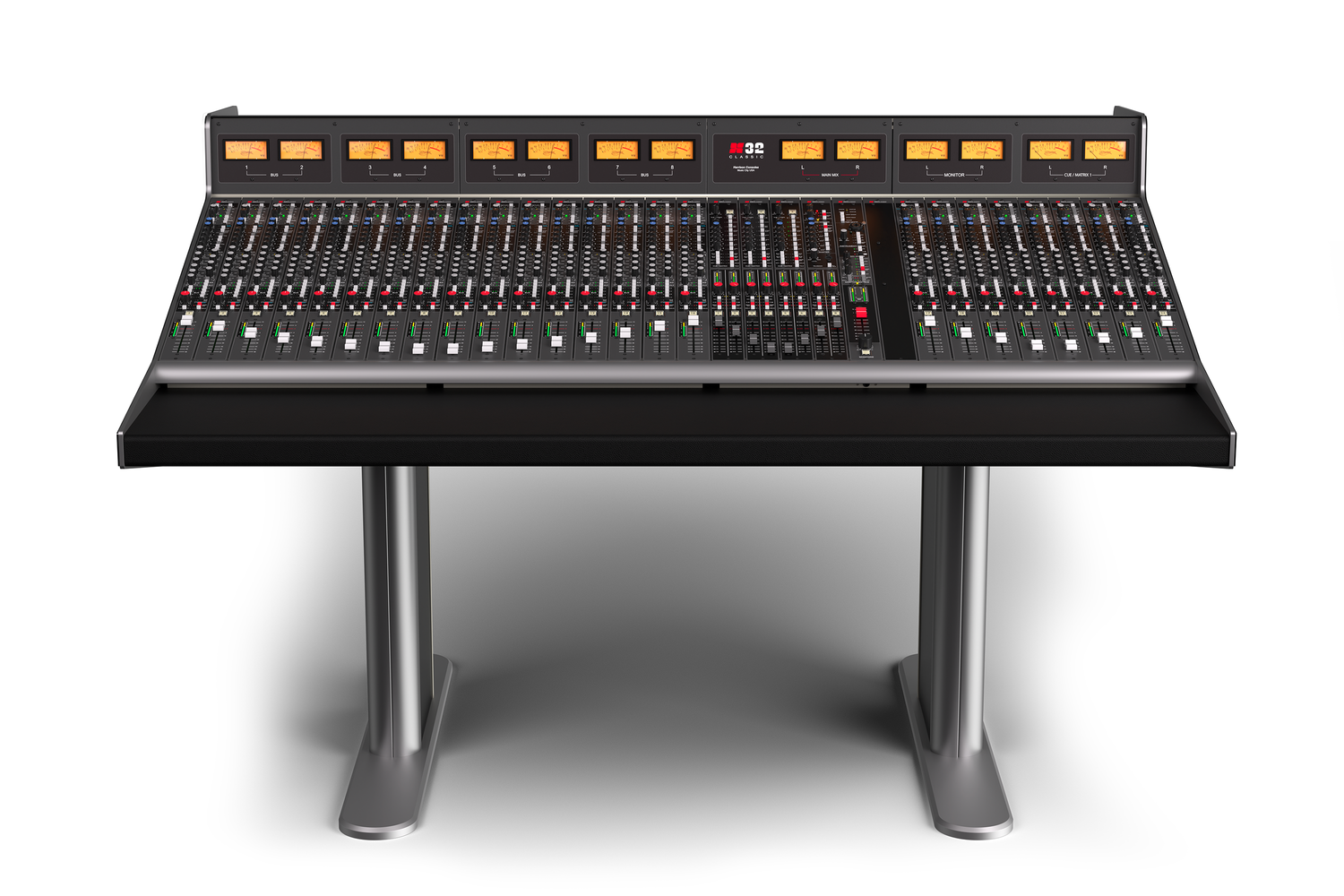

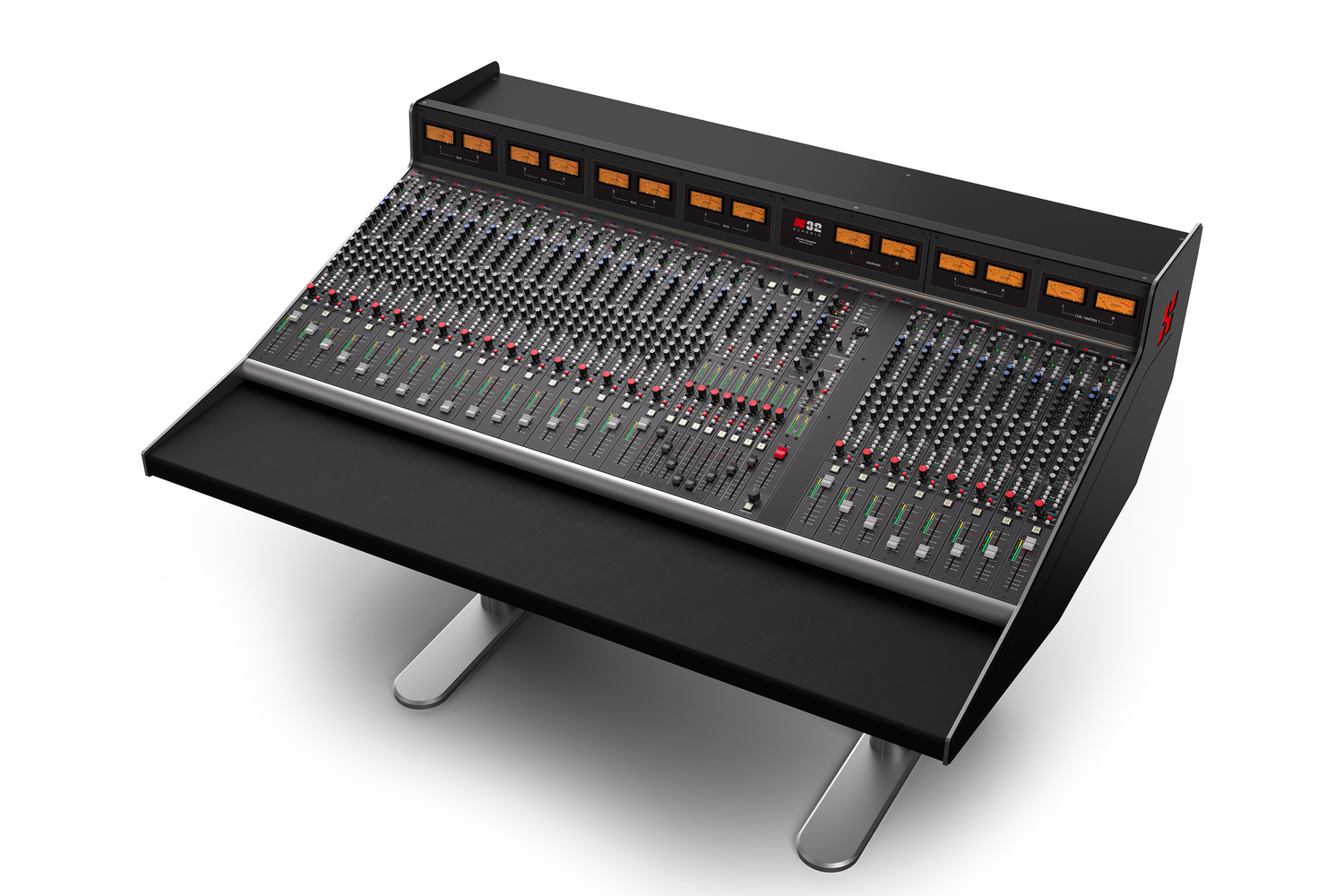

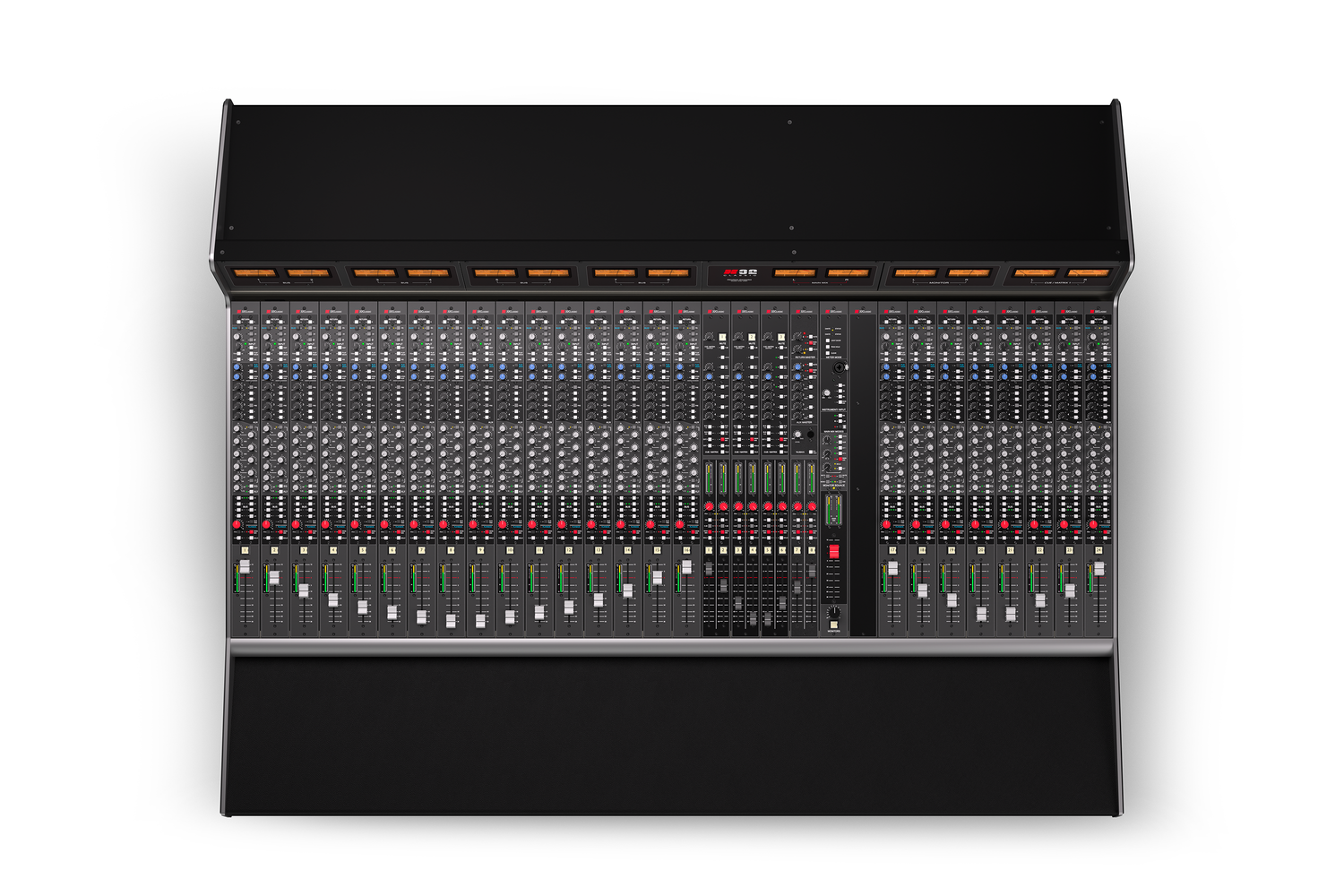

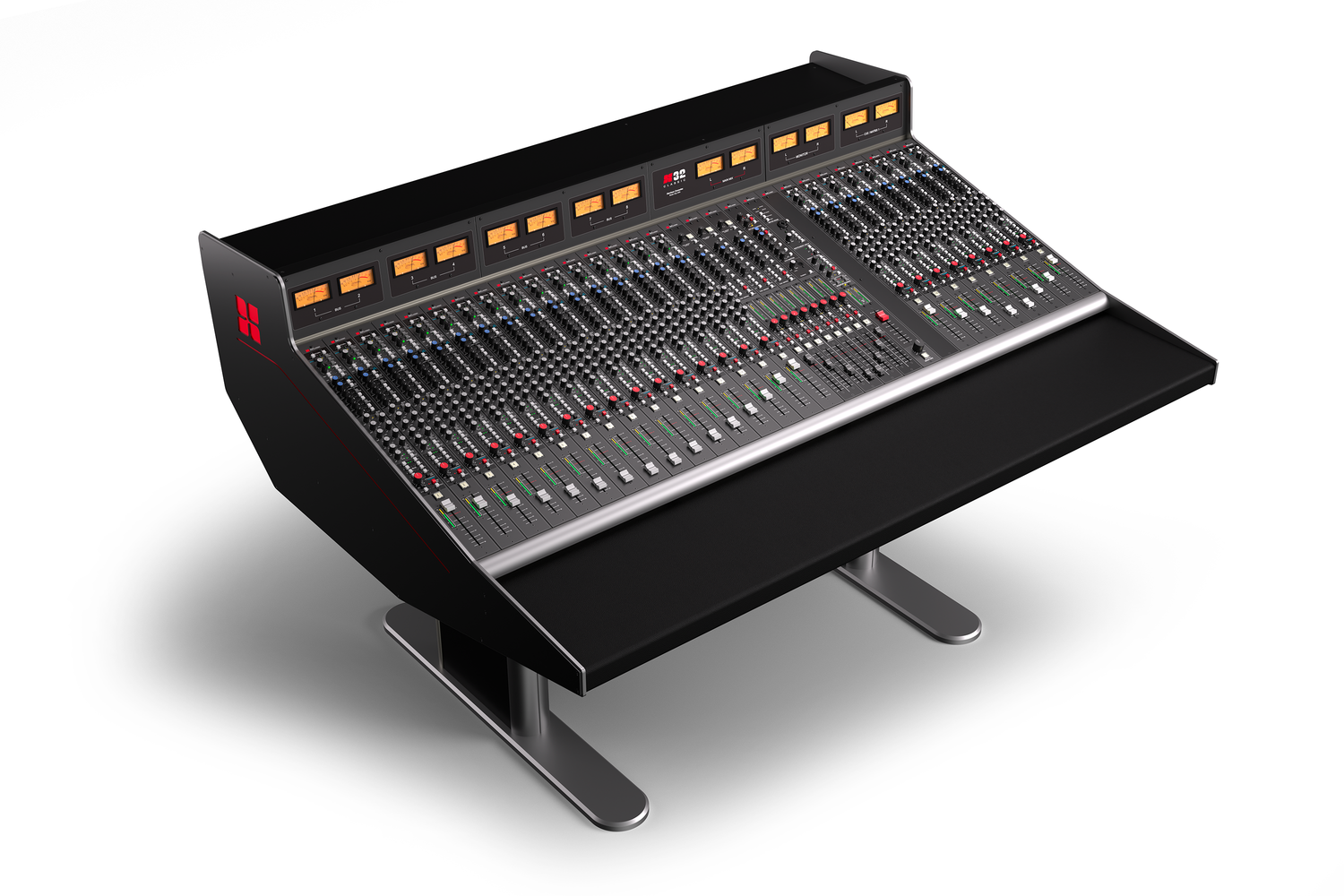

Hybrid DAW-Compatible Frame
Ergonomically designed frame with deep-set armrest for mouse/keyboard and rear shelf for monitors and nearfields, optimized for hybrid analog/digital setups.

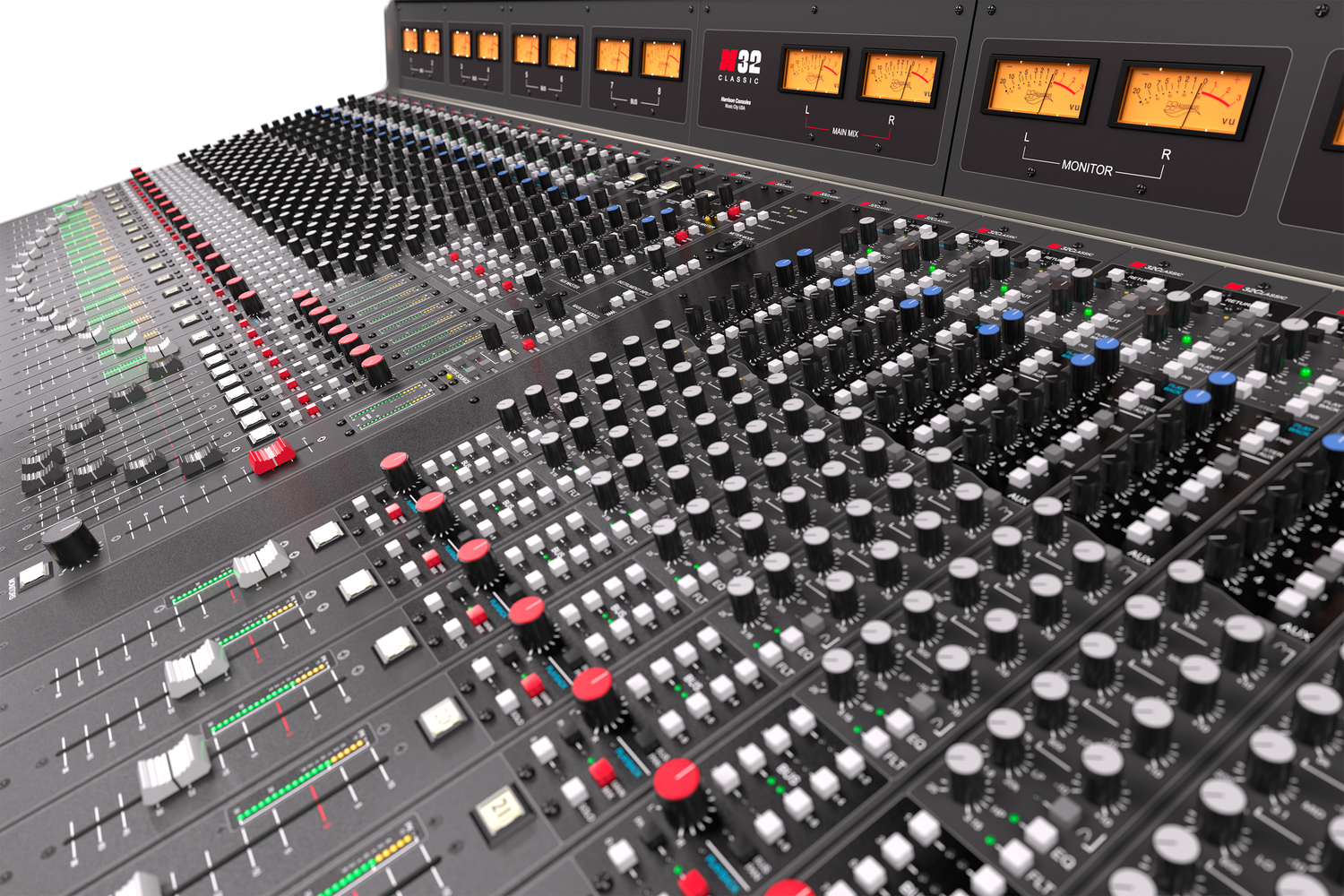

Precision Control Interface
Includes 100mm high-quality faders, 20-segment input and bus meters, fader bypass locks, LED status indicators, and full solo/mute functionality.

Quiet & Durable Build
Low-noise, fanless design with efficient heat dissipation, heavy-duty aluminum frame, and high-quality PCB layout for long-term studio use.

Integrated Studio Utilities
Built-in front-panel instrument input, talkback mic system, alternate monitor and headphone outputs, and cue routing, all designed for seamless in-session control.

General Specifications
Harrison 32Classic 24-Channel Analog Console (Pre-Wired for Dante)
Analog console with integrated DAW workflow optimization
Classic Harrison 32C analog architecture with modern digital routing
Fully modular construction and in-line signal flow design
24 mono mic/line input channels with transformer-balanced analog path
Pre-wired for Dante Audio-over-IP (AoIP) system with built-in AD/DA conversion
Fanless internal PSU with low heat dissipation
Designed for immersive, hybrid, and professional DAW-based studios

Channel Count & Configuration
24 Mono Input Channels (transformer-coupled mic/line)
Each channel includes:
– Harrison 32C 4-band parametric EQ (Proportional-Q, shelving/bell selectable)
– High-Pass and Low-Pass Filters
– Balanced Line Input
– Balanced Insert Point
– Balanced Direct Output
– In-line and Playback Input switch (via Dante and internal DA conversion)
– 100 mm premium fader
– 20-segment LED input meter
– Zero Fader Lock for DAW routing at unity gain
– Mute, Solo, Mix, and 8-Bus assignment switches
– Bus and Mix pan control

Routing & Bussing
8 Multitrack Buses (mono/stereo subgroups with pan switch)
4 Mono Aux Sends + 1 Stereo Aux Send
Stereo Cue Send
Transformer-balanced Main Mix Output
Bus and Main Mix Insert Points
Stereo Return path (line-level) with Main Mix and Bus routing
Balanced Stereo Return with meters, mute, solo, and level control

Monitoring & Metering
12-Wide Monitor Section with full Dolby Atmos 7.1.4 monitoring support
Main Monitor Output, Alternate Monitor Output, and Headphone Output
Monitor source options:
– Main Mix
– External Stereo 1 & 2
– External 7.1.4 Surround
– Dante Stereo via internal DA
Large Master Monitor Level Pot with Dim, Mono, L/R Mutes
VU Meters for Main Mix
20-segment LED meters on all inputs and buses
Solo Active LED indicator

Dante AoIP Integration
Pre-wired internal Dante interface
Dual 32×32 Dante units (96 kHz) for Channel I/O and Bus/Monitor I/O
Internal Ethernet switch for single-cable DAW connection
Console appears as 2 devices on Dante network
AD/DA conversion: 64 channels premium-grade
Zero-latency patching, routing, and DAW integration
Dante provides routing to/from all console paths: inputs, buses, main mix, returns, monitors

EQ & Processing
Classic 32C 4-band parametric EQ with Proportional-Q
Switchable Bell/Shelving mode on Hi/Lo bands
Variable HP and LP filters with separate In/Out
Analog circuit design with modern component tolerances
Clean, musical response with sculpting flexibility

Foldback / Cue Matrix
3 Stereo Foldback / Cue Outputs
Each with source matrix including:
– Aux Sends
– Bus Outputs
– Stereo Return
– External Inputs
– Main Mix
Per-output master control: Level, Mute, Solo, 0dB Lock
Dedicated Talkback mic and controls per Cue output
Master “All Talk” switch

Instrument Input & Playback
Center Section Instrument Input (Hi-Z / Mic switchable)
Selectable as input source on any channel
48V phantom power, -20 dB pad, gain control
Direct-to-Main Mix routing
Playback input available via Dante DA and channel switch

Modular Design & Construction
High-reliability double-sided PCB layout with grounded planes
Summing via PCB (no ribbon cables)
Conductive plastic potentiometers
Gold-plated switches
Extruded aluminum frame with integrated cable raceways
Standard D-Sub audio connectors
DAW-friendly form factor with deep armrest and rear monitor shelf

Physical & Power Specifications
Estimated Width: ~68–70 inches (24-channel frame)
Weight: ~400–500 lbs (approximate)
Power: Internal PSU <500W
Voltage: 110V / 230V auto-switching
Cooling: Passive, no fans required

Included Modules
24 Input Modules
Bus Master Modules (1–8)
Aux / Return Master Module
Cue / Matrix Output Module
Main Monitor & Main Mix Modules
Integrated Talkback Section

Studio Integration Features
Full Dante patching without external convertrs or routers
Ideal for immersive mixing and Atmos 7.1.4 workflows
Custom configuration available upon request
Compatible with high-performance DAW and hybrid workflows
Designed for ergonomic and efficient studio operation
