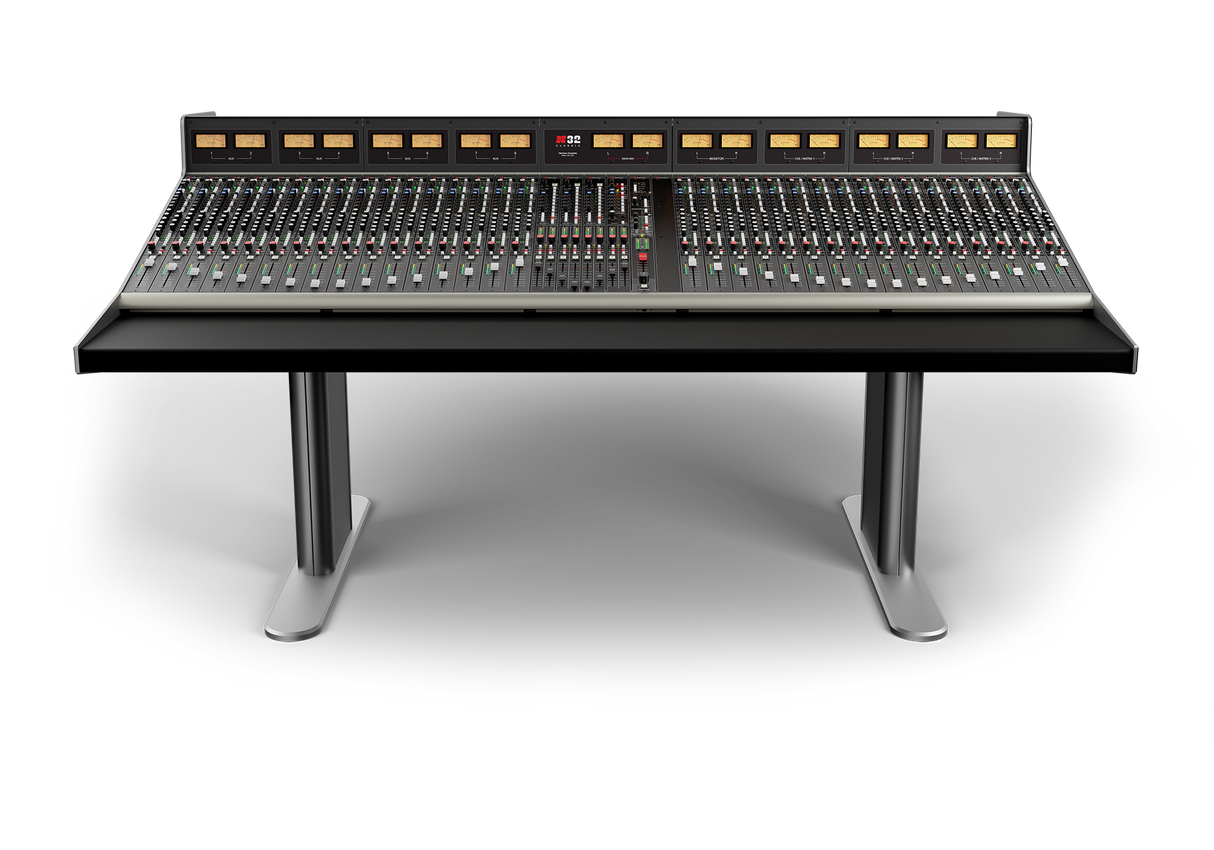

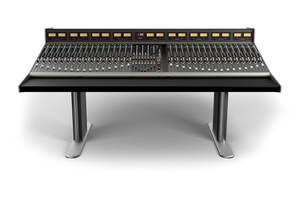

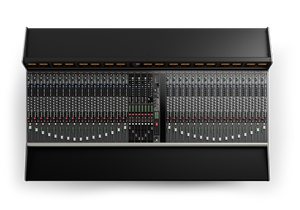

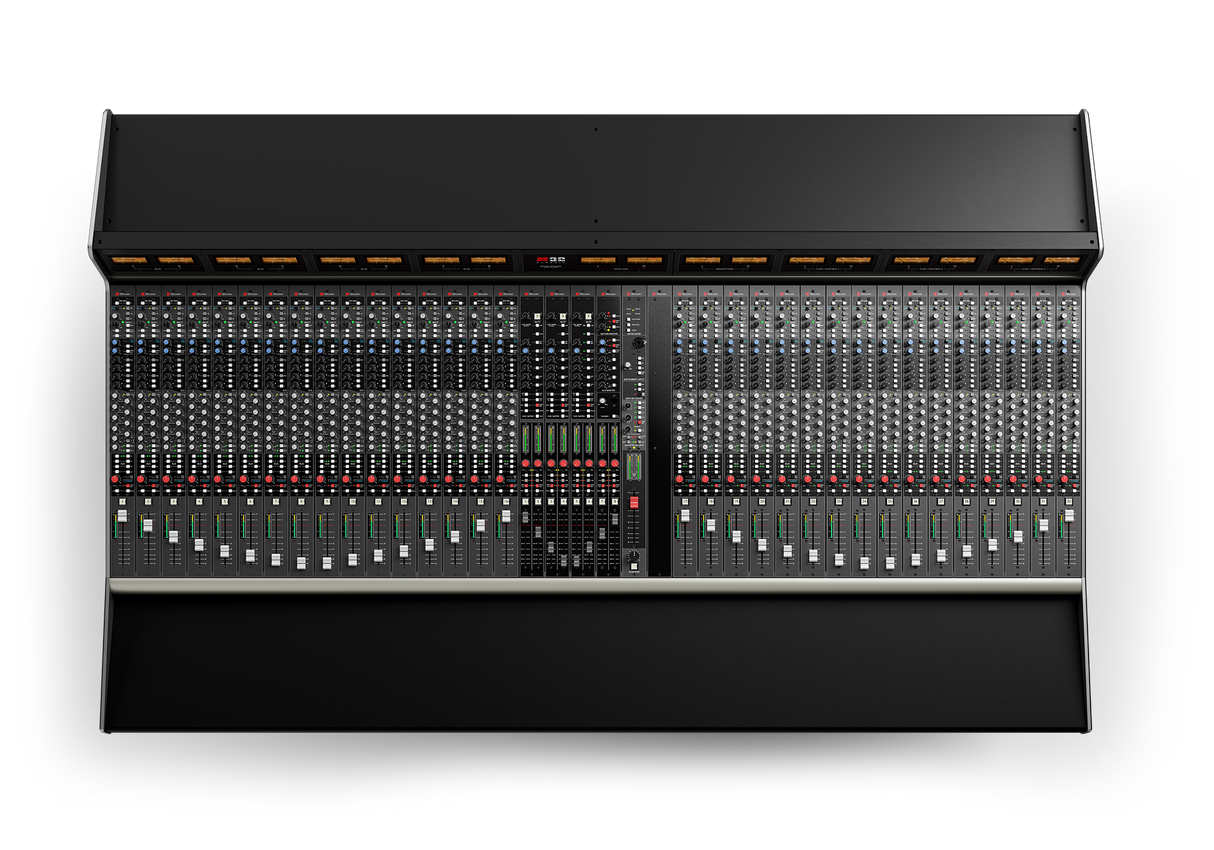

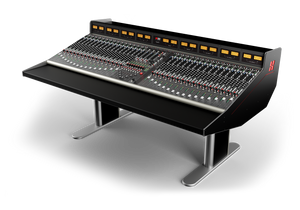

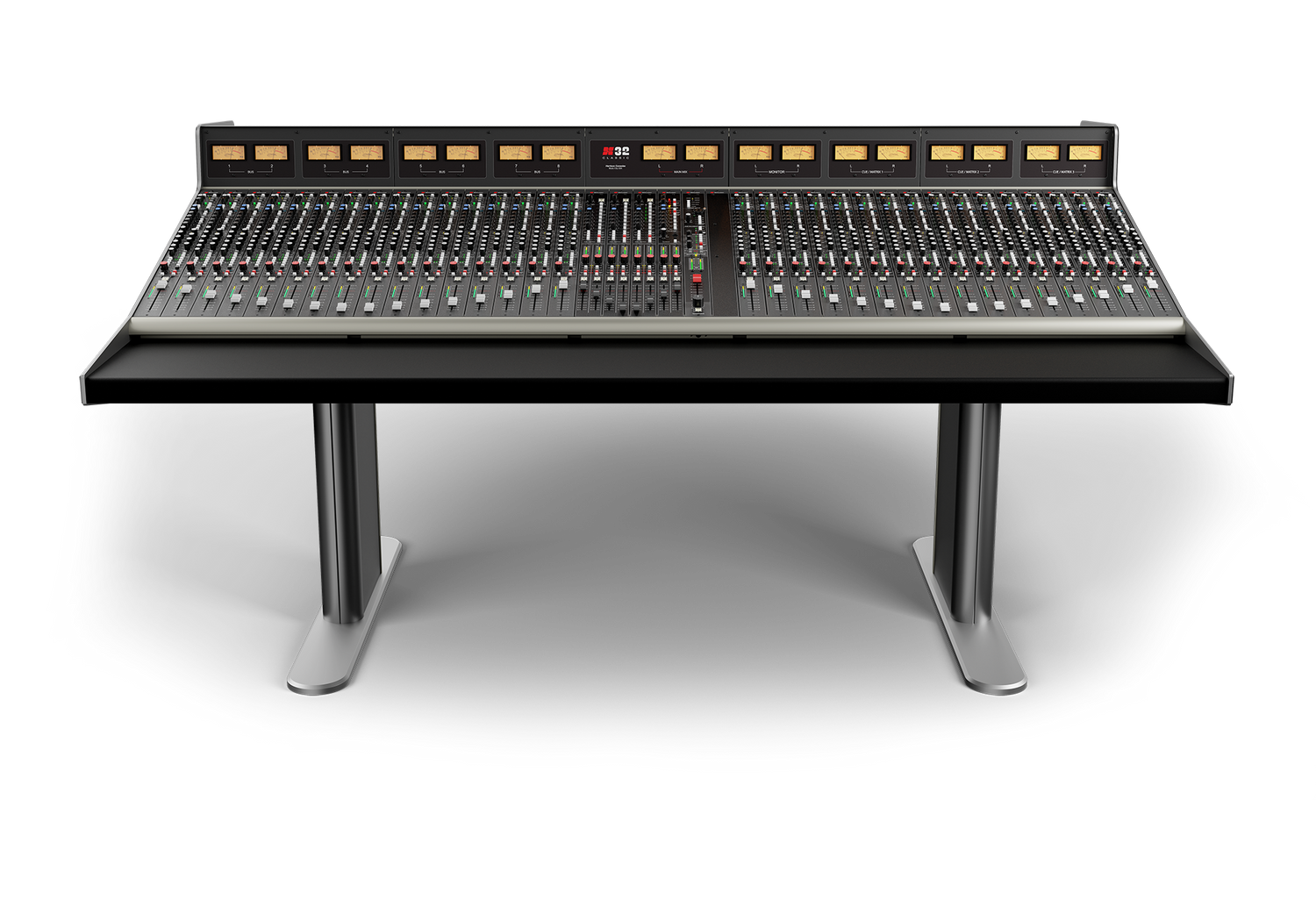

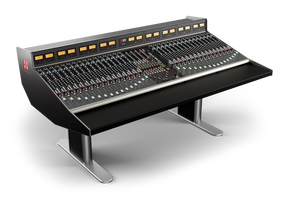

32Classic 32Ch console, includes Dante

Classic Harrison Analog Character
Delivers the rich, musical tone Harrison is known for with transformer-balanced mic preamps and the legendary 32C four-band EQ featuring high-pass and low-pass filters.

32 Analog Input Channels
Full-featured configuration ideal for large-scale music, film, or immersive projects, offering ample I/O for complex recording and mixing setups.

Integrated Dante Interface
Comes with built-in 64-channel premium AD/DA converters and full Dante AoIP connectivity, enabling direct, high-resolution digital routing to your DAW or audio network.

Flexible Analog & Digital Workflow
Supports both in-line and split recording paths with dedicated playback routing and monitoring via Dante which is built for hybrid studio integration.

Comprehensive Routing Architecture
Includes 8 multitrack buses, 4 mono aux sends, 1 stereo cue send, balanced insert points, direct outputs, and transformer-balanced main mix bus.

Immersive Monitoring Capable
12-wide monitoring section supports Dolby Atmos 7.1.4 and other immersive formats, with direct monitoring control and surround-level trim.

Ergonomic Studio Frame
DAW-friendly layout with deep armrest for control surface placement and rear shelf for monitor speakers and screens designed for real-world workflow needs.

Precision Console Controls
Equipped with 100mm faders, 20-segment LED meters per channel, fader locks, solo/mute switches, and full LED-lit control buttons for accuracy and visibility.

Quiet, Fanless Operation
Power-efficient design with low heat dissipation and no fan noise, built around a rugged aluminum chassis and high-integrity PCB layout.

Integrated Session Tools
Includes a front-panel instrument input for overdubs, talkback mic with flexible routing, headphone and alternate monitor outputs, and cue matrix control.

General Specifications
Harrison 32Classic 32-Channel Analog Console with Integrated Dante
Fully modular, large-format analog recording and mixing console
Classic Harrison 32C signal path and EQ design with modern DAW integration
Built-in 64×64-channel Dante AoIP interface with premium AD/DA conversion
Designed for hybrid, immersive, and high-performance studio environments
In-line or split signal flow architecture
Passive-cooled, low-heat internal power supply (no fans)

Channel Count & Configuration
32 Mono Input Channels (transformer-balanced mic/line inputs)
Each channel includes:
– Classic Harrison 32C 4-band parametric EQ (Proportional-Q response)
– Switchable shelf or bell curves on Hi and Lo bands
– Variable High-Pass and Low-Pass Filters
– Balanced Line Input
– Balanced Insert Point
– Balanced Direct Output
– In-line/Playback switching with Dante DA integration
– Zero Fader Lock switch for DAW unity gain routing
– 100 mm premium fader
– 20-segment LED input meter
– Mute, Solo, Bus Assignment, Main Mix Assignment, Pan controls

Routing & Bussing
8 Multitrack Buses (assignable mono or stereo pairs with pan)
4 Mono Auxiliary Sends
1 Stereo Auxiliary Send
Stereo Cue Send
Transformer-balanced Main Mix Output
Insert points on all Bus Masters and Main Mix
Balanced Stereo Return with level, mute, solo, bus/mix routing

Monitoring & Metering
12-Wide Atmos Monitoring (7.1.4 support built-in)
Monitor Outputs: Main, Alternate, Headphone
Monitor Sources:
– Main Mix
– External Stereo 1
– External Stereo 2
– External 7.1.4 Surround
– Dante Stereo Return
Large Monitor Level Pot with Mono, Dim, L/R Mute, and Master Mute switches
Analog VU meters for Main Mix
Solo Active LED indicator
20-segment LED metering across inputs and buses

Integrated Dante AoIP System
Dual 32×32 Dante interfaces internally wired
64 channels of premium-grade AD/DA conversion
Console appears as two Dante devices (Channel I/O and Bus/Monitor I/O)
Internal Ethernet switch for single-port DAW connection
Full Dante patching and monitoring via Dante Controller
Dante DA routes to Playback input path for all channels
Seamless integration with DAW and networked devices

Cue / Foldback Matrix
3 Stereo Cue/Foldback Outputs
Matrix source selection: Aux Sends, Buses, Stereo Return, External Inputs, Main Mix
Each output includes:
– Level
– Mute
– Solo
– 0 dB Lock
Dedicated Talkback Mic with gain control
“All Talk” switch for global foldback communication

Instrument Input
Hi-Z / Mic selectable Instrument Input in Monitor Section
48V Phantom Power, -20 dB Pad, Gain, and Input Meter
Assignable directly to Main Mix or input modules

EQ & Processing
Harrison 32C 4-Band EQ on all input channels
Switchable bell/shelf for Hi/Lo bands
Variable HP/LP filters per channel
Warm, musical analog EQ with wide band overlap

Modular Design & Construction
Chassis Width: 81 inches / 206 cm (3832 one-piece model)
Weight: ~450 lbs / 205 kg
Internal Power Supply: <600W, no fans
Construction:
– Double-sided PCBs with precision grounding
– PCB-based summing (no ribbon cables)
– Conductive plastic pots, gold-plated switches
– Extruded aluminum frame
– Standard D-Sub connectors for I/O
– Integrated cable raceways and passthroughs

Included Modules
32 Input Modules
Bus Master Modules (1–8)
Stereo Return & Aux Master Module
Cue/Foldback Matrix Output Module
Main Monitor Module with Atmos support
Main Mix Module with VU metering and transformer switch
Talkback Module with per-output control

Studio Integration & Compatibility
Integrated Dante interface with low-latency, patch-free DAW routing
Full playback routing via Dante DA to input modules
Zero-latency foldback/cue monitoring via AoIP
Supports Dolby Atmos Music workflows natively (7.1.4 monitoring path)
Custom configurations available on request
Optimized for hybrid analog/digital workflows and immersive sound production
