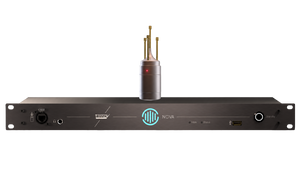

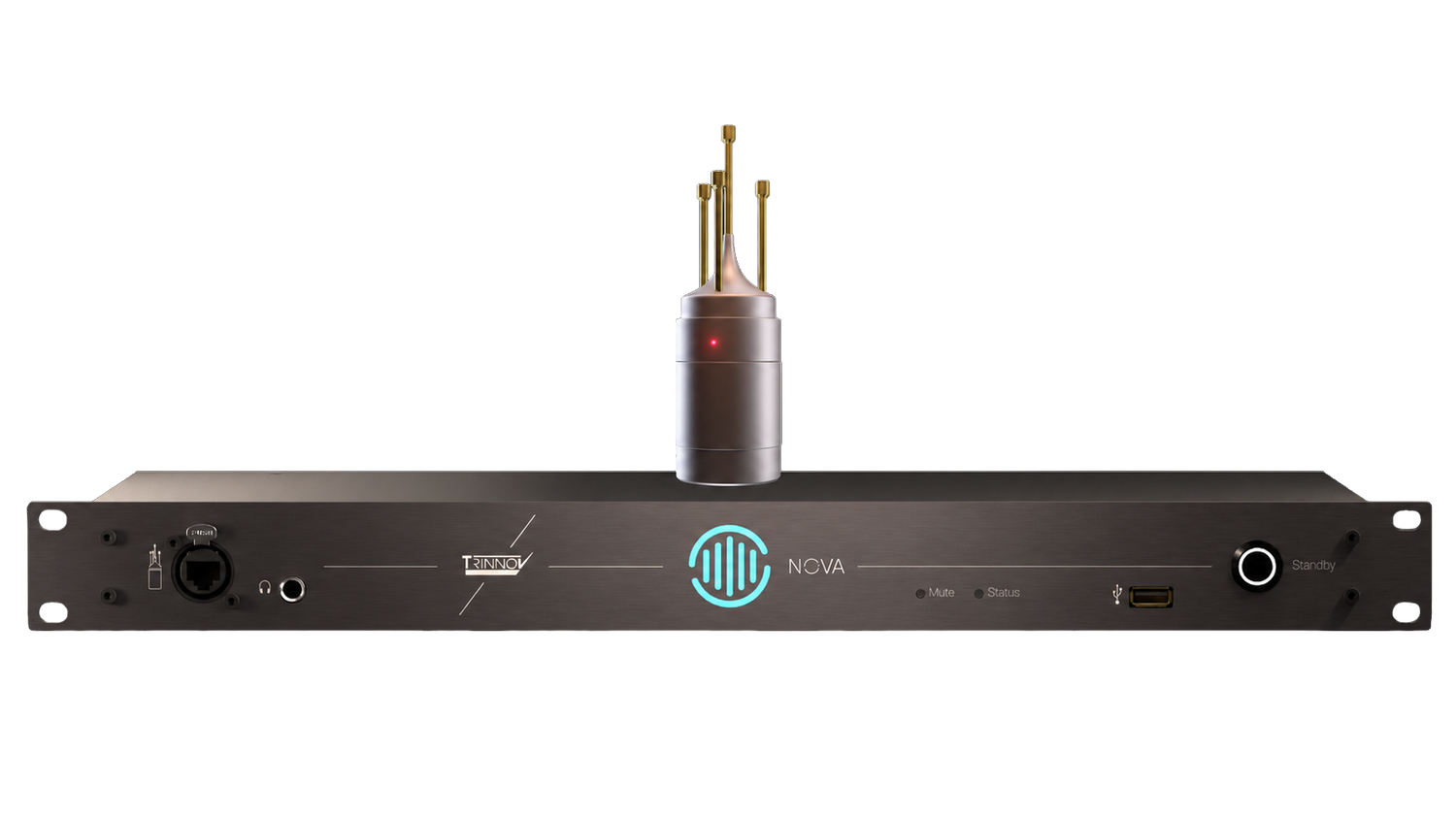

NOVA Bundle

Trinnov Optimizer Room Correction
Automatically analyzes your speakers and room to improve tonal balance, timing, imaging, and overall monitoring accuracy.

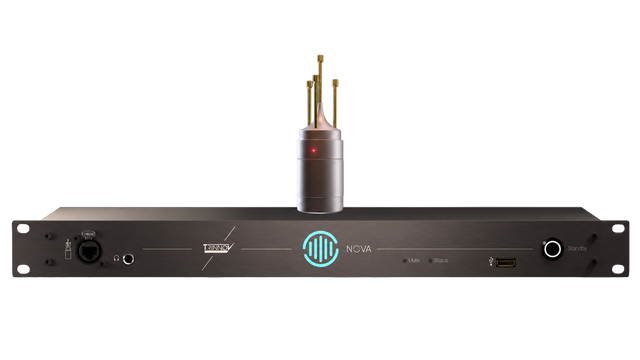

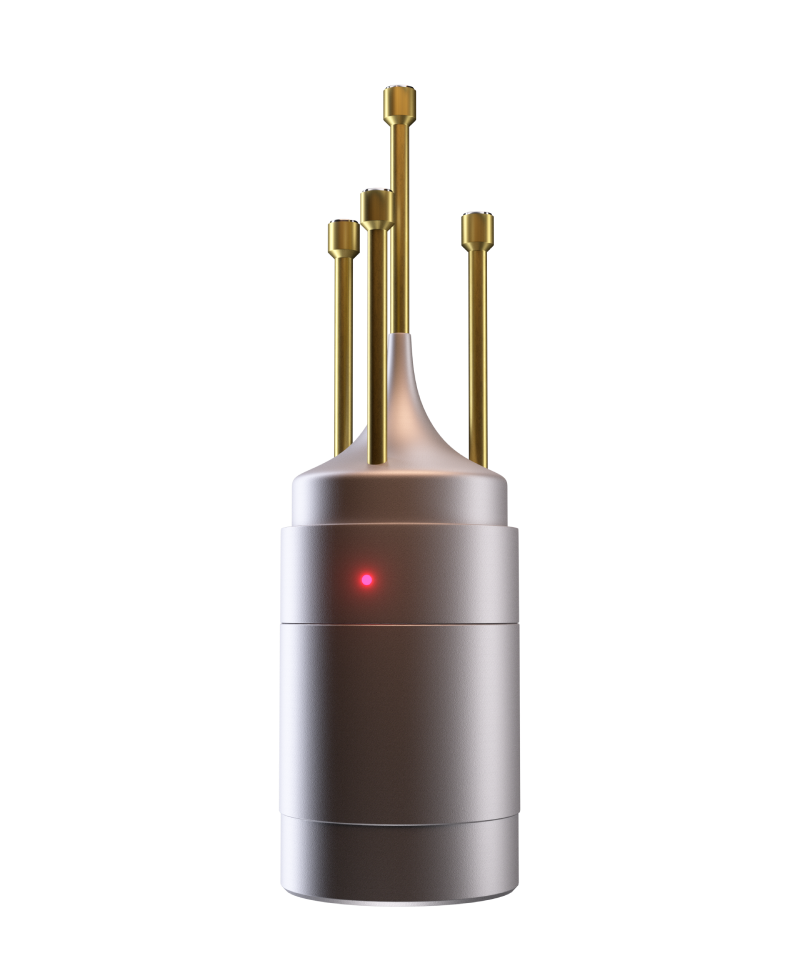

3D Measurement Microphone Included
Includes Trinnov’s dedicated measurement microphone for accurate speaker and room calibration.

Automatic Microphone Recognition
The microphone is automatically detected when connected and transfers its unique calibration profile directly to NOVA.

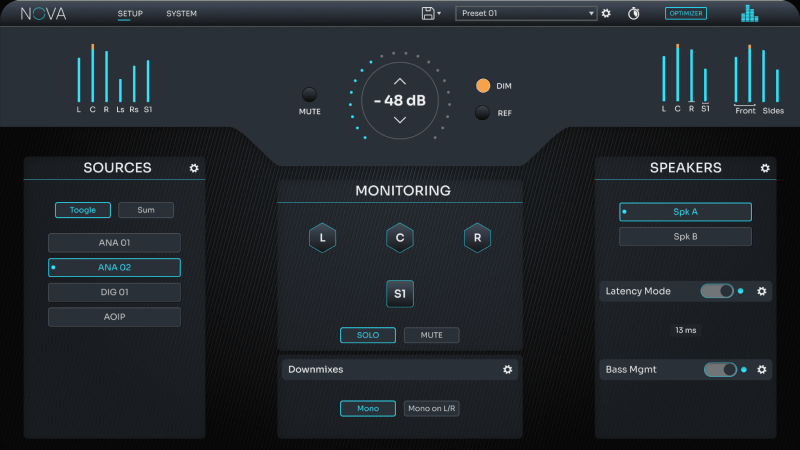

Integrated Monitor Controller
Provides centralized source selection, speaker control, volume adjustment, mute, dim, reference level, and monitoring functions.

Flexible Speaker Optimization
Supports expandable loudspeaker and room optimization, allowing NOVA to grow with more advanced monitoring systems.

Immersive Monitoring Support
Can manage stereo, surround, and immersive speaker (via upgrade) configurations from the same platform.

Advanced Bass Management
Helps integrate main speakers and subwoofers with precise crossover, level, and timing alignment.

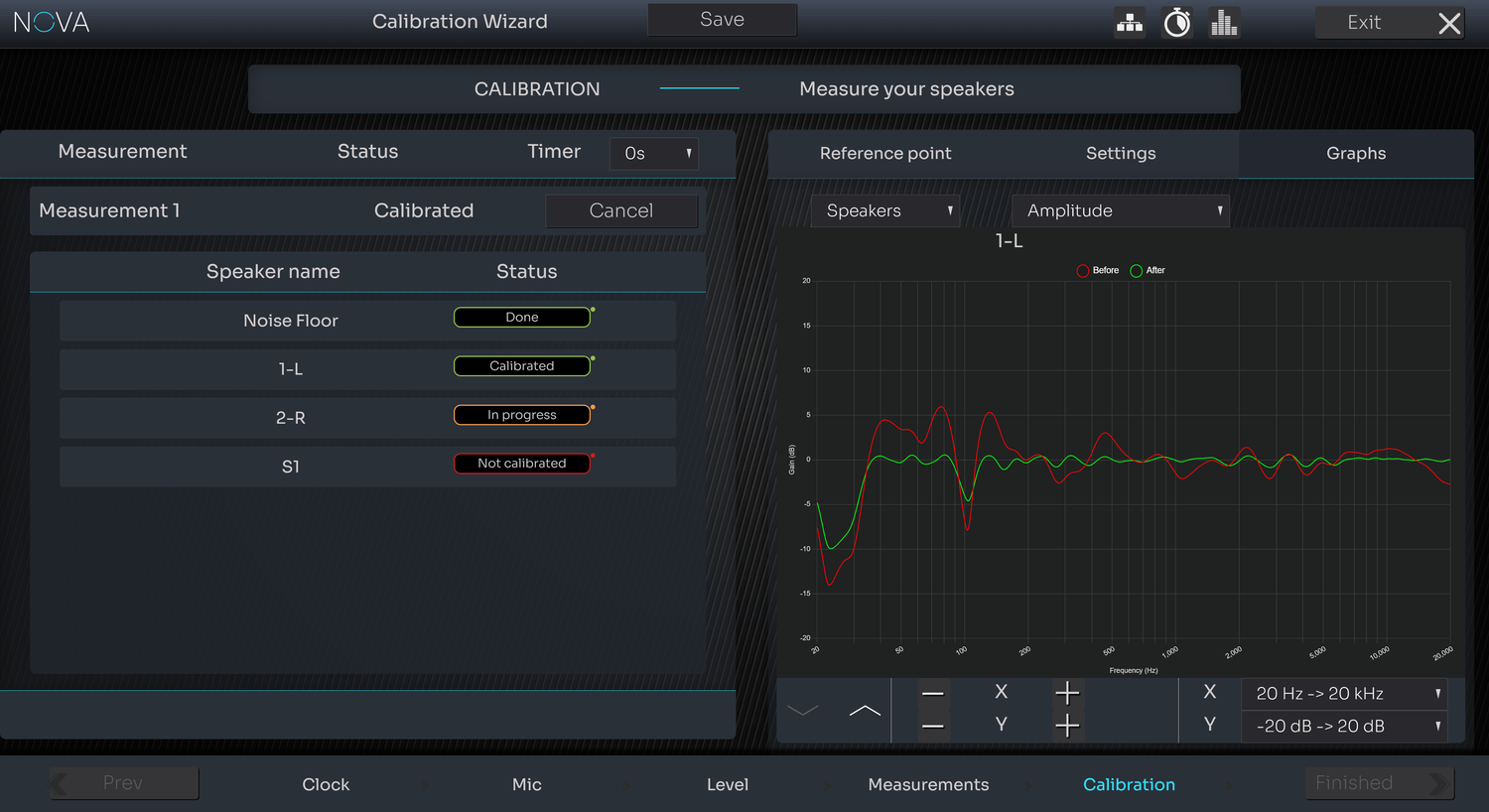

Multipoint Room Calibration
Can measure multiple listening positions to create more consistent monitoring across a wider listening area.

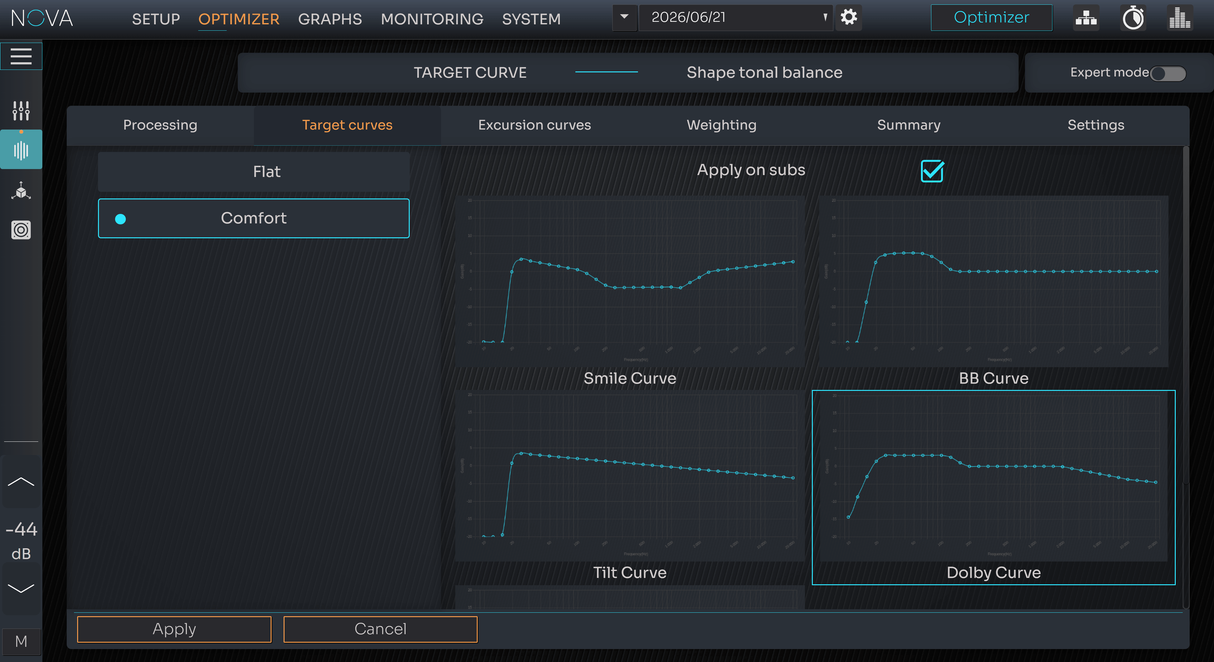

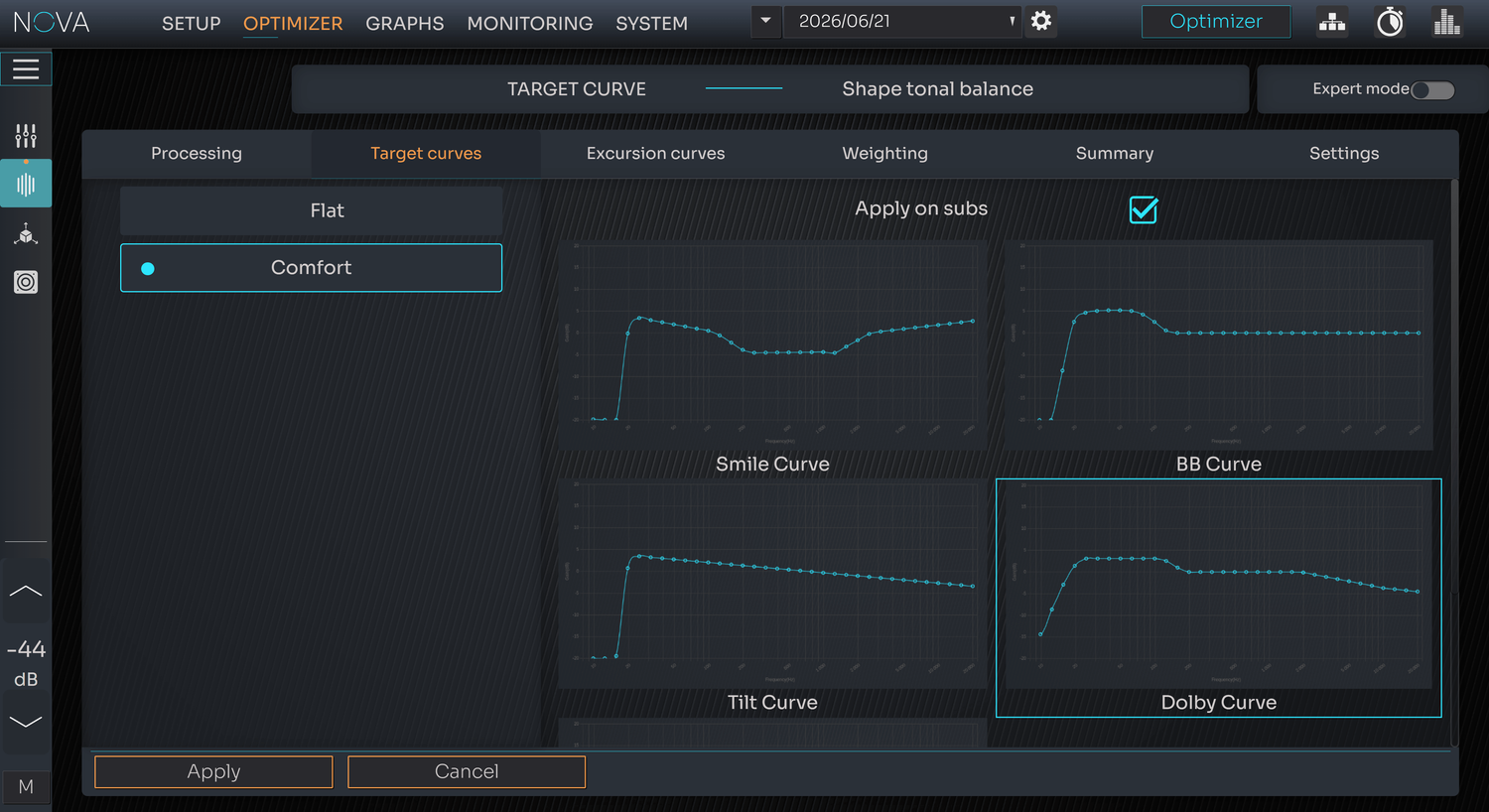

Custom Target Curves
Allows the calibrated sound to be fine-tuned to match personal preferences or studio requirements.

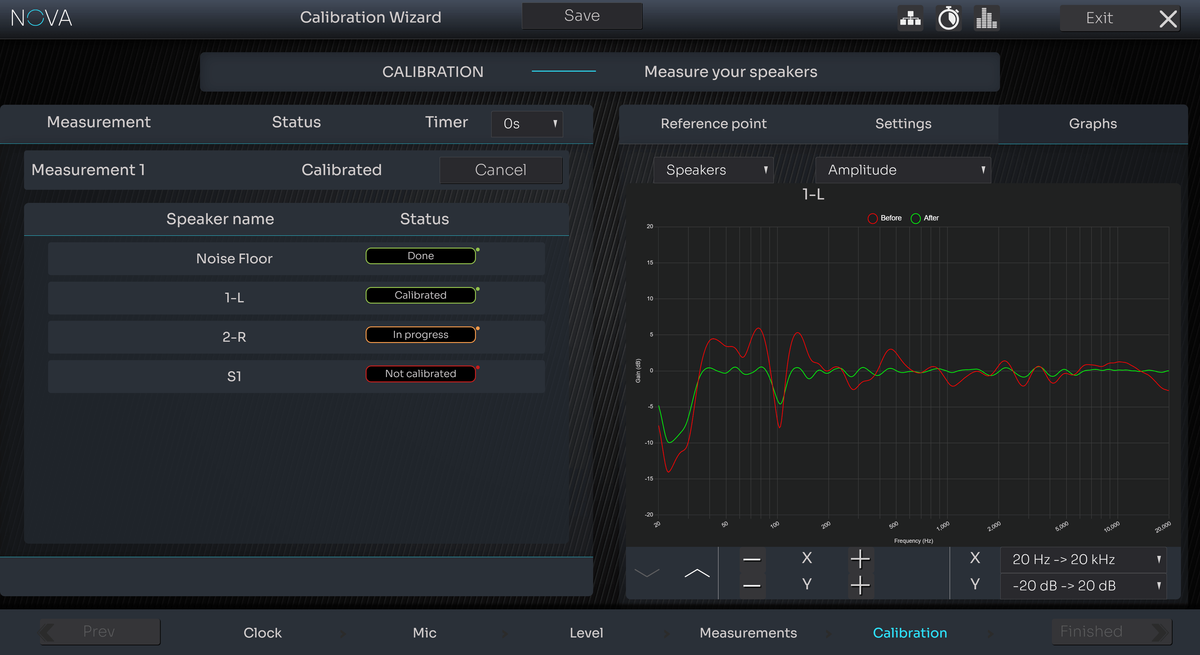

Detailed Acoustic Analysis
Provides visual measurement and correction graphs to help understand speaker and room behavior.

Analog and Digital Connectivity
Connects easily with a wide range of professional studio sources, speakers, and digital equipment.

Dante Audio Networking
Supports network-based audio routing for integration with Dante-equipped studio systems.

Dedicated Headphone Monitoring
Includes an integrated headphone output with independent monitoring controls.

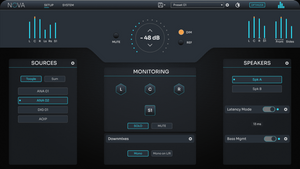

Trinnov App Control
Configuration, calibration, monitoring, and system settings can be managed through the Trinnov application.

Customizable Presets
Save different monitoring, routing, calibration, and optimization setups for quick recall.

Quiet Fanless Design
Operates without an internal cooling fan, helping maintain a quiet studio environment.

Upgradeable Platform
Additional optimization capability and software updates can be added as monitoring requirements evolve.

General Specifications

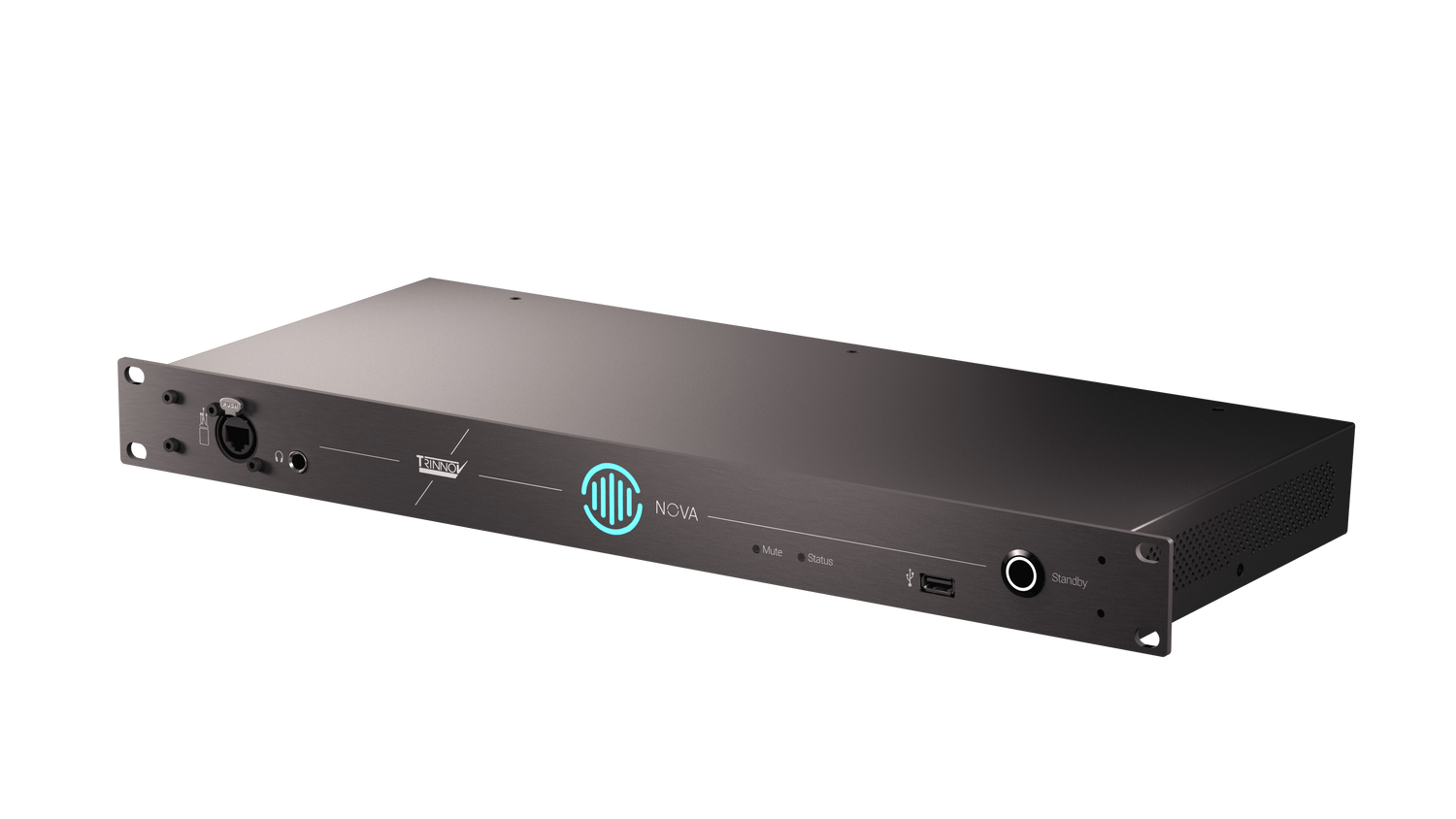

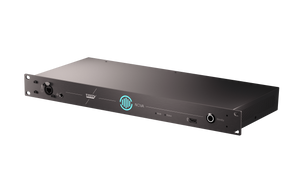

Device Type: Compact digital audio processor with 3D measurement microphone

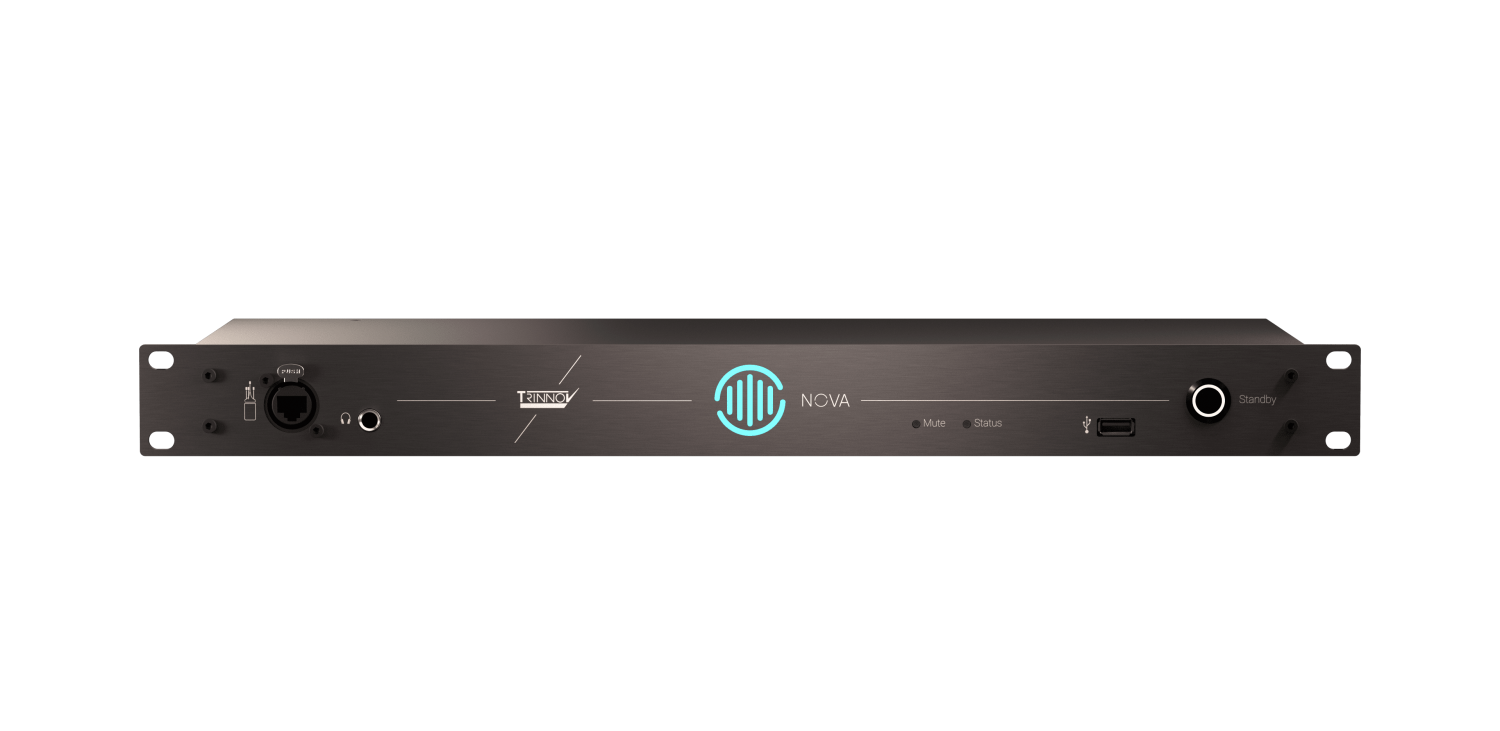

Rack Format: 1U, 19-inch
Cooling: Fanless
Room Optimization: Trinnov Optimizer
Optimization Channels: 2 channels standard; expandable up to 12 channels
Maximum Immersive Layout: 7.1.4
Monitoring Control: Trinnov App
Control Compatibility: Eucon S1, S3, S6; Elgato Stream Deck plugin
Operating Systems: macOS, Windows, iOS

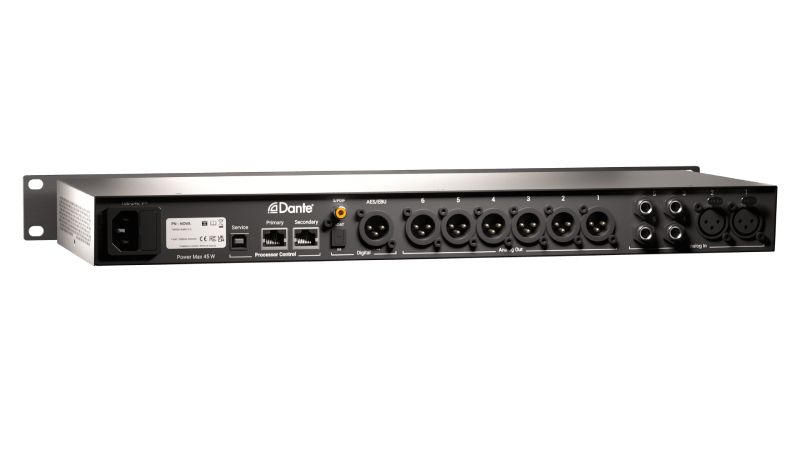

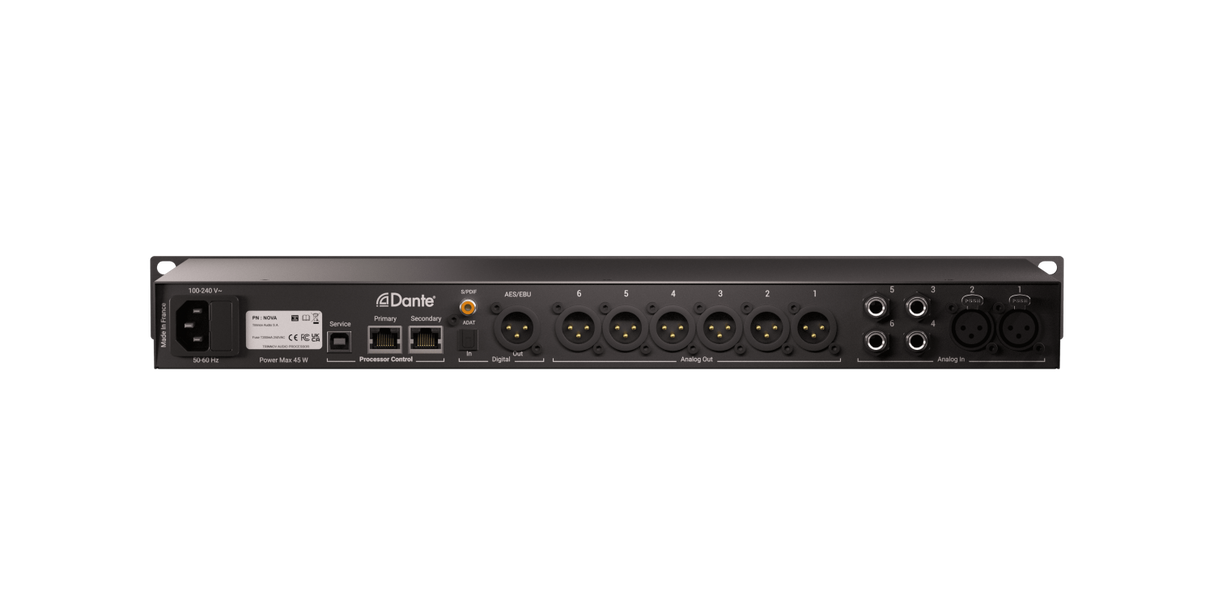

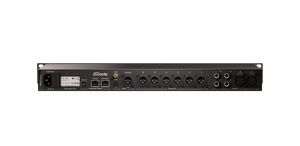

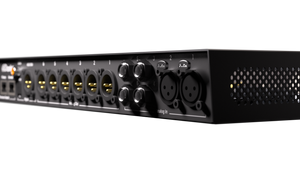

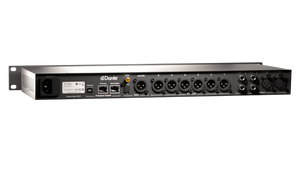

Analog Audio

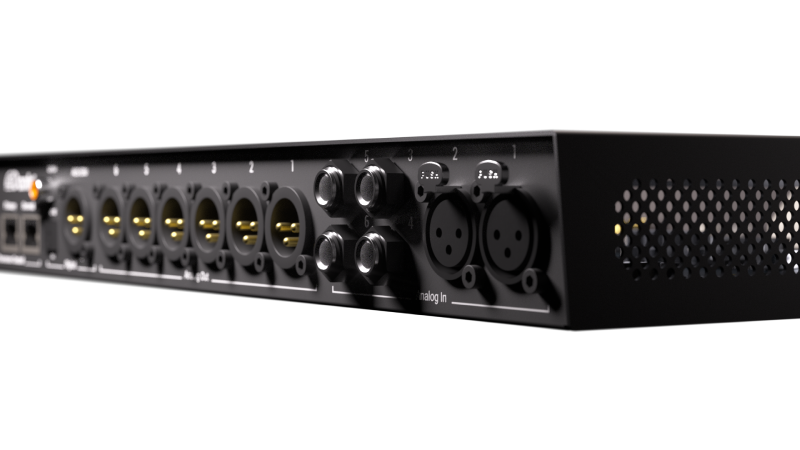

Analog Inputs: 2 × XLR, 4 × 1/4-inch TRS
Analog Outputs: 6 × balanced XLR
Headphone Output: Dedicated front-panel output
Headphone DAC: Dedicated headphone-optimized DACs

Digital Audio
Coaxial Digital Input: S/PDIF
Optical Digital Input: S/PDIF or ADAT
Digital Output: AES/EBU
Dante Audio Interface: 16 inputs × 16 outputs
Supported Sample Rates: 44.1 kHz to 192 kHz
Default Sample Rate: 48 kHz
ADAT SMUX: 96 kHz supported

Network Connectivity
Ethernet Ports: 2 × RJ45
Ethernet Speeds: 100 Mbps, 1000 Mbps
Network Modes: Switched, Redundant, Isolated
Maximum Ethernet Cable Length: 100 m with Cat 6e
Dante Connectivity: Supported
Machine Control: Ethernet
Network Configuration: DHCP, link-local fallback, fixed IPv4

Microphone

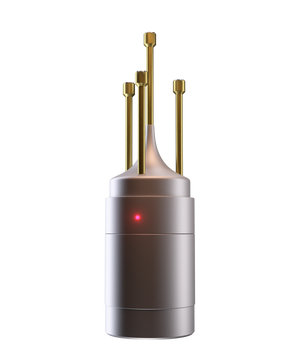

Microphone Type: Trinnov 3D measurement microphone
Connection: etherCON
Processor Compatibility: NOVA
Maximum Microphone Cable Length: 50 m with CAT6
Automatic Power Control: Supported
Automatic Compensation Profile Transfer: Supported
Calibration Measurement: 3D loudspeaker localization, amplitude, timing, impulse response
Multipoint Measurement: Supported

Optimization
Acoustic Correction: Amplitude and phase
Delay Alignment: Supported
Level Alignment: Supported
Filter Types: IIR, FIR
IIR Filters per Channel: 30 default
IIR Frequency Range: 20 Hz to 300 Hz default
FIR Filter Length: 100 ms default
Room Smoothing Methods: Modulus, Square Modulus
Target Curves: Supported
Excursion Curves: Supported
Adaptive Limiter: Supported
Bass Management: Supported
Default Bass Management Crossover: 80 Hz Linkwitz-Riley, 24 dB/octave
Hardware Bypass: Supported
Software Bypass: Supported
Typical Optimizer Latency: Approximately 20 ms

Monitoring Functions
Speaker Sets: Optimized and non-optimized
Speaker Mute: Individual
Speaker Solo: Individual
Downmix Monitoring: Supported
Direct Outputs: Unity gain, unprocessed, zero-processing-delay routing
Reference Level Recall: Supported
Dim: Supported
Mute: Supported
Headphone Auto-Mute of Main Monitors: Supported
Presets: Source configuration, speaker configuration, routing, measurements, filters, optimization settings

Electrical
AC Input: 100–240 V AC
Power Inlet: IEC C14
Fuse: T500mA
Power Supply: Internal switch-mode
Mains Filtering: Built-in
Voltage Regulation: Supported

Environmental Requirements
Operating Temperature: 0 °C to 40 °C
Operating Relative Humidity: 20–65%

Included Components
Processor: NOVA
Measurement Microphone: 3D Microphone ETH
Processor Protection Bag: Included
Power Cord: Included
Network Cable: Cat5e
Quick Start Guide: Included
Microphone Cable: 10 m
Microphone Stand Adapter: Included
Microphone Shock Mount: Included
Microphone Storage Box: Included
