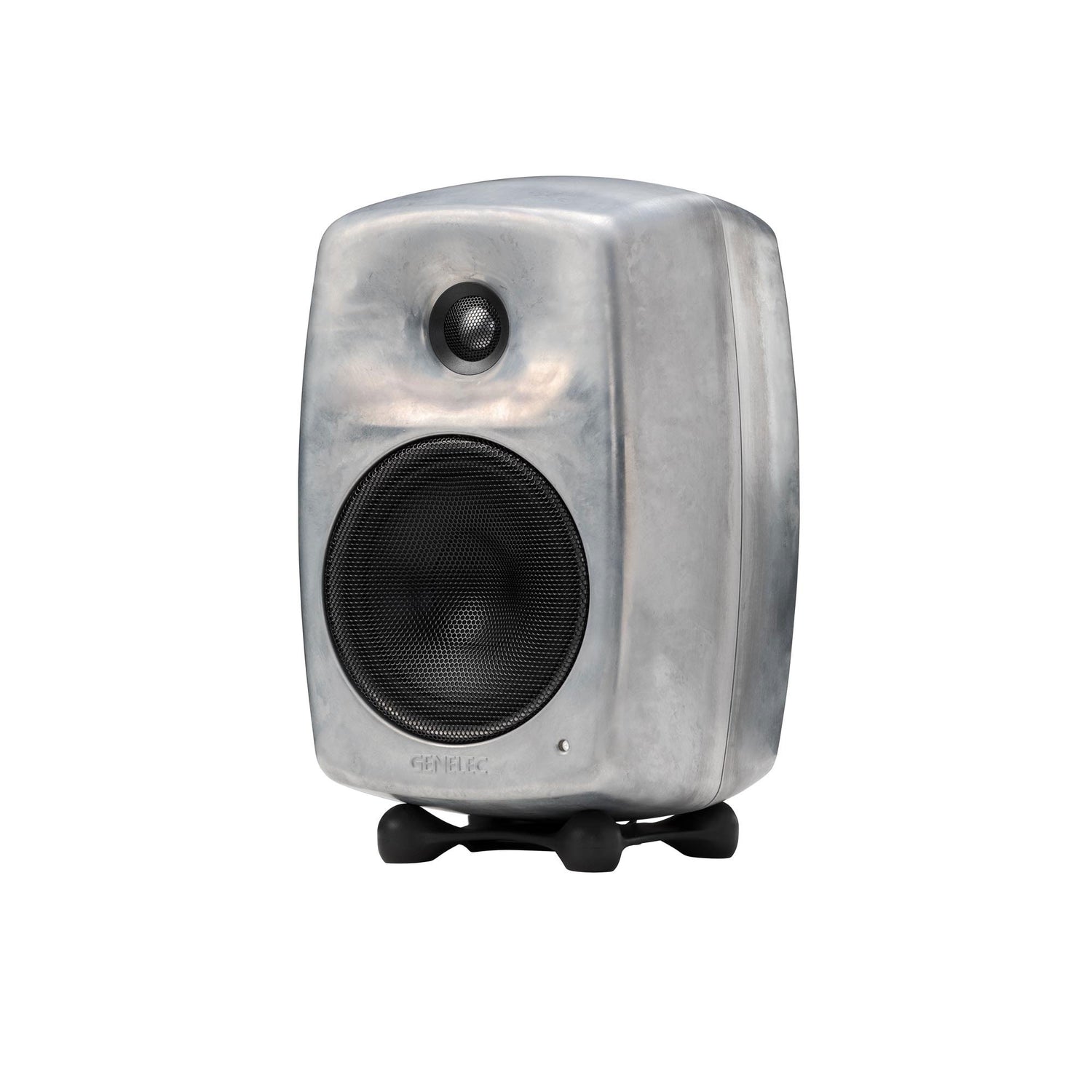

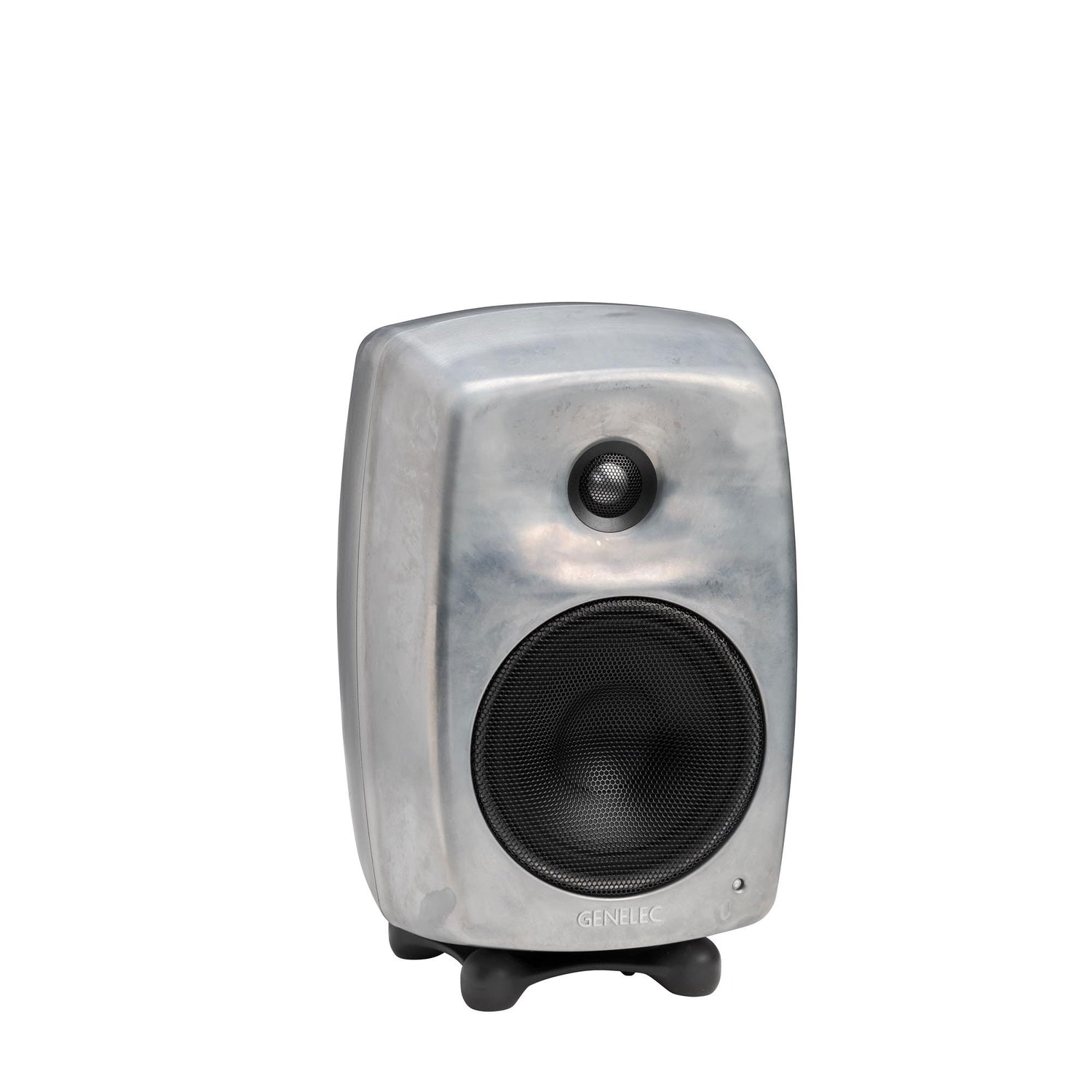

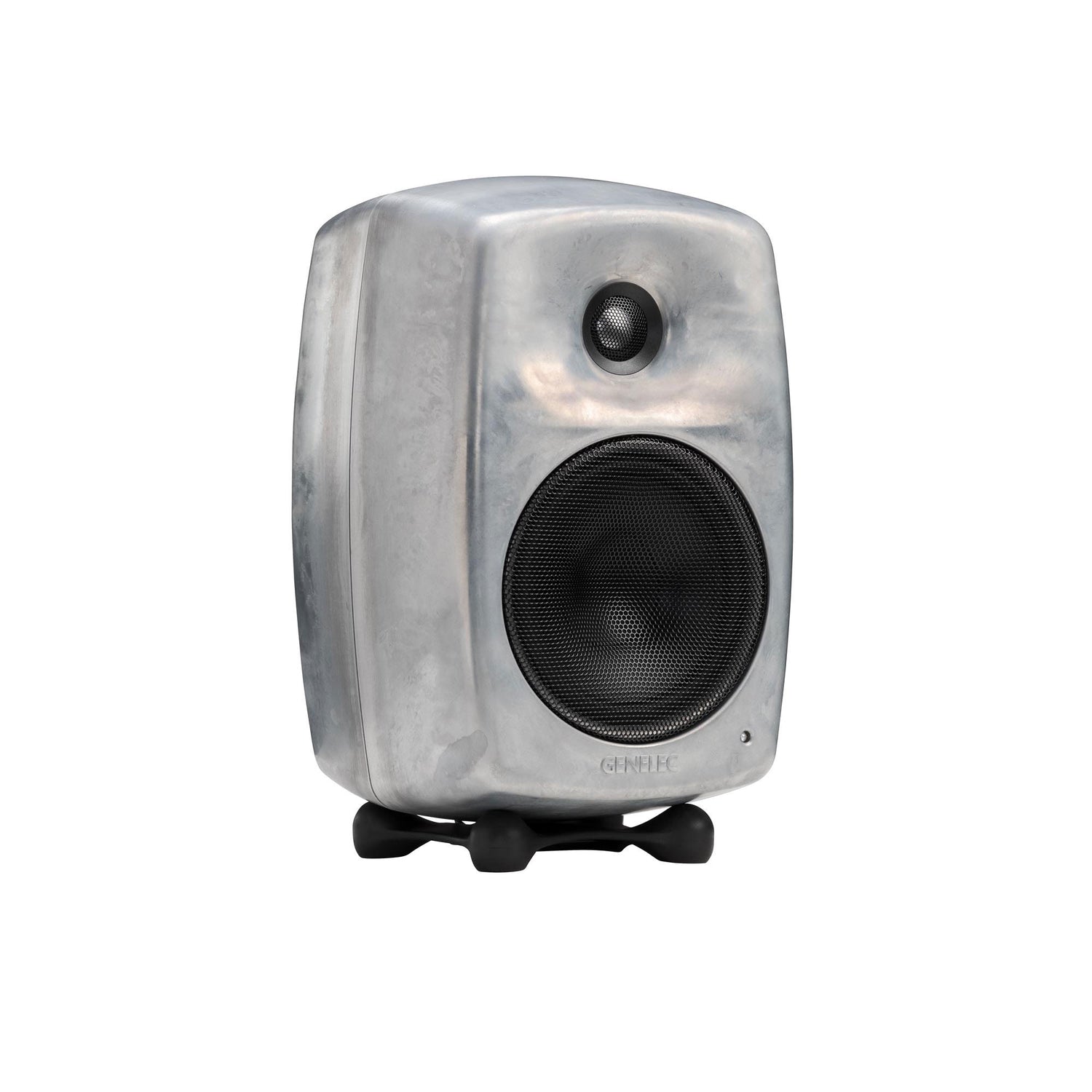

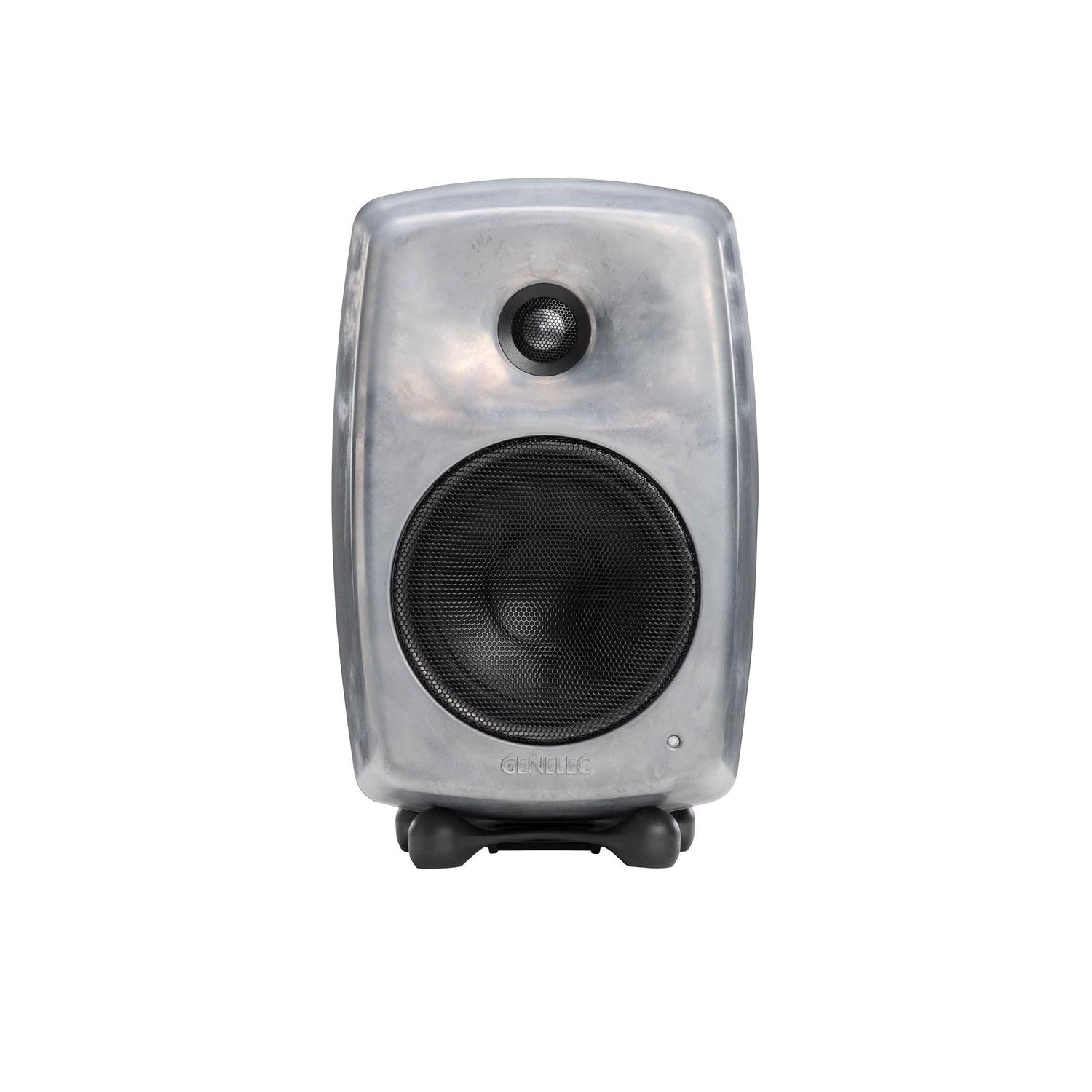

8330ARW

Accurate, Full-Range Monitoring
Delivers up to 104 dB SPL with a frequency response of 45 Hz – 23 kHz (−6 dB), ideal for high-precision mixing and mastering.

RAW Finish for Modern Studios
Unpainted aluminium casing offers a sleek, industrial look with eco-friendly durability and scratch resistance.

Smart Active Monitoring with GLM™
Works with Genelec Loudspeaker Manager software to auto-calibrate and adapt to any room for consistent accuracy, even in challenging spaces.

Optimised Sound Design
±1.5 dB frequency accuracy from 58 Hz to 20 kHz ensures reliable, colour-free monitoring.

High-Efficiency Amplification
Features 50 W Class D amplifiers for both bass and treble drivers, providing clean output with low heat and energy use.

Precise Imaging with DCW™
Directivity Control Waveguide ensures a wide sweet spot and detailed sound across the listening field.

Energy-Saving ISS™ Mode
Automatically powers down the monitor during inactivity, reducing energy consumption to <0.5 W in standby.

Strong, Compact Build
Lightweight 5.1 kg body in a curved die-cast aluminium enclosure with built-in reflex port for extended low-end response.

Professional Connectivity
Includes analog XLR input, AES/EBU digital I/O, and dual RJ45 control ports for full GLM system integration.

Everything Included
Package contains the 8330A RAW monitor, Iso-Pod™ stand, mains cable, 5 m RJ45 cable, and operating manual for immediate setup.

General Specifications
Device Type: 2-Way Smart Active Nearfield Studio Monitor
Model: 8330ARG
Color: RAW Aluminium (Unpainted Natural Finish)
Enclosure Type: Reflex Port
Enclosure Material: Die-Cast Aluminium
Mounting Options: Iso-Pod™ Stand Included, Compatible with Wall, Ceiling, and Floor Stands
Integration: Genelec Loudspeaker Manager (GLM™) Compatible

Frequency Specifications
Frequency Response: 58 Hz – 20 kHz (±1.5 dB)
Low Cutoff (-6 dB): 45 Hz
High Cutoff (-6 dB): 23 kHz

SPL
Peak SPL: ≥110 dB (per pair @ 1 m, music material)
Short Term Max SPL: ≥104 dB (100 Hz–3 kHz, 1 m)
Long Term Max SPL: ≥96 dB (RMS with IEC weighted noise, 1 m)
Self-Generated Noise: ≤5 dB SPL (A-weighted, free field on axis)

Amplifier Section
Bass Amplifier Power: 50 W (Class D)
Treble Amplifier Power: 50 W (Class D)
Power Consumption (Full Output): 50 W
Power Consumption (Idle): ≤3 W
Power Consumption (ISS Active): ≤0.5 W
Mains Voltage: 100–240 VAC, 50/60 Hz
Latency (Analog Input): 2.9 ms (Extended Phase Linearity OFF)

Drivers
Bass Driver: 130 mm (5 1/8 in) Cone
Treble Driver: 19 mm (3/4 in) Metal Dome

Connectivity
Analog Input: 1 x XLR (Balanced, 10 kΩ Impedance)
Digital Input: 1 x XLR AES/EBU
Digital Output: 1 x XLR AES/EBU
Control: 2 x RJ45 for GLM Network

Dimensions
Height: 299 mm (11 3/4 in, with Iso-Pod™)
Width: 189 mm (7 1/2 in)
Depth: 178 mm (7 in)

Weight
Weight: 5.1 kg (11.2 lb)

Key Technologies
Smart Active Monitoring (SAM™)
GLM™ Room Calibration and System Management
Directivity Control Waveguide (DCW™)
Minimum Diffraction Enclosure (MDE™)
Built-in DSP
Active Crossovers
Reflex Port Design
Intelligent Signal Sensing (ISS™)
Optimised Class D Amplifiers
Protection Circuitry
Versatile Mounting Options

Package Contains
1 x 8330A Studio Monitor (RAW Finish)
1 x Mains Cable (1.8 m)
1 x RJ45 Control Cable (5 m)
1 x Operating Manual
