GENELEC

8330AWM

Active Monitors

Two-way Smart Active Monitor, 45 Hz–23 kHz response, 104 dB SPL, white finish.

$1,369.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Genelec 8330AWM is a compact, high-precision Smart Active Monitor (SAM™) finished in matte white, designed to deliver professional-grade accuracy in small to medium-sized control rooms, edit suites, and immersive setups. With a frequency response of 45 Hz to 23 kHz (-6 dB) and a maximum SPL of 104 dB, it offers powerful, transparent audio reproduction while maintaining a clean and elegant appearance.

At the heart of the 8330AWM is a 130 mm bass driver and 19 mm metal dome tweeter, each driven by a dedicated 50 W Class D amplifier. It features Genelec’s renowned Directivity Control Waveguide (DCW™) and Minimum Diffraction Enclosure (MDE™), ensuring excellent imaging and smooth, accurate response on and off-axis. The robust die-cast aluminium enclosure supports long-term reliability, and the included Iso-Pod™ stand enables perfect angling and acoustic isolation on any surface.

Fully integrated with GLM™ (Genelec Loudspeaker Manager) software, the 8330AWM supports automatic room calibration, level alignment, and delay correction which makes it ideal for acoustically challenging spaces. With XLR analog and AES/EBU digital inputs, an AES/EBU output, and dual RJ45 network ports, this monitor provides maximum flexibility and consistency across a wide range of professional applications.

Features

Stylish Matte White Finish
Sleek and professional look that fits seamlessly into clean studio setups or creative environments.

Accurate, High-Performance Sound
Delivers 104 dB SPL with a frequency response of 45 Hz to 23 kHz (−6 dB), ideal for precise monitoring tasks.

Smart Active Monitoring with GLM™
Works with Genelec Loudspeaker Manager software for automatic room calibration, enabling consistent accuracy in any space.

Precision Across the Spectrum
Offers ±1.5 dB response from 58 Hz to 20 kHz for reliable, neutral playback that translates well across systems.

Built-In DSP and Dual Amplifiers
Equipped with 50 W Class D amps for both woofer and tweeter, delivering detailed and efficient sound.

Wide, Uncoloured Sweet Spot
DCW™ (Directivity Control Waveguide) design ensures precise imaging both on and off axis.

Low Power, High Awareness
ISS™ (Intelligent Signal Sensing) mode reduces standby power draw to just 0.5 W, saving energy automatically.

Compact and Durable Design
Made from curved die-cast aluminium with a reflex port for deeper bass, it is lightweight yet rugged at 5.1 kg.

Flexible Connectivity Options
Features analog XLR input, AES/EBU digital input/output, and two RJ45 ports for GLM control integration.

Ready to Use
Package includes the 8330AWM monitor, Iso-Pod™ stand, mains cable, RJ45 control cable, and operating manual for immediate deployment.

Specifications

General Specifications
Device Type: 2-Way Smart Active Nearfield Studio Monitor
Model: 8330AWM
Color: White
Finish: Matte White Painted
Enclosure Type: Reflex Port
Enclosure Material: Die-Cast Aluminium
Mounting Options: Iso-Pod™ Stand Included, Compatible with Wall, Ceiling, and Floor Stands
Integration: Fully Compatible with Genelec Loudspeaker Manager (GLM™) Software

Frequency Specifications
Frequency Response: 58 Hz – 20 kHz (±1.5 dB)
Low Cutoff (-6 dB): 45 Hz
High Cutoff (-6 dB): 23 kHz

SPL
Peak SPL: ≥110 dB (per pair @ 1 m, music material)
Short Term Max SPL: ≥104 dB (100 Hz–3 kHz, 1 m)
Long Term Max SPL: ≥96 dB (RMS with IEC weighted noise, 1 m)
Self-Generated Noise: ≤5 dB SPL (A-weighted, free field on axis)

Amplifier Section
Bass Amplifier Power: 50 W (Class D)
Treble Amplifier Power: 50 W (Class D)
Power Consumption (Full Output): 50 W
Power Consumption (Idle): ≤3 W
Power Consumption (ISS Active): ≤0.5 W
Mains Voltage: 100–240 VAC, 50/60 Hz
Latency (Analog Input): 2.9 ms (Extended Phase Linearity OFF)

Drivers
Bass Driver: 130 mm (5 1/8 in) Cone
Treble Driver: 19 mm (3/4 in) Metal Dome

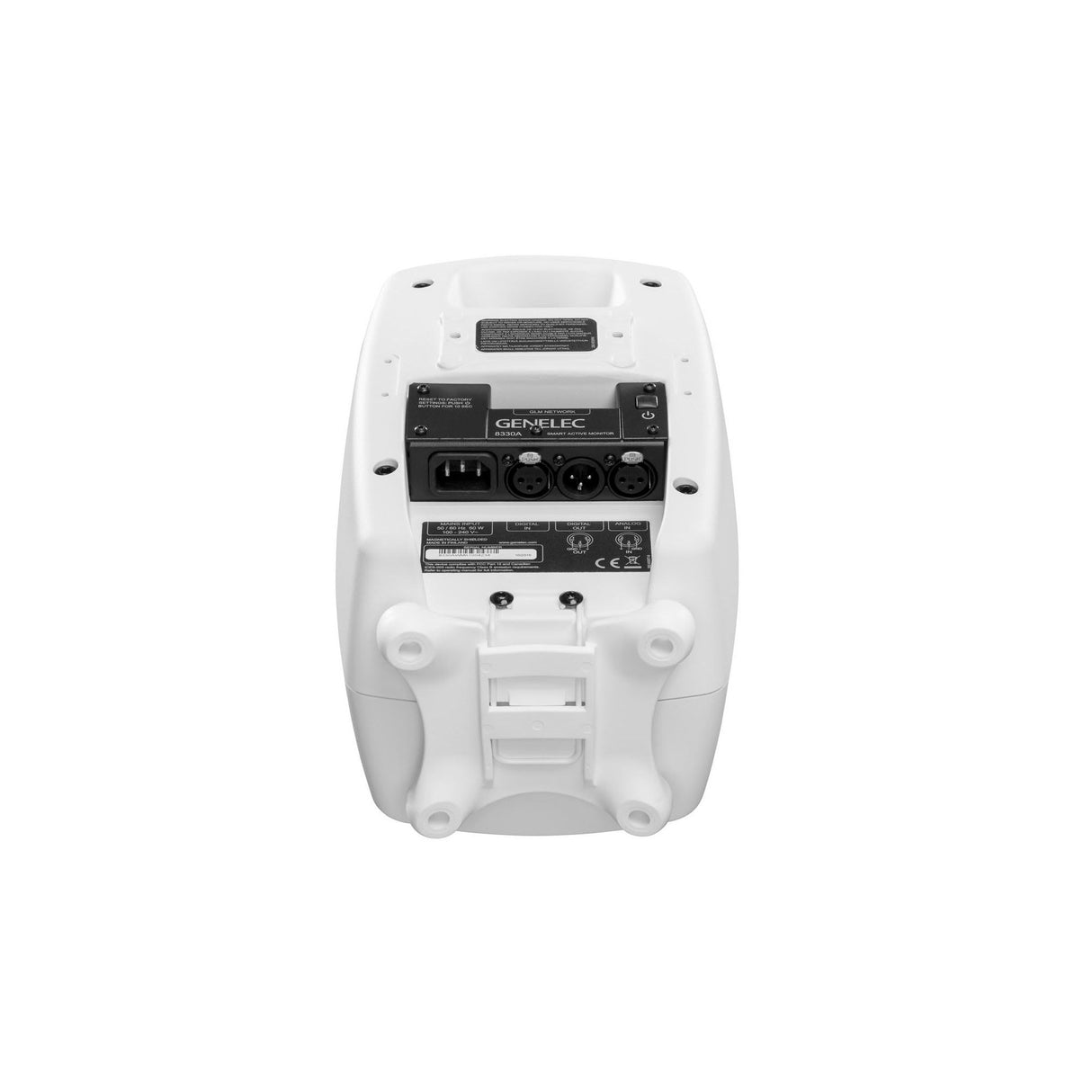

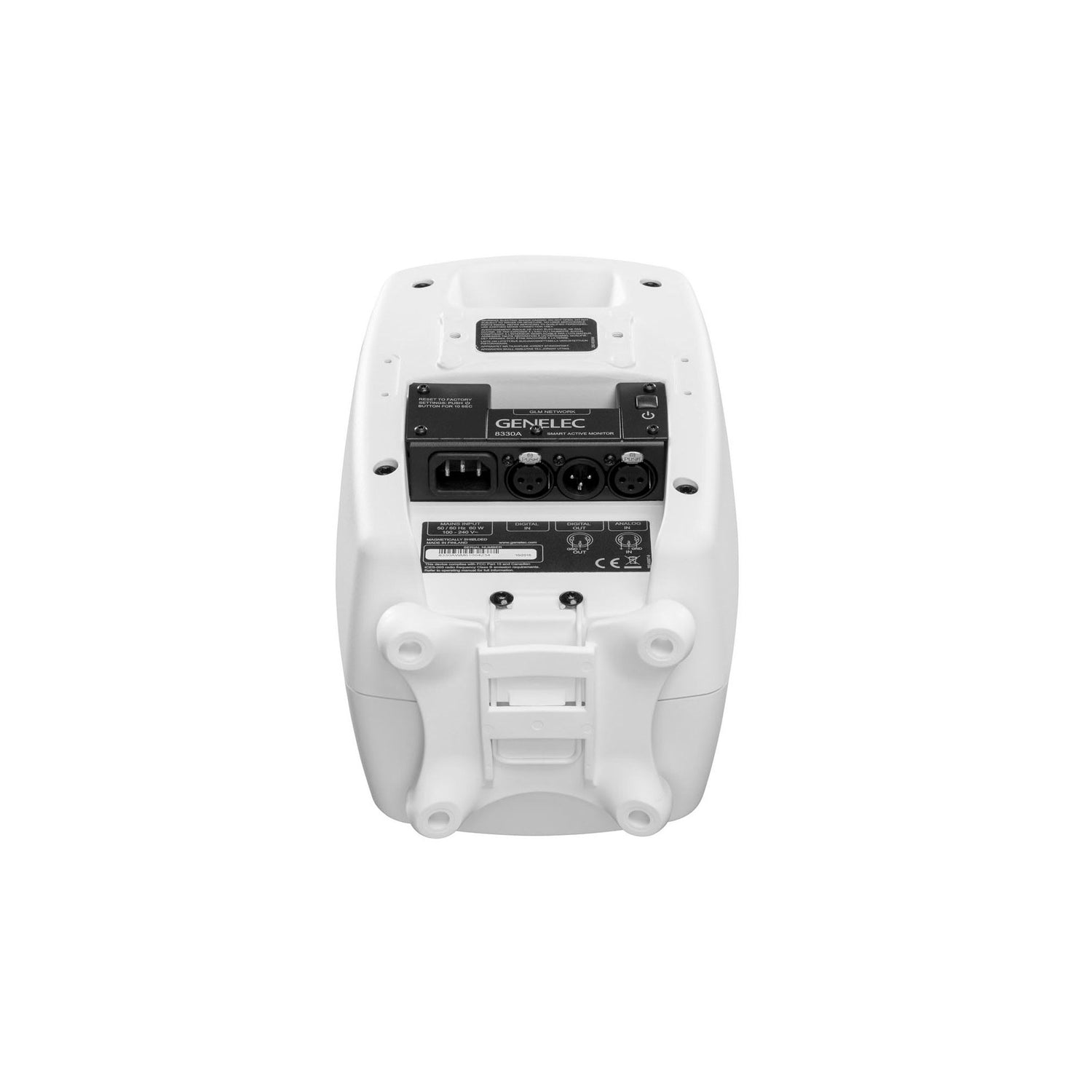

Connectivity
Analog Input: 1 x XLR (Balanced, 10 kΩ Impedance)
Digital Input: 1 x XLR AES/EBU
Digital Output: 1 x XLR AES/EBU
Control: 2 x RJ45 (GLM Network Control)

Dimensions
Height: 299 mm (11 3/4 in, with Iso-Pod™)
Width: 189 mm (7 1/2 in)
Depth: 178 mm (7 in)

Weight
Weight: 5.1 kg (11.2 lb)

Key Technologies
Smart Active Monitoring (SAM™)
GLM™ Room Calibration and System Management
Directivity Control Waveguide (DCW™)
Minimum Diffraction Enclosure (MDE™)
Built-in DSP
Active Crossovers
Reflex Port Design
Intelligent Signal Sensing (ISS™)
Optimised Class D Amplifiers
Protection Circuitry
Versatile Mounting Options

Package Contains
1 x 8330A Studio Monitor (White Finish)
1 x Mains Cable (1.8 m)
1 x RJ45 Control Cable (5 m)
1 x Operating Manual
