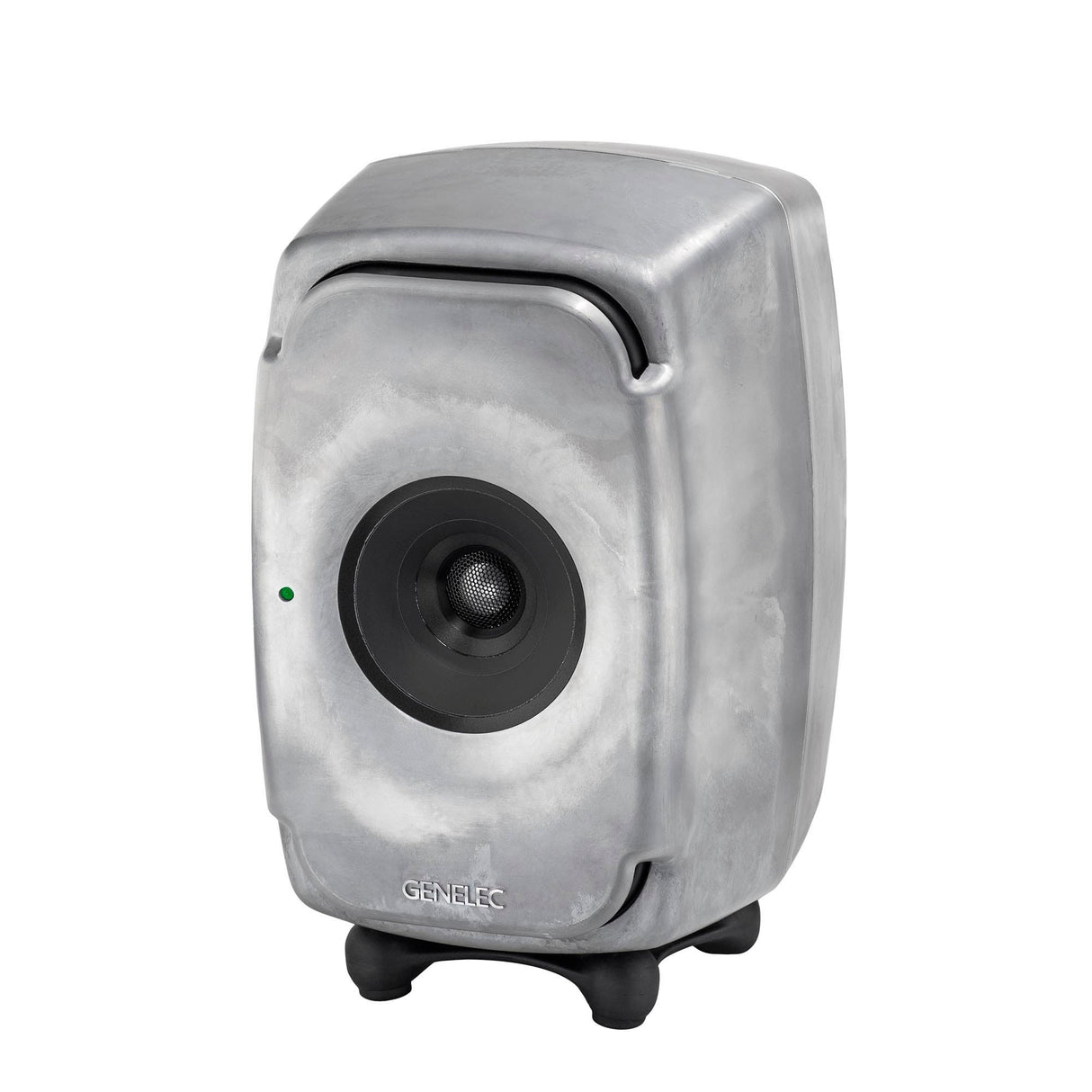

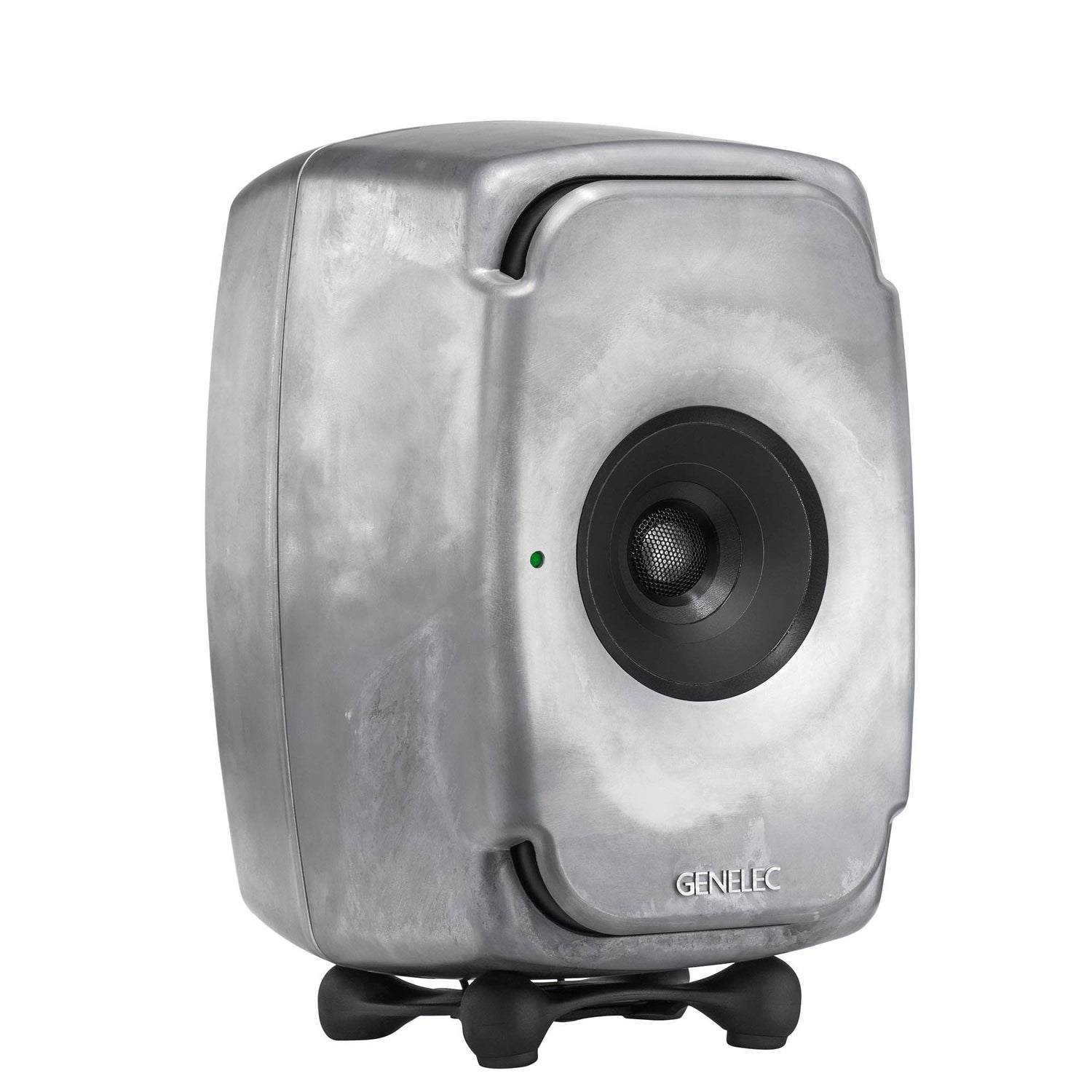

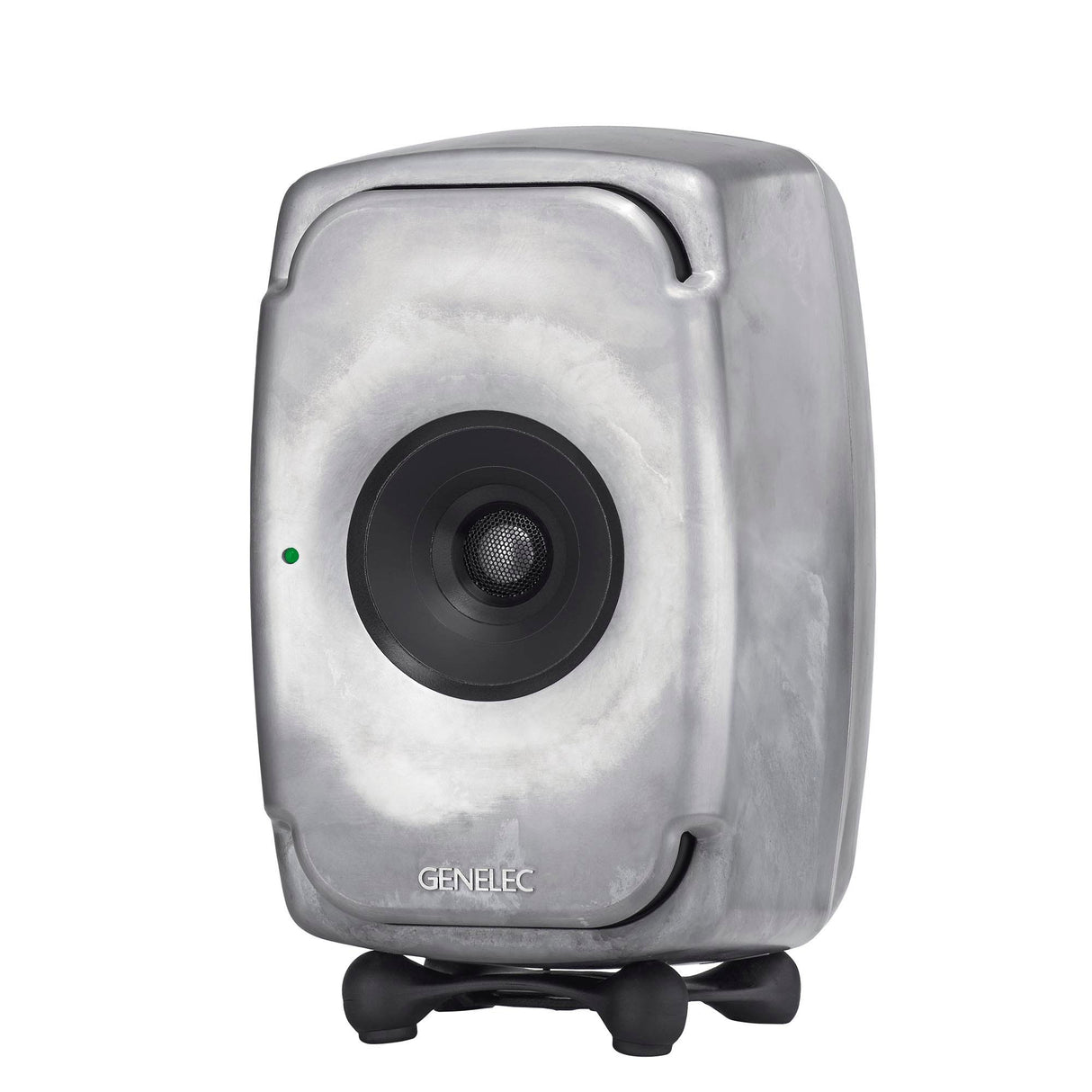

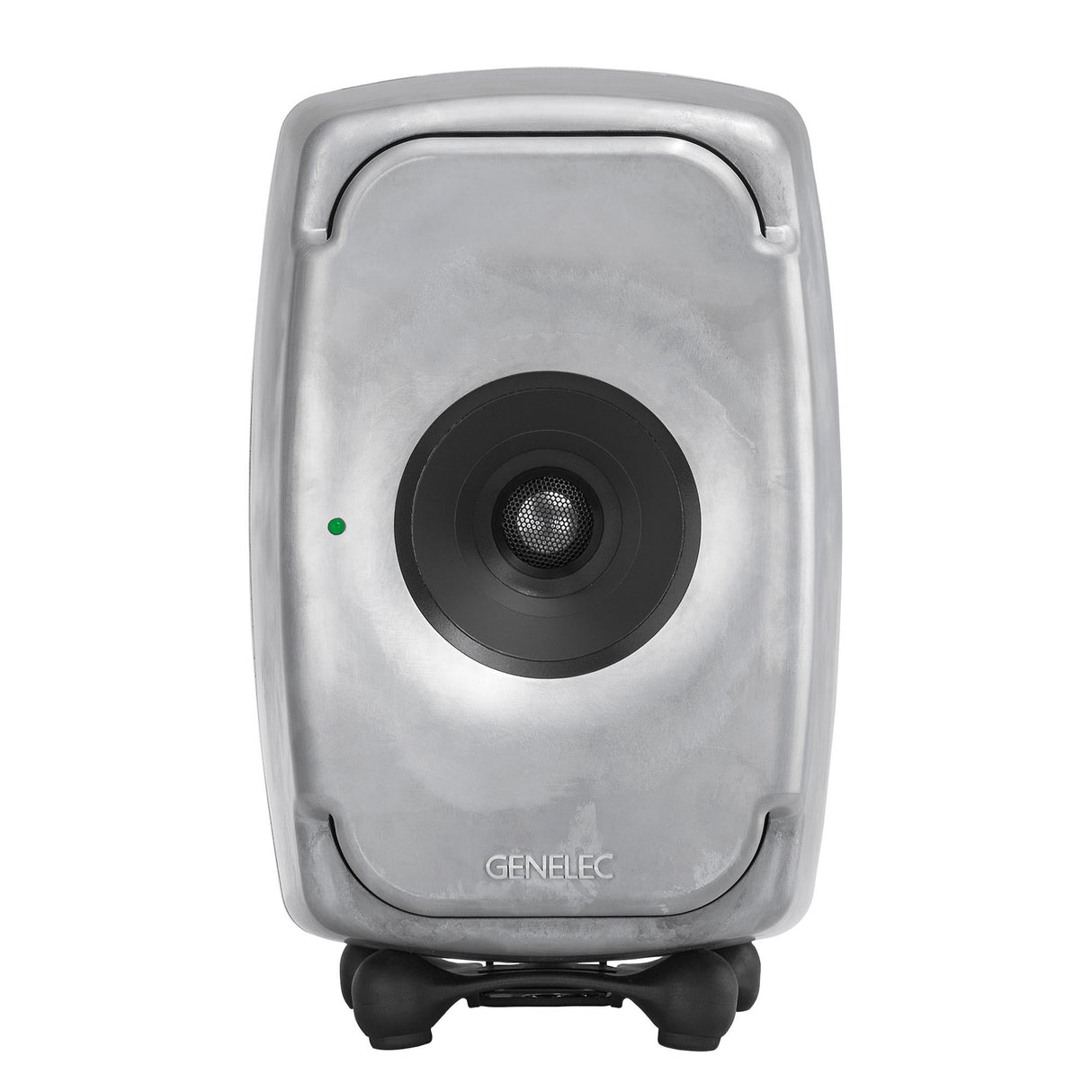

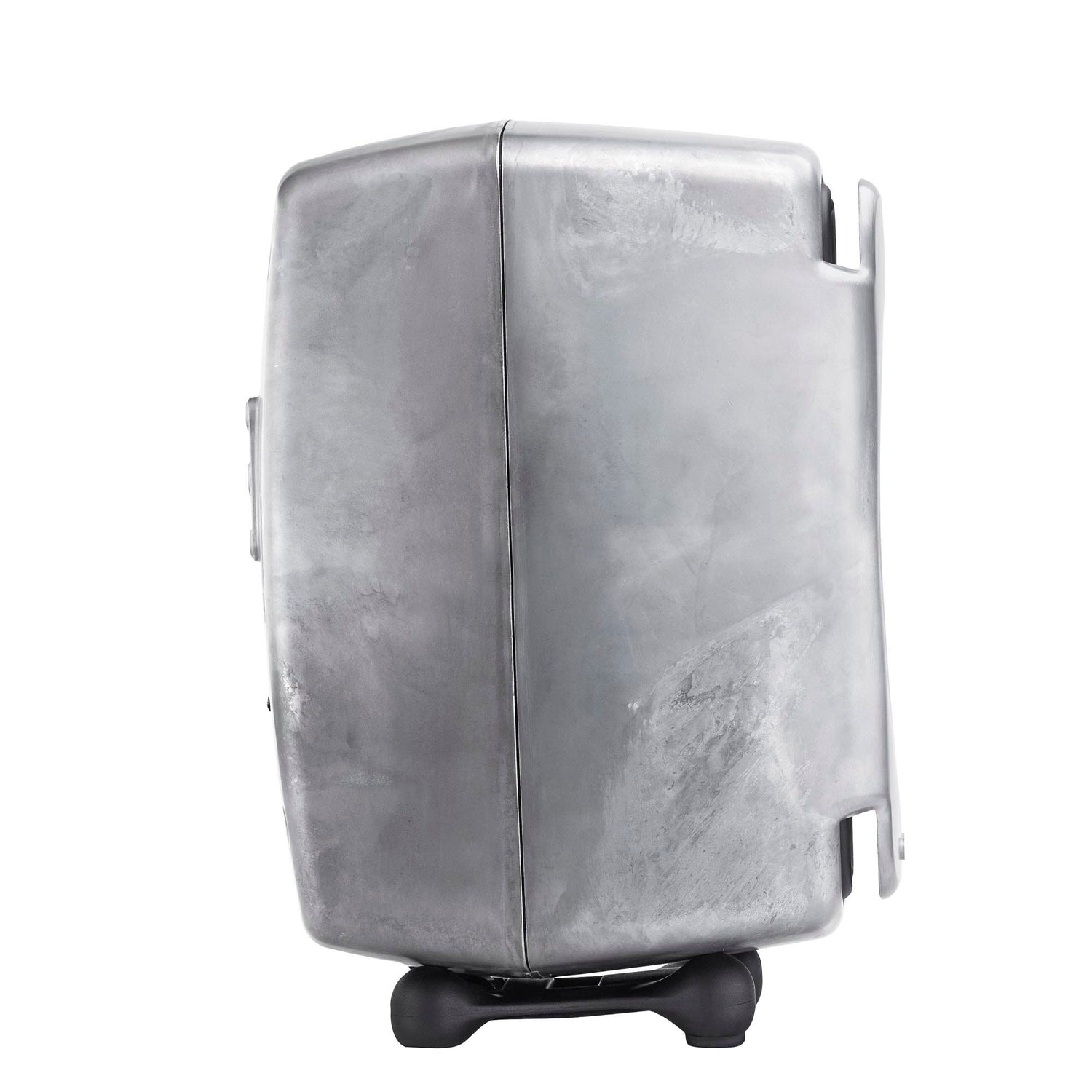

8331ARW

RAW Aluminium Finish
Sustainably unpainted die-cast aluminium housing offers a unique industrial look with reduced environmental impact and added surface durability.

Ultra-Compact 3-Way Design
Combines midrange, treble, and dual concealed woofers in a footprint smaller than most 2-way monitors which is ideal for small rooms and nearfield setups.

Exceptional Frequency Range
Delivers 45 Hz to 37 kHz (−6 dB) with ±1.5 dB precision from 58 Hz to 20 kHz, ensuring accurate tonal balance across all content.

Dedicated Triple Amplification
72 W for bass, 36 W for midrange, and 36 W for treble, all Class D, for clean, efficient performance at any level.

MDC™ Coaxial Driver
Ensures phase-accurate point source performance with ultra-low distortion and fatigue-free listening, even during long sessions.

Acoustically Concealed Woofers (ACW™)
Delivers clean low-end performance without disrupting the mid and high frequencies, enhancing clarity and imaging.

Room-Optimised with SAM™ + GLM™
Works with Genelec Loudspeaker Manager software to automatically calibrate to your room and optimize EQ, timing, and phase response.

Energy-Saving ISS™ Mode
Automatically enters standby at ≤0.5 W power consumption when idle, reducing energy use in professional environments.

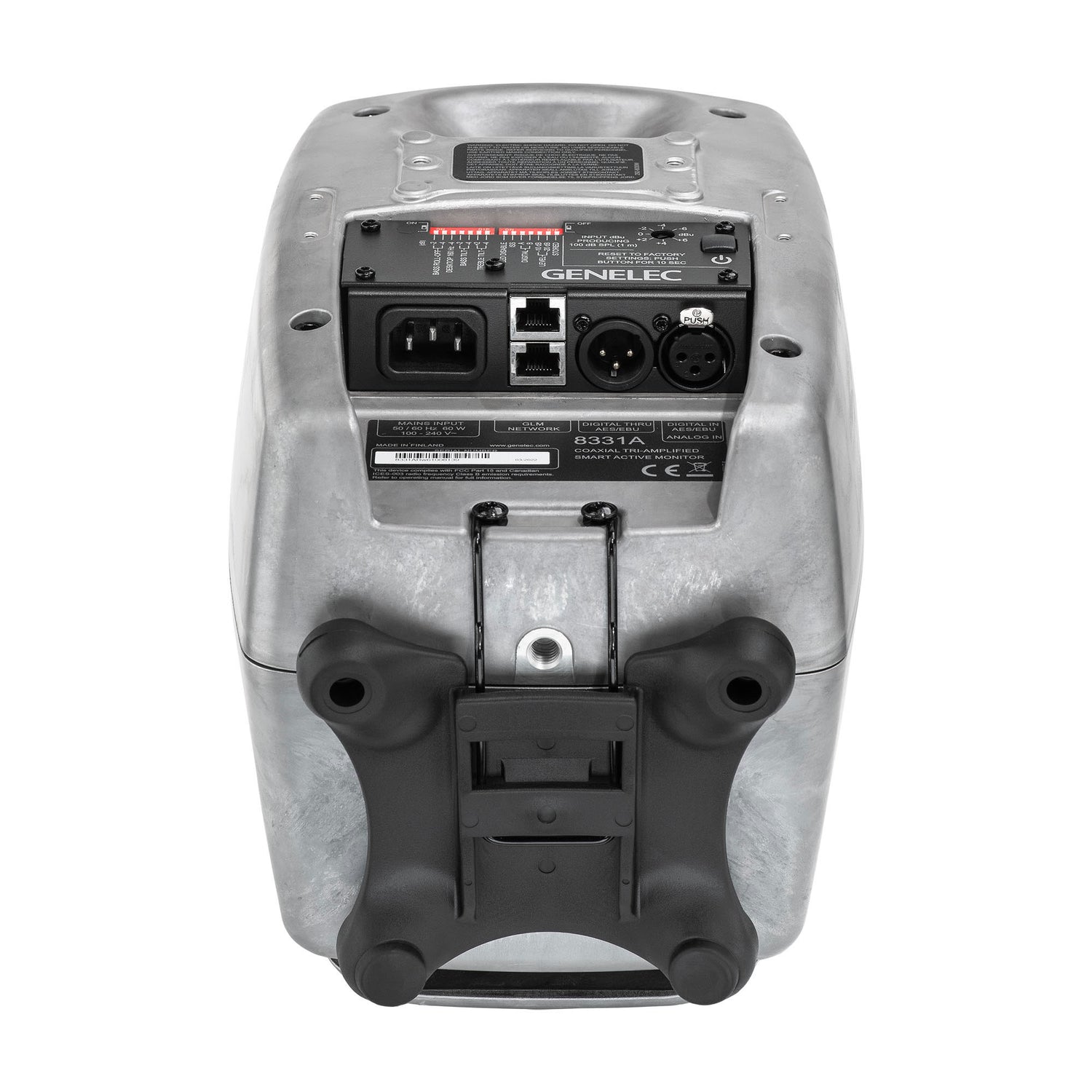

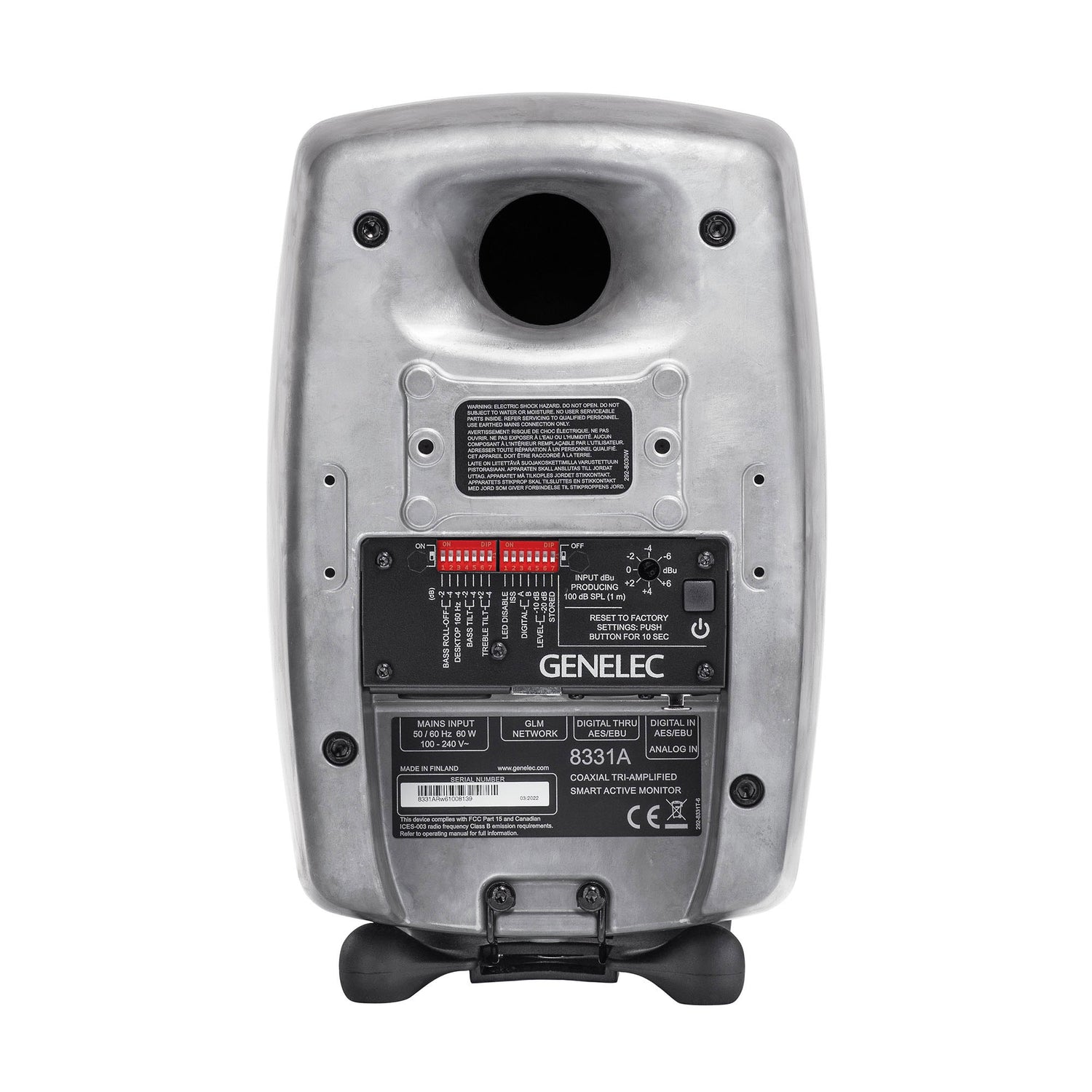

Professional Connectivity
Supports analog XLR input, AES/EBU digital input and output, plus dual RJ45 ports for full GLM system control.

Fully Equipped for Studio Use
Package includes the 8331ARW monitor, Iso-Pod™ stand, mains cable (1.8 m), RJ45 control cable (5 m), operating manual, and The Ones brochure.

General Specifications
Device Type: Three-Way Point Source Active Studio Monitor
Model Variant: 8331ARW SAM™ Studio Monitor RAW Finish
Technology: Smart Active Monitoring (SAM™)
Calibration: GLM™ Room Calibration Compatible
Enclosure Material: Die Cast Aluminium
Enclosure Type: Reflex Port
Finish: RAW (unpainted, environmentally friendly finish)
Construction: Iso-Pod™ Stand Included
Directivity: Horizontal, with DCW™ Technology
Mounting Options: Multiple Compatible Accessories
Weight: 6.7 kg (14.8 lb)
Dimensions: 305 mm (H) x 189 mm (W) x 212 mm (D) with Iso-Pod™

Frequency Response
Response (±1.5 dB): 58 Hz – 20 kHz
Low Cutoff (-6 dB): 45 Hz
High Cutoff (-6 dB): 37 kHz

SPL
Peak SPL: ≥110 dB (per pair with music material at 1 m)
Short Term Max SPL: ≥104 dB (sine wave, 100 Hz–3 kHz at 1 m)
Long Term Max SPL: ≥99 dB (RMS with IEC weighted noise at 1 m)
Self-Generated Noise: ≤0 dB SPL (A-weighted at 1 m)

Harmonic Distortion
50–100 Hz: ≤2%
100 Hz: ≤0.5%

Driver Configuration
Bass Drivers: 2 x 130 mm x 65 mm Racetrack
Midrange Driver: 90 mm Coaxial
Treble Driver: 19 mm Coaxial Metal Dome

Crossover Frequencies
Bass to Mid: 500 Hz
Mid to Treble: 3 kHz

Amplifiers
Bass Amplifier: 72 W Class D
Midrange Amplifier: 36 W Class D
Treble Amplifier: 36 W Class D

Power
Mains Voltage: 100–240 VAC, 50/60 Hz
Power Consumption (ISS Active): ≤0.5 W
Power Consumption (Idle): ≤4 W
Power Consumption (Full Output): 60 W

Latency (Group Delay)
GLM Phase Linearity OFF: 3.2 ms
GLM Phase Linearity ON: 6.9 ms

Input/Output
Analog Input: 1 x XLR Female, Balanced 10 kΩ
Digital AES/EBU Input: 1 x XLR Female, 110 Ω
Digital AES/EBU Output: 1 x XLR Male, 110 Ω
Control: 2 x RJ45 (GLM Network)

Key Technologies
Smart Active Monitoring (SAM™)
GLM™ Calibration
Minimum Diffraction Coaxial (MDC™)
Acoustically Concealed Woofers (ACW™)
Directivity Control Waveguide (DCW™)
Minimum Diffraction Enclosure (MDE™)
Reflex Port Design
Intelligent Signal Sensing (ISS™)
Protection Circuitry
Optimised Class D Amplifiers
Active Crossovers
Iso-Pod™ Acoustic Isolation and Tilt Stand
