Q2 AUDIO  |  SKU: 10847

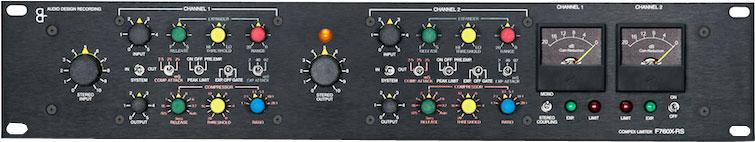

Compex F760X-RS-TX

Dual Compressors

This version of the classic Compex compressor features Jensen input and output transformers, offering balanced I/O, higher headroom and slightly smoother transient response.

$6,265.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Manufactured by Q2 Audio in close collaboration with Audio & Design, this remake of the classic Compex is authentic in every detail and reproduces the exact sonic qualities of the original product.

Using the original discrete analogue circuit design employing a feedback FET technique and maintaining the use of the same components that give this product such a distinctive sound, the new Compex compressor/limiter & expander/gate will add dynamic punch to your sound as well as controlling peak excursions and gating unwanted instrument/vocal artefacts & noise.

The Compex was used by major recording artists worldwide throughout the 60's, 70's, and 80's. This famous, iconic processor was instrumental in shaping the sounds of that era. Now the Compex returns to place it's unique signature on the sounds of today.

Features

Dual channel/stereo level control offering simultaneous compression gain reduction with peak limiting and expansion/gating.

Precision calibrated compressor/limiter threshold control which allows the user to "dial up" the amount of compression required before peak limiting occurs.

Switched Compression values from 1:1 (amplifier), 2:1, 3:1, 5:1, 10:1 & 20:1 (limiter).

Ultra fast compressor and expander attack values.

Auto dual platform release function - allows fast transient recovery on a "build-up" slow release.

Specifications

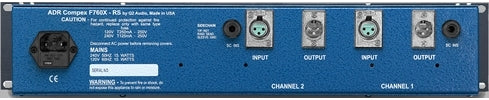

Inputs


3 pin XLR - Unbalanced - (pin 2 hot). Nominal imp 10K.

Side Chain Insert


Compressor side chain insert: Normalised 3 pole jack (type B) Tip= return, Ring= send, Sleeve= Ov.

Output


3 pin XLR - Unbalanced (pin 2 hot). Source Imp < 1; Maximum output level normally +18dBu - unbalanced. /T option with balancing transformers +22dBu, source Imp < 75.
*/T option: Balanced input/output fully isolated transformers to order.

System Gain


34dB with input/output attenuators fully open. Unity gain in Bypass mode.

Thresholds


Peak Limiter: +14dBu maximum with unattenuated output. Referred to unattenuated input level 20dBu.

Compressor


Calibrated with reference to Peak Limiter thresholds and marked 0 - 20dB in 2dB steps. (Reference to
unattenuated input level this is -20dBu to -40dBu).

Expander/Gate


-40dBu to +14dBu, with reference to input.

Release


Peak Limiter: 250mS,
Compressor: 25mS, 50mS, 100mS, 200mS, 400mS, 800mS, 1.6 secs, 3.2 secs + Auto release function.
Expander/Gate: Continuously variable from 25mS to 5 secs.

Attack


Peak Limiter: < 250uS for 100% control of overshoot - without any over limiting. (measured at 1KHz for 10dB gain reduction).
Compressor: 250uS, 2.5mS, 25mS.
Expander/Gate: 20uS, 2mS, 40mS.

Distortion


Measured at 1KHz for 10dB compression & 3.2 secs release time.
Compressor: at +10dBu threshold <0.1% (typically 0.04%).
Peak Limiter: at +14dBu threshold <0.3%.

Frequency Response


Unbalanced: 30Hz - 20KHz, +0dB, -0.5dB.
Balanced (/T option): < -1dB at 30Hz & 20KHz.

Signal - Noise Ratio


Referred to Peak Limiter threshold level as set by output attenuator: better than -80dB; with Expander operational, better than -87dB
(Measured with low pass filter -3dB at 25HKz).

Stereo Matching


Control volts matching on compressor and expander sections to within ±1dB of each other, consequently no image shift during operation.

Selectable Peak Limiter operation


Peak Limiter on - off or Pre-emph (50uS time constant).

Indicators


Overall Gain Reduction Meter scaled 0 - 20dB in 4dB divisions. White scale on black background with yellow pointer.
Peak Limiter operating: Red indicator.
Compressor operating: Orange indicator.
Expander/Gate operating: Green indicator.

Power


110v - 240vac 50/60Hz - Selectable working voltage for 110 -120v & 220 - 240v.

Size


482.6mm (19) wide x 88.9mm (2U) high x 229mm deep.

Weight


3.5Kg (net).
