U4V

Name: U4V
Brand: MIDDLE ATLANTIC
SKU: 9626
Price: 154.00 CAD
Availability: InStock

4 RU vented utility rackshelf, welded steel construction, 85 lb capacity, rear retaining brackets, optional clamp compatibility

$154.00 CAD

Shipping calculated at checkout.

Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

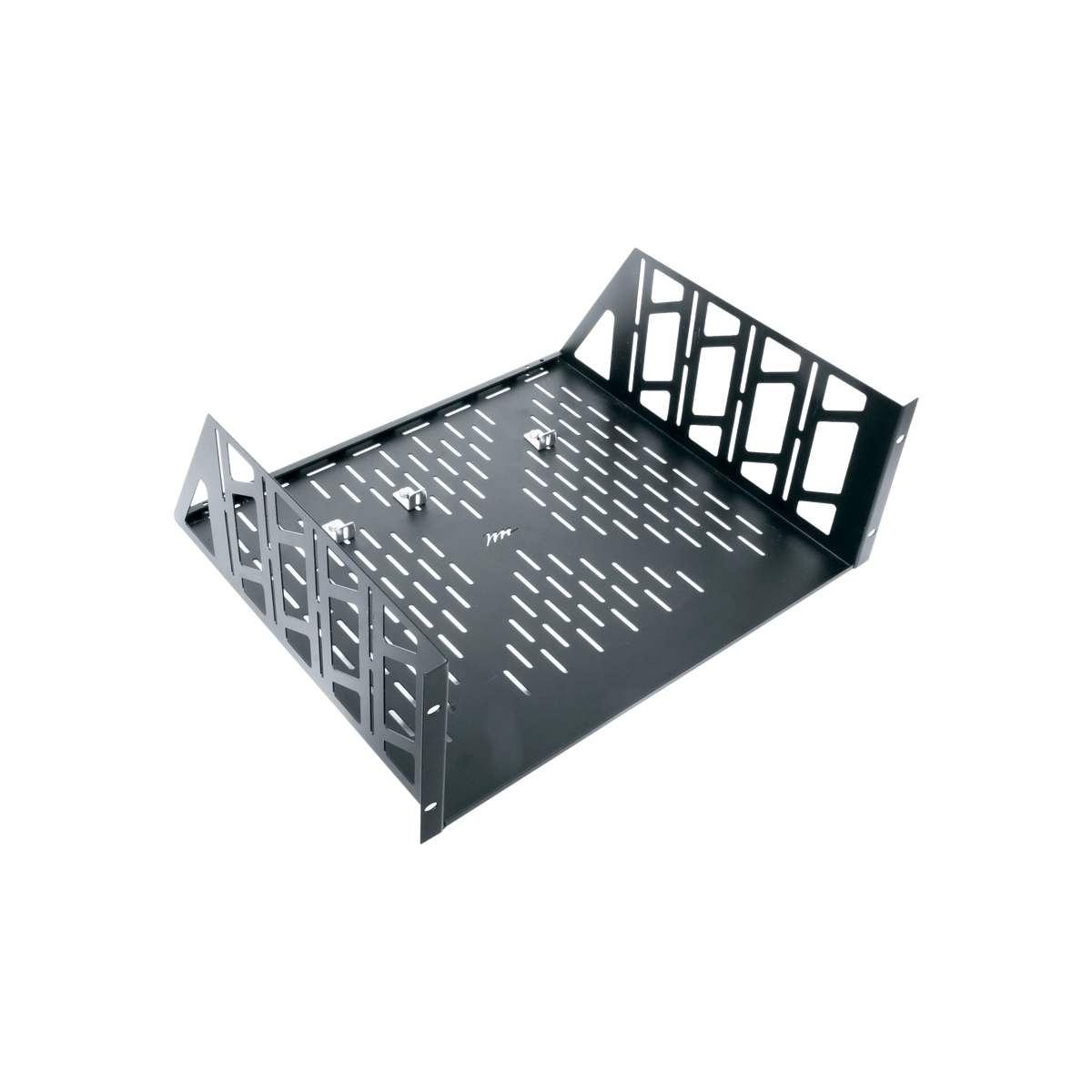

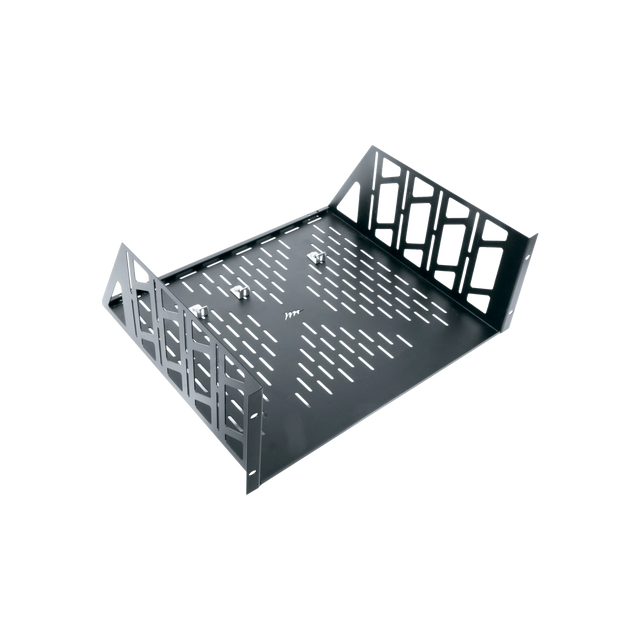

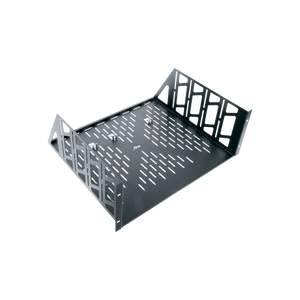

The U4V is a 4 RU utility rackshelf designed to support non-rackmount components within standard 19-inch equipment racks. Its welded steel construction provides a sturdy mounting surface, while the fully vented bottom and sides promote heat dissipation around installed equipment.

With an 85 lb weight capacity and 15.5-inch usable depth, the U4V accommodates a range of rack system components. Three rear brackets help prevent equipment from sliding backward, while optional clamping bars can be added for additional security. The shelf also accepts the PD-815SC-PBSH power strip for convenient rack-based power distribution.

Features

4 RU Rackmount Design
Fits standard 19-inch equipment racks while providing 4 RU of vertical space for supported components.

Fully Vented Construction
Vented bottom and sides promote airflow and heat dissipation around installed equipment.

Welded Steel Build
Steel construction with a black powder coat finish provides durable equipment support.

85 lb Weight Capacity
Supports components weighing up to 85 lbs.

15.5-Inch Usable Depth
Provides 15.5 inches of usable shelf depth for non-rackmount equipment.

Rear Retaining Brackets
Includes three rear brackets to help prevent components from sliding backward.

Optional Clamping Support
Accepts optional clamping bars to secure components to the shelf.

Power Strip Compatibility
Accepts the PD-815SC-PBSH power strip for integrated rack power distribution.

UL Listed
UL Listed for compliance with applicable certification requirements.

Specifications

General Specifications
Product Type: Utility rackshelf
Rack Units: 4 RU
Package Count: 1
Vented: Yes
Mounting Points: 2

Dimensions & Capacity
Depth: 15.88 in (40.3 cm)
Usable Depth: 15.5 in (39.4 cm)
Height: 7 in (17.8 cm)
Width: 19 in (48.3 cm)
Weight Capacity: 85 lbs (38.6 kg)

Construction
Material: Steel
Construction: Welded
Finish: Black powder coat

Compatibility
Optional Accessories: Clamping bars
Compatible Power Strip: PD-815SC-PBSH

Certifications
Certifications: UL Listed
