PlayAudio2U

Dual Computer Support
Connect two computers at once for seamless audio switching during live performances.

24 Analog Audio Outputs
Route up to 24 channels of high-quality audio to external gear using XLR line outputs.

Independent Headphone Mixes
Monitor with two separate stereo headphone mixes using the front-panel headphone jack.

Built-in MIDI Ports
Connect MIDI devices using standard 5-pin DIN inputs and outputs on both front and rear panels.

USB MIDI Host Capability
Connect up to 8 MIDI devices via 4 USB host ports and a powered USB hub.

Network MIDI Integration
Use RTP-MIDI over Ethernet for long-distance or advanced MIDI routing.

Footswitch & Button Control
Use programmable control buttons or footswitches for scene switching and other MIDI actions.

Failover System
Ensures uninterrupted playback by automatically or manually switching to a backup computer.

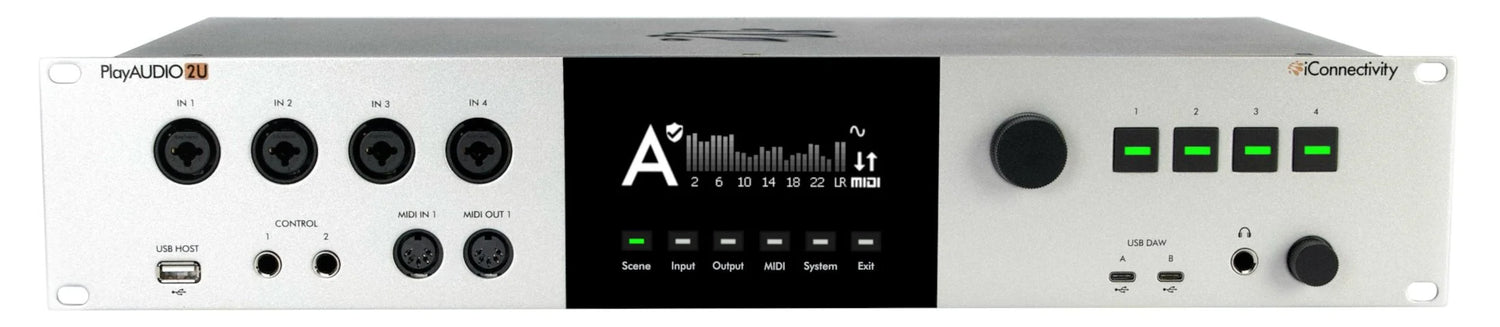

User-Friendly Interface
High-definition OLED screen and touch panel with rotary encoders make navigation simple.

Software Control with Auracle X
Configure routing, MIDI, and failover settings easily with iConnectivity's Auracle X software.

Rackmount Design
Fits into standard 19” racks for professional touring or studio use.

High-Resolution Audio
Supports clear, detailed sound up to 24-bit / 96kHz quality.

General Specifications
Device Type: USB Audio + MIDI Interface
Compatibility: macOS 10.13+, Windows 10+, iOS (USB-C), Android 8.0+ (USB-C)
Form Factor: 19” Rackmount
Display: High-resolution OLED
User Controls: Touch panel, multifunction rotary encoder, headphone rotary encoder
Software: Auracle X (Mac/Windows)
Failover System: Automatic and Manual Scene Switching
Scene Support: Dual scene (A/B) with visual indicators
Construction: Metal chassis
Dimensions: 19” (W) x 3.43” (H) x 7.87” (D)
Weight: 8.38 lbs (3.8 kg)

Audio
Digital Resolution: 24-bit
Supported Sample Rates: 44.1, 48, 88.2, 96 kHz

Line Outputs
Type: 24 XLR Balanced Analog Outputs
Max Output Level: +16 dBu, 13.83 Vp-p Balanced
D-A Dynamic Range: 115 dB (A-weighted, -60dBFS)
D-A S/N Ratio: 115 dB (A-weighted)
D-A THD+N: -107 dB
Interchannel Isolation: 110 dB (1 kHz, typical)

Headphone Output
Connector: ¼” Stereo
Independent Mixes: Two
Max Output Level: 100 mW per channel, 5.1 Vp-p into 32-ohm load
D-A Dynamic Range: 108 dB (A-weighted, -60dBFS)
D-A S/N Ratio: 108 dB (A-weighted)
D-A THD+N: -91 dB

MIDI
DIN Ports: 2x IN, 2x OUT (1 front, 1 rear each)
RTP-MIDI Ports: 2 Ethernet
USB MIDI Host Ports: 4 (supports up to 8 class-compliant devices via hub)
Max MIDI Ports per Device: 16
Total MIDI Channels: 256

Input/Output (Analog)
Front Inputs: XLR/TRS Combo Jacks with 48V Phantom and Hi-Z
Headphone Rotary Encoder: Output volume control, mute/unmute function

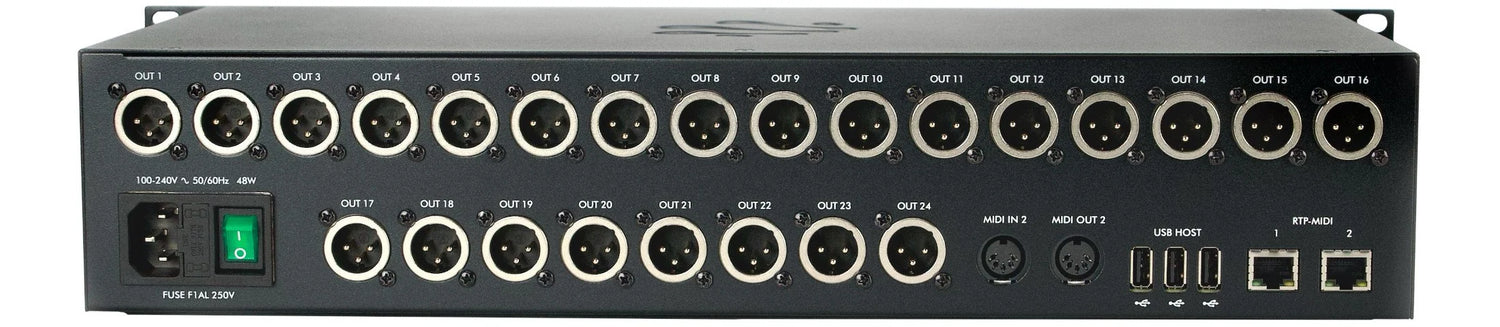

Rear Outputs: 24 Balanced XLR

Control
Control Buttons: 4 programmable (Note On/Off, CC/PC, spacebar, etc.)
Control Ports: 2 footswitch inputs (MIDI mappable)
Scene Button: A/B toggle with visual feedback
Failover Trigger: Tone check or MIDI stream detection

Connectivity
USB-C Ports: 2 for DAW (Computer A/B)
USB Host Port Power: +5V DC, 500 mA max
Power Input: 100–240V AC, 50–60 Hz, 48W
Fuse: 1A Slow-Blow
