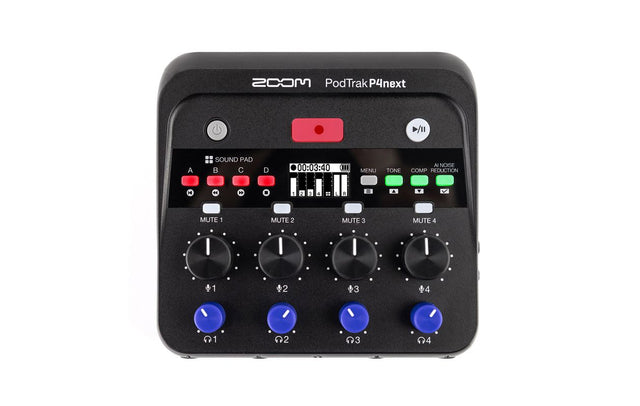

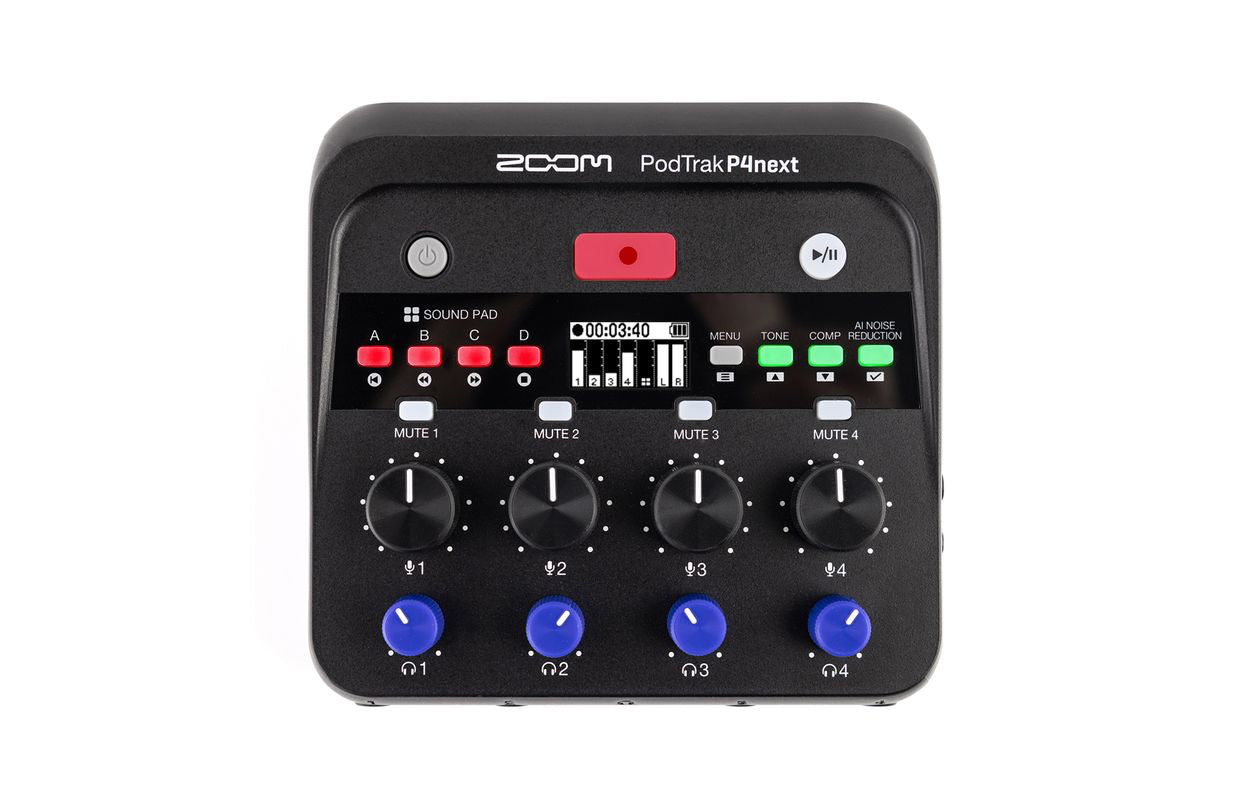

PodTrak P4next

Multiple Input Channels
Connect up to four mono or stereo sources for flexible recording options.

Independent Headphone Outputs
Four separate headphone outputs allow individual monitoring for each participant.

Simultaneous Multitrack Recording
Record up to twelve audio tracks at once for detailed post-production flexibility.

Dual Playback Capability
Play back two audio tracks at the same time while recording or editing.

High-Quality Audio Recording
Capture clear sound in WAV format with professional-level resolution.

MicroSD Storage Support
Store recordings on microSDHC or microSDXC cards for easy file management.

Compact Display
Built-in OLED screen provides a clear, easy-to-read interface in all lighting conditions.

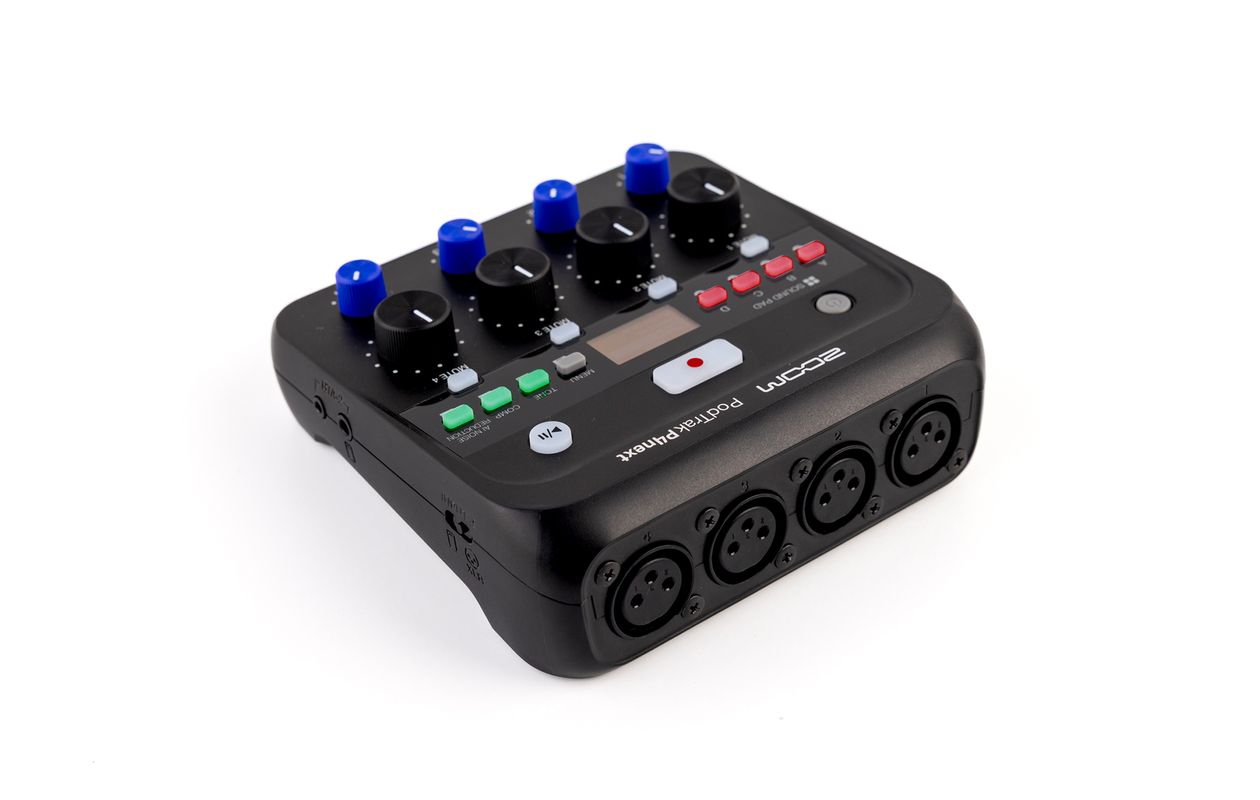

Versatile Audio Inputs
Includes four XLR connectors with adjustable gain and phantom power support.

Smartphone Connectivity
Connect a phone via TRRS jack for calls or additional audio input/output.

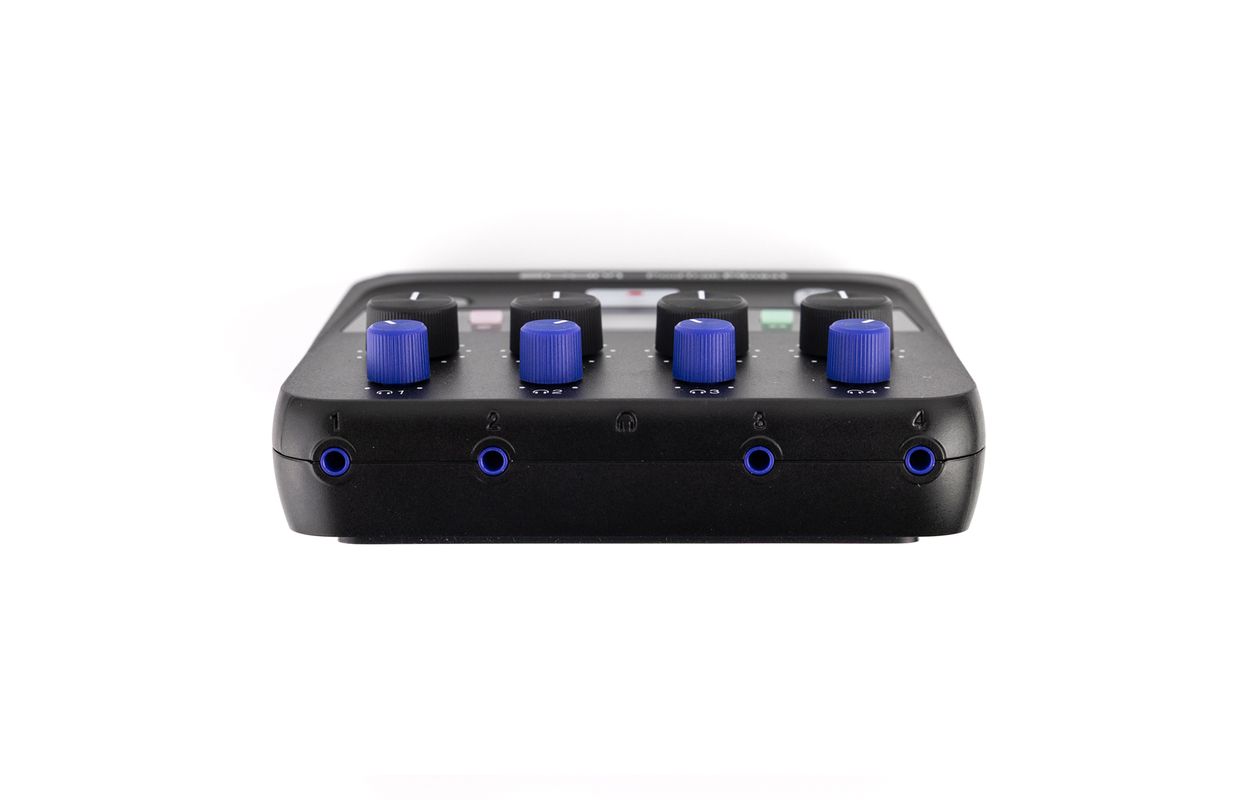

Four Headphone Jacks
Each listener gets their own stereo headphone output for private monitoring.

Built-In Audio Effects
Enhance recordings with onboard tone control, compression, and noise reduction.

USB Audio Interface
Functions as a 12-in/2-out USB audio interface for use with computers or mobile devices.

Direct File Transfer
Easily transfer recordings via USB connection without removing the SD card.

Flexible Power Options
Runs on AA batteries, USB power, or bus power from a connected device.

Portable and Lightweight
Compact size and light weight make it easy to carry and set up anywhere.

Battery-Friendly Operation
Get extended recording time with lithium batteries, even when using dynamic mics.

General Specifications
4 mono/stereo input channels
4 stereo headphone output channels
Recorder with 12 simultaneous recording tracks
2 simultaneous playback tracks
Recording format: 48 kHz / 24-bit WAV (Stereo/Mono)
Recording media: microSDHC, microSDXC
128×64 OLED display
Dimensions: 125.9 mm (W) × 120 mm (D) × 40 mm (H)
Weight (with batteries): 300 g

Inputs
Connectors: XLR × 4 (XLR: 2 HOT)
Input gain: −∞ to +70 dB
Input impedance: 3 kΩ or more
Maximum input level: 0 dBu
Phantom power: +48 V
Smartphone input connector: TRRS mini jack (4 contacts)
Smartphone input impedance: 2.7 kΩ or more
Smartphone maximum input level: +3 dBu

Outputs
Headphone connectors: Stereo mini jack × 4
Maximum headphone output level: 6 mW + 6 mW (per output into 32 Ω load)
Headphone output impedance: 10 Ω or less
Smartphone output impedance: 100 Ω or less
Smartphone maximum output level: −24 dBu

Effects
TONE
COMP
AI NOISE REDUCTION

USB Interface
USB Type-C connector
USB 2.0 High Speed (Audio and Data Transfer)
Audio interface: 12 in / 2 out
Sampling frequency: 48 kHz
Bit depth: 24-bit
File transfer: USB 2.0 High Speed

Equivalent Input Noise
EIN: −125 dBu or less (IHF-A) at +70 dB / 150 Ω input

Power

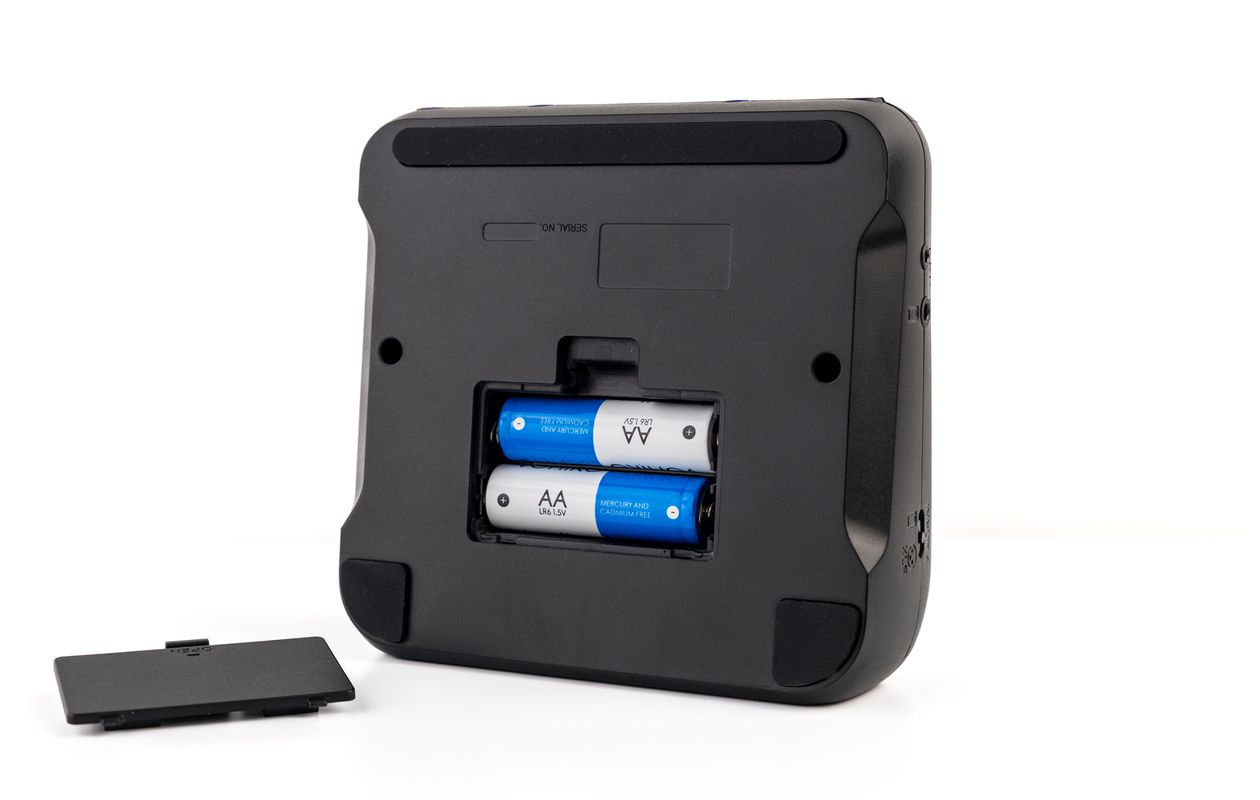

Power supply: 2 × AA batteries (Alkaline, Lithium, or NiMH)
USB DC 5V power via USB Type-C (12W or higher USB AC adapter, 5V 2.4A or higher)
USB bus power supported
Power consumption: 5 W max

Battery Life (Dynamic Mics, Phantom Power OFF)
Alkaline batteries: ~3.5 hours
NiMH batteries (1900 mAh): ~4 hours
Lithium batteries: ~8.5 hours

Battery Life (Condenser Mics, Phantom Power ON)
Alkaline batteries: ~20 minutes
NiMH batteries (1900 mAh): ~1.5 hours
Lithium batteries: ~2.5 hours
