RME  |  SKU: 24790

Digiface AVB

USB

256-channel AVB over USB 3.0, 192 kHz support, TotalMix FX, word clock I/O, DC-coupled phones out, gigabit Ethernet, AVDECC controller

$1,595.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

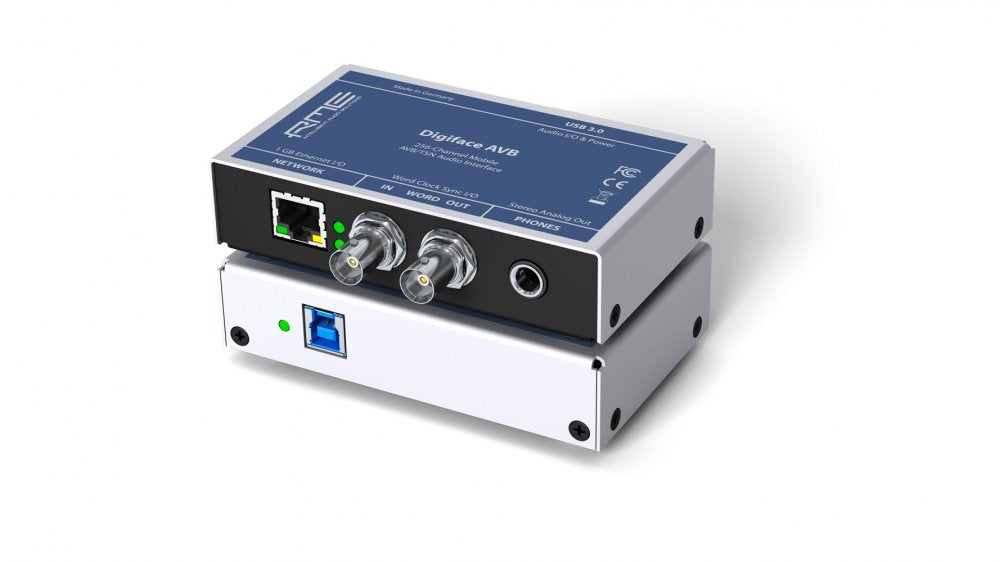

The RME Digiface AVB is a high-performance 256-channel USB 3.0 audio interface designed to bridge your computer and AVB (Audio Video Bridging) networks with exceptional speed, flexibility, and reliability. Using the open IEEE AVB protocol, it supports up to 128 channels of simultaneous input and output at 48 kHz, scaling to 64 channels at 96 kHz or 32 channels at 192 kHz, ensuring compatibility with a wide range of professional workflows.

Its Gigabit Ethernet connection handles all network audio traffic, while a dedicated headphone output with DC-coupled design enables direct, high-quality monitoring. RME's TotalMix FX software provides comprehensive routing, monitoring, and control without channel count limitations, and integration with TotalMix Remote allows complete system control from iOS, PC, or Mac anywhere on the network. The included AVDECC controller simplifies device discovery and stream management, making it easy to connect with other AVB gear.

Robust build quality, word clock I/O, ARC USB support, and RME's renowned low-latency drivers make the Digiface AVB a powerful hub for studio, live sound, or broadcast environments adopting network-based audio systems.

Features

Transfers up to 256 audio channels between computer and AVB network.

Open AVB protocol for wide compatibility with AVB audio devices.

High-quality headphone output for direct monitoring.

Includes TotalMix FX for advanced routing and monitoring control.

Word Clock I/O for precise sync with other devices.

Gigabit Ethernet connection for stable, high-speed network audio.

Bundled with AVDECC controller software for device discovery and stream management.

DC-coupled outputs on the headphone jack for versatile signal use.

Specifications

General Specifications:

Model: Digiface AVB

Type: 256 channel USB audio interface with AVB networking

Form Factor: Compact desktop unit

Weight: 300 g / 0.49 lbs

Dimensions (W - H - D): 112 - 26 - 83 mm / 4.41 - 1.02 - 3.27 in

Power: USB bus powered (1.5 W typical, 2 W max)

Operating temperature: +5C to +50C

Relative humidity: < 75%, non-condensing

Connectivity:

1 - Gigabit Ethernet port (RJ45, 100 Mbit/s, 1 Gbit/s, Auto MDI-X)

Up to 16 AVB audio streams (AVDECC control)

1 - Phones output (6.3 mm TRS, unbalanced, channels 33/34)

Word Clock I/O (BNC, switchable termination)

Audio Performance (Phones Output):

Dynamic range: 110 dB RMS unweighted, 113 dBA

Frequency response: @ 44.1 kHz: 0 Hz " 20.8 kHz ("0.5 dB), @ 96 kHz: 0 Hz " 45 kHz ("0.5 dB), @ 192 kHz: 0 Hz " 89 kHz ("1 dB)

THD @ "1 dBFS: "96 dB (0.0016%)

THD+N @ "1 dBFS: "95 dB (0.0017%)

Channel separation: > 100 dB

Output impedance: 2 Ω

Output level @ 0 dBFS, 1 kΩ load: +9.5 dBu

Max power @ 0.1% THD: 50 mW

Digital Audio Specifications:

Supported sample rates: 44.1 kHz " 192 kHz

Clock sources: Internal, AVB, Word Clock

Word Clock In: BNC, 10 kΩ, switchable 75 Ω termination, auto double/quad speed detection

Word Clock Out: BNC, max 5 Vss, 4.0 Vss with 75 Ω termination, 10 Ω impedance
