RME  |  SKU: 17939

Fireface UCX II

USB

40-Channel Advanced USB Audio Interface

$2,500.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

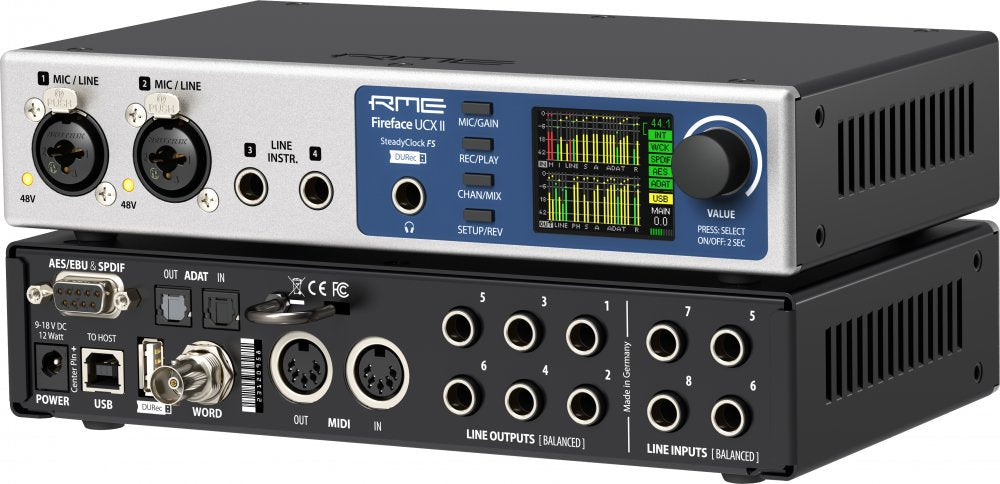

The Fireface UCX II is a highly integrated pro audio solution in an ultra-compact format for studio and live recordings. It continues RME's long tradition of designing compact advanced interfaces, packing into a half-rack size unit what usually would be spread out over two or three 19 inch panels.

Specifications

AD, Line In 5-8, rear:


Signal to Noise ratio (SNR): 111 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 6 Hz - 20.6 kHz
Frequency response @ 96 kHz, -0.5 dB: 6 Hz - 45.3 kHz
Frequency response @ 192 kHz, -1 dB: -1 dB: 5 Hz - 90 kHz
THD: < -105 dB, < 0.0005 %
THD+N: < -98 dB, < 0.0012%
Maximum input level: +19 dBu
Channel separation: > 110 dB
Input: 6.3 mm TRS jack, electronically balanced
Input sensitivity switchable to Lo Gain, +4 dBu, -10 dBV
Input level for 0 dBFS @ Lo Gain: +19 dBu
Input level for 0 dBFS @ +4 dBu: +13 dBu
Input level for 0 dBFS @ -10 dBV: +2 dBV

Line In 3-4, front:


As AD, but:
Additional Gain stage: 0 up to +12 dB
Maximum input level, Lo Gain, Gain 0 dB:
Line +19 dBu, Inst +13 dBu
Maximum input level, -10 dBV, Gain 12 dB, Line:
-7,5 dBu, Inst: -13,5 dBu
Input impedance Inst: 470 kOhm
Input Gain Inst: +6 dB
Input mode: Line balanced (TRS), Inst unbalanced (TS)
CLIP LED: 0 dBFS
SIG LED: -60 dBFS

Microphone/Line 1-2, front:


as AD Line In 5-8, but:
Input: Neutrik XLR/TRS Combo jack, electronically balanced
Input impedance: XLR 2 kOhm, TRS 8 kOhm balanced
Signal to Noise ratio (SNR): 112 dB RMS unweighted, 115 dBA
Low Roll Off -0.5 dB: 18 Hz, -1 dB: 12 Hz
Gain range: 0 dB, +10 up to +65 dB
Maximum input level XLR, Gain 0 dB: +10 dBu
Maximum input level XLR, Gain 65 dB: -55 dBu
Maximum input level TRS, Gain +0 dB: +21 dBu
Maximum input level TRS, Gain +65 dB: -44 dBu
CLIP LED: 0 dBFS
SIG LED: -60 dBFS

DA, Line Out 1-6, rear:


Dynamic range (DR): 111 dB, 113 dBA @ 44.1 kHz (unmuted)
Frequency response @ 44.1 kHz, -0.1 dB: 8 Hz - 20.4 kHz
Frequency response @ 96 kHz, -0.5 dB: 6 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 6 Hz - 90 kHz
THD: -100 dB, < 0.001 %
THD+N: -96 dB, < 0.0015 %
Channel separation: > 110 dB
Maximum output level: +19 dBu
Output: 6.3 mm TRS jack, servo-balanced
Output impedance: 75 Ohm
Output level switchable: Hi Gain, +4 dBu, -10 dBV
Output level at 0 dBFS @ Hi Gain: +19 dBu
Output level at 0 dBFS @ +4 dBu: +13 dBu
Output level at 0 dBFS @ -10 dBV: +2 dBV

DA - Phones, 7/8, front:


As DA, but:
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 30 Ohm

Word Clock:


BNC, switch for internal termination 75 Ohm
