ROLAND  |  SKU: 17033

XS-1HD

Switchers

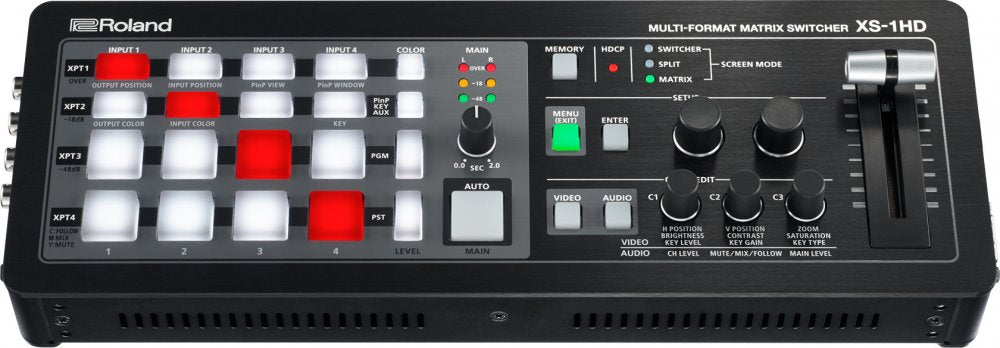

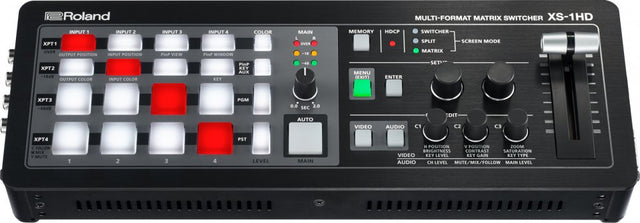

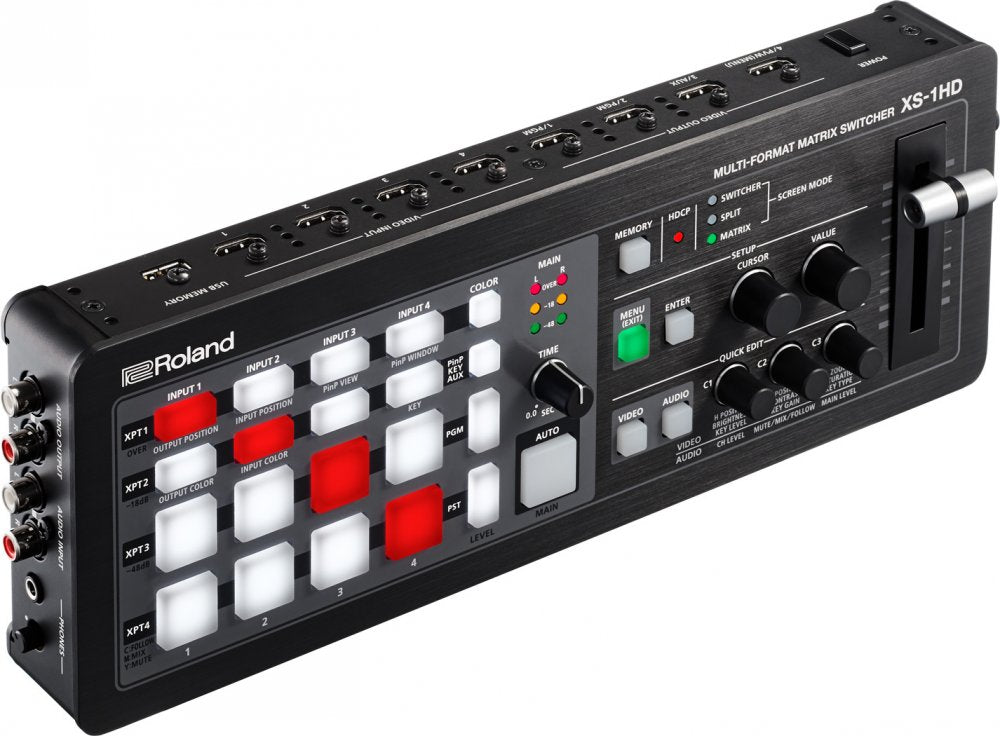

The Roland XS-1HD is a Multi-format Matrix Switcher

$2,899.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

A versatile and compact switcher with muti-screen output and video compositing. A Multi-format Matrix Switcher with scalers that supports up to full HD.

Features

A table-top matrix switcher that's the width of a 13" laptop, equipped with four HDMI inputs and outputs

High-quality 4:4:4/10-bit processing at up to WUXGA/1080p

Frame synchronizer and scaler on all inputs

Three operation modes Matrix Mode allow switching of 4 sources to any of 4 outputs

Switcher Mode allows PinP, key-compositing, and dissolve transitions

Split Mode allows PinP of up to three inset windows

Built-in eight-channel digital audio mixer handles audio from four HDMI signals and stereo analog input

Built-in EDID emulator, and HDCP-compliant

Specifications

VIDEO


Processing:
4:4:4 (Y/Pb/Pr, RGB) /10 bits
4:2:2 (Y/Pb/Pr) /10 bits

Input Connectors:

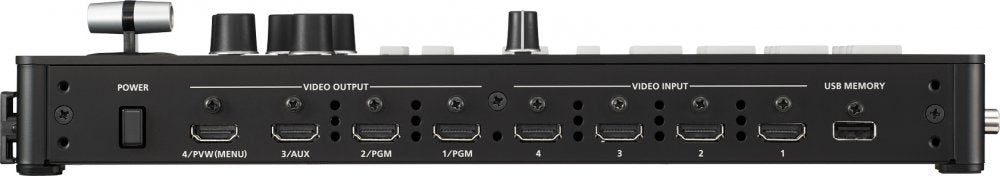

HDMI : HDMI type A x 4 (HDMI INPUT 1--4)
*HDCP Supported

Output Connectors
HDMI : HDMI type A x 4 (HDMI OUTPUT 1--4)
*HDCP Supported

Formats: 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB

Effects
Output Mode : Switcher, Split, Matrix
Transition : Mix, Cut (*3)
Composition (Keyer) : 1 (*3)
Others : HDCP Supported, Test Pattern Generator.
(*3) These effects depends on Output Mode.

Still Image
Internal Memory : 1
Maximum Size : 1920 x 1200 pixels
Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed

AUDIO


Sampling Rate: 24 bits/48 kHz
Input Connectors: HDMI : HDMI type A x 4

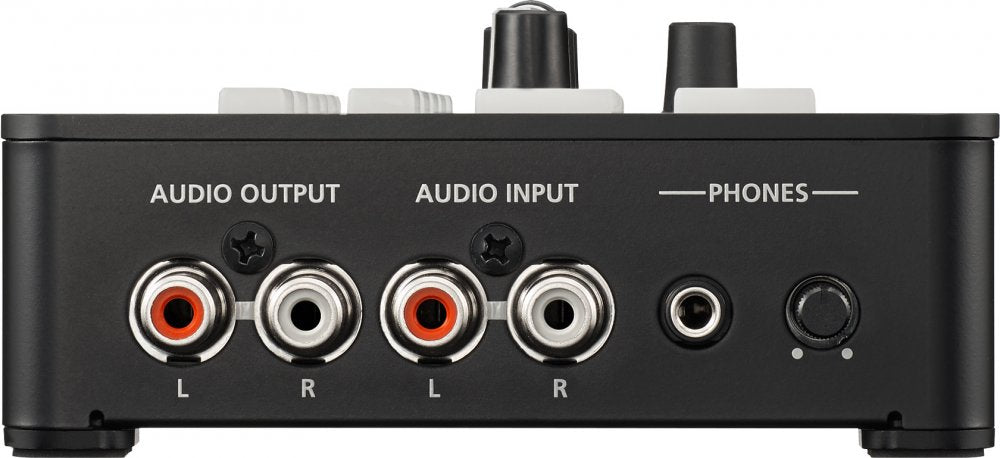

AUDIO INPUT : RCA pin type
Output ConnectorsHDMI : HDMI type A x 4
AUDIO OUTPUT : RCA pin type
PHONES : Stereo mini typeInput Level
AUDIO INPUT : -10 dBu (Maximum : +8 dBu)Input Impedance
AUDIO INPUT : 15 k ohmsOutput

Level
AUDIO OUTPUT : -10 dBu (Maximum : +8 dBu)
PHONES : 72 mW + 72 mW (32 ohms)Output ImpedanceAUDIO OUTPUT : 1 k ohm
PHONES : 10 ohmsFormatsHDMI : Linear PCM, 24 bits, 48 kHz, 2 chProcessingMixer : 4 ch (Delay : Maximum 500 ms, Audio Follow)
Test Tone Generator

OTHERS


External Connectors:

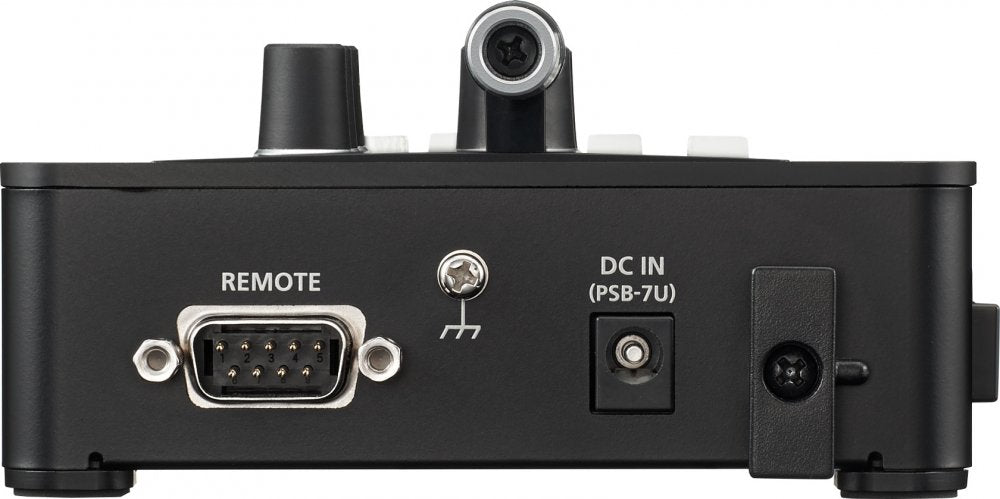

REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control
USB MEMORY : USB A type x 1 (USB Memory)

Preset Memory: 16
*Auto Memory Function
Power Supply: AC Adaptor
Current Draw: 2.1 A
Power Consumption: 25 W

Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

Dimensions
328 (W) x 117 (D) x 57 (H) mm
12-15/16 (W) x 4-5/8 (D) x 2-1/4 (H) inchesWeight1.2 kg
2 lbs 11 oz

Accessories
Owner's Manual
AC adaptor
Power cordNotes* 0 dBu = 0.775 Vrms
